SKU: 27380
Part Number: DC BUCK Adapter (7.2V)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/DC_BUCK_Adapter_(7.2V) Serial Bus Servo DC Buck Adapter, Mini Module, Design For Serial Bus Servos, Easy To Use, 7.2V Buck Regulator

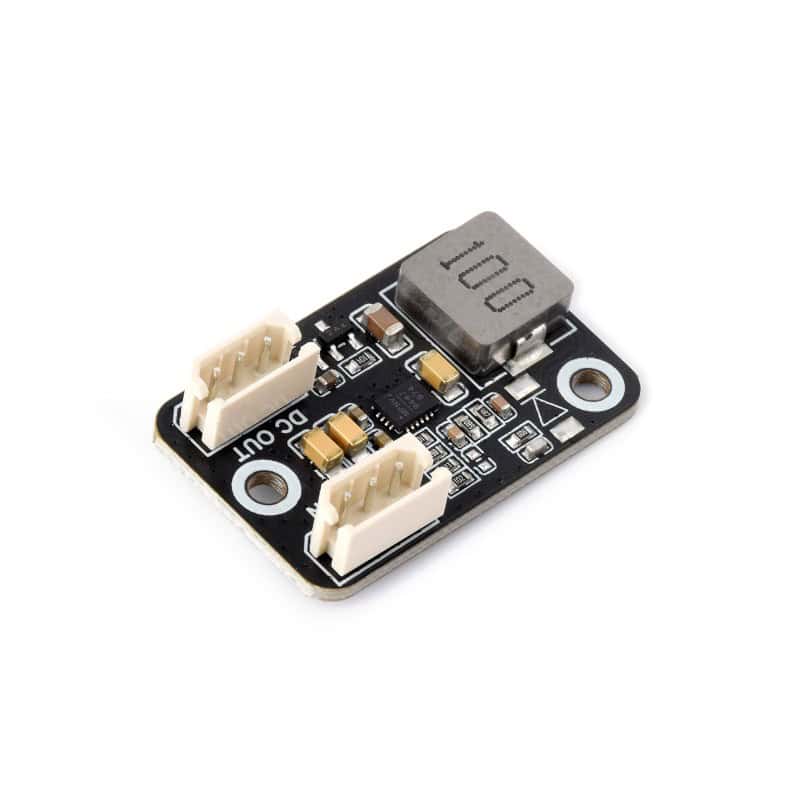

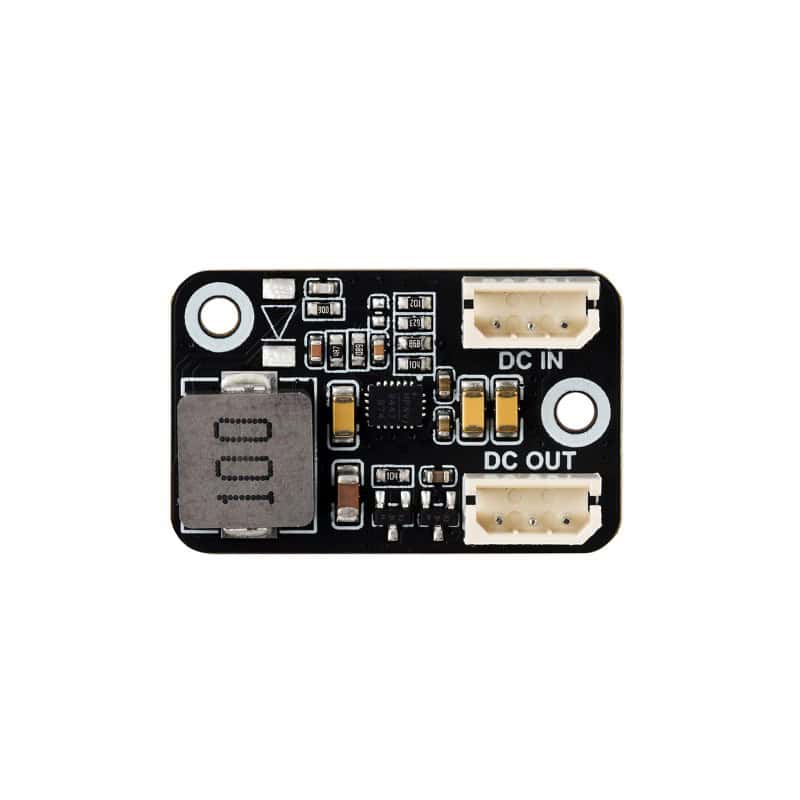

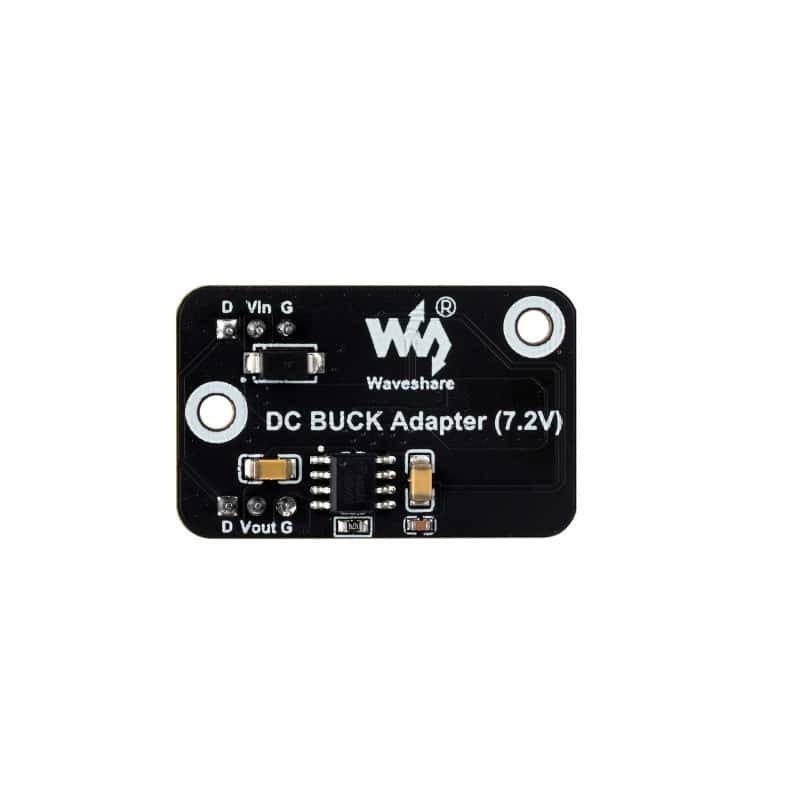

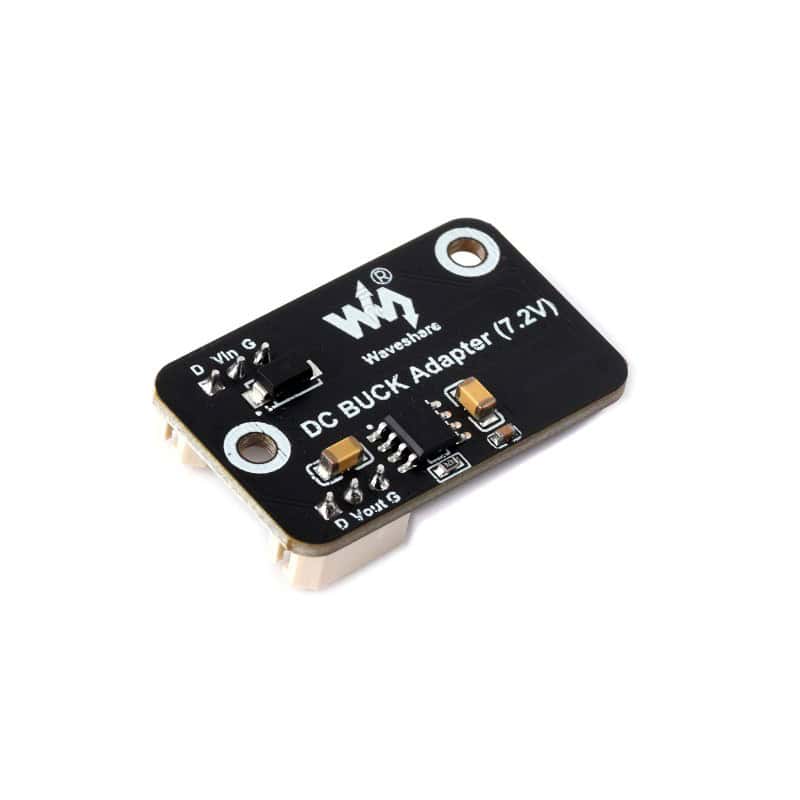

Serial Bus Servo DC Buck Adapter 7.2V Buck Regulator Designed for Serial Bus Servos
Features At A Glance
- 7.2V buck regulator, suitable for the servos such as SC15 Servo and SC09 Servo
- Mini size, more space-saving, easy to integrate into the projects
- 9~36V wide voltage input for more flexible project power selection
- Simply connect it in series in the servo circuit to use
Specifications
INPUT VOLTAGE |
DC 9~36V |
OUTPUT VOLTAGE |
DC 7.2V |
INTERFACE |
SC/ST series servo 5264-3P header |
DIMENSIONS |
21.50 × 34.00mm |
MOUNTING HOLE SIZE |
2.70mm |
PEAK CURRENT |
3A |
Application Examples Working With General Driver For Robots Driver Board, More Flexible For Project Power Selection, Suitable For Serial Bus Servos Such As SC15 Servo And SC09 Servo
for reference only, the UPS module, driver board and servo are NOT included.
What's Onboard
Outline Dimensions
Package content: Weight: 0.01 kg
- DC BUCK Adapter (7.2V) x1
- 30cm servo cable x1
