www.waveshare.com/wiki/DC5-36-TO-DC3V3-5 DC-DC Buck Mini Module, Compact Size And Easy To Integrate, Configurable 3.3V Or 5V buck voltage regulation output, Immersion Gold Process
DC-DC Buck Mini Module 5~36V wide voltage input, configurable 5V or 3.3V output, up to 4A output current
Features At A Glance
- Supports 5~36V wide voltage input, configurable for 5V or 3.3V output, up to 4A output current
- 5V output by default, and the input voltage range is 6~36V
- Can be switched to 3.3V output by resoldering a onboard resistor, and the input voltage range is: 5~36V
- Adopts black immersion gold process, small in size and easy to integrate

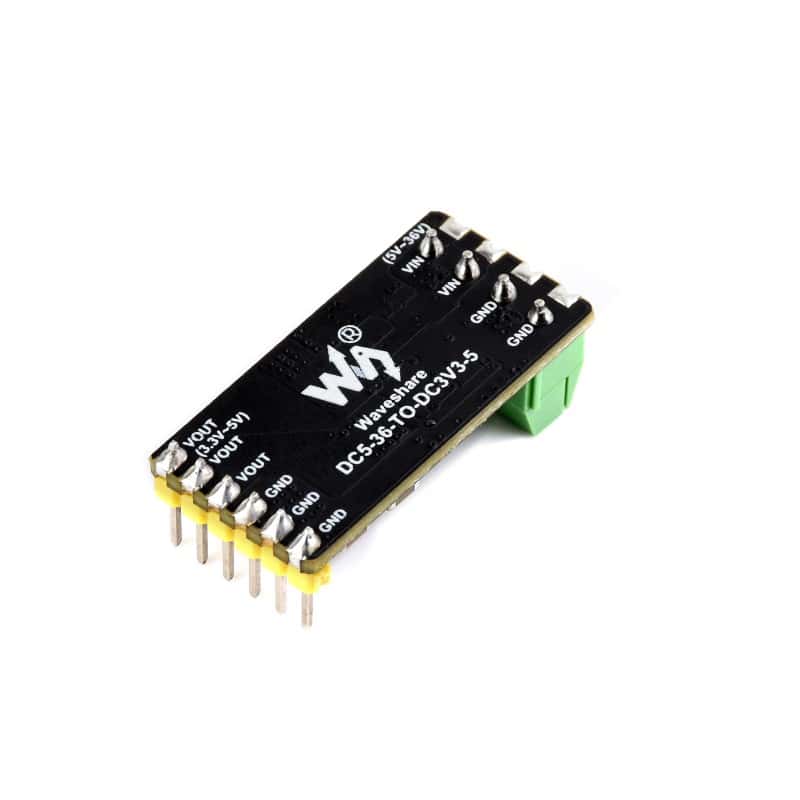

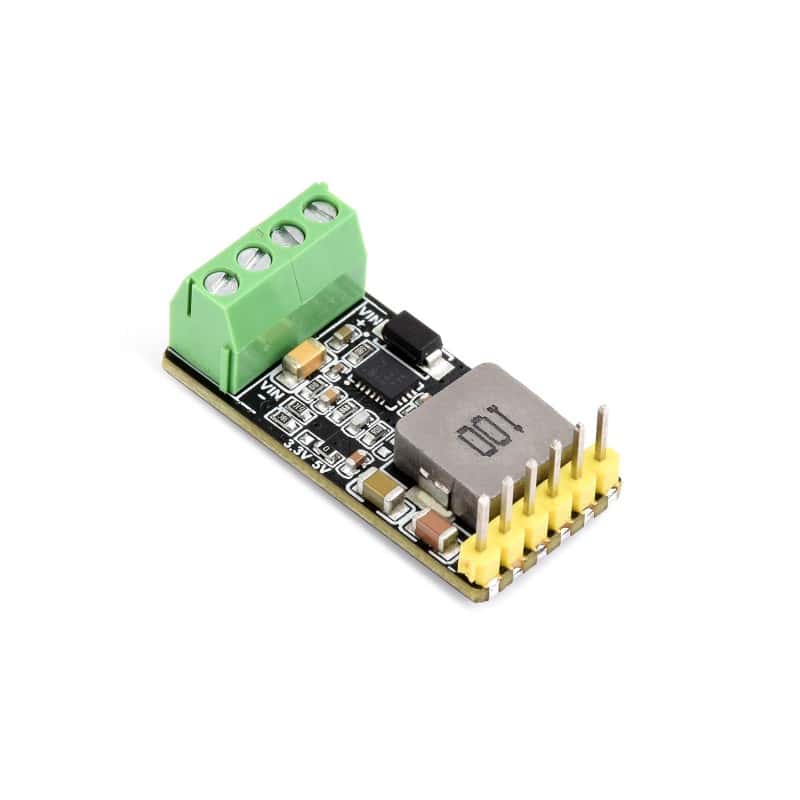

DC5-36-TO-DC3V3-5-M with pre-soldered header and terminal
Specifications
Mode |
5V mode
(by default) |
3.3V mode
(switching via resoldering 0R resistor to 3.3V side) |
Input voltage |
DC 6~36V |
DC 5~36V |
Output voltage |
DC 5V |
DC 3.3V |
Operating current |
0A~4A (can reach up to 5A output under extreme conditions, but adequate heat dissipation is required) |
Switching frequency |
500KHz |
Conversion efficiency |
90% |
dimensions |
33 × 16 × 5.7 (mm) |
Interface introduction
Interface on the left side |
Interface on the right side |
VIN+ |
Power input positive |
VOUT(+) |
Power output positive |
VIN- |
Power input negative |
GND(-) |
Power output negative |

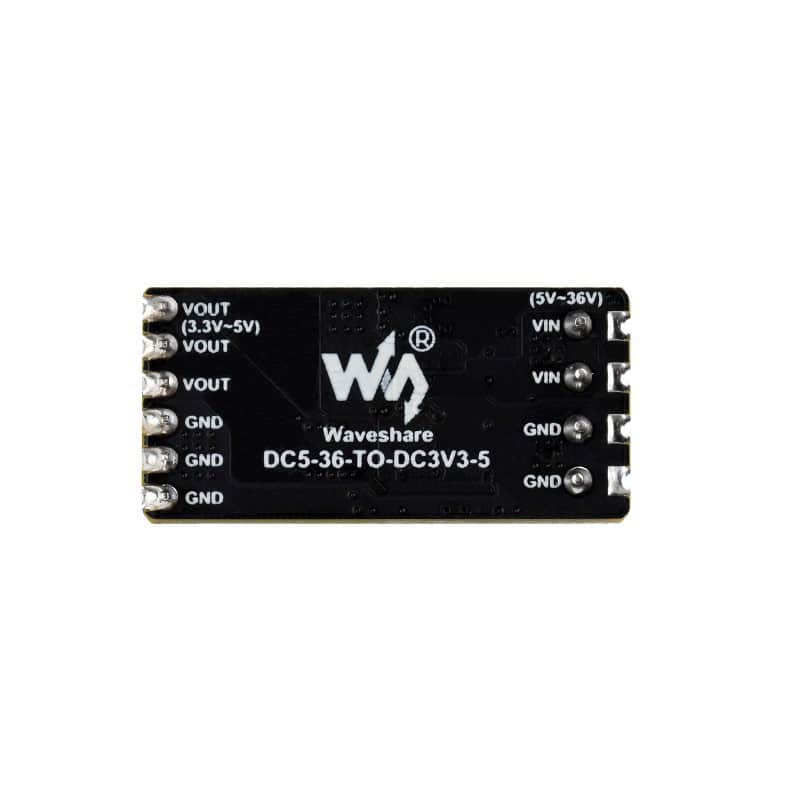

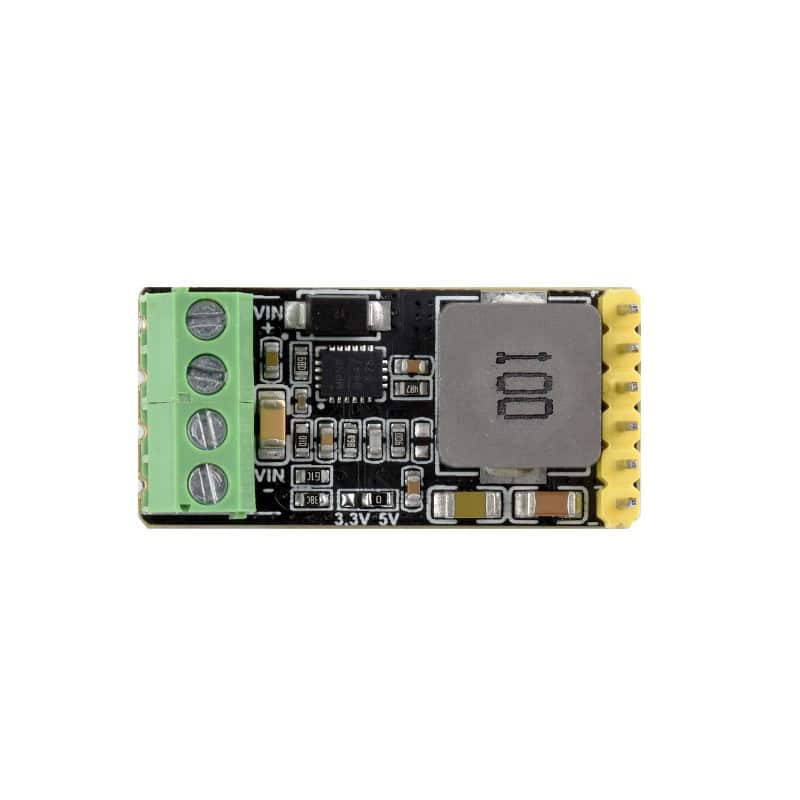

Compact in Size, Easy to Integrate Castellated holes with immersion gold design, highly integrated packaging.
easy to embed into various product applications via multiple methods
Outline dimensions
Package content: Weight: 0.007 kg
DC5-36-TO-DC3V3-5-M
DC5-36-TO-DC3V3-5-M x1
