Šifra: w29875
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
7.990,00 RSD
Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!
SKU: 29875
Part No.: Laser-450nm-5W

Korisne informacije: www.waveshare.com/wiki/Laser-450nm-5W

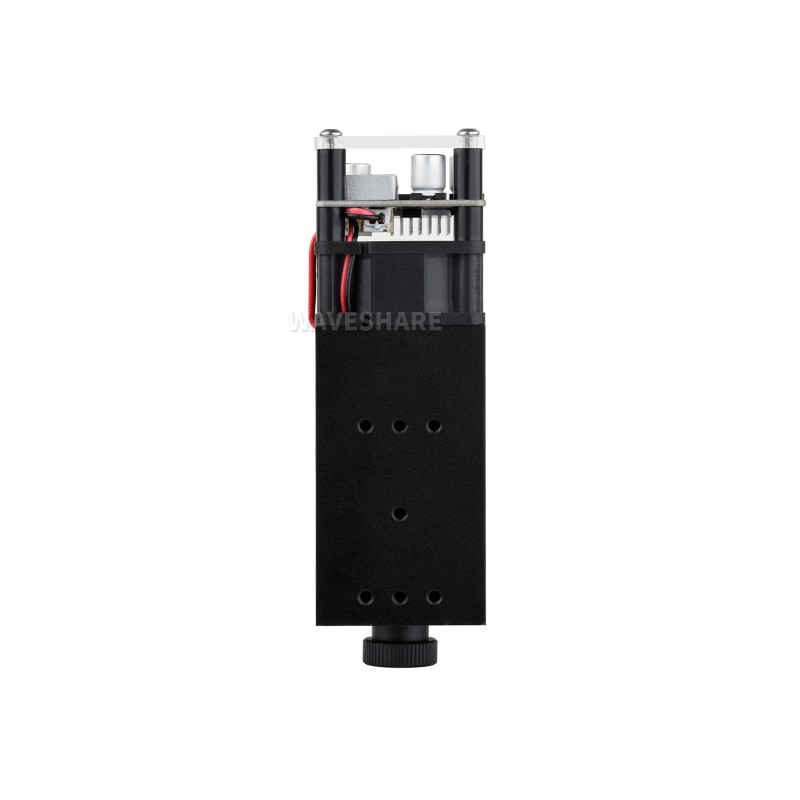

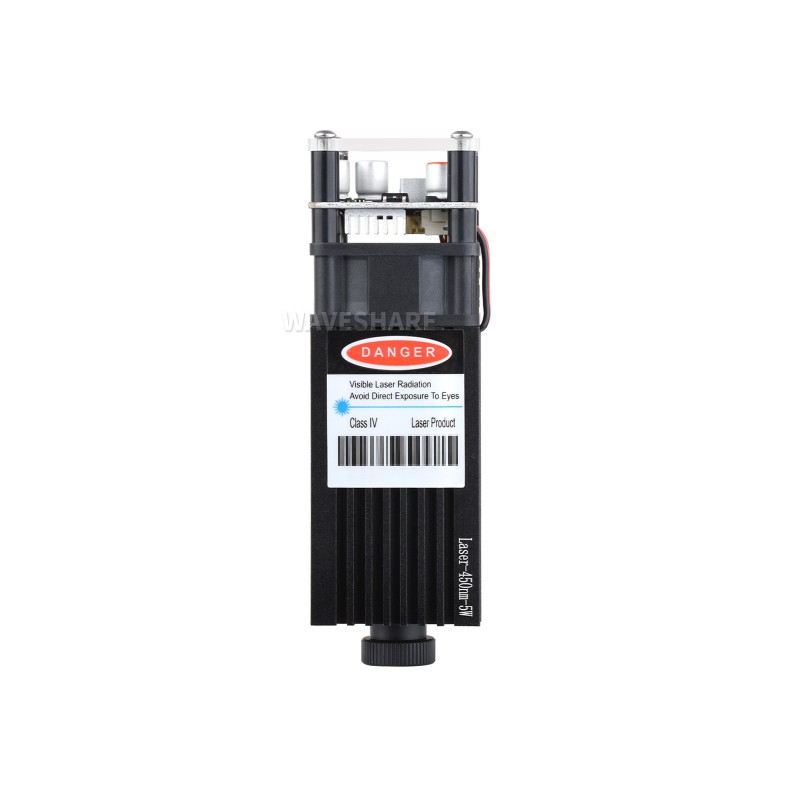

450nm High Precision Laser Module, 4.5W Blue Laser Head, Adjustable Focus, Suitable For DIY Engraving Of Multiple Materials

450nm High Precision Laser Module

High power | High performance | Low consumption


450nm High Precision Laser Module, front view 450nm High Precision Laser Module, features

Features

This product is a blue laser module with a wavelength of 450nm, features a high-precision laser head with 4.5W output power.

  • Adjustable focus, the spot size can be adjusted according to the working distance

  • Supports engraving on various materials, such as stainless steel, acrylic, wood boards, leaves, etc



Specifications




























Control Signal Voltage 2.5V~5V Control mode PWM modulation
Response frequency <2KHz Laser mode Spot
Focus length 50±1mm / adjustable Operating temperature 0℃~35℃
Focus size <40×400μm Operating Voltage 12V

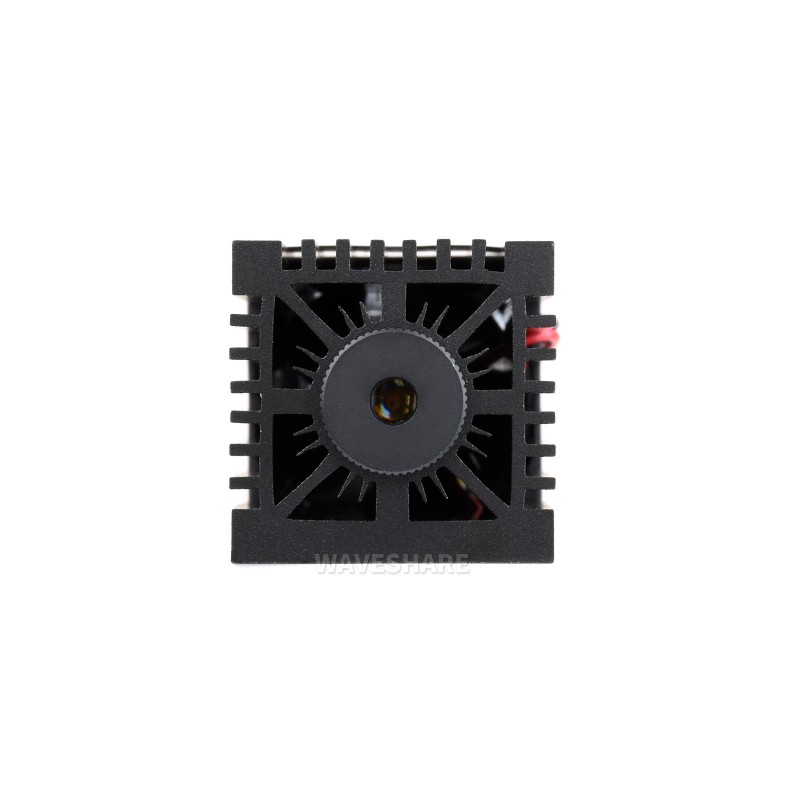

Adjustable laser head for Ideal Focus and spot effect

By rotating the laser head, the focus can be adjusted according to the working distance to achieve a proper spot size


Note: please avoid direct eye exposure to the laser beam.


450nm High Precision Laser Module with adjustable laser head

Efficient heat dissipation, Low-noise, More Energy-saving

Equipped with an onboard 12V DC cooling fan and heatsink, featuring advantages such as efficient heat dissipation, low noise, and energy-saving


450nm High Precision Laser Module onboard 12V DC cooling fan and heatsink

Usage Example

Adopts imported original glass lenses and laser diode, with long lifespan and good stability



* for reference only, please refer to the Package Content for the detailed part list.



Pin definition
450nm High Precision Laser Module pin definition

Application Scenarios

450nm High Precision Laser Module, application scenarios in laser cutting machineLaser cutting machine

450nm High Precision Laser Module, application scenarios in laser 3D printerLaser 3D printer

450nm High Precision Laser Module, application scenarios in handicraftHandicraft

450nm High Precision Laser Module, application scenarios in laser engraving machineLaser engraving machine

450nm High Precision Laser Module, application scenarios in laser weedingLaser weeding

450nm High Precision Laser Module, application scenarios in Aluminum oxide nameplateAluminum oxide nameplate

450nm High Precision Laser Module, application scenarios in stainless steel laser engravingStainless steel laser engraving

450nm High Precision Laser Module, application scenarios in laser paper cuttingLaser paper cutting

Outline dimensions
450nm High Precision Laser Module, outline dimensions

Package content:

Weight: 0.25 kg

Laser-450nm-5W x1

Laser-450nm-5W
