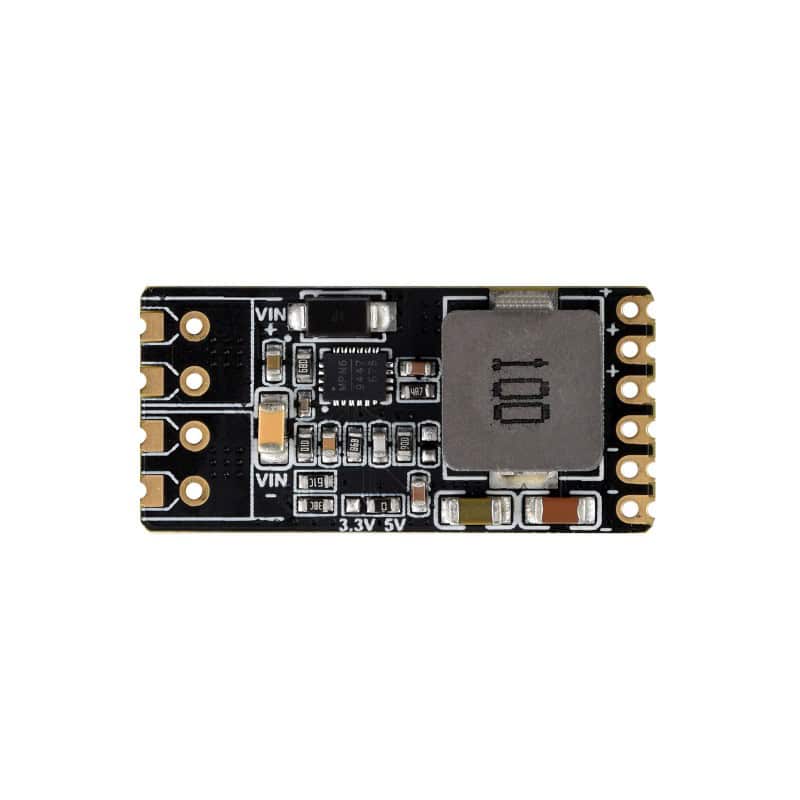

5~36V wide voltage input, configurable 5V or 3.3V output, up to 4A output current
DC5-36-TO-DC3V3-5 | Mode | 5V mode (by default) | 3.3V mode (switching via resoldering 0R resistor to 3.3V side) |
|---|---|---|
| Input voltage | DC 6~36V | DC 5~36V |
| Output voltage | DC 5V | DC 3.3V |
| Operating current | 0A~4A (can reach up to 5A output under extreme conditions, but adequate heat dissipation is required) | |
| Switching frequency | 500KHz | |
| Conversion efficiency | 90% | |
| dimensions | 33 × 16 × 5.7 (mm) | |

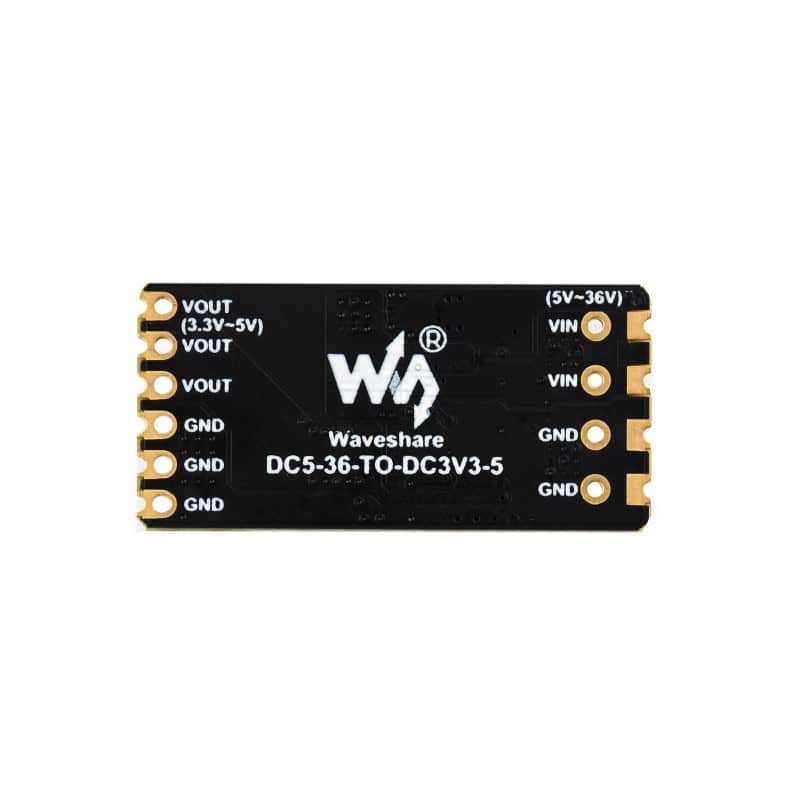

| Interface on the left side | Interface on the right side | ||
|---|---|---|---|
| VIN+ | Power input positive | VOUT(+) | Power output positive |
| VIN- | Power input negative | GND(-) | Power output negative |

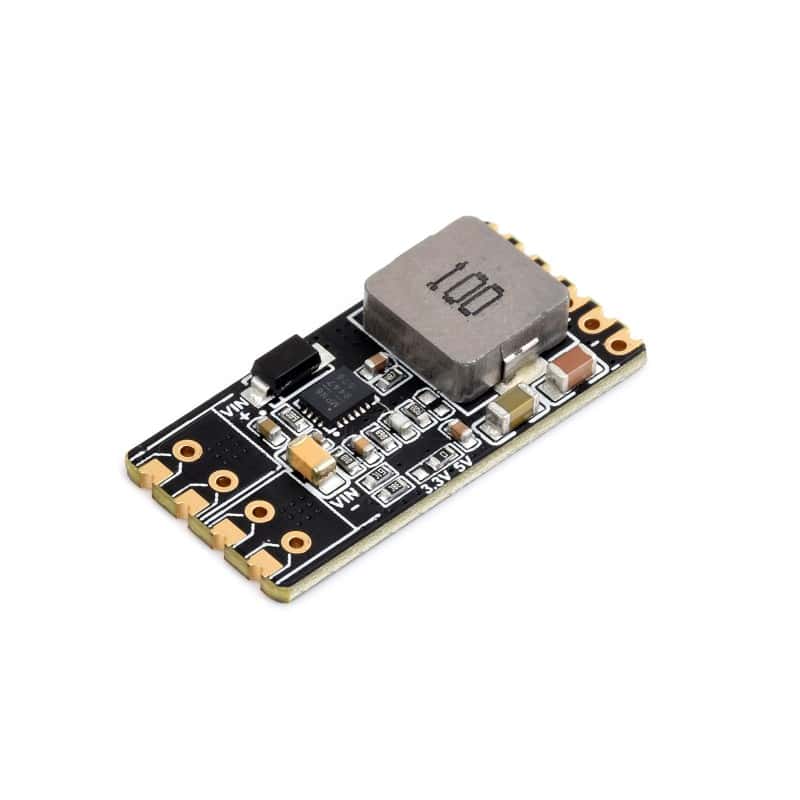

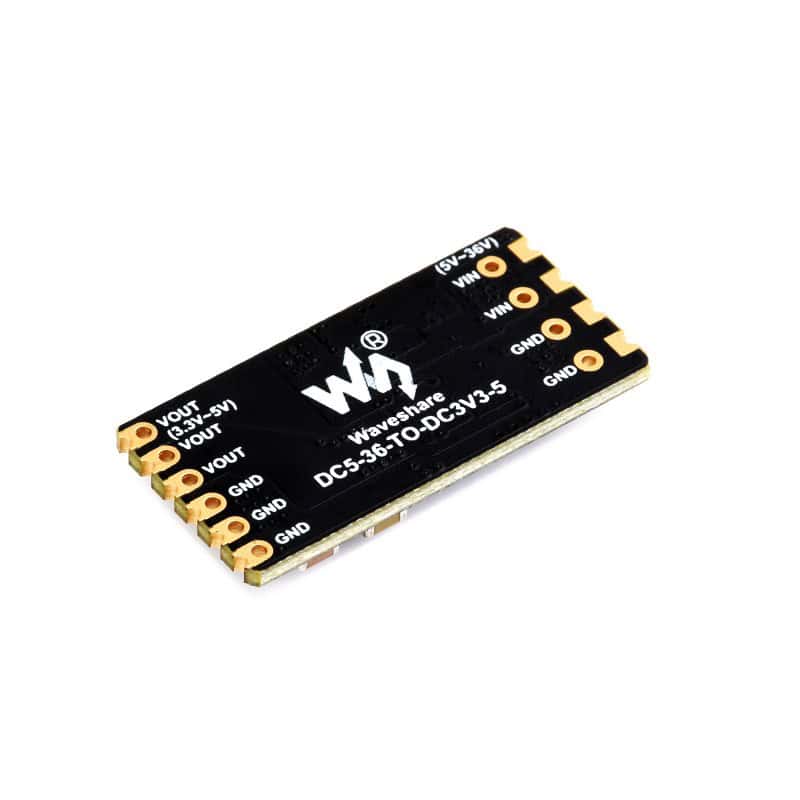

Castellated holes with immersion gold design, highly integrated packaging.
easy to embed into various product applications via multiple methods
