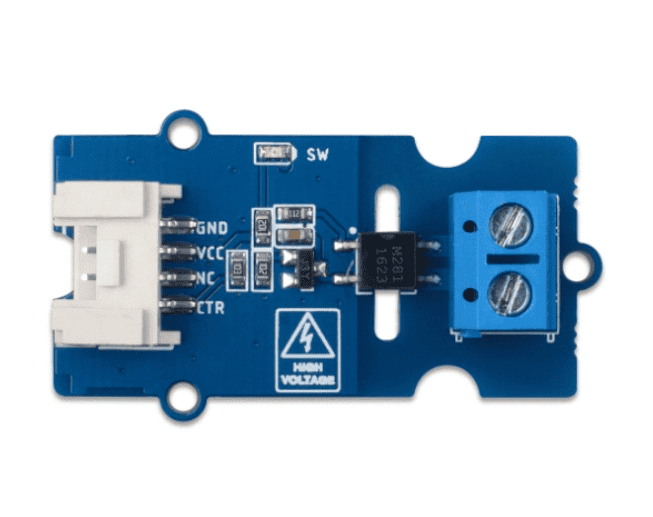

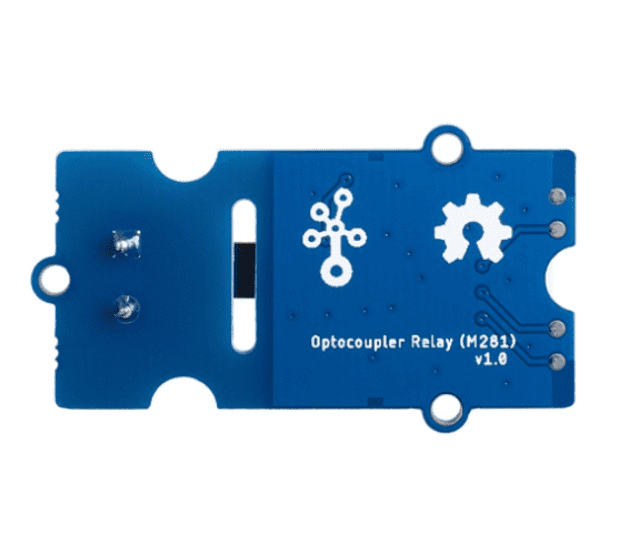

Grove - Optocoupler Relay (M 281)

Šifra: se101020603

890,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: moduli za samo izgradnju
Težina po komadu: 0.01 Kg

PRODUCT DETAILS

This module is a bi-directional SPSD(single-pole, single-throw), normally open solid state relay(SSR).

Features

Suitable for high power applications: This device offers very low on-resistance, whic is about 0.5Ω MAX.

Applicable to a wide range of scenarios: Based on MOSFET, can carry both AC load and DC load.

Low input control current: Available even at 3mA TYP.

High input-to-output isolation: The minimum can be up to 1.5kV.

Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications.

Description

This module is a bi-directional SPSD (single-pole, single-throw), normally open solid-state relay (SSR). The Grove Optocoupler Relay is based on M281. This device offers very low on-resistance-allowing for a high load current rating in a miniature package, ideal in higher power applications where board space is limited.

Unlike the other TRIAC SSR in our website, this relay is based on MOSFET, so it can carry both AC load and DC load. If you need to use a SSR with the DC load, this is what you want!

Tip

We've released the Seeed Relay Selection Guide, it will help you choose the relay that best suits your needs.

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.

Application

Automated Test Equipment

Meter reading systems

Medical equipment

Battery monitoring

Multiplexers

Specifications

Supply voltage	3.3V / 5V
Operating temperature	-40 – 85℃
Storage temperature	- 55°C – 125°C
Blocking voltage	60 V
Continuous load current	1A
Leakage current	0.2 uA(TYP.) 1 uA(Max.)
On-Resistance	0.5 Ω(TYP.) 0.7 Ω(Max.)
Isolation resistance	100 GΩ
Turn-On time	1.4 ms(TYP.) 5 ms(Max.)
Turn-Off time	0.2 ms(TYP.) 2 ms(Max.)
Interface	Digital

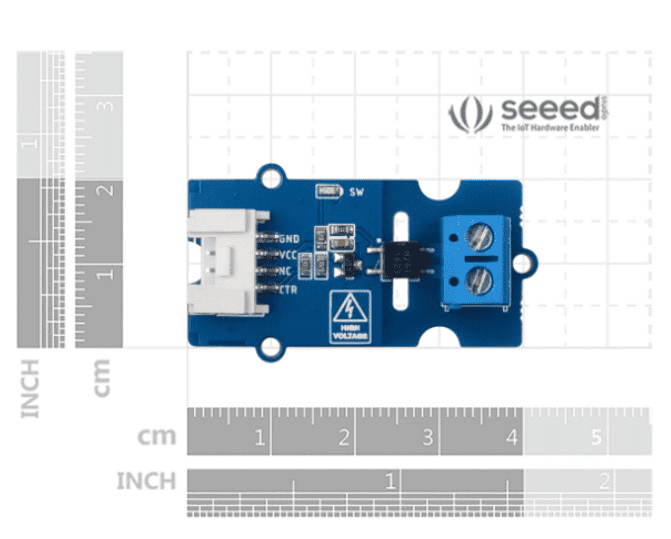

Size	L: 40mm W: 20mm H: 13mm
Weight	10.6g
Package Size	L: 135mm W: 85mm H: 13mm
Gross Weight	11g
