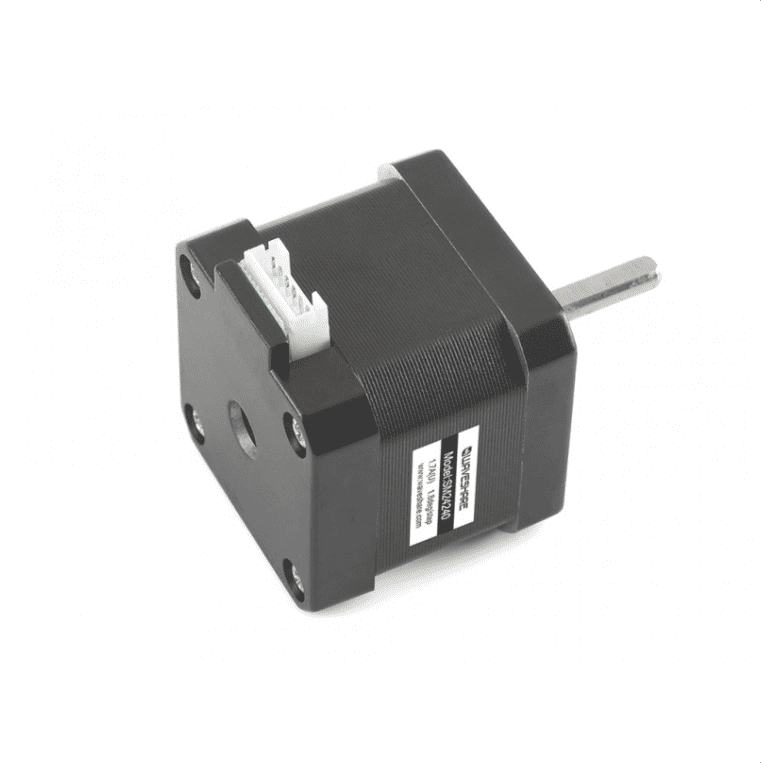

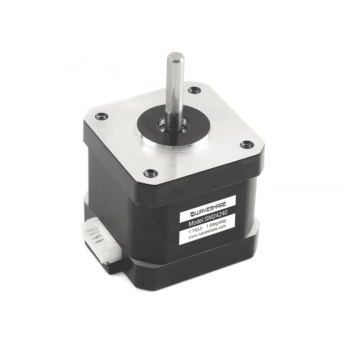

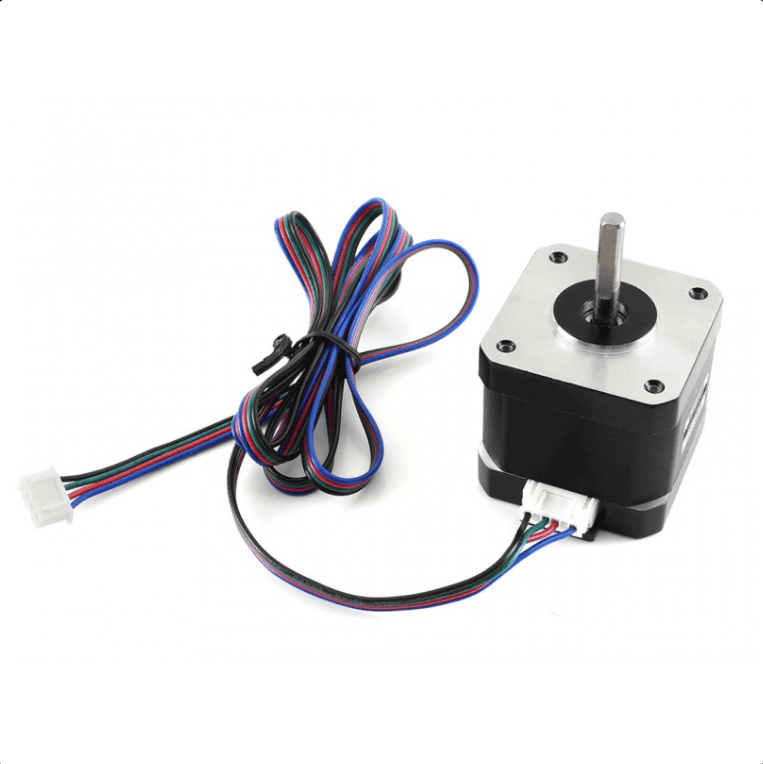

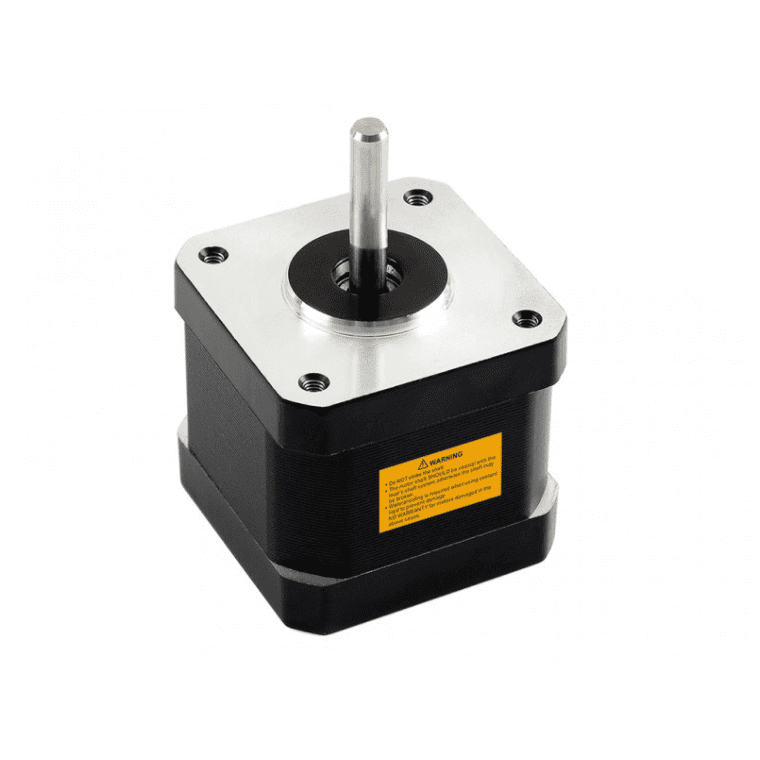

SM24240 Two-Phase Stepper Motor --

Šifra: w15948
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
890,00 RSD
Cena sa PDV
u korpu
SKU: 15948
Part Number: SM24240
SM24240, Two-Phase Stepper Motor

Specifications



  • Category: two-phase stepper motor

  • Step angle: 1.8°

  • Body length: 40mm

  • Rated current: 1.7A/Phase

  • Phase resistance: 2.4Ω

  • Phase inductance: 3.7mH

  • Holding torque: 0.45N.m

  • Rotor inertia: 54(g.c㎡)

  • Weight: 0.3kg

  • Compatible driver: SMD258C, Stepper Motor HAT


Dimension



Wiring Configuration



Selection Guide

























































PART NUMBER PHASES STEP ANGLE
(DEGREE)
BODY LENGTH
(MM)
RATED CURRENT
(A/PHASE)
PHASE RESISTANCE
(Ω)
PHASE INDUCTANCE
(MH)
HOLDING TORQUE
(N.M)
ROTOR INERTIA
(G.C㎡)
WEIGHT
(KG)
COMPATIBLE DRIVER
SM24240 two-phase 1.8 40 1.7 2.40 3.7 0.45 54 0.3 SMD258C, Stepper Motor HAT
SM25776 two-phase 1.8 76 3.0 1.00 1.6 1.90 480 1.0 SMD258C
SM35778 three-phase 1.2 78 5.8 0.29 0.39 1.50 380 1.1 SMD356C



PACKAGE CONTENT



Weight: 0.296 kg


  1. SM24240 x1
