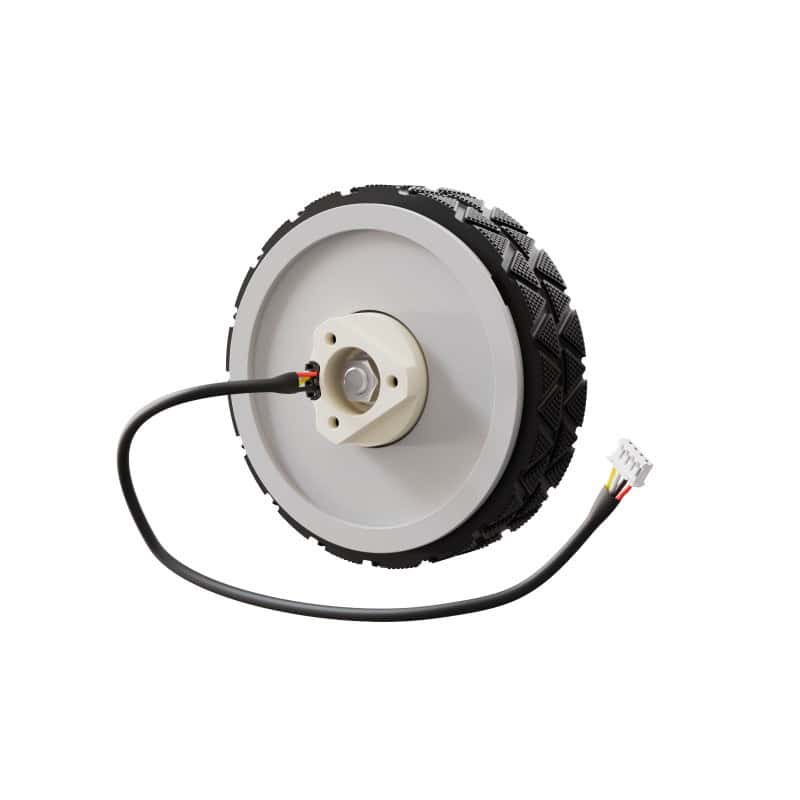

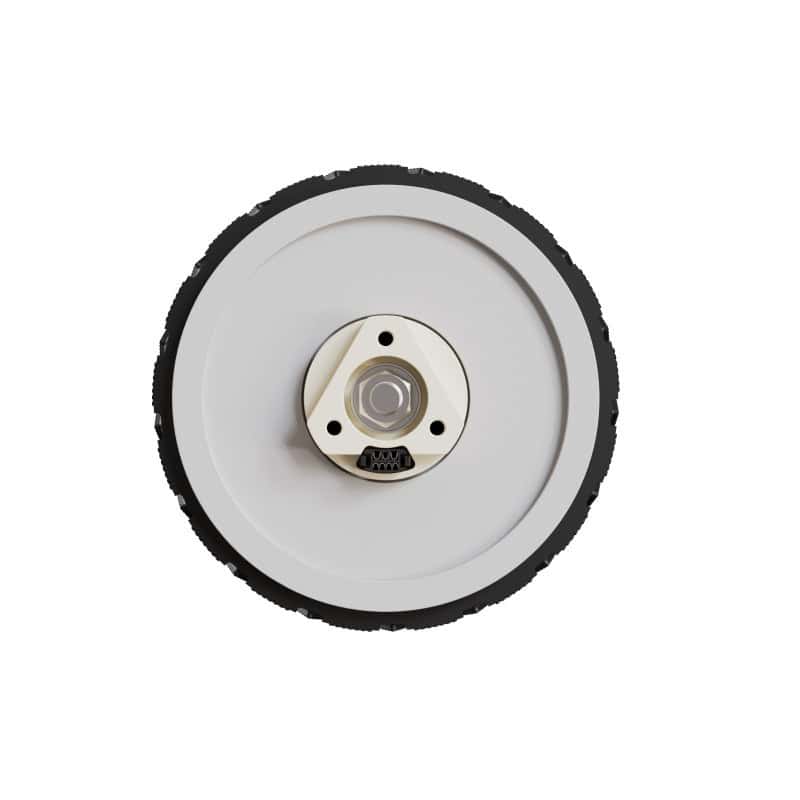

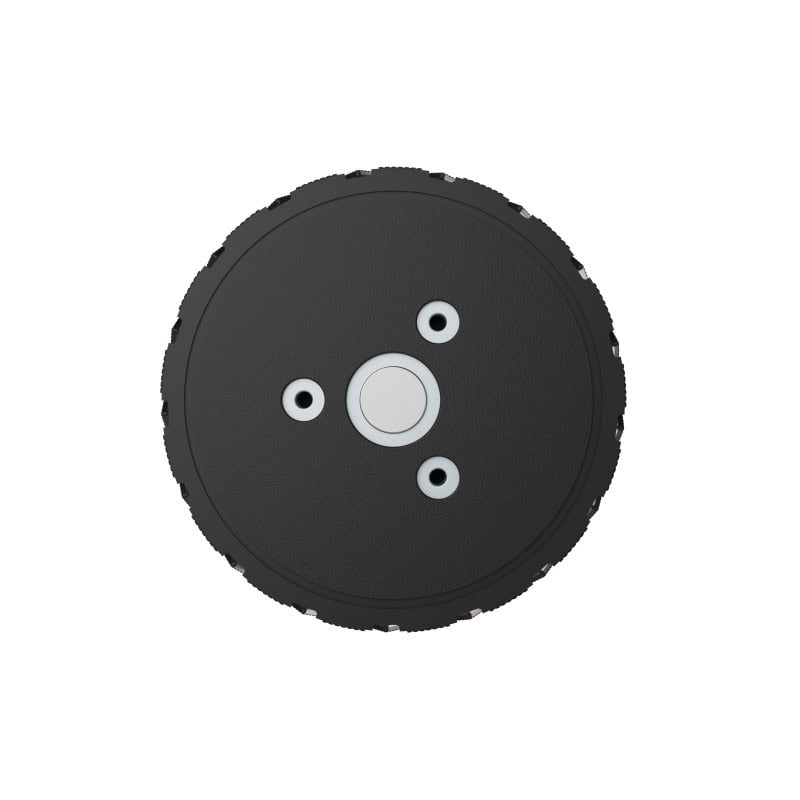

DDSM210

Šifra: w26620

3.190,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: moduli za samo izgradnju
Težina po komadu: 0.273 Kg

>With Hall position detection, over-current protection, etc.

Supports electric brake

No drive mechanical friction, drive efficiency close to 99.99%

Specifications

No-load speed	210±11rpm	Operating temperature	-25~45℃
No-load current	0.15A	Total weight	216g
Rated speed	98rpm	Encoder resolution	12bit
Rated torque	0.25Nm	Rated current	1.1A
Locked-rotor torque	0.85Nm	Noise level	≦40dB(A)
Torque constant	0.23Nm/A	Input voltage	9 ~ 28VDC
Locked-rotor current	≦3.8A	Speed constant	14rpm/V

Operating Modes

DDSM210 servo motor operating mode features

Supports UART Communication

Only 1-Ch UART Bus Is Required To Control Multiple Direct Drive Servo
Motors At The Same Time

DDSM210 servo motor with UART support, installing on the robot chassis

* the robot chassis shown in the picture is not included, but we provide its open-source drawing, please refer to the Package Content for detailed part list

Closed-Loop Control, Multiple Feedback

You Can Get The Motor Feedback Information Such As Temperature, Position, Velocity, Current, Etc. By Communication

DDSM210 servo motor, supports temperature feedback

Temperature Feedback

DDSM210 servo motor, supports position feedback

Position Feedback

DDSM210 servo motor, supports speed feedback

Speed Feedback

DDSM210 servo motor, current speed feedback

Current Feedback

Integrated Direct Drive Design, No Reducer

The integrated direct drive motor design allows the motor to provide smooth torque, steady speed and accurate position without an external reducer, also with the advantages of compact structure and high integration
