| No-load speed | 200±10rpm | Operating temperature | -20~45℃ |
| No-load current | ≦0.25A | Motor weight | 485±5g |
| Rated speed | 115rpm | Encoder resolution | 4096 |
| Rated torque | 0.96Nm | Rated current | 1.25±0.05A |
| Degree of protection | IP54 | Noise level | ≦50dB |
| Locked-rotor torque | 2.0Nm | Mechanical time constant | 30ms |
| Locked-rotor current | ≦2.7A | Rotor inertia | 1.67kg-m² |
| Rated voltage | 18V DC (5S LiPo) | Phase resistance | 2.15Ω |
| Torque constant | 0.75Nm/A | Phase inductance | 3.6mH |
| Speed constant | 11.1rpm/V | Number of pole pairs | 10 |
Current Loop Mode, Position Loop Mode, Velocity Loop Mode
Only 1-Ch RS485 Bus Is Required To Control Multiple Direct Drive Servo
Motors At The Same Time
You Can Get The Motor Feedback Information Such As Temperature, Position, Velocity,
Current, Etc. By Communication
Temperature Feedback
Position Feedback
Speed Feedback

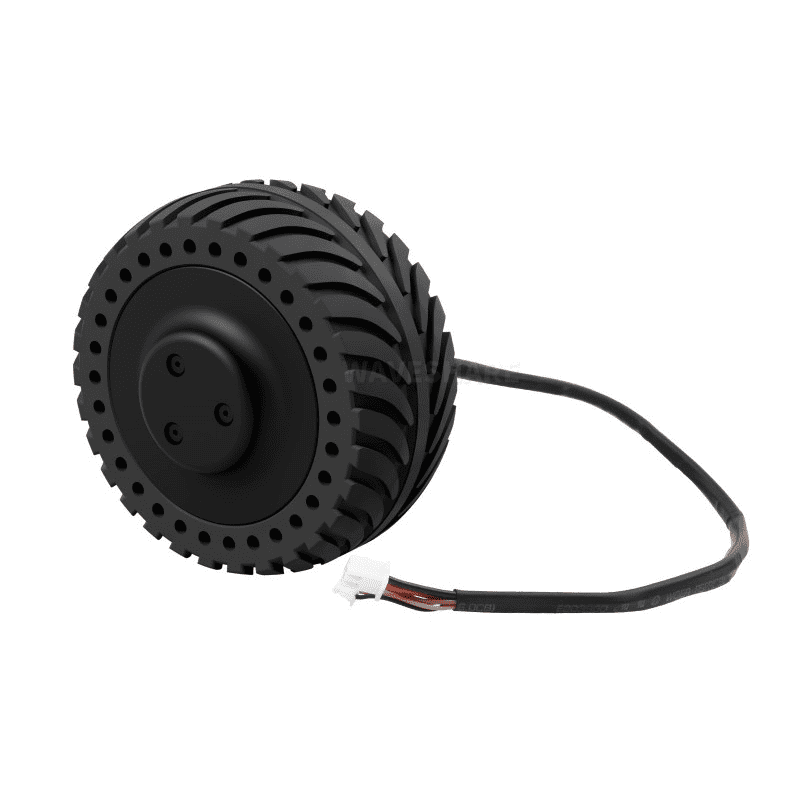

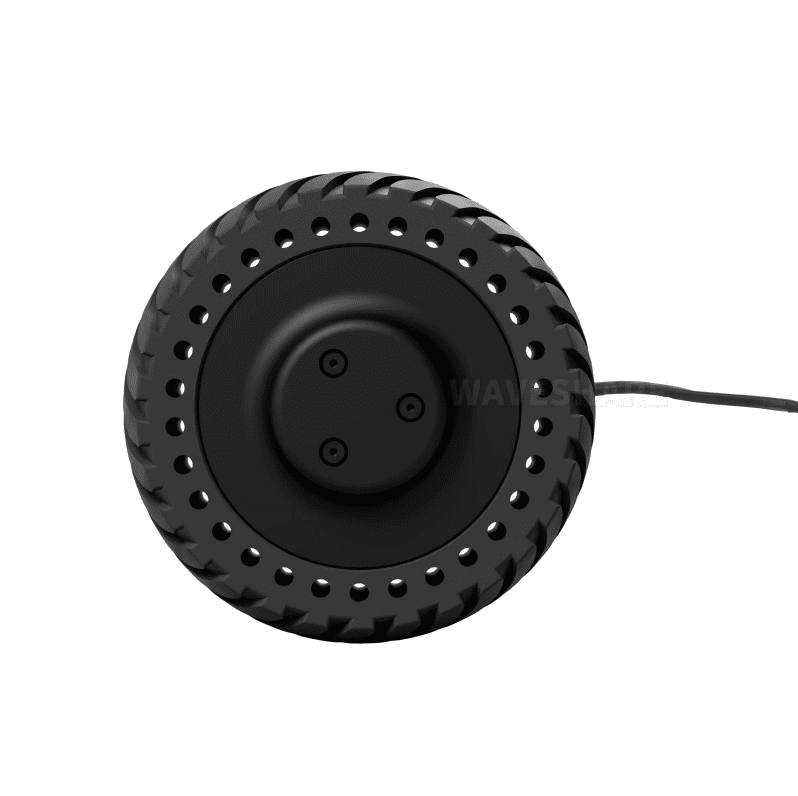

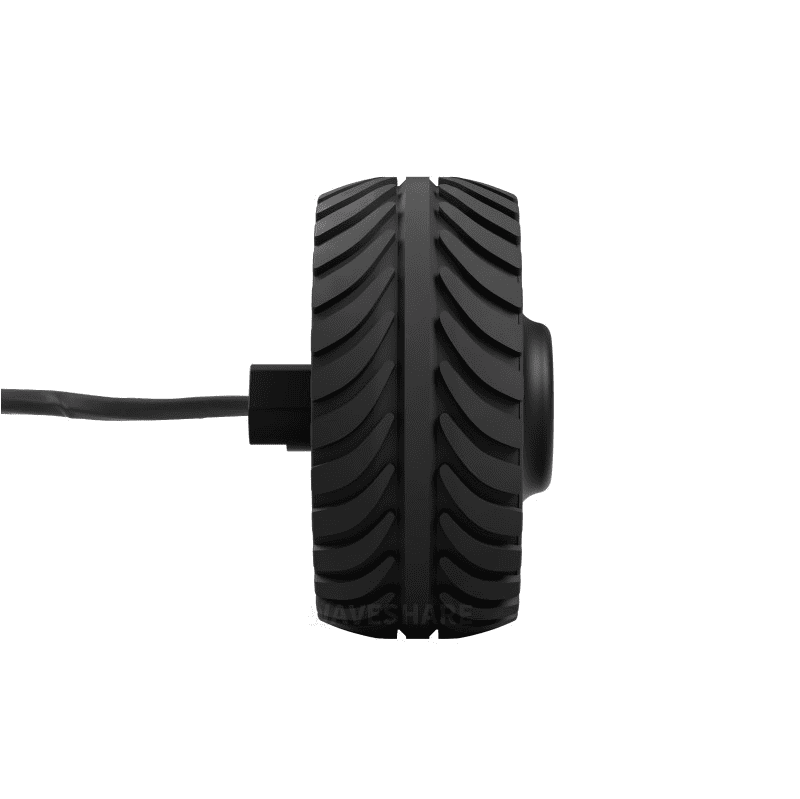

Current Feedback The integrated direct drive motor design allows the motor to provide smooth torque, steady speed and accurate position without an external reducer, also with the advantages of compact structure and high integration
The DDSM115 Speed Is As Low As 1 RPM And Its Torque Up To 2.0Nm
IP54 Protection Rating, The Ingress Protection Design Against Dust And Water Jets Can Make The Motor Better Protected, Provides A Longer Lifetime And Better Performance

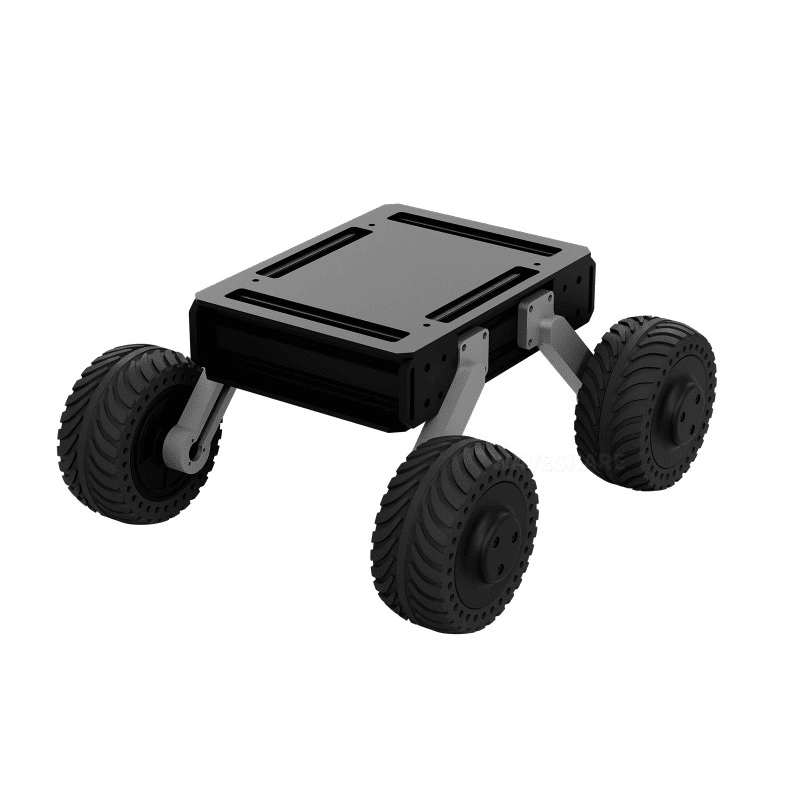

Home Robots, Industrial/Commercial Robots, Fitness Equipment, Etc.
Home Robots
Industrial Robots
Fitness Equipment
Food Delivery Robots
