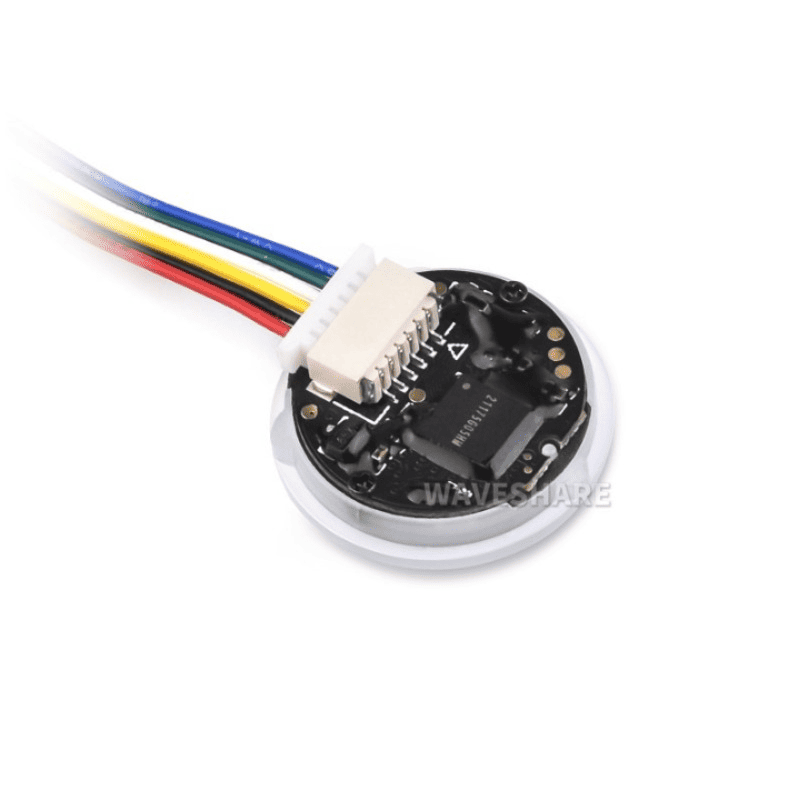

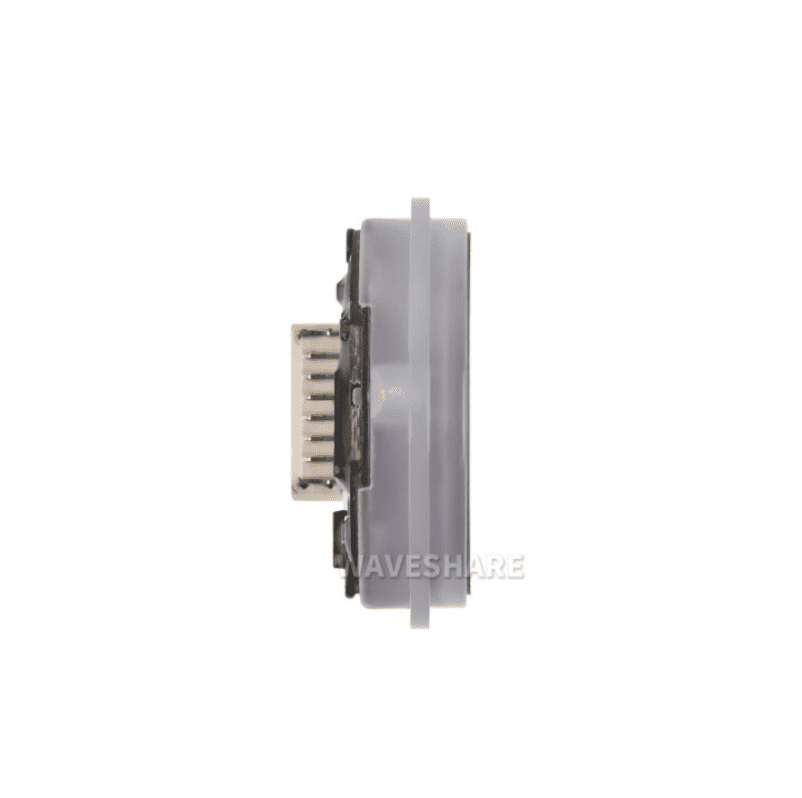

1D/2D Codes Recognition | Small Size | Screen Scanning
| RESOLUTION | 640 × 480 | ||
|---|---|---|---|
| SCAN ANGELS | horizontal 70°, vertical 55°, roll 360° | ||
| SCAN MODE | Sensing, Continuous | ||
| ACCURACY | 1D code ≥5mil 2D code ≥10mil | ||

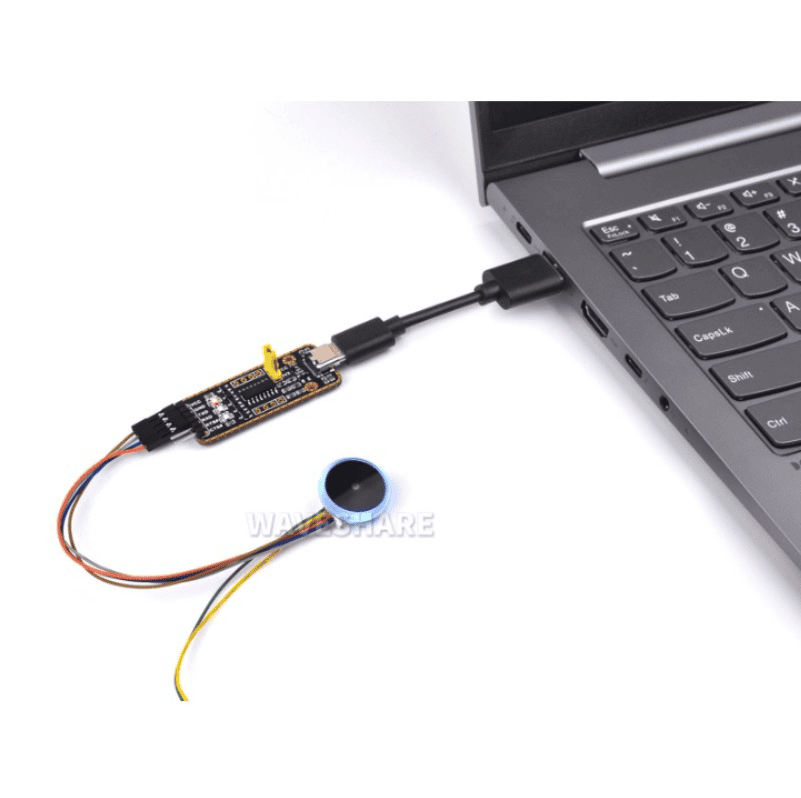

| COMMUNICATION INTERFACE | UART port (9600 8N1 by default) | ||
| LED INDICATOR | Blue: scanning Green: decoded successfully | ||
| POWER SUPPLY | 3.3V | ||
| CURRENT | 120mA | ||
| PROTECTION | ESD PROTECTION | contact discharge 6 kV, air discharge ±12KV | |
| IP PROTECTION | IP54 (front side) | ||
| TEMPERATURE | OPERATING | -30 ~ +70°C | |
| STORAGE | -40 ~ +80°C | ||
| WORKING HUMIDITY | 5%RH ~ 95%RH (non-condensing) | ||
| CODE TYPE | BARCODE | DEFAULT READABLE | DEFAULT DISABLE |
|---|---|---|---|
| 2D | QR Code | √ | |
| DataMatrix | √ | ||
| PDF417 | √ | ||
| 1D | EAN-13 | √ | |
| EAN-8 | √ | ||
| UPC-A | √ | ||
| UPC-E | √ | ||
| Codabar | √ | ||
| Code 128 | √ | ||
| Code 93 | √ | ||
| Code 39 | √ | ||
| Code 11 | √ | ||
| Interleaved 2 of 5 | √ | ||
| Industrial 2 of 5 | √ | ||
| Matrix 2 of 5 | √ | ||
| CS Databar(RSS) | √ | ||
| MSI-Plessey | √ |
* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it

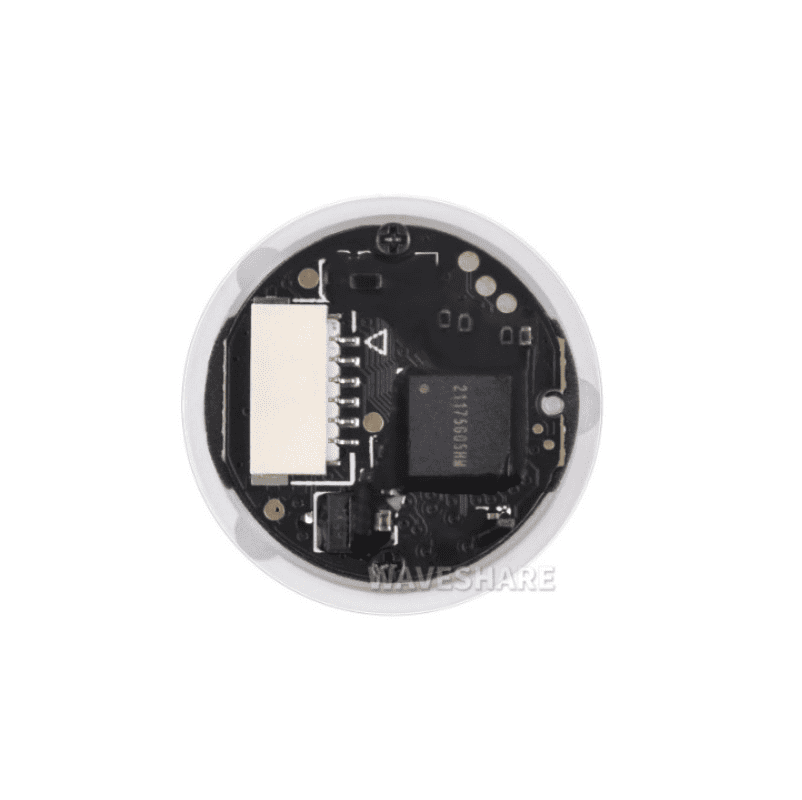

| PIN | INPUT/OUTPUT | DEFINITION | DESCRIPTION |
|---|---|---|---|
| PIN1 | Ground | GND | - |
| PIN2 | Input | RX | Module TTL receive |
| PIN3 | Output | TX | Module TTL transmit |
| PIN4 | Power | VCC | 3.3V power supply |
| PIN5 | - | NC | Reserved |
| PIN6 | - | NC | Reserved |
* for reference only, please refer to the Package Content for the detailed part list
