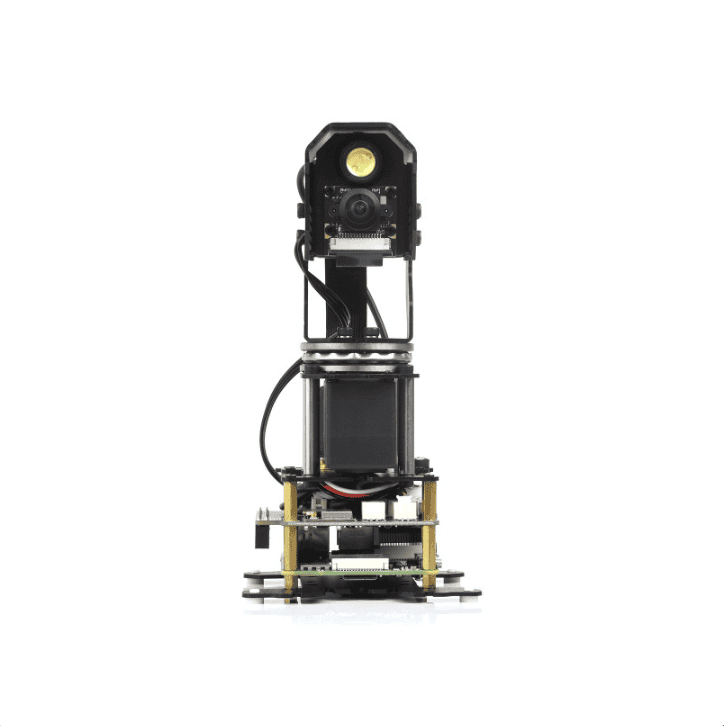

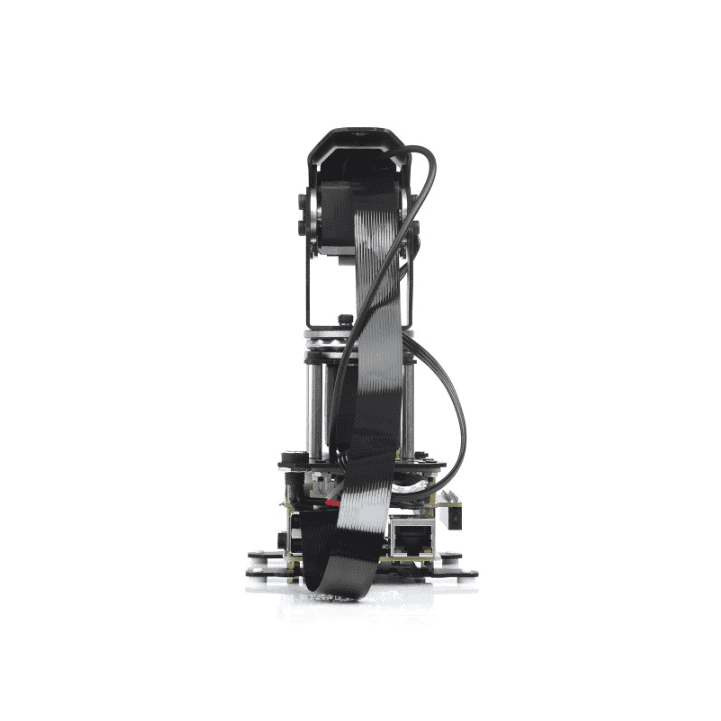

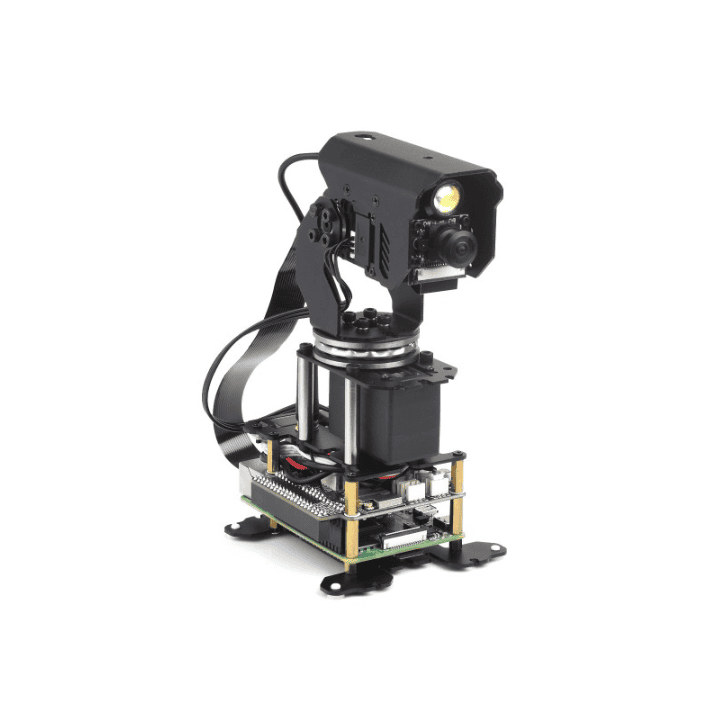

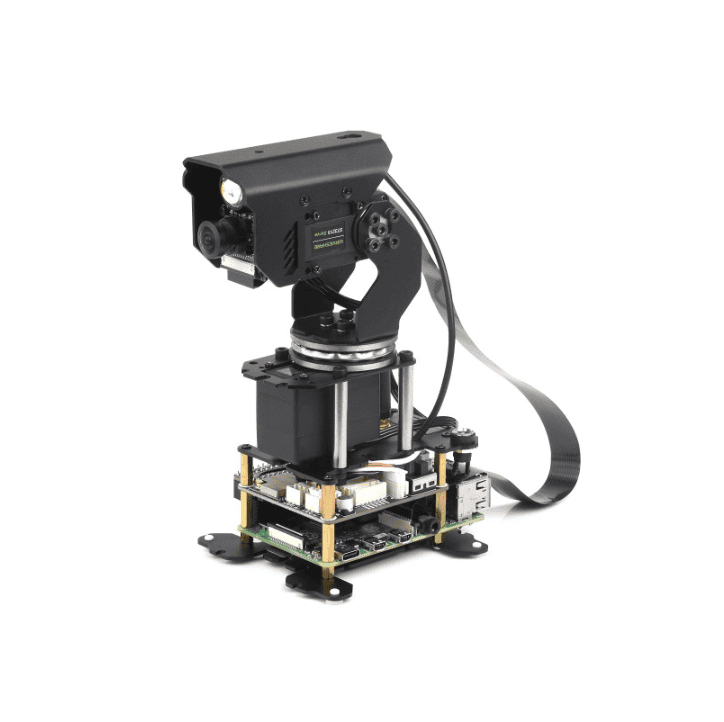

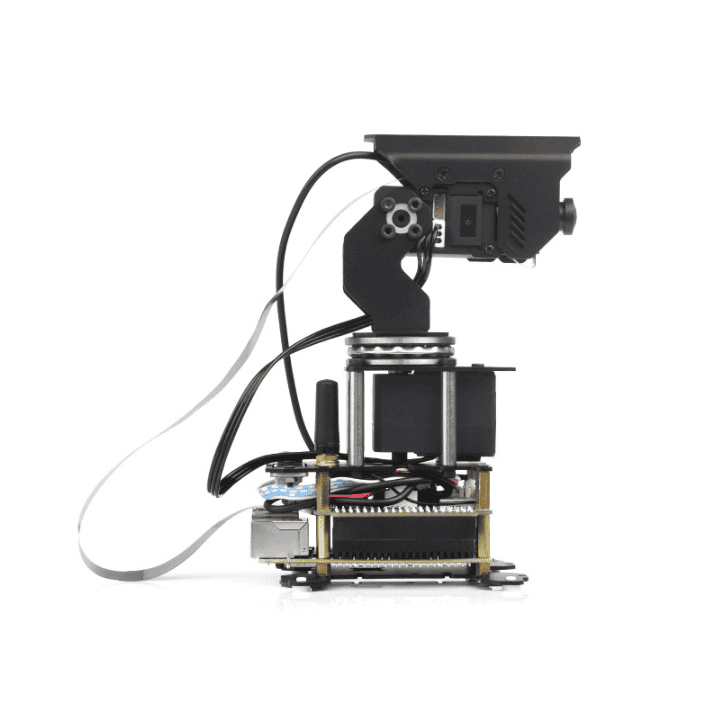

Obavesti me kada proizvod bude dostupan!This Is A High-Torque 2-DOF Expandable Pan-Tilt Camera Module, Adopts Serial Bus Servos For Joints Driven. The Horizontal PAN Axis Rotation Range Up To ±180° (360° In Total), The Vertical TILT Axis Rotation Range Up To -45° ~ 90°. Based On The General Driver Board For Robots, Open Source Control Demos For Web APP To Achieve Photo Taking, Video Recording, Face Detection, Motion Detection, Etc. Supports Flexible Expansion And Secondary Development.
| DOF | 2 |
|---|---|
| DRIVE METHOD | TTL Serial bus servo |
| SERVO ROTATION SPEED | 40rpm |
| JOINT ANGLE SENSOR | 12-bit 360° magnetic encoder |
| SERVO TORQUE | 30kg.cm at12V |
| JOINT FEEDBACK INFORMATION | servo status, joint angle, rotation speed, joint load, servo voltage, servo current, servo temperature and servo working mode |
| MAIN CONTROL | ESP32-D0WD-V3 |
| WIRED CONTROL MODE | USB, UART |
| HOST SUPPORT | Raspberry Pi 4B, Raspberry Pi 5 |
| LED POWER | <1.5W |
| WEIGHT | 441g |
| DEMO | Real-time video transmission, resolution configuration, zoom, face detection (OpenCV), motion detection (OpenCV), photo taking, video recording, video review, detection condition setting, detection action setting, LED control, pan-tilt control, and serial bus servo setting |
Allows Connecting And Controlling The Pan-Tilt Module Via Mobile Phones, Tablets And Computers By Clicking The Buttons On The Web App. Supports Secondary Development Of This Open-Source Web App To Customize The User Interface And Add New Functions.
The Horizontal Rotation Range Up To 360°, The Vertical Rotation Range Up To 135°
Highly Compatible With Raspberry Pi, Can Be Easily Integrated Into Your Project.
* for reference only, the Raspberry Pi is NOT included.
Face Detection
Motion Detection
Pan-tilt Control
Video Review Comes With 0V5647 5MP 160 Ultra Wide-Angle Camera
Capture Wider Area To Meet Various Visual Requirements
Ensures Clear Images In Low-Light Conditions
30kg.Cm Ultimate Joint Torque To Meet Various Working Requirements
* for reference only, please refer to the Package Content for detailed part list Adopts Joint Direct-Drive Design With High-Precision Serial Bus Servos, Built In 360° 12-Bit Magnetic Encoder, Supports Obtaining Feedback Information Such As Joint Angle And Joint Load To Realize Closed-Loop Control
Comes With A Free Picatinny Rail And 1/4 Screw, Open Source For Models And Drawings.

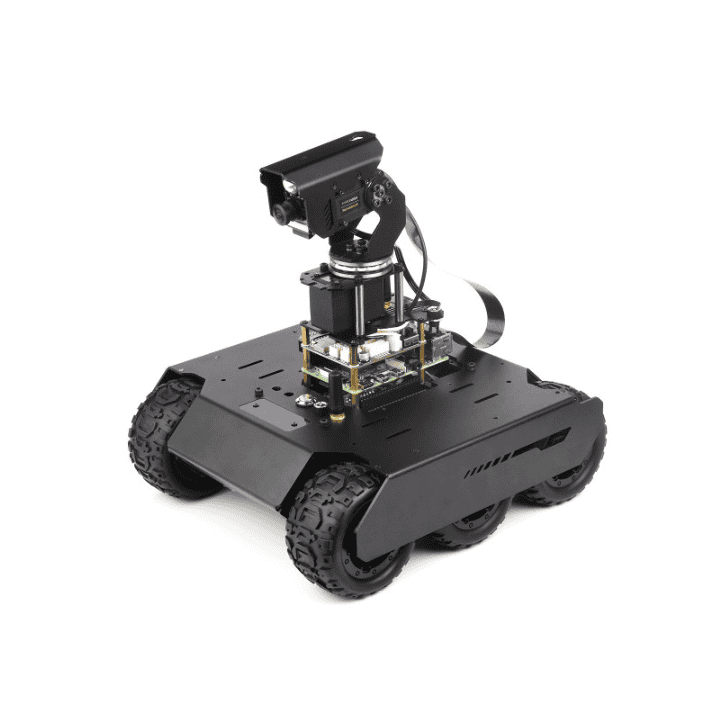

More Convenient For Users To Integrate This Pan-Tilt Camera Module Into Other Projects
* for reference only, please refer to the Package Content for detailed part list Product Show
* for reference only, please refer to the Package Content for detailed part list
