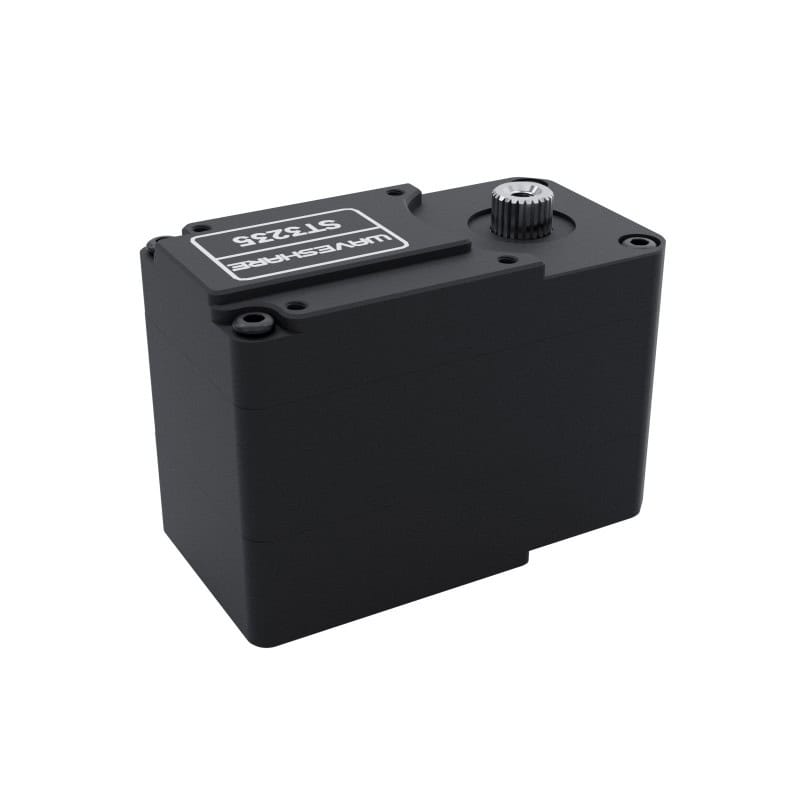

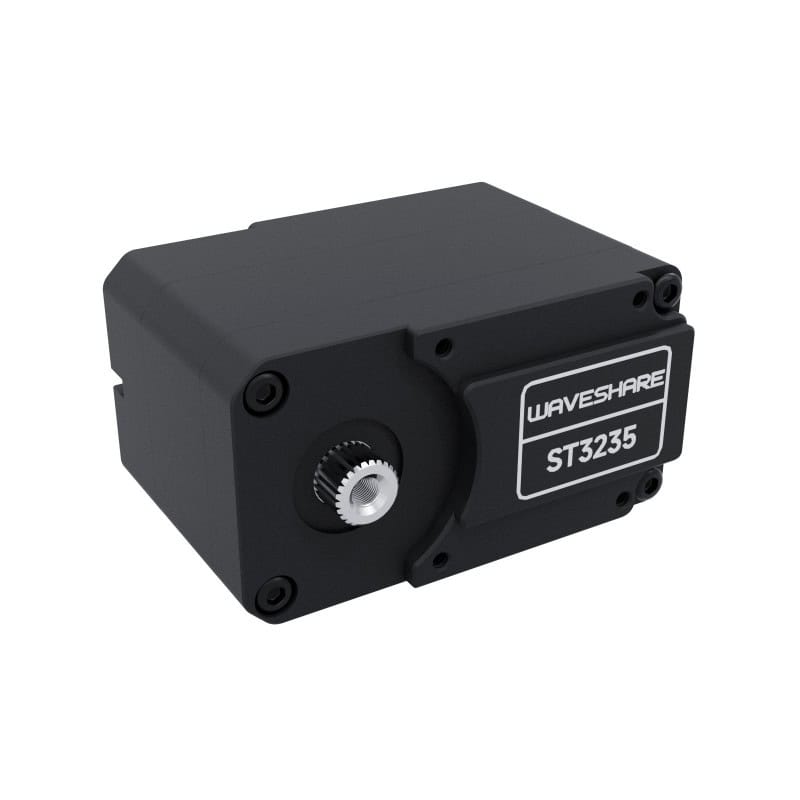

Obavesti me kada proizvod bude dostupan!Aluminum Alloy Case, Brushless Motor, With 360° Magnetic Encoder
| Product type | ST3235 serial bus servo |
| Torque | 30kg.cm@12V |
| Rotation angle | 360° (0~4095) |
| Position sensor resolution | 0.088° (360°/4096) |
| Mechanism limit angle | No Limit |
| Working voltage | 6 ~ 12 V (typ. 12V) |
| Gear | high precision steel gear (reduction ratio 1:345) |
| No-load speed | 0.222sec/60° 45RPM@12V |
| Encoder type | 360° magnetic encoder |
| ID range | 1 ~ 253 (1 by default) |
| Baudrate | 38400bps ~ 1Mbps (1Mbps by default) |
| No-load current | 190mA |
| Locked-rotor current | 2.7A |
| Kt | 11kg.cm/A |
| weight | 70.5g |
| Feedback | Position, Load, Speed, Input Voltage, Current, Temperature |
To Improve The Heat Tolerance, Size Stability, Rigidity, And Mechanical Performance Of The Case, And Increase Rotational Accuracy
Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the carbon film potentiometer, the angle of the magnetic encoder is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the lifetime of the servo is effectively extended.
Up To 30kg.Cm Torque On 12V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Servos

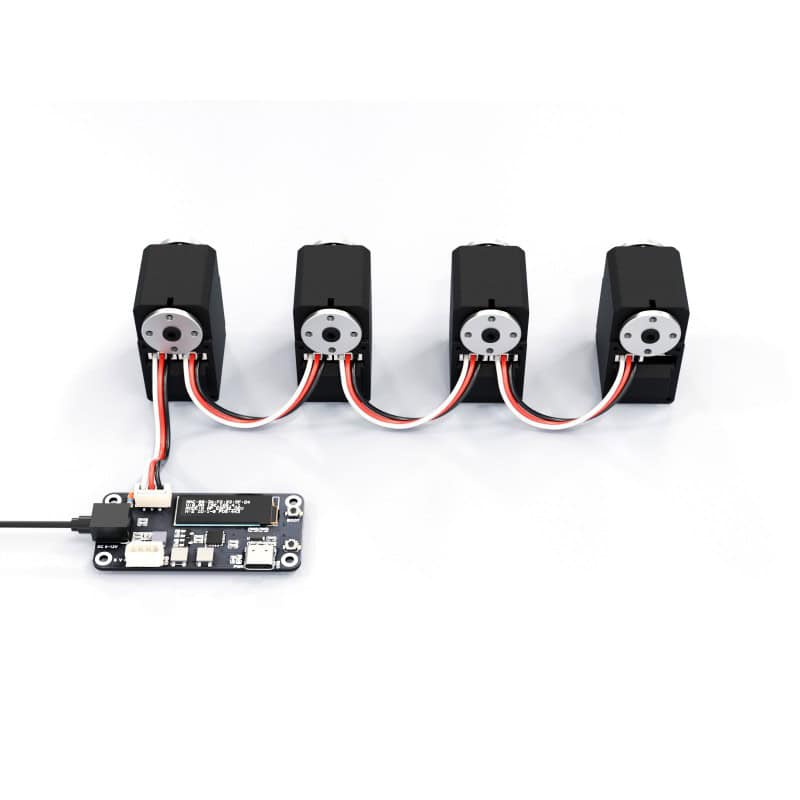

Up To 253 Serial Bus Servos Controlling At The Same Time, With Simple Wiring, Reducing The Occupation Of The Serial Port
Note: though one channel UART can control up to 253 serial bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos. For reference only, the servo driver board is NOT included
The Speed And Acceleration Values Are Settable To Make The Motion Effect Softer And Reduce Impact From Inertia
360° Installation At Any Position, One Button To Set The Current Position As Middle Position. Easy To Install And Debug
1. Using the ST series demo we provided, a hotspot will be created automatically after the servo driver board is turned on. Use your mobile phone to connect to this hotspot, open the browser, and enter the IP address to enter the control interface.
2. Click Release to unlock, then turn the servo to the middle position where you need to set
3. Click Set Middle Position then confirm.
4. Turn the servo to any angle, then click Middle, and the servo will automatically return to the middle position initially set.
The Servo Will Provide Various Feedback Like Position, Load, Speed, Input Voltage, Current And Temperature In Real Time, With Unloading Force Protection When The Servo Is Overheated Or Overloaded
* images here are for reference ONLY
Angle servo mode
Default mode, the angle position is controllable at 0~360° degrees
Speed closed-loop motor mode
Motor mode, intelligently control and maintain speed when the load changes
Step mode
Can perform step motion relative to the current position
Supports Angle Position Control In Both Positive And Negative Directions Up To 7 Loops Under The Default Precision Setting, But The Number Of Loops Will Not Be Saved In Case Of Power Loss. Lowering The Angle Resolution Can Double The Number Of Control Loops
Aluminum alloy case
Improves heat tolerance, structural strength, lifetime, and mechanical performance
High strength aluminum servo wheels
Using T6061 aluminum alloy, good anti-corrosion performance
High precision copper and steel gears
The combination of the two types of gears allows the servo to work with lower working noise, and enhances its stability and mechanical performance
All-metal bracket
More convenient to combine it with other devices
