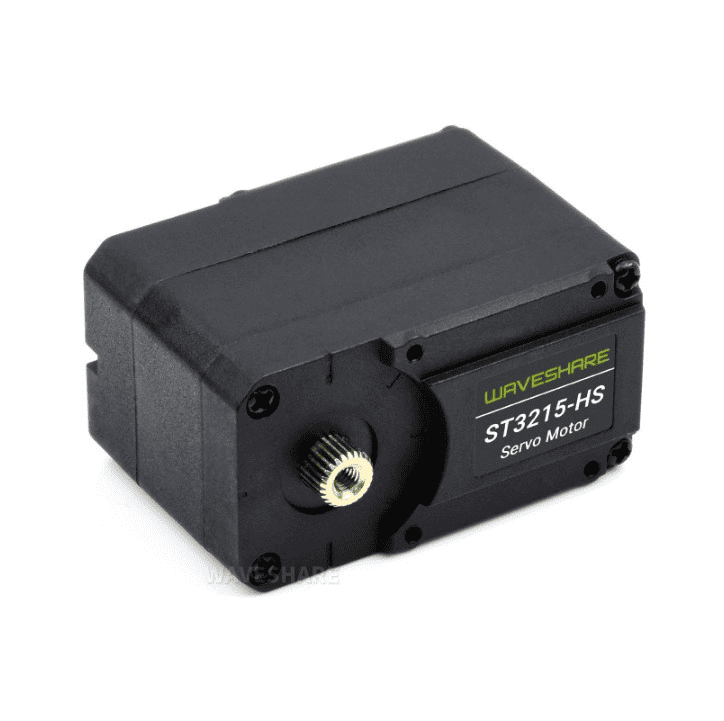

Large Torque | 360° High Precision Magnetic Encoder | 106PRM High Speed
| PRODUCT TYPE | ST3215-HS bus servo motor |
|---|---|
| TORQUE | 20kg.cm@12V |
| ROTATION ANGLE | 360° (0~4095) |
| POSITION SENSOR RESOLUTION | 360° / 4096 |
| MECHANISM LIMITED ANGLE | No Limit |
| OPERATING VOLTAGE | 6 ~ 12.6 V |
| GEAR | high precision metal gear |
| NO-LOAD SPEED | 0.094sec / 60° (106RPM) |
| ENCODER TYPE | 360° Magnetic Encoder |
| ID RANGE | 1 ~ 253 |
| BAUDRATE | 38400bps ~ 1Mbps (1Mbps by default) |
| FEEDBACK | Position, Load, Speed, Input Voltage |
| NO-LOAD CURRENT | 240 mA |
| LOCKED-ROTOR CURRENT | 2.4A |
| KT | 8.3kg.cm/A |
* images here are for reference ONLY
Allows Controlling Up To 253 Bus Servo Motors At The Same Time
Up To 20kg.Cm Torque On 12V Voltage, Suitable For Building Quadruped Robots,
Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Servo
Motors With Large Torque And High Speed Performance

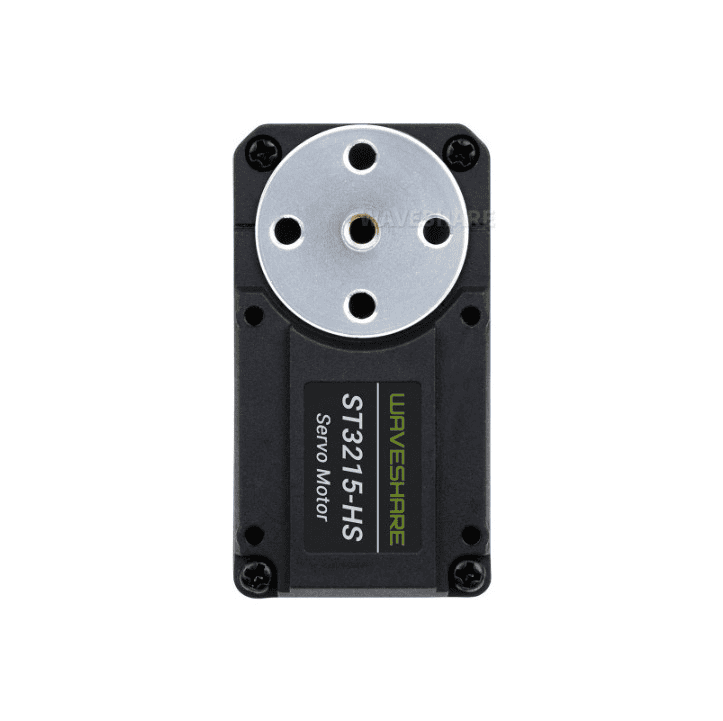

With The Flat Key Shaft Flange Designed For The Serial Bus Servo, It Is Possible
To Drive Various Transmission Parts
Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the potentiometer, the angle is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the lifetime of the motor is effectively extended.
The Speed And Acceleration Values Are Settable To Make The Motion Effect Softer
Actual Effect
Motion Effect Diagram

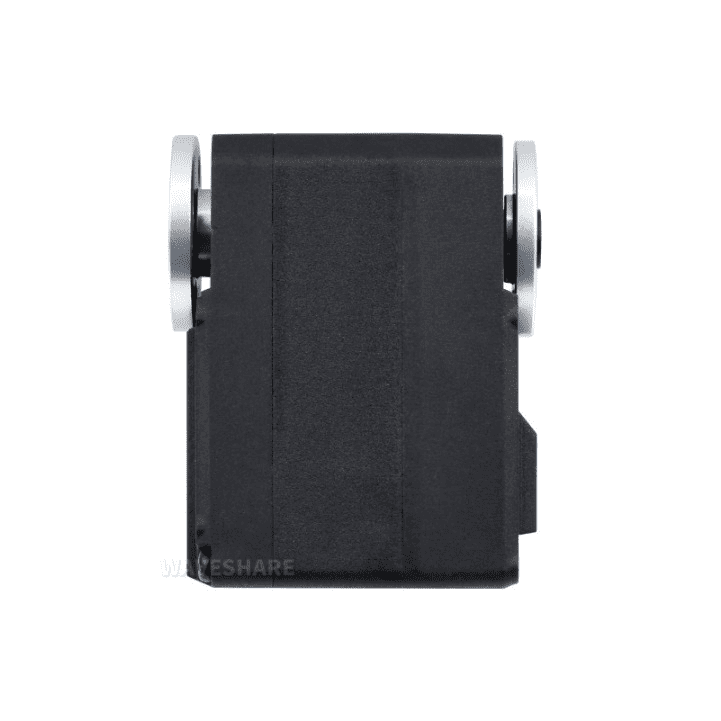

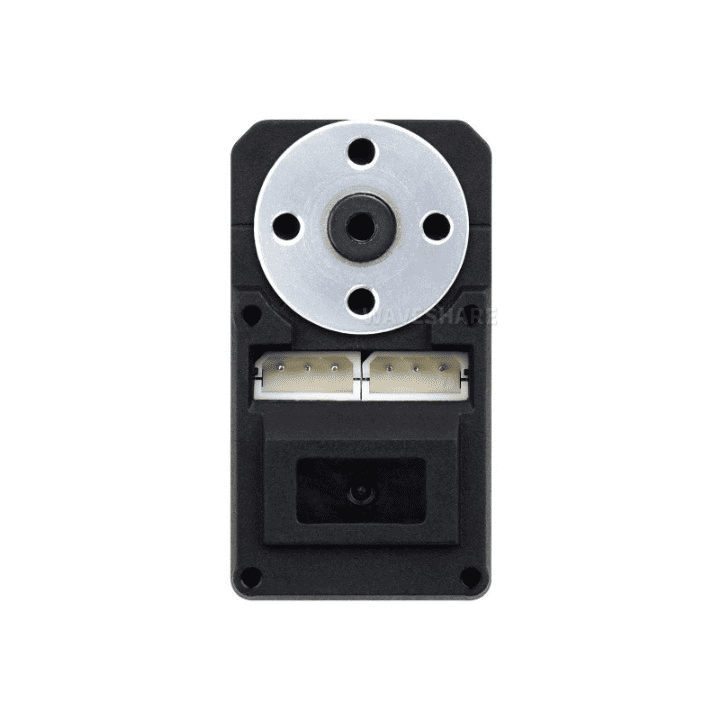

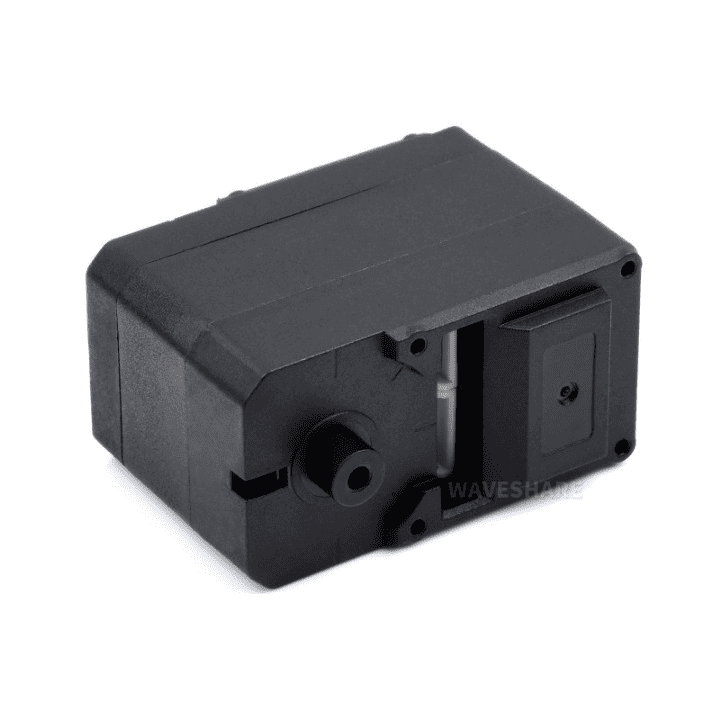

The case adopts higher intensity engineering plastics, dual shaft and low profile design, shortening the plane spacing of the double-shaft servo wheel, and the overall structure is more compact, which can make the appearance of the product more beautiful.
360° Installation At Any Position, One Button To Set The Current Position As Middle Position. Easy To Install
1. In the default program, a hotspot will be created automatically after the servo driver board is turned on. Use your mobile phone to connect to this hotspot, open the browser, and enter the IP address to enter the control interface.
2. Click Release to unlock, then turn the servo motor to the middle position where you need to set
3. Click Set Middle Position then comfirm.
4. Turn the servo motor to any angle, then click Middle, and the servo motor will automatically return to the middle position initially set.
The Servo Motor Will Provide Various Feedback Like Position, Load, Speed,
And Input Voltage In Real Time
* images here are for reference ONLY
Precise Rotation Angle Control On Servo Mode
Continuous Rotation On Motor Mode
* images here are for reference ONLY
Nylon and fiberglass case
Improved heat-resistance, size stability, rigidity, and mechanical performance
High strength aluminum servo wheels
Using T6061 aluminum alloy, good corrosion-resistance
High precision copper and steel gears
Ingenious combination of the two, lower operating noise, better stability and mechanical performance
We provide the open-source web control demo of the servo driver board and a secondary development tutorial, which can be directly used for remote setting and remote control of the servo motor. At the same time, we also provide a 3D model for you to build your own project quickly
