Large torque | Compact Size | Lightweight
| PRODUCT TYPE | WP90 Servo PWM digital servo |
|---|---|
| TORQUE | 2.3kg.cm @ 6V |
| ROTATION ANGLE | 180° (500 → 2500μsec) |
| MECHANICAL LIMITED ANGLE | No limit |
| OPERATING VOLTAGE | 3~8.4V |
| GEAR | copper gear |
| IDLING SPEED | 0.1sec/60°（100RPM）@6V |
| ENCODER TYPE | Carbon film potentiometer |
| NO-LOAD CURRENT | 150mA@6V |
| LOCKED-ROTOR CURRENT | 1A@6V |
| KT | 2.3kg.cm/A |

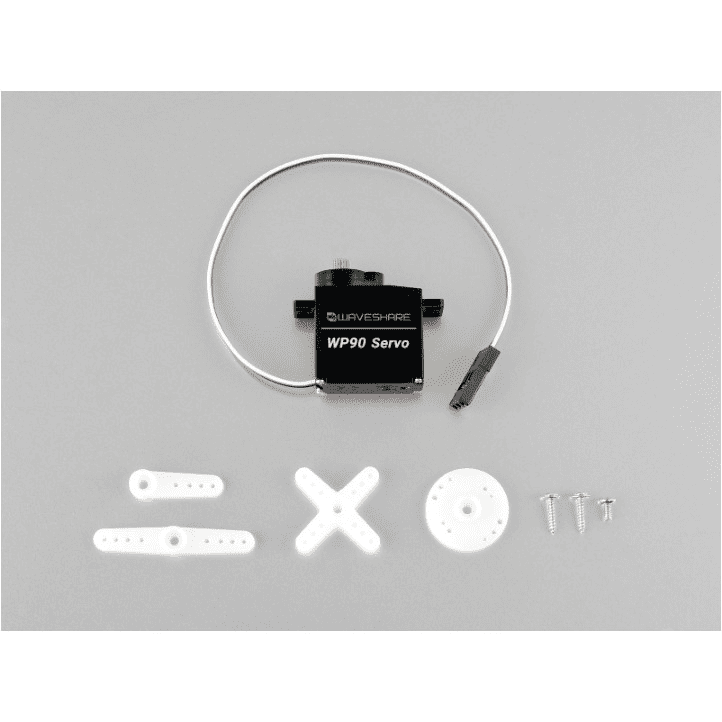

* for reference only, please refer to the part list for detailed package content.
* for reference only, the Raspberry Pi and Servo Driver HAT are NOT included.
The WP90 Adopts A Tough, Durable, And Rigid ABS Case, Ensures Structural Strength While Reducing Its Own Weight, Allows More Flexible Use In Weight-Sensitive Scenarios
Adopts high-precision and high-strength metal reduction gears to ensure smooth movement, features excellent reliability. The gear group can provide superior performance and long service life for the device in various environments.
