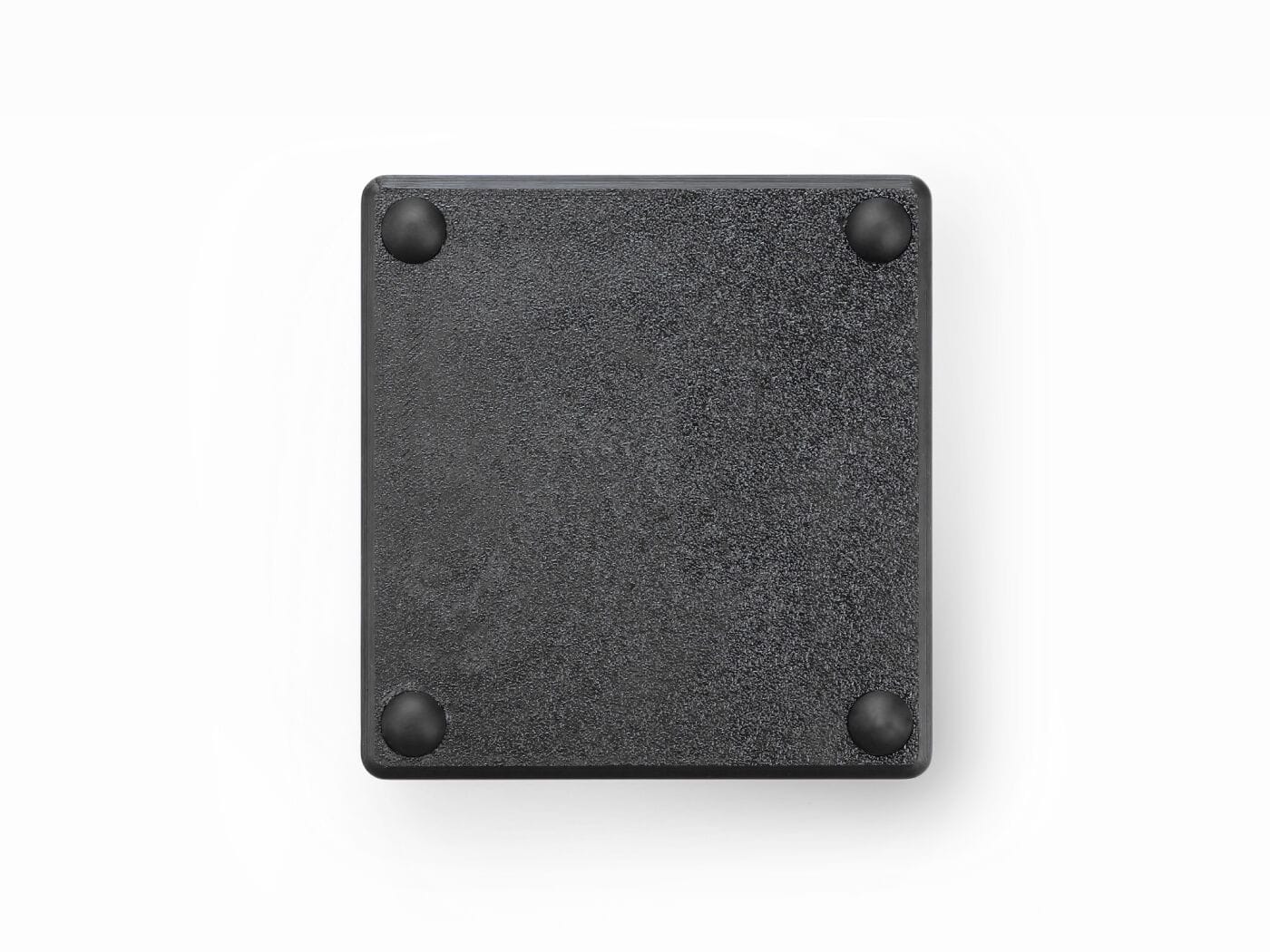

Konektori, žice, protobord XIAO 6-Channel Wi-Fi 5V DC Relay
Feature
Note: Early Build provides beta products (featuring 3D-printed cases) and evolving software before final release. We welcome your feedback and suggestions to shape the product's evolution. Enjoy exploring!
- Smart Home Integration: Seamlessly works with Home Assistant through pre-installed ESPHome firmware. Control and automate your devices remotely via Wi-Fi, with no complex setup needed.
- Six Independent Relay Control: Features 6 independent relay channels to control multiple DC devices simultaneously. Perfect for managing various home appliances, from lights to motors, all in one compact hub.
- XIAO ESP32-C6 Powered: Powered by Seeed Studio XIAO ESP32-C6, delivering stable Wi-Fi, BLE 5.0, Zigbee & Thread connectivity and robust performance for all your automation tasks.

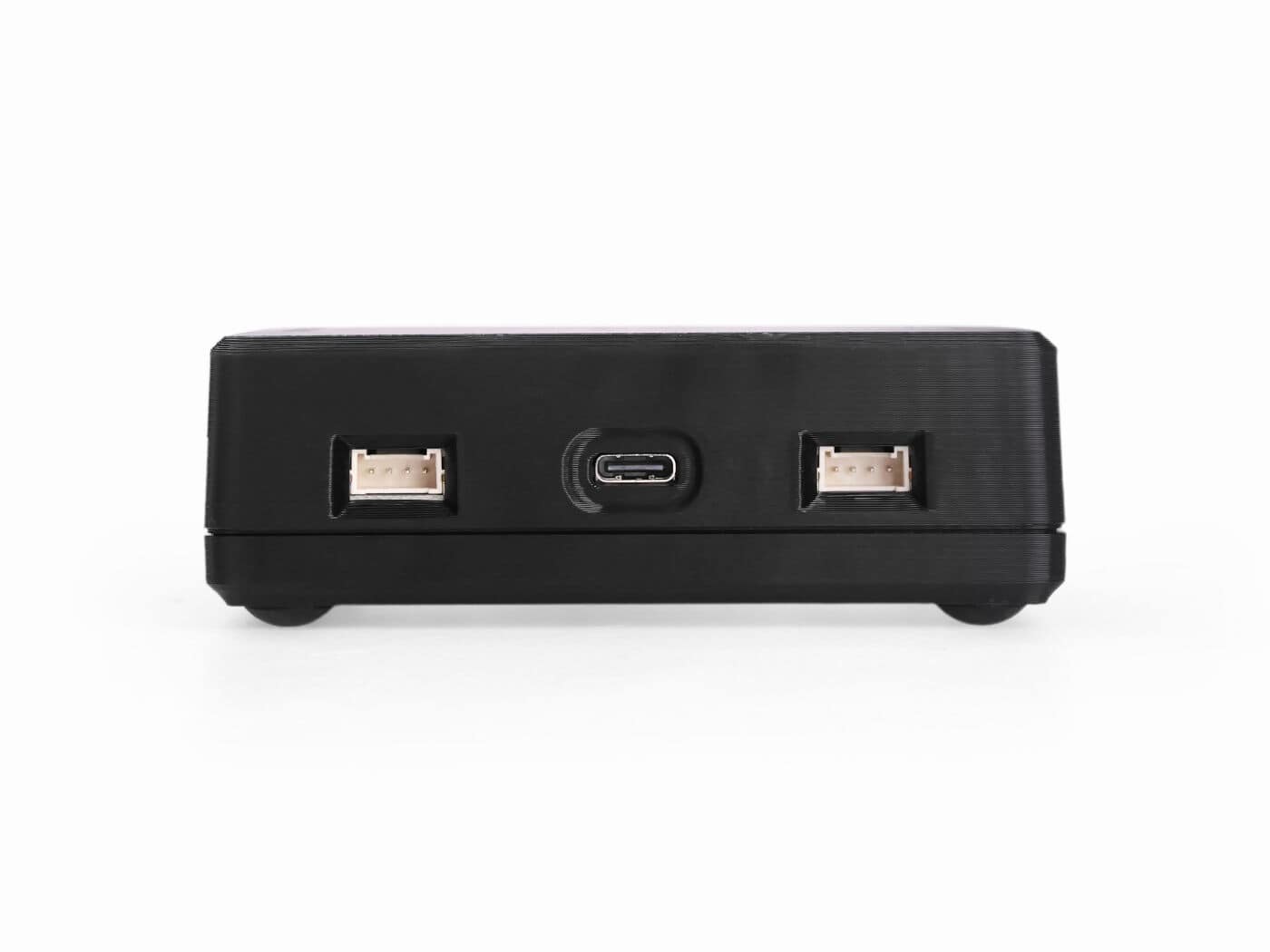

- Built for Expansion: Two Grove interface ports allow easy connection of additional Grove sensors or actuators. Expand your automation possibilities without complicated wiring or modification.
- Compact & Developer-Friendly: Space-saving design meets professional reliability. Fully supports Arduino IDE for custom programming, making it ideal for both beginners and experienced makers.
Specification
Processor |
XIAO ESP32-C6 |
Input voltage (Type-C) |
DC 5V (For XIAO) |
Interfaces |
2.4GHz Wi-Fi 6, 1xIIC(Grove), 1xUART(Grove), USB(Type-C) |
Outputs |

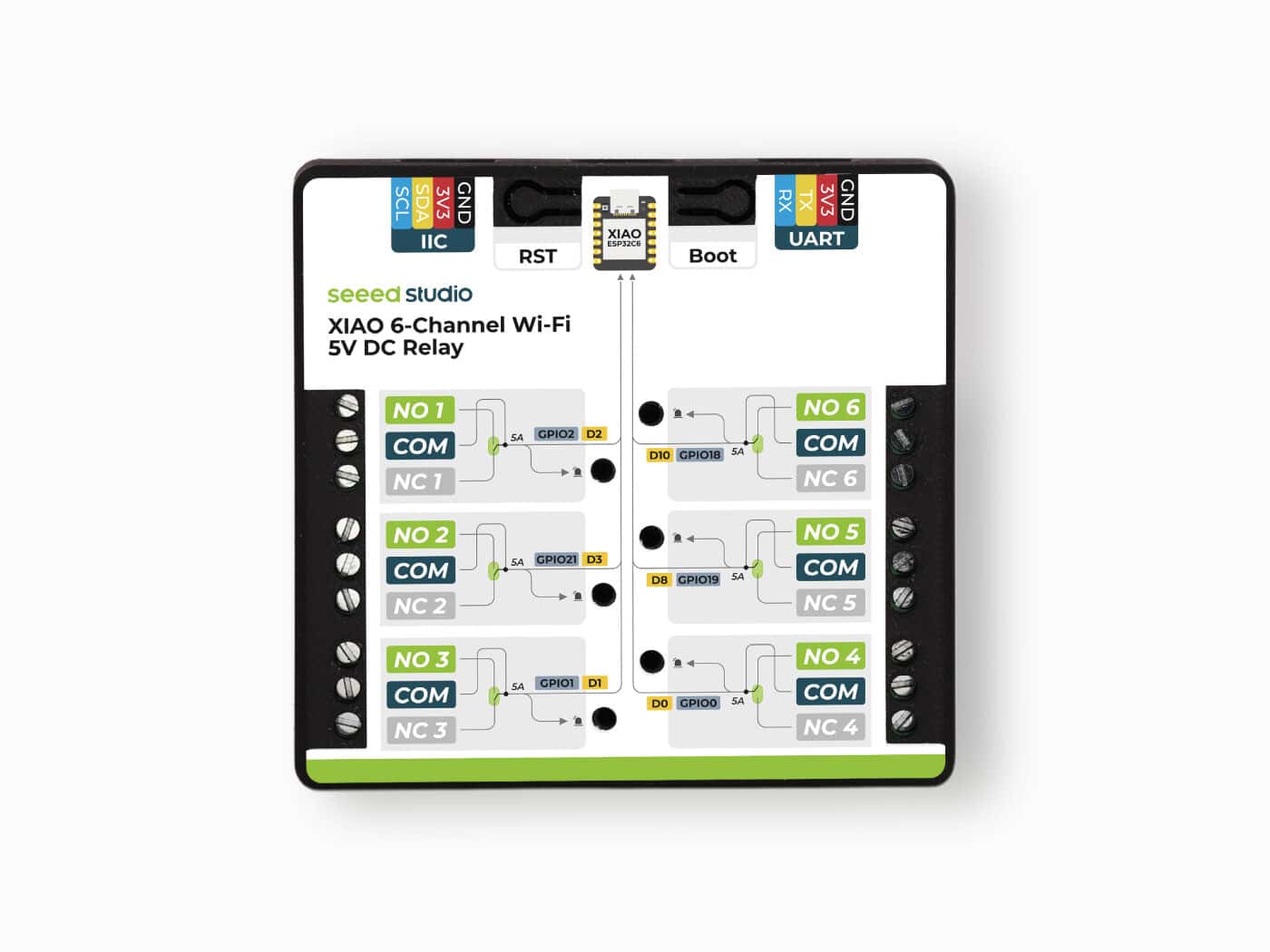

6 Relay Channels, each with COM,NC,NO
10A 30VDC (recommended)
10A 250VAC |

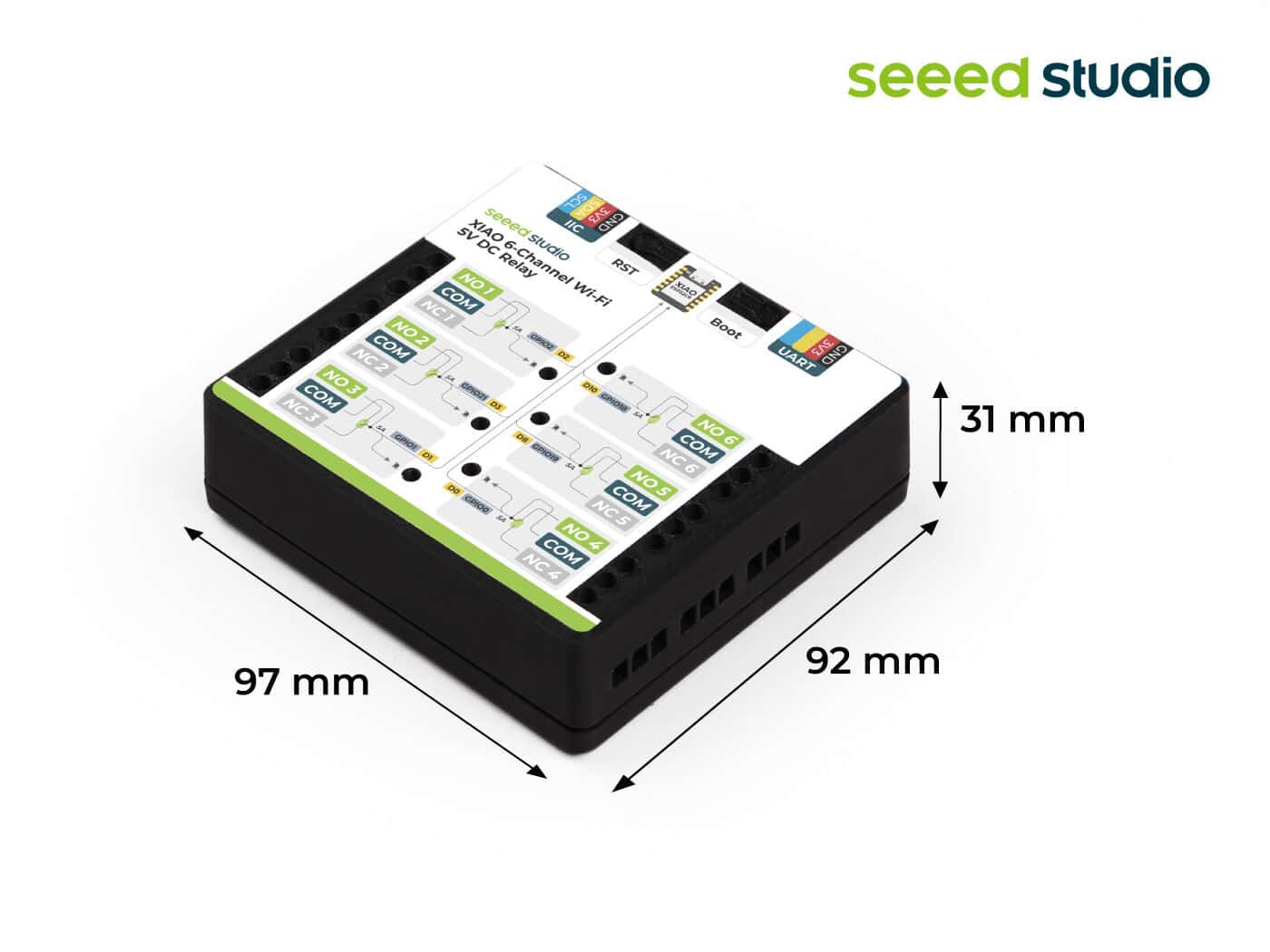

Dimensions |
97mm*92mm*31mm |

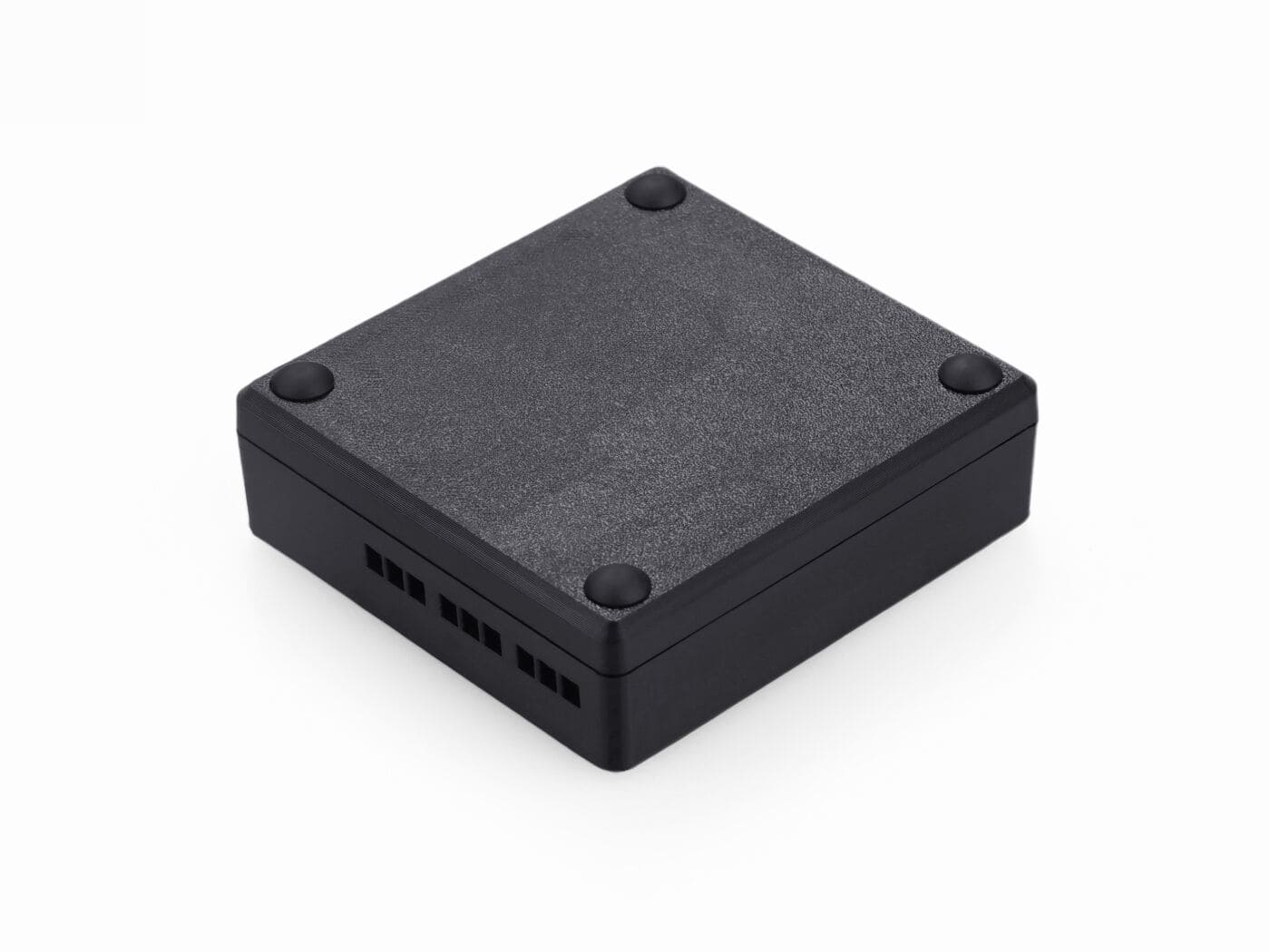

Enclosure |
3D Printed_x000b_Colcor: Black
Material: PLA |
Application
- Home Automation Systems
- Compact Industrial Control Systems
- Energy Management Systems
- Smart Agriculture
- Connected Device Applications
Documents
Thingiverse ECCN/HTS
HSCODE |
8536490090 |
USHSCODE |
8536410030 |
UPC |
|
EUHSCODE |
8531202090 |
COO |
CHINA |
Part List
XIAO 6-Channel Wi-Fi 5V DC Relay with 3D-Printed Enclosure |
x1 |
[Wiki] Getting started with 6-Channel Wi-Fi Relay Module In Home Assistant
The 6-Channel Wi-Fi Relay Module is a smart device from Seeed Studio designed for control within a safe DC voltage range, not for AC-powered appliances. Its six-channel configuration supports independent control of up to six loads, making it an excellent choice for automating
