Dual Ethernet Base Board for CM5
Designed for Raspberry Pi Compute Module 5
Specifications
CM5 socket |
Suitable for all variants of Compute Module 5 |
Networking |
1000M Ethernet RJ45 port × 1
2500M Ethernet RJ45 port × 1 |
Connector |
Raspberry Pi 40PIN GPIO header |
USB |
USB 3.2 Gen1 × 2 |
MIPI |
4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector) |
Video |
HDMI port × 2, supports dual 4K display outputs |
M.2 |
M.2 M KEY (PCIe Gen2/3 x 1) |
M.2 (4G / 5G) |
M.2 M KEY, supports connecting 4G / 5G communication module |
Storage |
TF card socket for Compute Module 5 Lite (without eMMC) variants |
Fan Header |
5V, 4PIN JST-SH PWM fan connector |
Power Input |
7V~36V wide voltage range DC jack, 5V 5A Type-C port |
Dimensions |
the base board: 99.60 × 87.00 (mm)
the case: 104.80 × 90.00 × 29.70 (mm) |
Connecting with Compute Module 5
standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite / eMMC series module
* for reference only, please refer to the package content for detailed part list
4G / 5G module compatibility
compatible with communication modules with M.2 B KEY interface
* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8200EA-M2, and SIM8262E-M2.
Supports connecting to M.2 NVMe Drive
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the package content for detailed part list
Applicable M.2 drive sizes
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.
More rich interfaces
Features multiple interfaces including ETH / MIPI / HDMI / Micro SD / USB / M.2 B KEY / M KEY , for easy to use

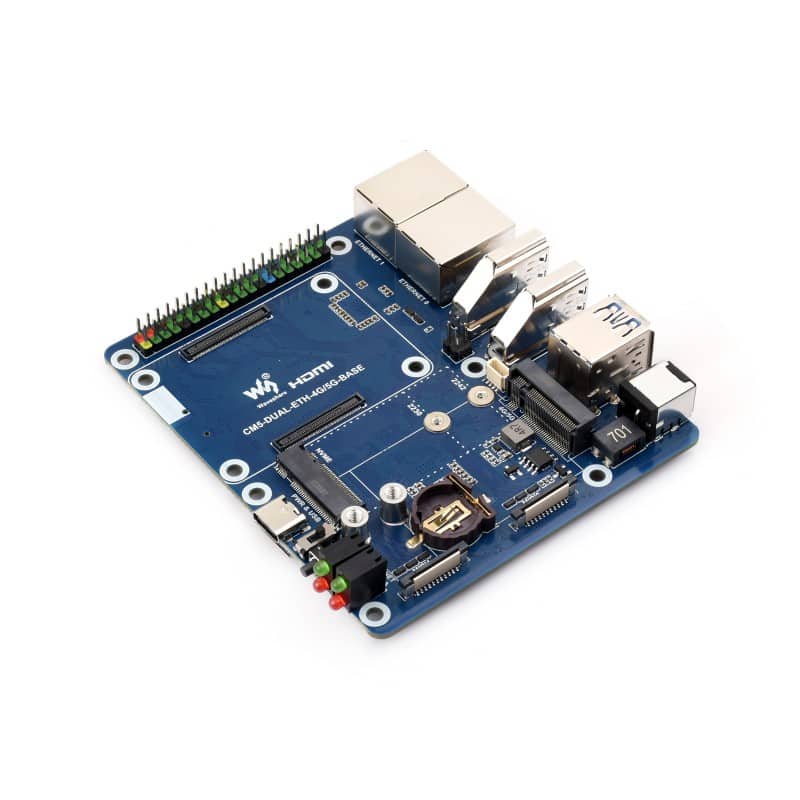

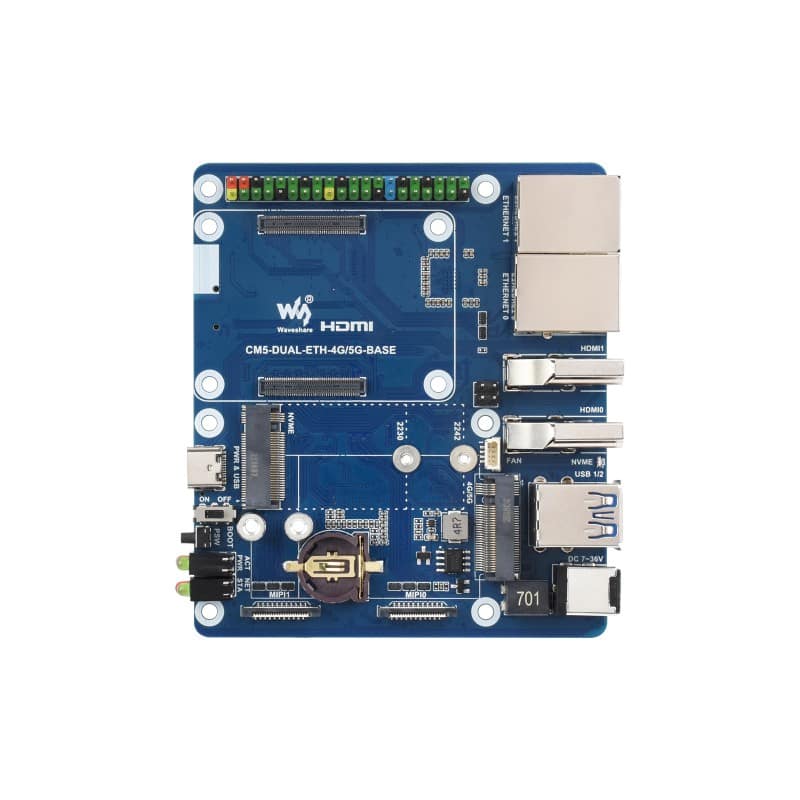

What's On Board
- CM5 socket
suitable for all variants of Compute Module 5
- 40PIN GPIO header
suitable for connecting to various HAT / HAT+ modules
- M.2 M key
supports 2242 / 2230 NVMe Solid State Drives or AI modules
- Programming
used for eMMC burning or USB OTG
- BOOT switch
switch to ON: burning mode
switch to OFF: system normal startup mode
- PSW power button
Long press to force power off, short press to soft power off or on
- System indicators
- M.2 M key status indicators
- RTC battery holder
supports CR / ML 1220 button cell
- Dual MIPI interfaces
for connecting to DSI displays or CSI cameras
- DC power jack
DC 5.5 2.1 jack, supports DC 7V ~ 36V power supply
- M.2 B key
supports connecting 4G/5G communication module
- Dual USB 3.2 Gen1 ports
USB 3.2 Gen1 Type-A ports, up to 5Gbps
- FAN header
for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector
- M.2 M key status indicator
keeps blinking when NVMe drive is reading / writing
- Dual HDMI ports
supports dual 4K outputs
- PoE header
for connecting PoE module, supports PoE power supply through 1000M Ethernet port using PoE switch
- 1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections
- 2500M Ethernet RJ45 port
supports 10M / 100M / 1000M / 2500M network connections

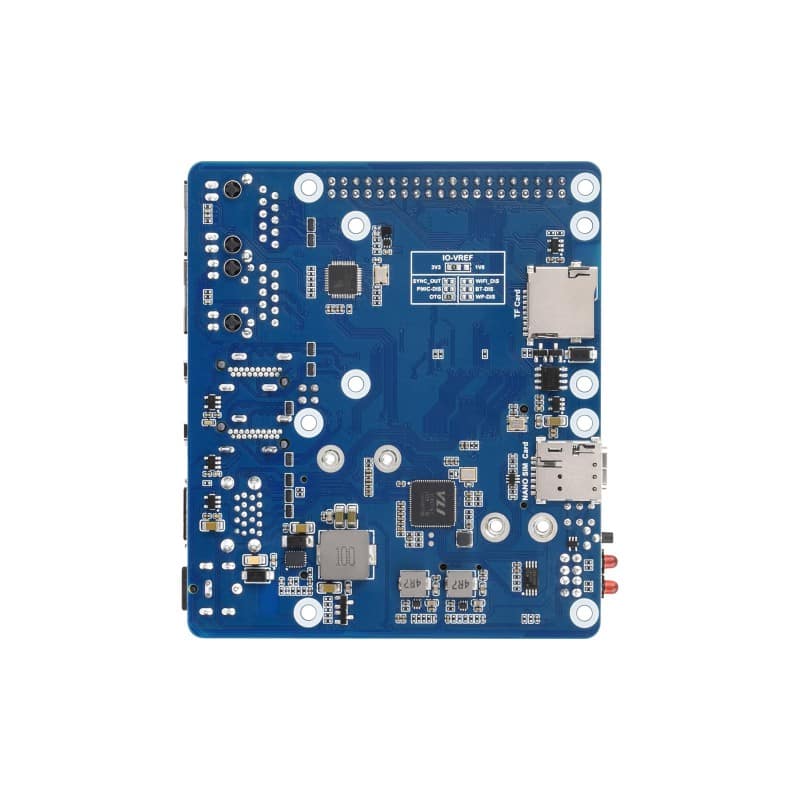

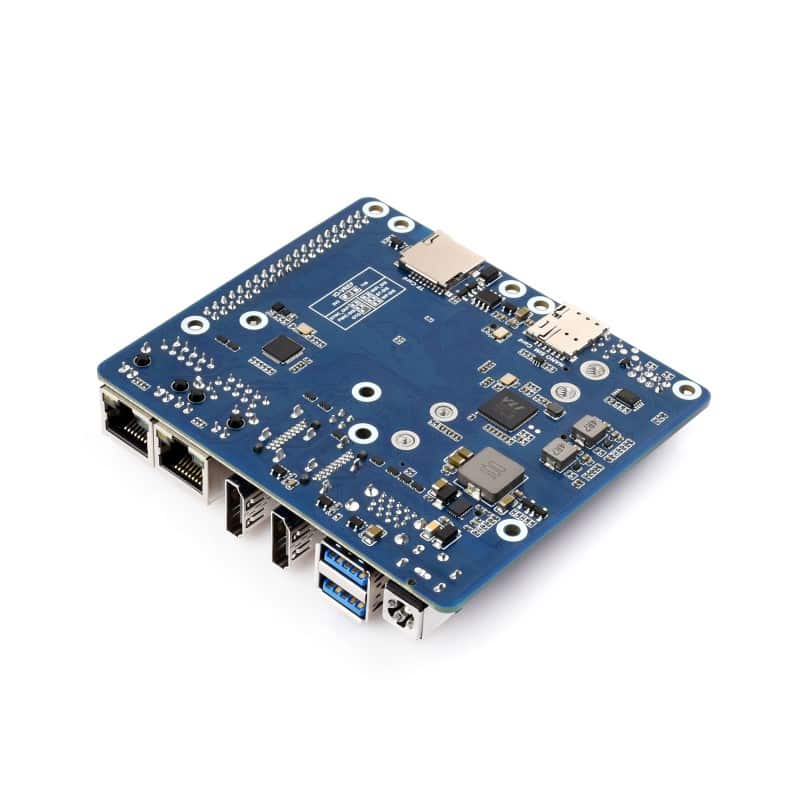

- USB to 2500M Ethernet chip
- IO-VREF selection
CM5 IO logic level: 3.3V (default) or 1.8V
- Other function pins
Hardware disable function, write protection and chip address selection
- TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)
- NANO SIM card slot
- USB3.0 HUB
Outline dimensions
About Compute Module 5 (nije u pakovanju)
Newly upgraded, more powerful
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Package content:
