Part No.: 5inch Raspberry Pi Touch Display 2
Brand: Raspberry Pi Foundation
Korisne informacije:
www.waveshare.com/wiki/5inch-Raspberry-Pi-Touch-Display-2 Official Raspberry Pi 5inch Capacitive Touch Display 2, 720 × 1280, DSI Interface, 5-Point Touch, IPS Display

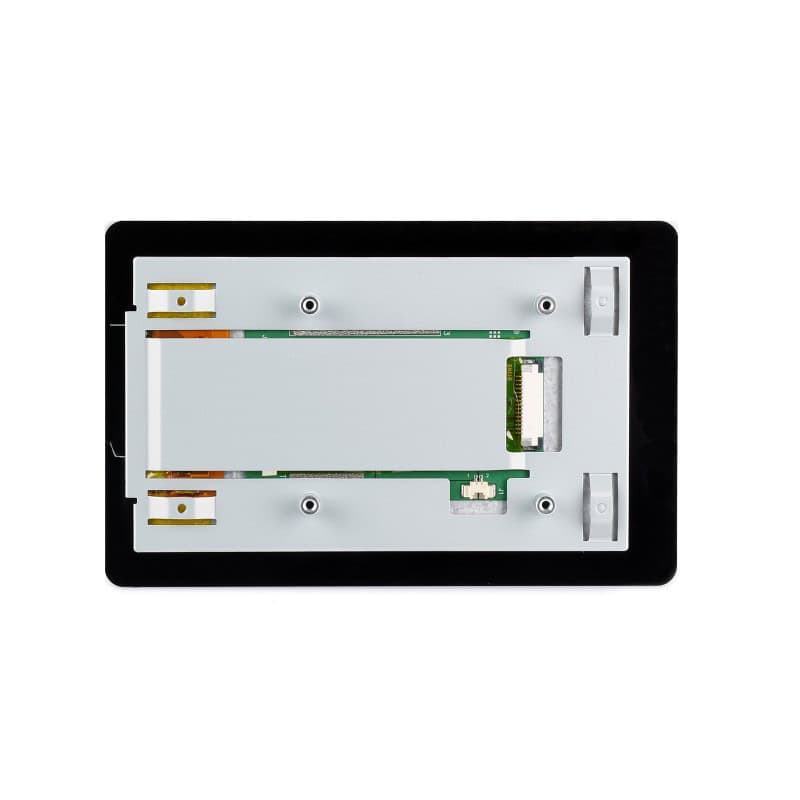

Raspberry Pi 5″ Touch Display 2
designed by Raspberry Pi
The display orientation is portrait by default, with 720 × 1280 resolution (H × V). Change the software config for landscape display. Product Introduction
5inch Raspberry Pi Touch Display 2 is a 5″ touchscreen display for Raspberry Pi. It is ideal for interactive projects such as tablets, entertainment systems, and information dashboards.
Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.
Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers.
(Raspberry Pi Zero series is not supported)
* for reference only, the Raspberry Pi board is NOT included. Device & System Support
Raspberry Pi:
Supports Raspberry Pi OS, 5-point touch
Connection Examples

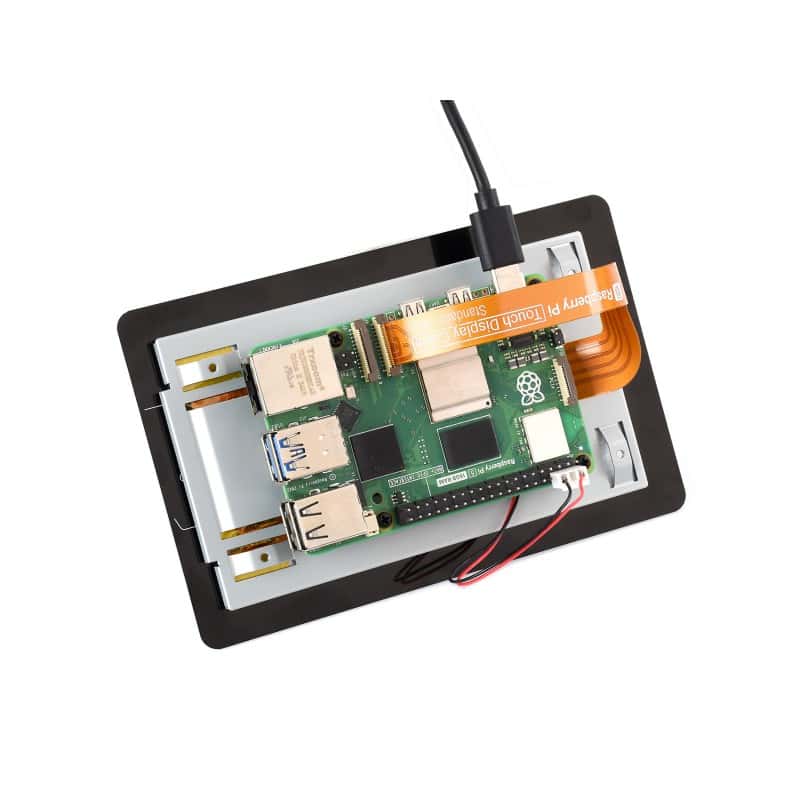

Working with Raspberry Pi 5
Working with Raspberry Pi 4B How to install
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
* for reference only, the Raspberry Pi boards above are NOT included. IPS Display Panel

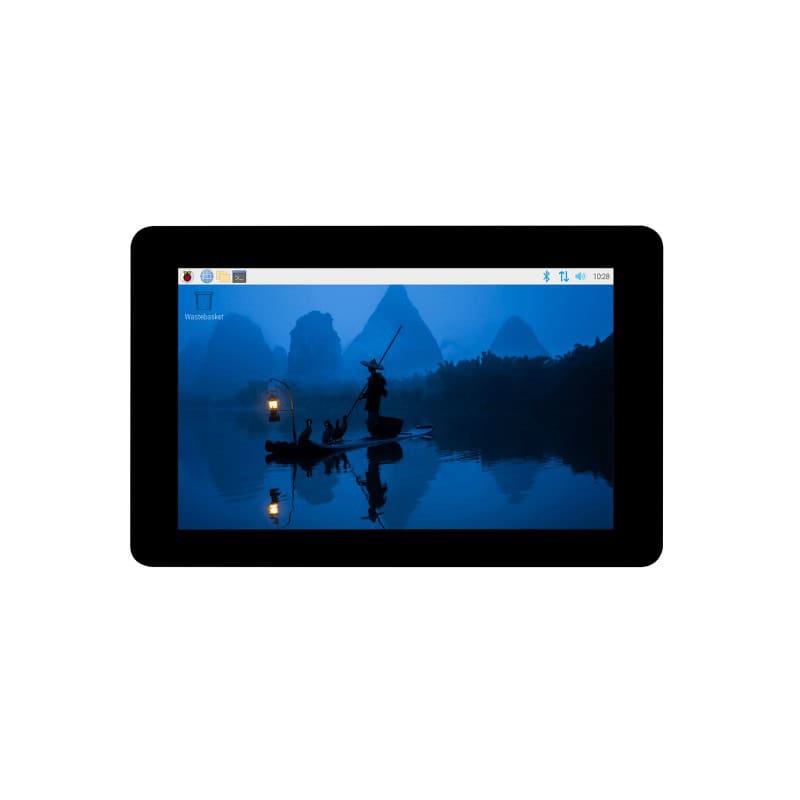

Excellent Display Performance With 160° Wide Viewing Angle
5-Point Capacitive Touch
up to 5-point touch, depending on the operating system
Interface Introduction
Dimensions
Package content:
Weight: 0.18 kg
- Raspberry Pi 5inch Touch Display 2 x1
- Pi4 DSI cable x1
- Pi5 DSI cable x1
- GPIO cable x1
- Screws pack x1
