Part No.: Thermal-90 Camera Module
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/Thermal-Camera-Module Long-wave IR Thermal Imaging Camera Module, 80 × 62 Pixels IR Array, Motion Detection, SPI And I2C Interfaces Communication, Suitable For Raspberry Pi And Other Development Boards, Options For 44° / 90° FOV
Long-wave IR Thermal Imaging Camera Module
80 × 62 Pixels IR Array
Small Size | Non-contact | Motion Detection
Features
This is a long-wave IR thermal imaging camera module that adopts the hybrid technology of microbolometer and thermopile pixel, featuring 80 × 62 array pixels. It overcomes the limitations of traditional temperature measurement devices, such as single-point detection and light dependency. By capturing infrared radiation signals from objects, it enables the core capability of "visualizing temperature distribution" for devices in the fields of industry, consumer electronics, security, and healthcare, serving as the hardware foundation for intelligent temperature monitoring and risk early warning.
Key features include:
- Adopts the hybrid technology of microbolometer and thermopile, 80 (H) × 62 (V) array pixels
- Continuous operation and thermal imaging video stream due to shutterless design
- Each pixel is calibrated before shipment to ensure uniformity and accuracy of temperature reading
- Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
- Up to 25FPS (Max) thermal imaging video stream output
- Provides lens 90° FOV
- Comes with online resources and manuals (Python demo for Raspberry Pi, etc.)
Main applications:
- Long-term non-contact temperature online monitoring
- IR thermal imaging devices, IR thermometers
- Smart home, intelligent building, intelligent lighting
- Infant and elderly care
- Fever detection
- Industrial temperature control, security & safety, intrude/motion detection
- Small Target Thermal Analysis, Heat Trend Analysis and Solutions
Microbolometer and Thermopile Hybrid Architecture
This module combines the advantages of microbolometer and thermopile pixel technologies, achieving the simultaneous optimization of accuracy and reliability
Min 17.2 Max 30.8 Avg 23.6
The minimum temperature is 17.2°C, the maximum temperature is 30.8°C, and the average temperature is 23.6°C.
Specifications
Power supply |
3.3V / 5V |
Operating current |
20mA@5V |
wavelength range |
8μm ~ 14μm |
Operating temperature |
-20℃ ~ 85℃ |
Target temperature |
-20℃ ~ 400℃ |
Refresh rate |
25 FPS (Max) |
FOV |
Standard version: 55°(D) × 44°(H) × 35°(V) |
Wide angle version: 143°(D) × 90°(H) × 66°(V) |
Noise Equivalent
Temperature Difference |
150mK |
Measuring Accuracy |
±1.5℃ (ambient temp. 10℃ ~ 70℃) |
Dimensions |
45.00 × 22.00 (mm) |

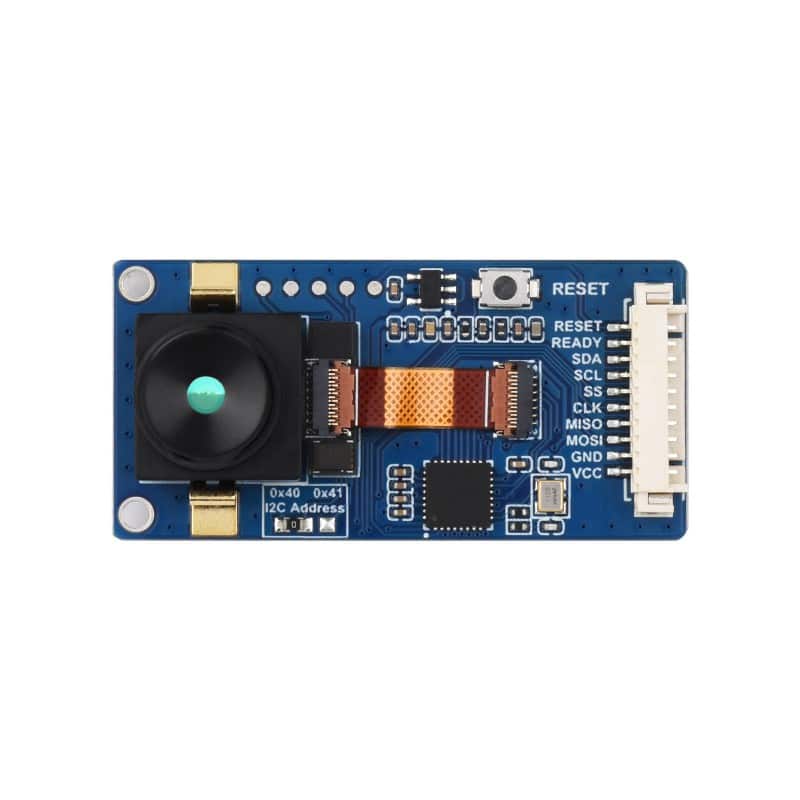

Onboard MX1.25 10PIN connector
Connects to Raspberry Pi series boards via SPI and I2C interfaces
for reference only, please refer to the package content for the detailed part list.
Application Scenarios
Outline dimensions
Package content:
Weight: 0.013 kg

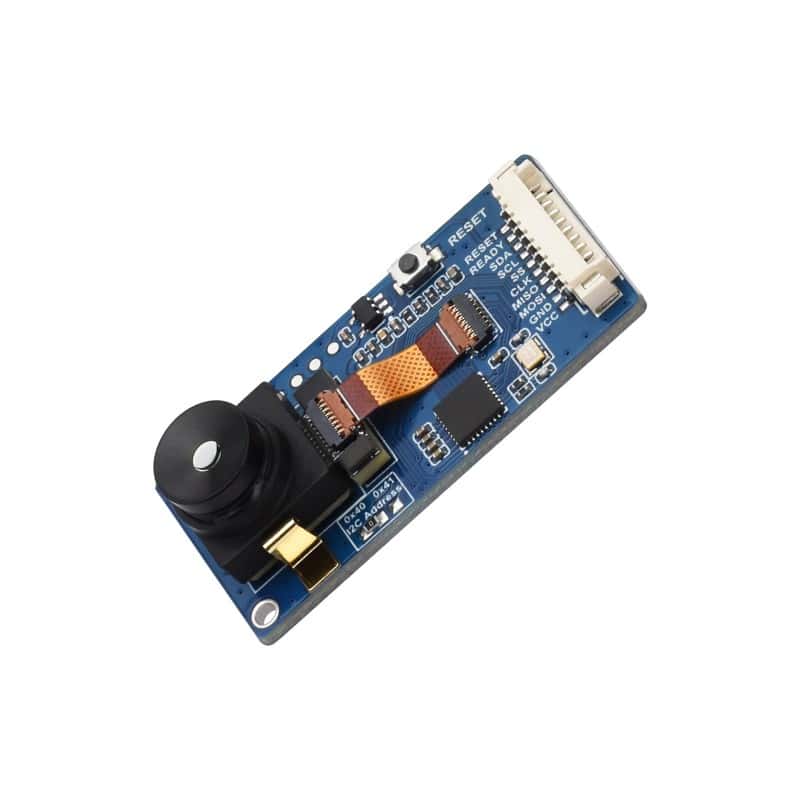

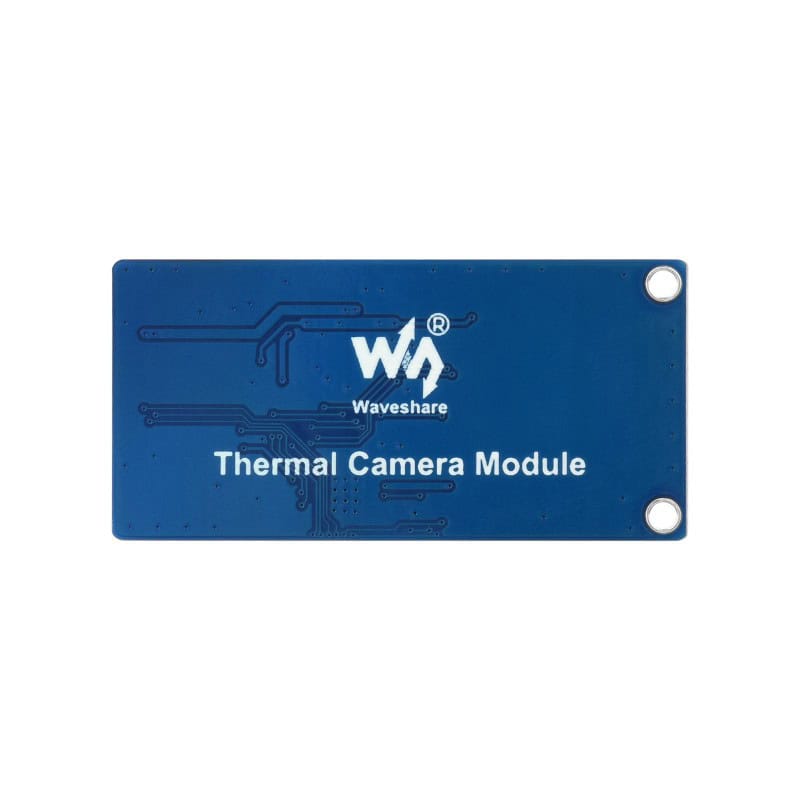

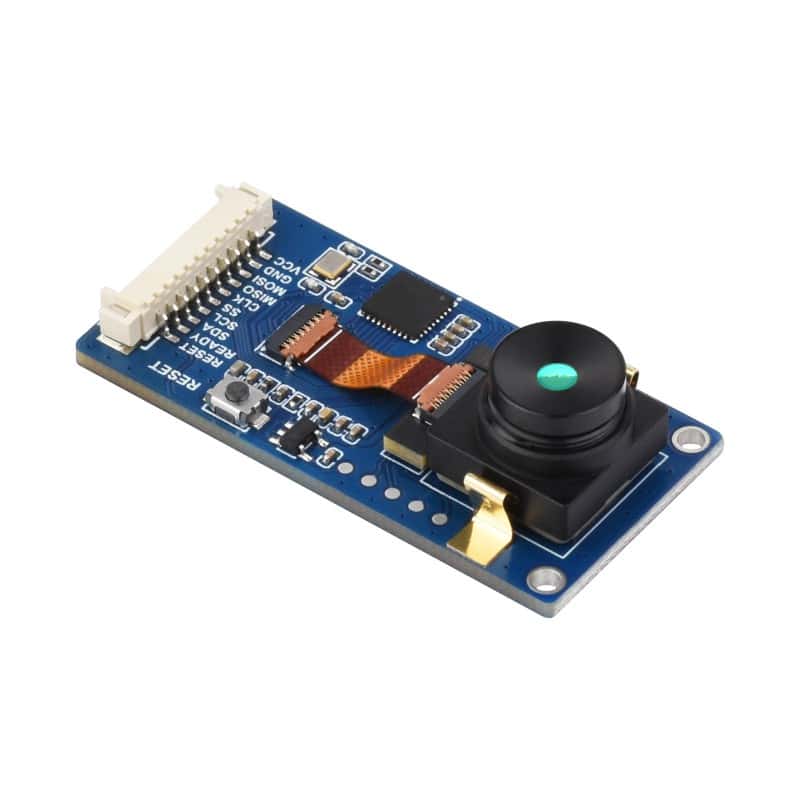

Thermal-90 Camera Module
- Thermal-90 Camera Module x1
- MX1.25 10PIN to 2.54 cable ~200mm x1
