Seeed Studio XIAO MG24 Sense

Šifra: se102010610

1.599,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Odmah dostupno više od 5

Dodaj u korpu

Težina po komadu: 0.005 Kg

Konektori, žice, protobord

Seeed Studio XIAO MG24 Sense

XIAO MG24 Sense - Silicon Labs EFR32MG24, Matter® Native over Thread® /BLE 5.3, Arduino® Compatible, 1.95μA Ultra-Low-Power, On-Board IMU/Micphone/Antenna, 19 GPIOs

XIAO MG24 Sense is an ultra-low-power wireless development board based on Silicon Labs' EFR32MG24 SoC, featuring a high-performance 78MHz ARM Cortex®-M33 core. It‘s Matter® native over Thread® and Bluetooth® Low Energy 5.3, all supported by the Arduino® Core. With 4MB Flash onboard, 19 GPIOs, LED, and charging circuit onboard, it boasts extremely low operating current and ultra-low-power modes, making it an ideal choice for IoT applications, especially battery-powered projects utilizing Matter® protocols. Additionally, the onboard analog microphone and six-axis IMU sensors make XIAO MG24 Sense a great fit for TinyML applications such as posture detection.

Feature

High Performance MCU: Silicon Labs' EFR32MG24 SoC, 32-bit 78 MHz ARM Cortex®-M33 with DSP instruction

Matter Native: Compatible with Matter® over Thread® and Bluetooth® Low Energy 5.3, Supported by the Arduino® Core

Outstanding RF Performance: Equipped with an on-board antenna with BLE range up to 50m in an open location with no signal interference, while reserving an interface for external UFL antenna

Super-Low Power Design: Power consumption less than 1.95μA in sleep mode, ideal for battery-powered home automation application

Advanced Onboard Sensors: Features additional analog microphone and 6-axis IMU for TinyML and edge AI applications such as pose perception for more responsive automation.

Security Encrypted On-Chip: A dedicated hardware secure engine containing its own CPU enables the Secure Vault functions.

Rich On-Board Resources: Additional 4MB Flash on board, on-board battery charging circuit, 19 GPIOs, LED

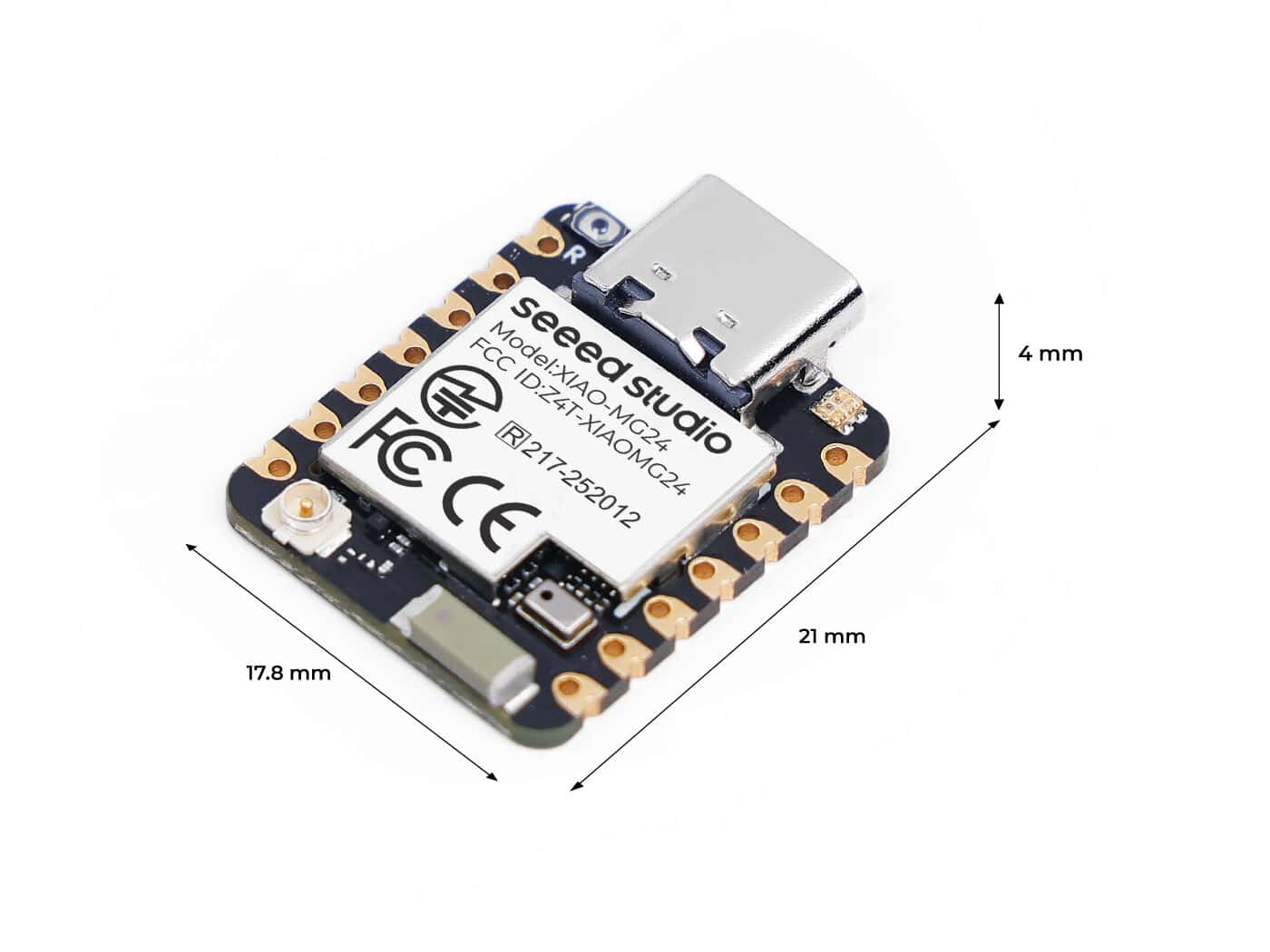

Classic XIAO Design: Remains the classic XIAO design of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables

Being the 12th member of the Seeed Studio XIAO family, the XIAO MG24 Sense remains the classic XIAO design (thumb-size, SMD, stamp holes). All these features make it a perfect fit for either space-limited applications of smart home, or a production-ready unit for your PCBA designs. (check out our Fusion Co-Create one-stop prototyping, producing and promoting services to explore how to scale up your XIAO-based designs).

Note: XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here for more info.

Specification

Product	XIAO MG24	XIAO MG24 Sense
Processor	Silicon Labs EFR32MG24	Silicon Labs EFR32MG24
Processor	ARM Cortex-M33 @ 78MHz	ARM Cortex-M33 @ 78MHz
RAM	256kB	256kB
Flash	1536KB + 4MB Onboard	1536KB + 4MB Onboard
LEDs	1 User LED, 1 Power LED	1 User LED, 1 Power LED
Sensors	-	Onboard Analog Microphone Onboard 6-Axis IMU
Interface	22 Pins: 11x Analog,11x Digital, 1x I²C, 2x UART, 2x SPI, All PWM	22 Pins: 11x Analog,19x Digital, 1x I²C, 2x UART, 2x SPI, All PWM
Button	1 RESET Button	1 RESET Button
Security	Hardware Cryptographic Acceleration, True Random Number Generator, ARM® TrustZone®, Secure Boot, Secure Debug Unlock etc.	Hardware Cryptographic Acceleration, True Random Number Generator, ARM® TrustZone®, Secure Boot, Secure Debug Unlock etc.
Low power	1.95μA	1.95μA
Normal	6.71mA	6.71mA
Sleep	1.91mA	1.91mA
Software Compatibility	Arduino IDE	Arduino IDE
Working Temperature	-20°C-70°C	-20°C-70°C
Dimensions	21x17.8 mm	21x17.8 mm
