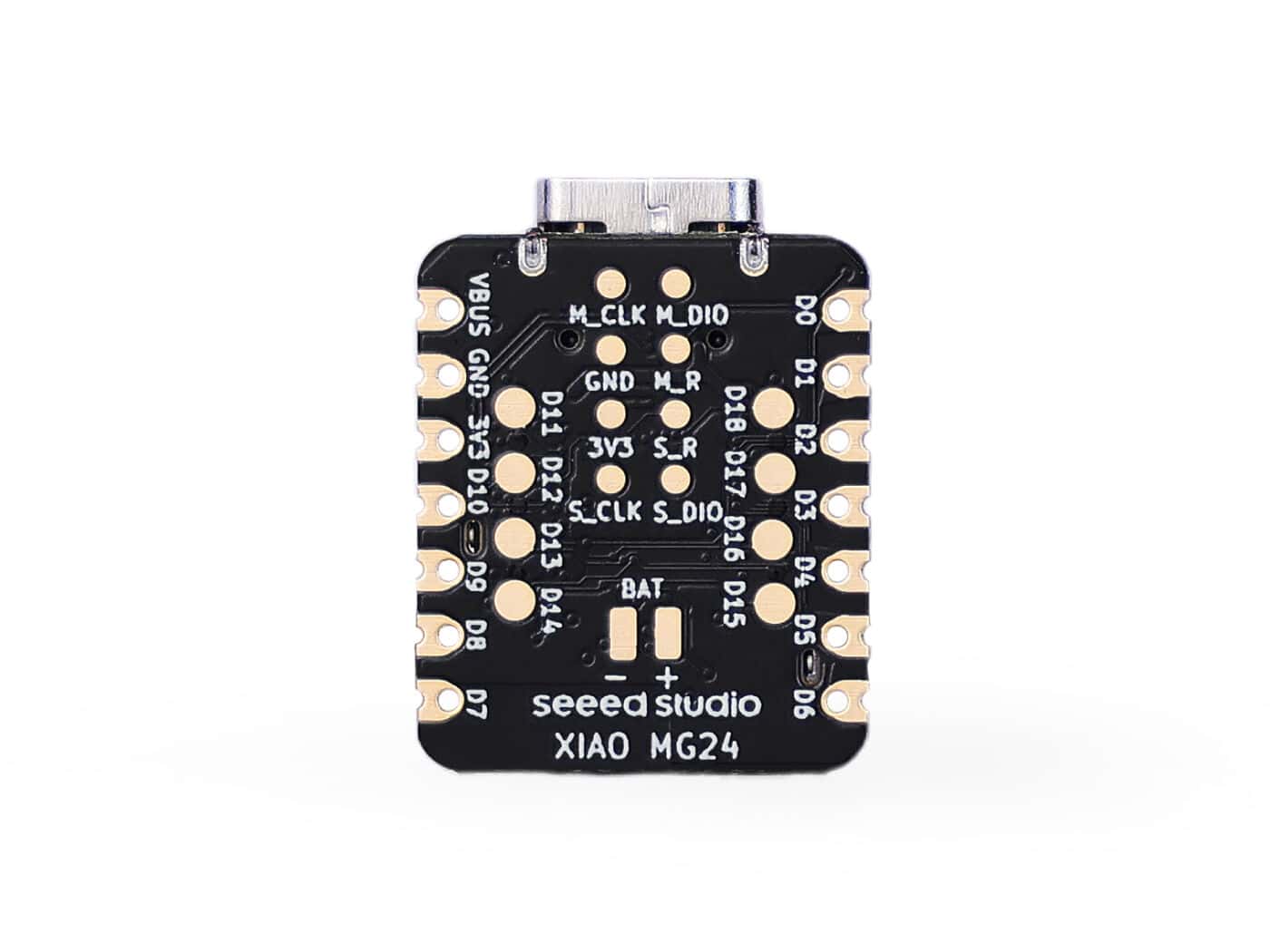

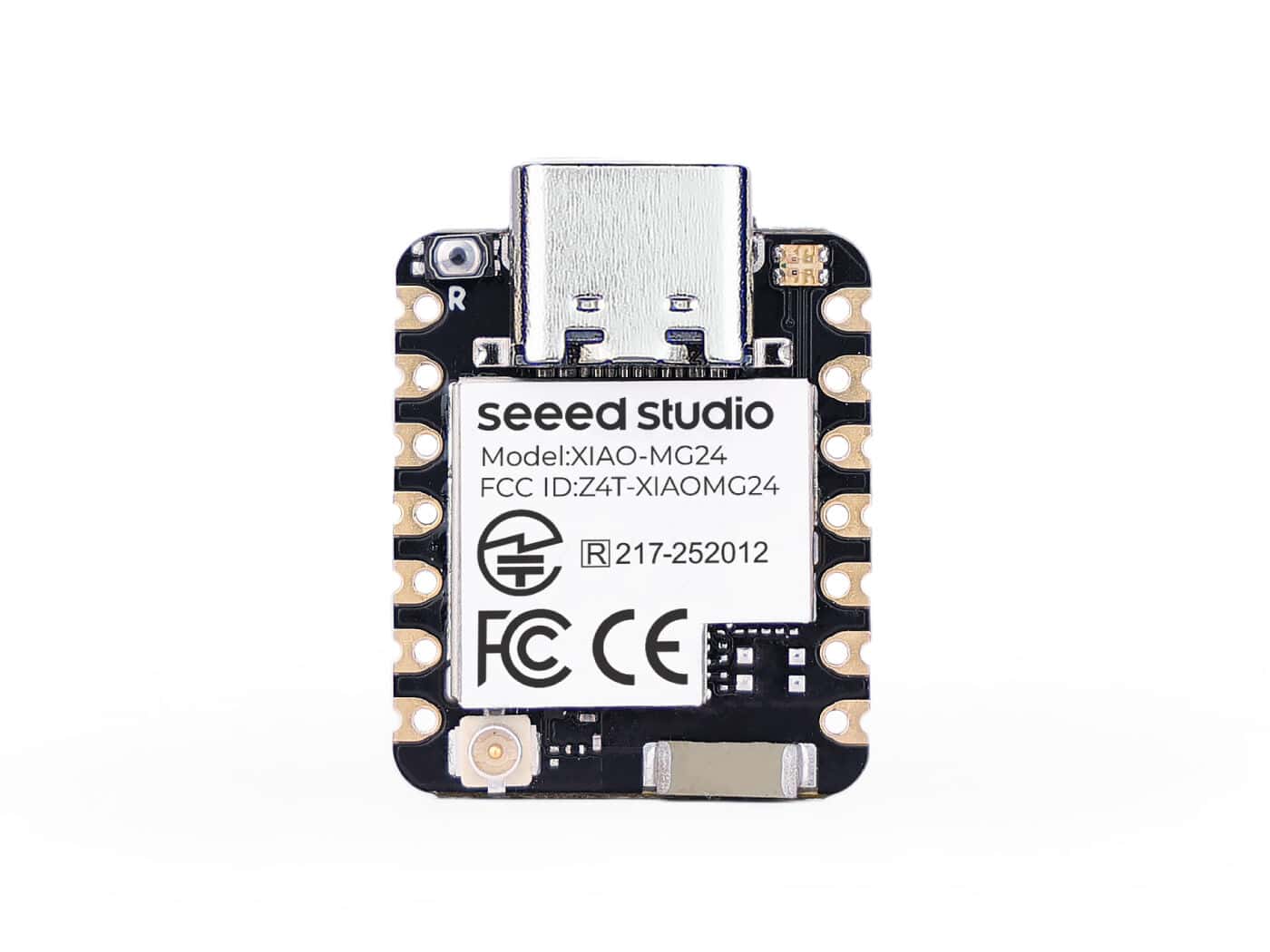

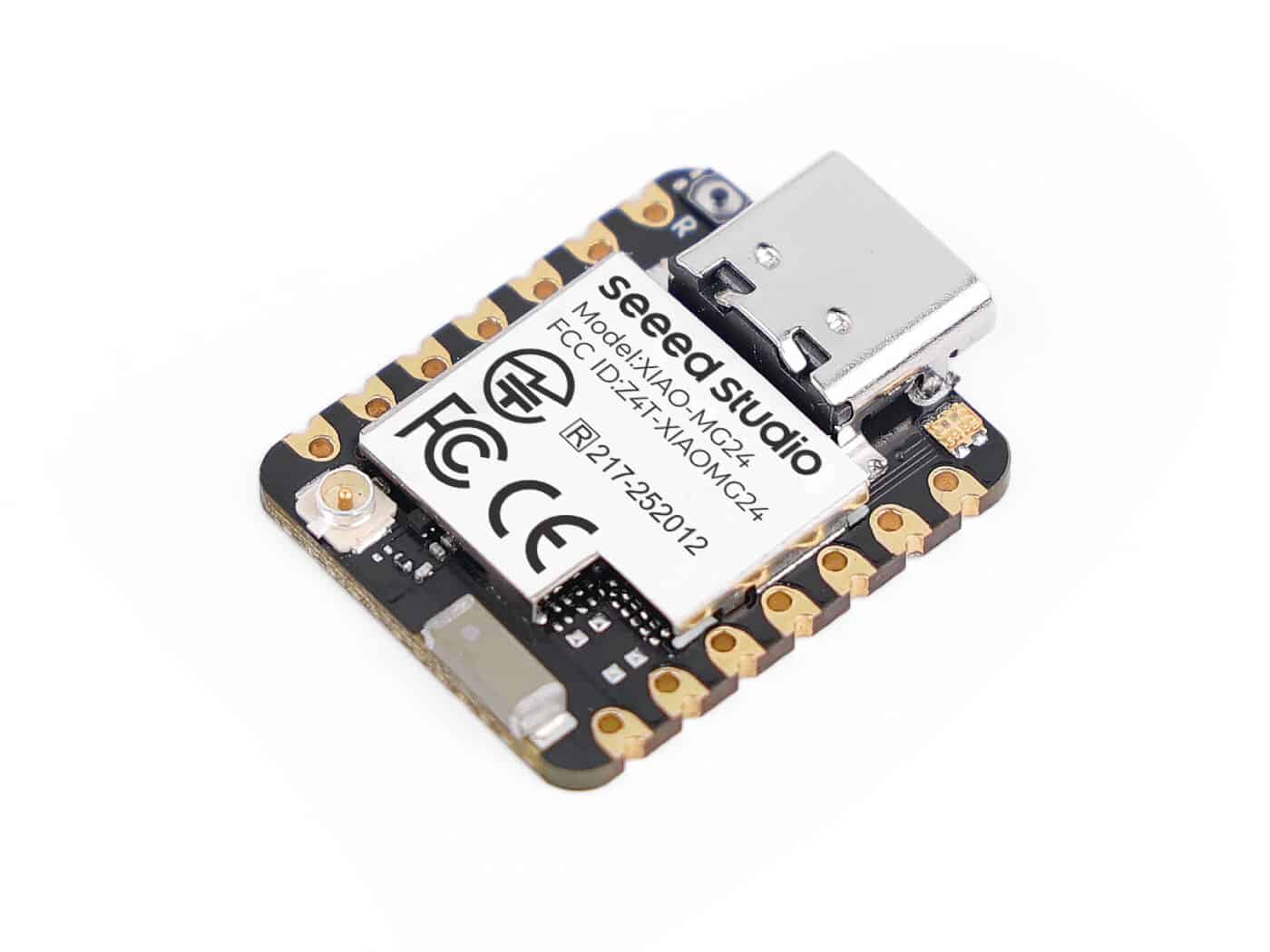

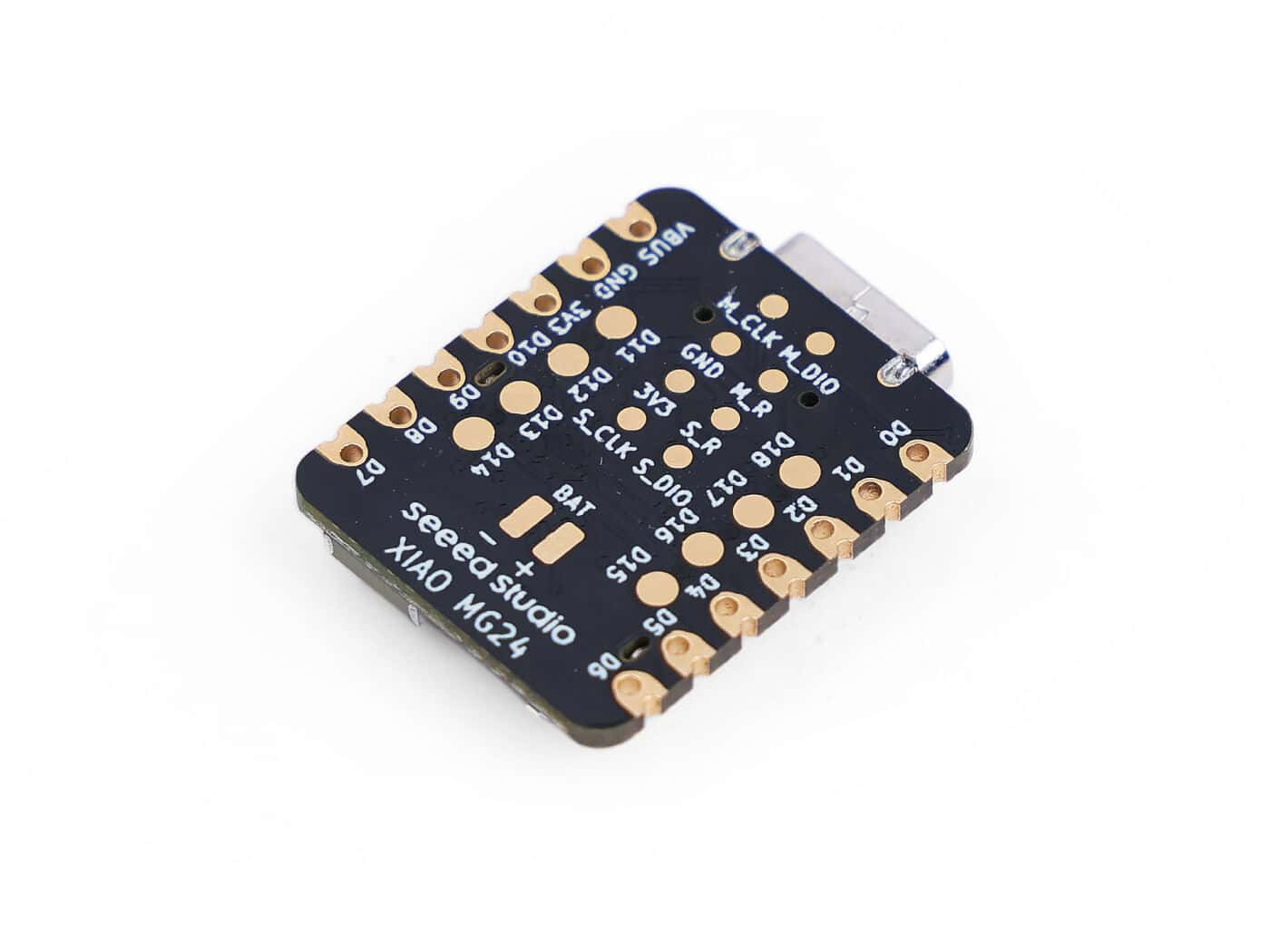

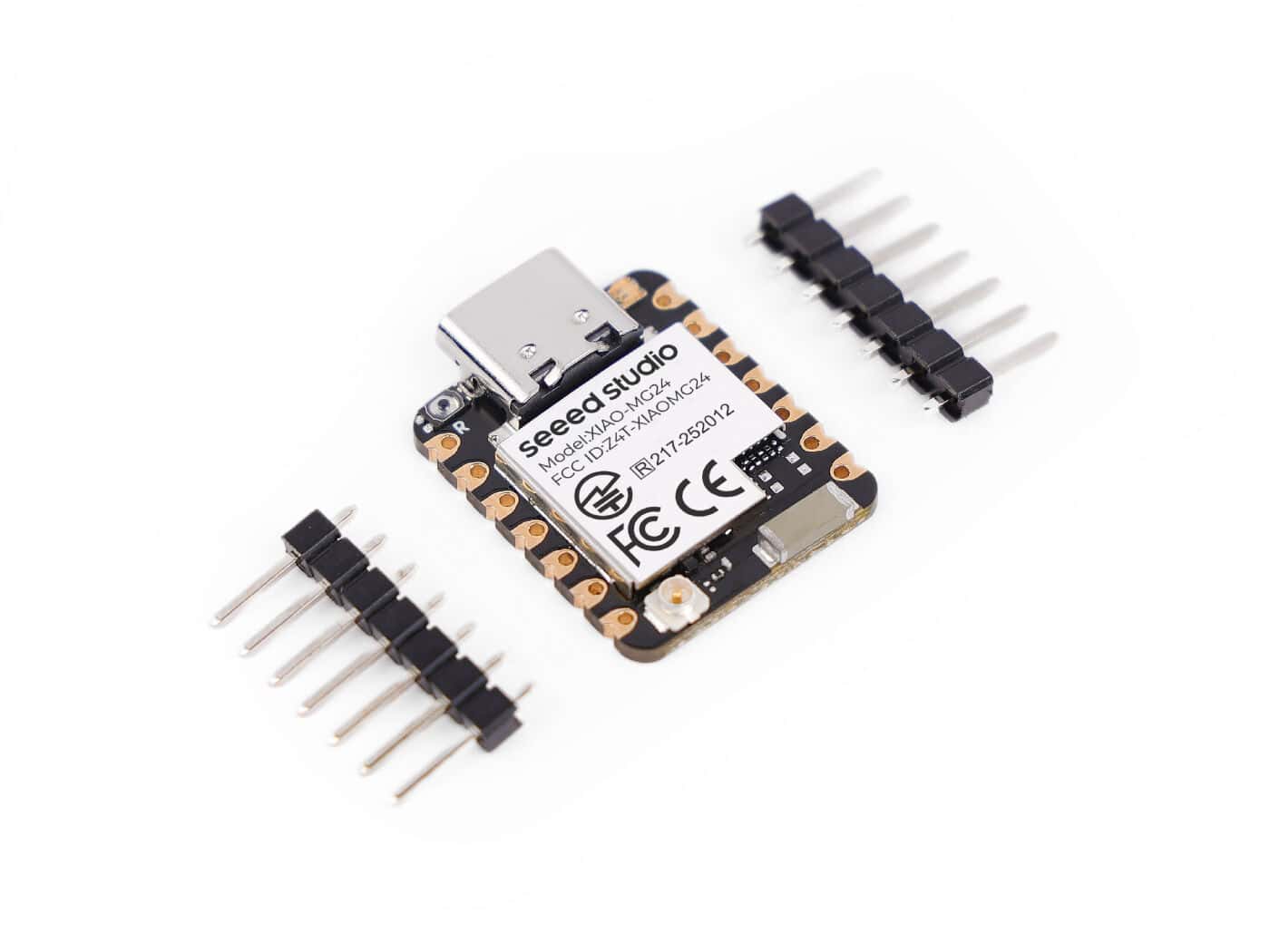

XIAO MG24 is an ultra-low-power wireless development board based on Silicon Labs' EFR32MG24 SoC, featuring a high-performance 78MHz ARM Cortex®-M33 core. It‘s Matter® native over Thread® and Bluetooth® Low Energy 5.3, all supported by the Arduino® Core. With 4MB Flash onboard, 19 GPIOs, LED, and charging circuit, it boasts extremely low operating current and ultra-low-power modes, making it an ideal choice for IoT applications, especially battery-powered projects utilizing Matter® protocols.
Feature
High Performance MCU: Silicon Labs' EFR32MG24 SoC, 32-bit 78 MHz ARM Cortex®-M33 with DSP instruction
Matter Native: Compatible with Matter® over Thread® and Bluetooth® Low Energy 5.3, Supported by the Arduino® Core
Outstanding RF Performance: Equipped with an on-board antenna with BLE range up to 50m in an open location with no signal interference, while reserving an interface for external UFL antenna
Super-Low Power Design: Power consumption less than 1.95μA in sleep mode, ideal for battery-powered projects
Rich On-Board Resources: Additional 4MB Flash on board, on-board battery charging circuit, 19 GPIOs, LED
Security Encrypted On-Chip: A dedicated hardware secure engine containing its own CPU enables the Secure Vault functions.

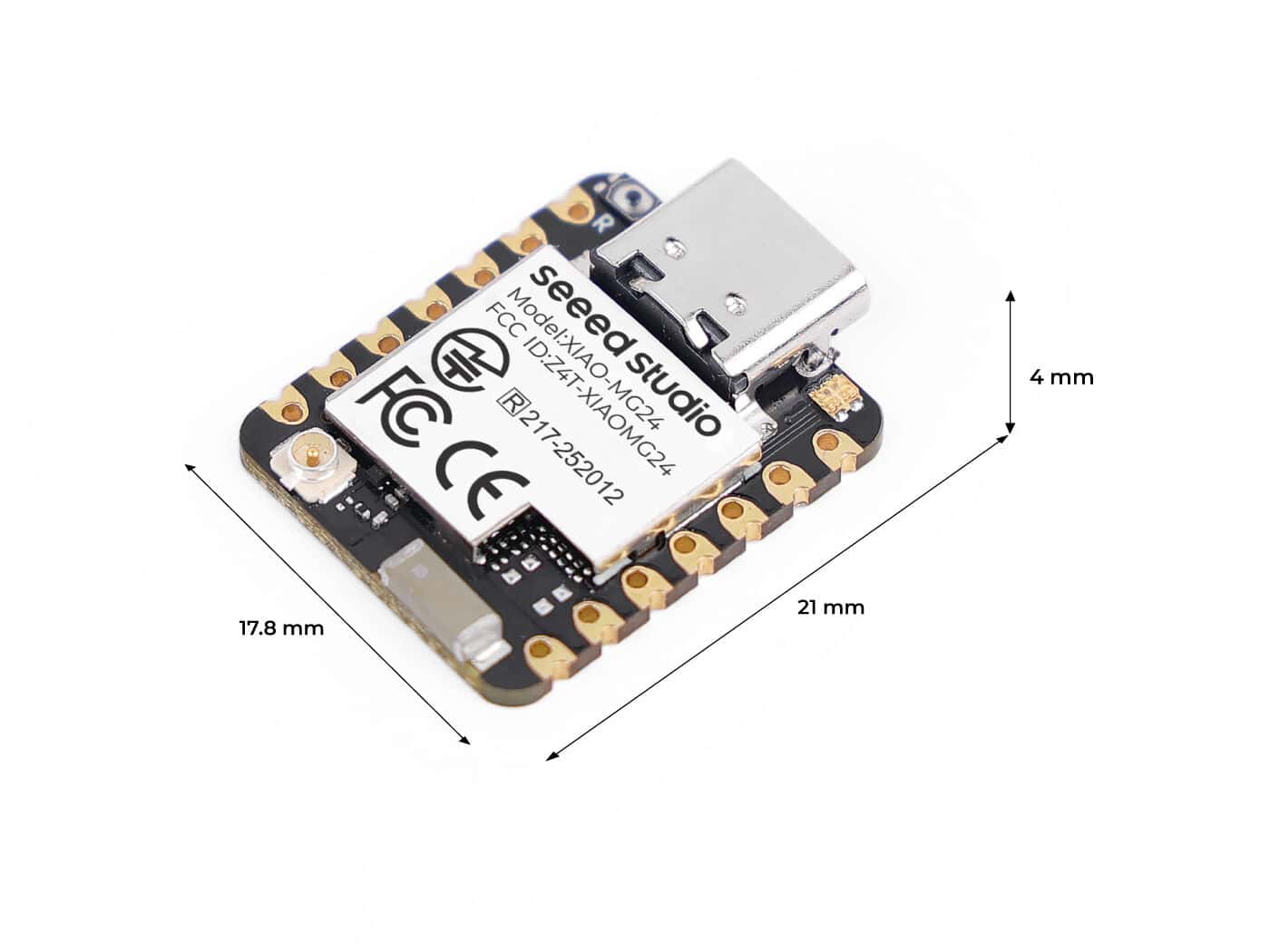

Classic XIAO Design: Remains the classic XIAO design of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
Being the 11th member of the Seeed Studio XIAO family, the XIAO MG24 remains the classic XIAO design (thumb-size, SMD, stamp holes). All these features make it a perfect fit for either space-limited applications of home automation, or a production-ready unit for your PCBA designs. (check out our Fusion Co-Create one-stop prototyping, producing and promoting services to explore how to scale up your XIAO-based designs).
Note: XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here more info.
