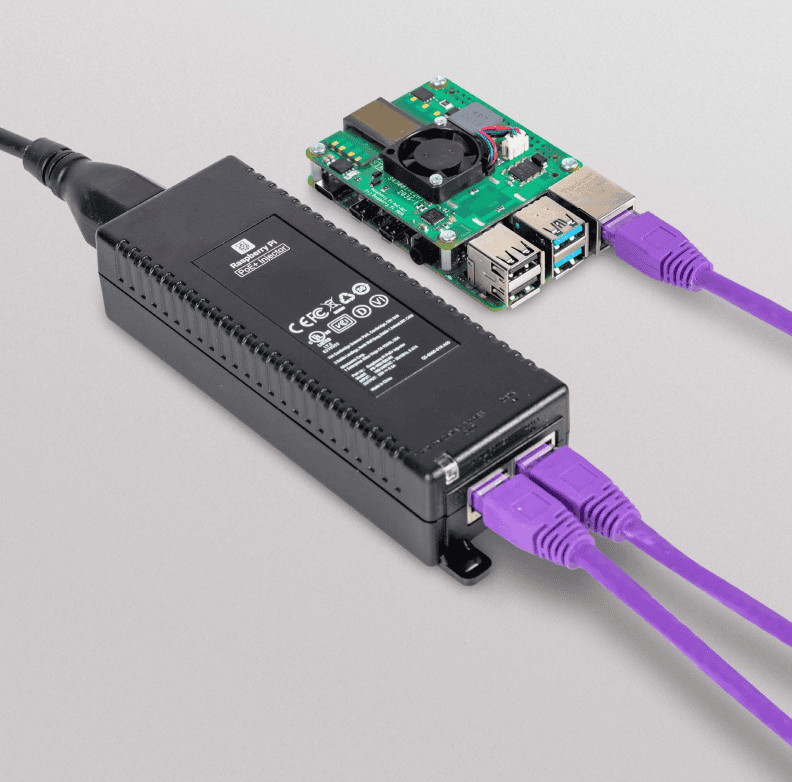

SC1677 RASPBERRY PI POE INJECTOR
A single-port 30W injector suitable for powering devices conforming to the IEEE 802.3af and 802.3at specifications, including all generations of Raspberry Pi PoE HAT
Specifications Data rate: 10/100/1000 Mbps
Input voltage: 100 to 240 V AC
Output power: 30W
Power output on pins: 4/5 (+), 7/8 (–)
Nominal output voltage: 55 V DC
Dimensions: 159 mm (L) × 51.8 mm (W) × 33.5 mm (H)
Data connectors: Shielded RJ-45, EIA 568A and 568B
Power connector: IEC c13 mains power input (not included)
Operating ambient temperature: –10⁰C to +50⁰C
Operating humidity: Maximum 90%, non-condensing
Storage temperature: –20⁰C to +70⁰C
Storage humidity: Maximum 95%, non-condensing
Operating altitude: –300m to 3000m
MTBF: 200,000 hrs @ 25⁰C
Documents
- Raspberry Pi PoE+ Injector product brief
