can purchase SSDs sold on the Seeed website, all of which are verified. Among them, 128GB, 256GB, and 512GB are from Foresee, and 1TB is from Kioxia.
NVMe M.2 2280 SSD 1TB-Seeed Studio
512GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio
256GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio
128GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio
Specification
PCIe speed |
PCIe Gen2.0 |
PCIe switch chip |
ASM1182E |
M.2 size |
2230/2242/2260/2280 |
Power Supply |
5V/ 3A(max 3A: Pogo pin 2A+PCIe connector 1A) |
Hardware Overview
Application
- Support Hailo8/8L AI NPU acceleration
- Raspberry Pi large-capacity storage
- Booting a Raspberry Pi from the SSD
Documents
3D print case stp file ECCN/HTS
HSCODE |
8543909000 |
USHSCODE |
8543708800 |
UPC |
|
EUHSCODE |
8543709099 |
COO |
CHINA |

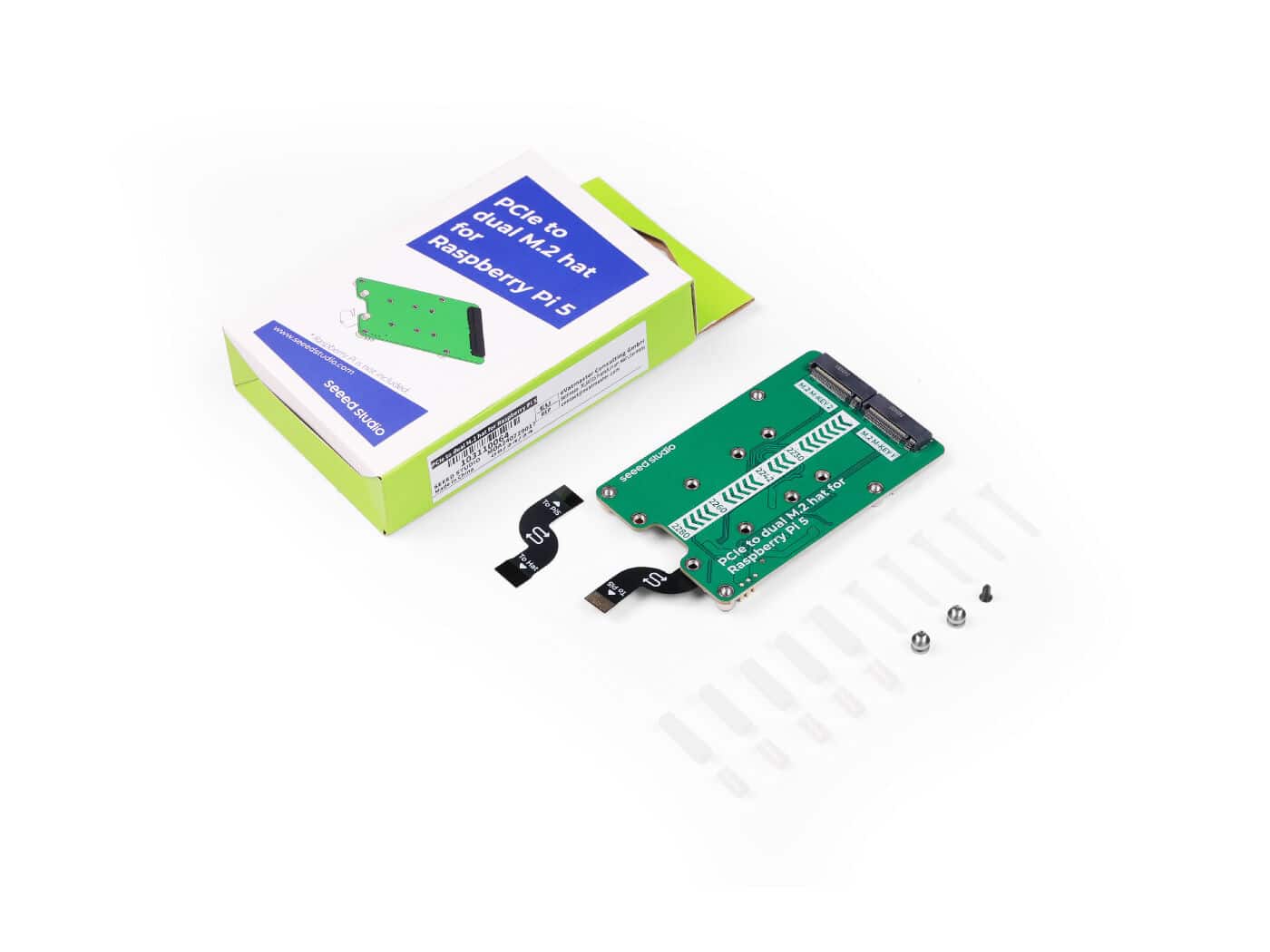

Part List
PCIe to M.2 dual hat |
x1 |
50mm FPC cable |
x2 |
Screw & stud pack |
x1 |
[Wiki] Raspberry Pi 5 uses PCIe hat/dual hat
This tutorial mainly introduces the hardware connection configuration of M.2 Hat and dual Hat and how to make the Raspberry Pi boot from the SSD.
