Grove Ecosystem Compatibility The onboard plug-and-play Grove interface is compatible with over 400 Seeed Studio modules, including infrared sensors, temperature sensors, accelerometers and more, allowing you to easily enhance lighting interactivity with the environment and motion for smarter, personalized effects. Supports 12V/2A power via standard DC adapter (EU/US plugs) or direct DC wiring, featuring a universal 5.5mm x 2.1mm DC Barrel Jack connector. Suitable for both temporary and permanent installations. Space-efficient design allows for discreet installation near LED strips or in tight spaces, ideal for various lighting applications while maintaining full functionality. Integrated safety features including overcurrent, overvoltage, overtemperature, and short-circuit protection, ensuring reliable operation and component longevity. Specification
Item |
Detail |
Supported LED models |
- Single-color LEDs,
- Addressable RGB LEDs (WS2811,WS2812,WS2812B, WS2813,WS2815…)
- Other 1-wire protocol LEDs
|
LED Connector |
4 Pin 3.81mm Screw Terminal Block Connector：
|
Power Input |
- PowerAdapter, 12V/2A/24W, European Standard Plug, DC Output
- PowerAdapter, 12V/2A/24W, American Standard Plug, DC Output
- Other DC 12V Power Adapter with 5.5mm x 2.1mm x 10±0.3mm Plug
- DC 12V Wire
|
LED Power Support |
DC 12V / DC 5V |
Operating Current |
12V/2A, 5V/3A |
Onboard |
Power Swith x1
Grove I²C Connector x1
User Button (D3) x1
Power LED x1 |
User Pin Header |
SPI x1, Uart x1, Digital x2 |

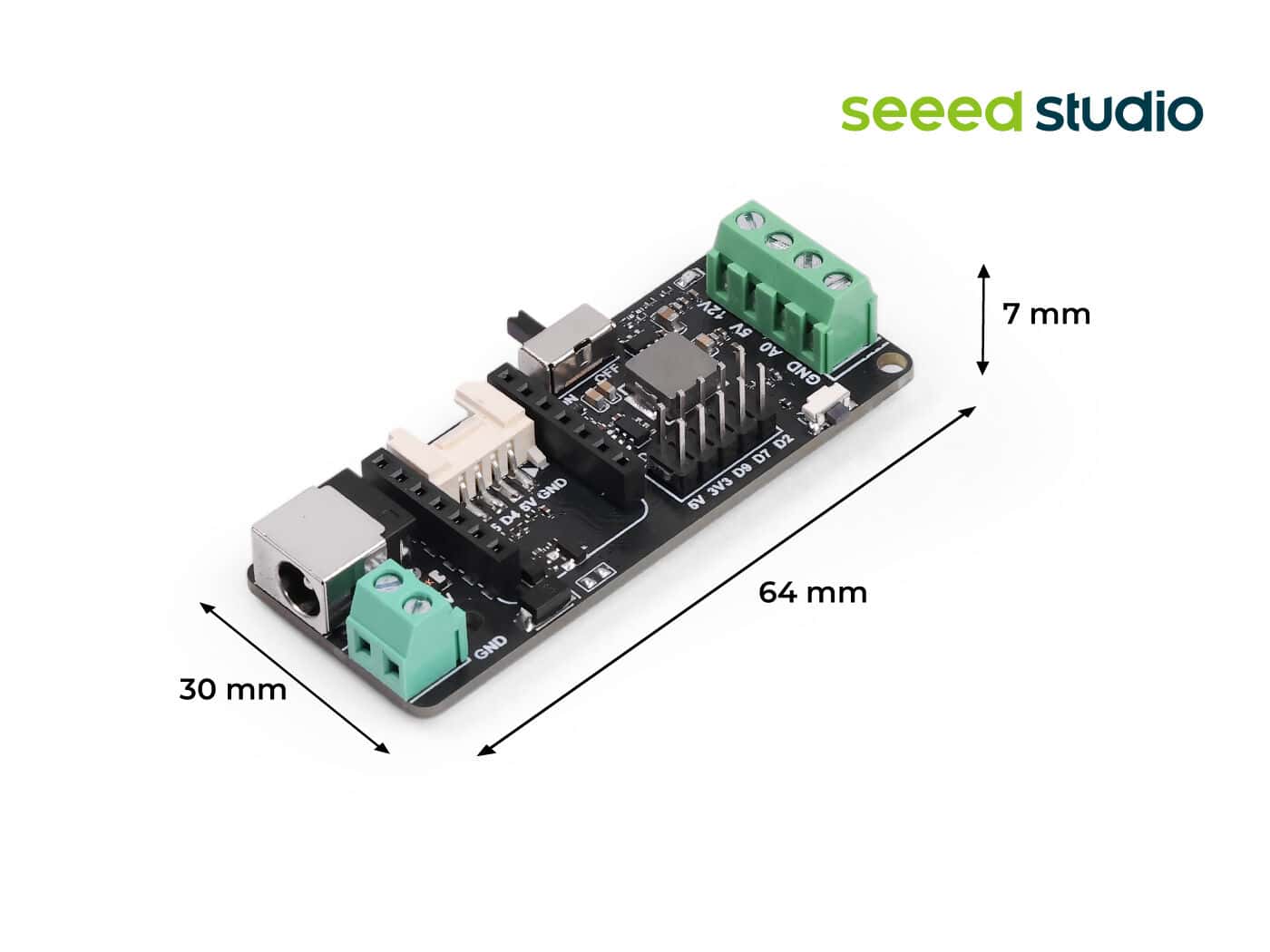

Dimensions |
63mm x 30mm x14.4mm ( With a Seeed Studio XIAO) |
LED Selection Guide
Product |
Name |
Operating Voltage |
Connect via |
 |
Grove - RGB LED (WS2813 Mini) |
5V |
Grove |
 |
Grove - RGB LED Stick (10-WS2813 Mini) |
5V |
Grove |
 |
Grove - RGB LED Stick (15-WS2813 Mini) |
5V |
Grove |
 |
Grove - RGB LED Stick (20-WS2813 Mini) |
5V |
Grove |
 |
Grove - RGB LED Ring (16-WS2813 Mini) |
5V |
Grove |
 |
Grove - RGB LED Ring (20-WS2813 Mini) |
5V |
Grove |
 |
Grove - RGB LED Ring (24-WS2813 Mini) |
5V |
Grove |
 |
Grove - Ultimate RGB LED Ring |
5V |
Grove |
 |
Grove - WS2813B RGB LED Flexi-Strip 30 LED/m - 1m |
5V |
Screw Terminal |
 |
Grove - WS2813B RGB LED Flexi-Strip 60 LED/m - 1m |
5V |
Screw Terminal |
 |
Grove - WS2813 RGB LED Strip Waterproof - 30 LED/m - 1m |
5V |
Grove |
 |
Grove - WS2813 RGB LED Strip Waterproof - 60 LED/m - 1m |
5V |
Grove |

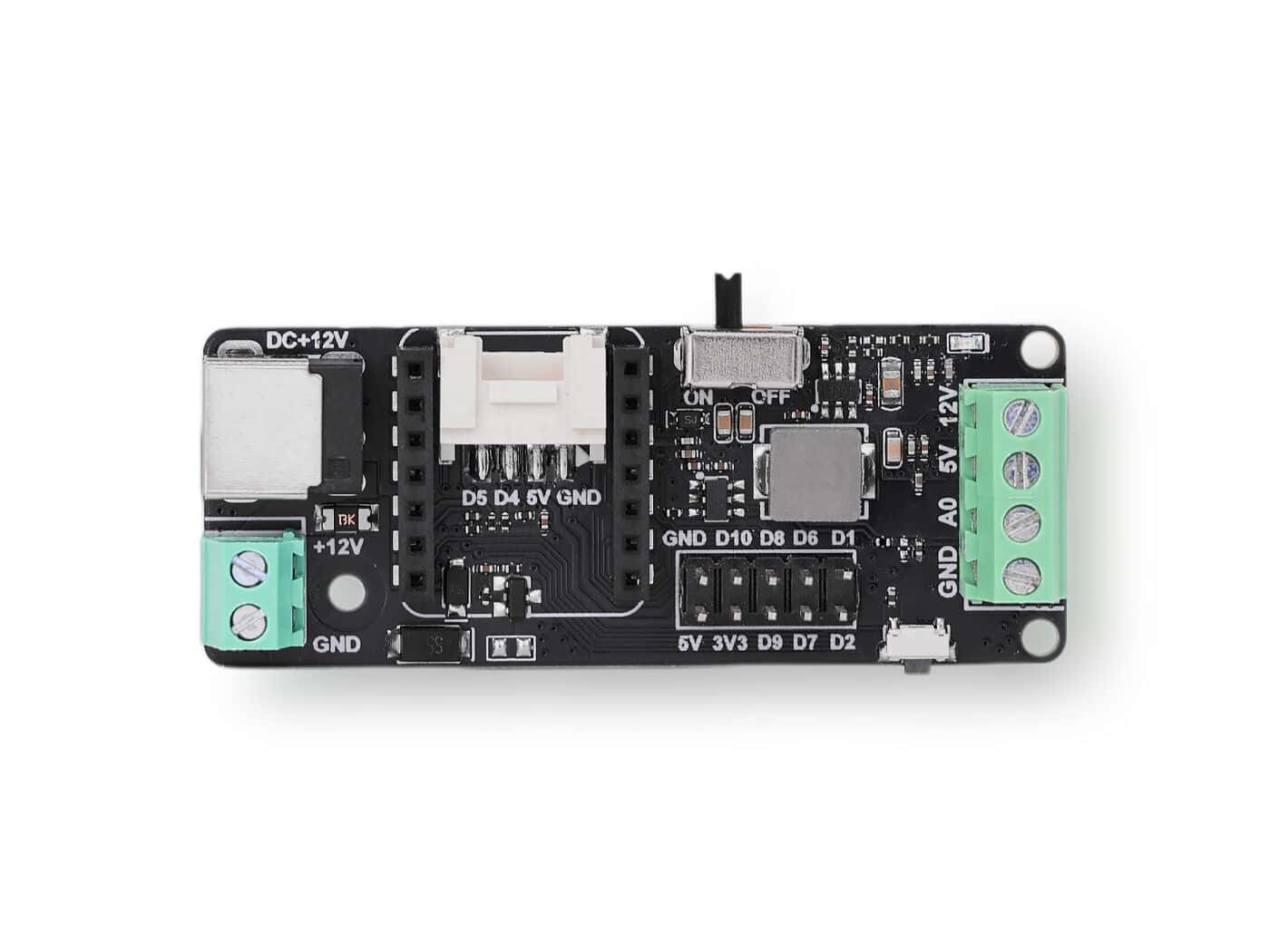

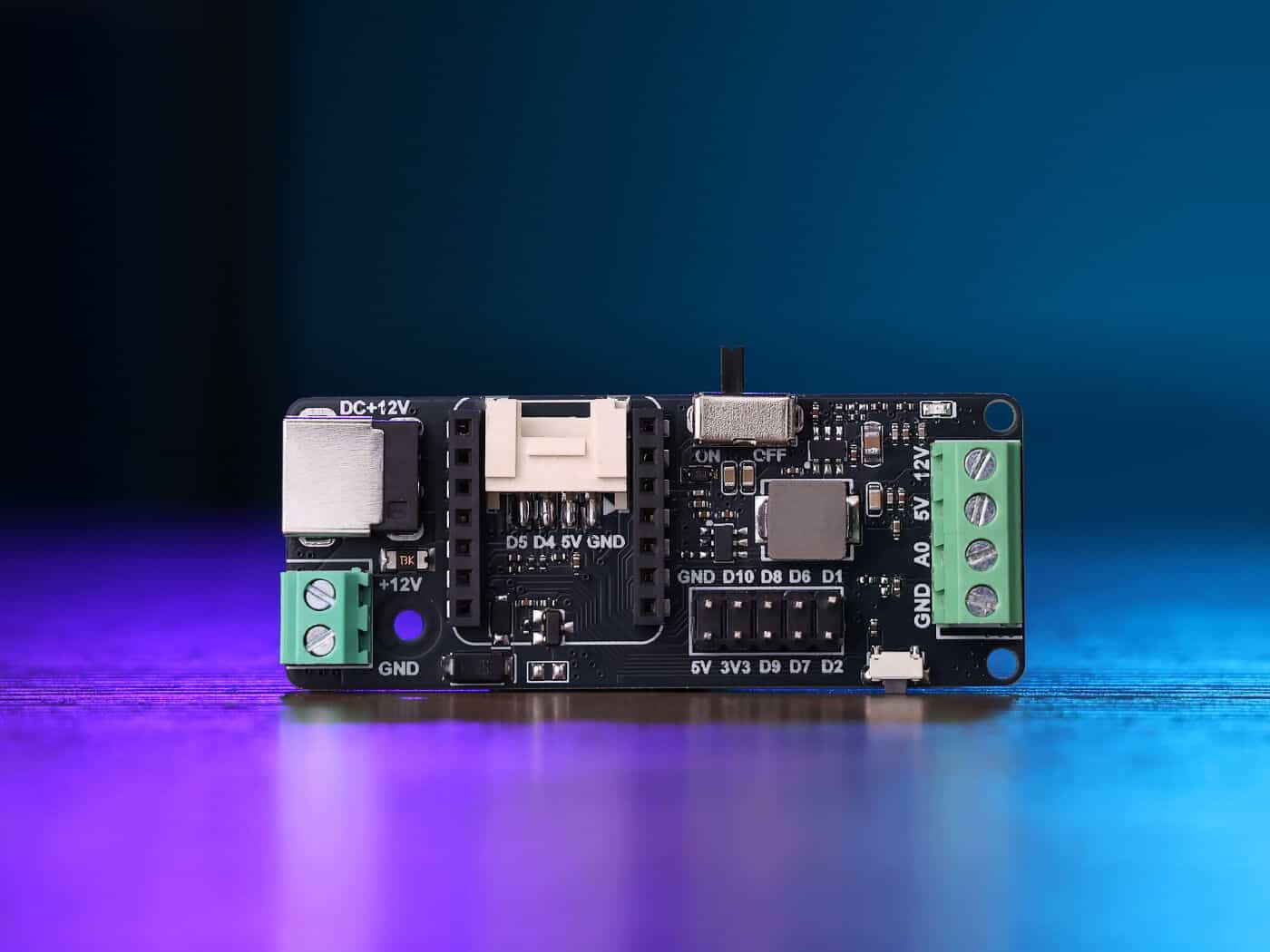

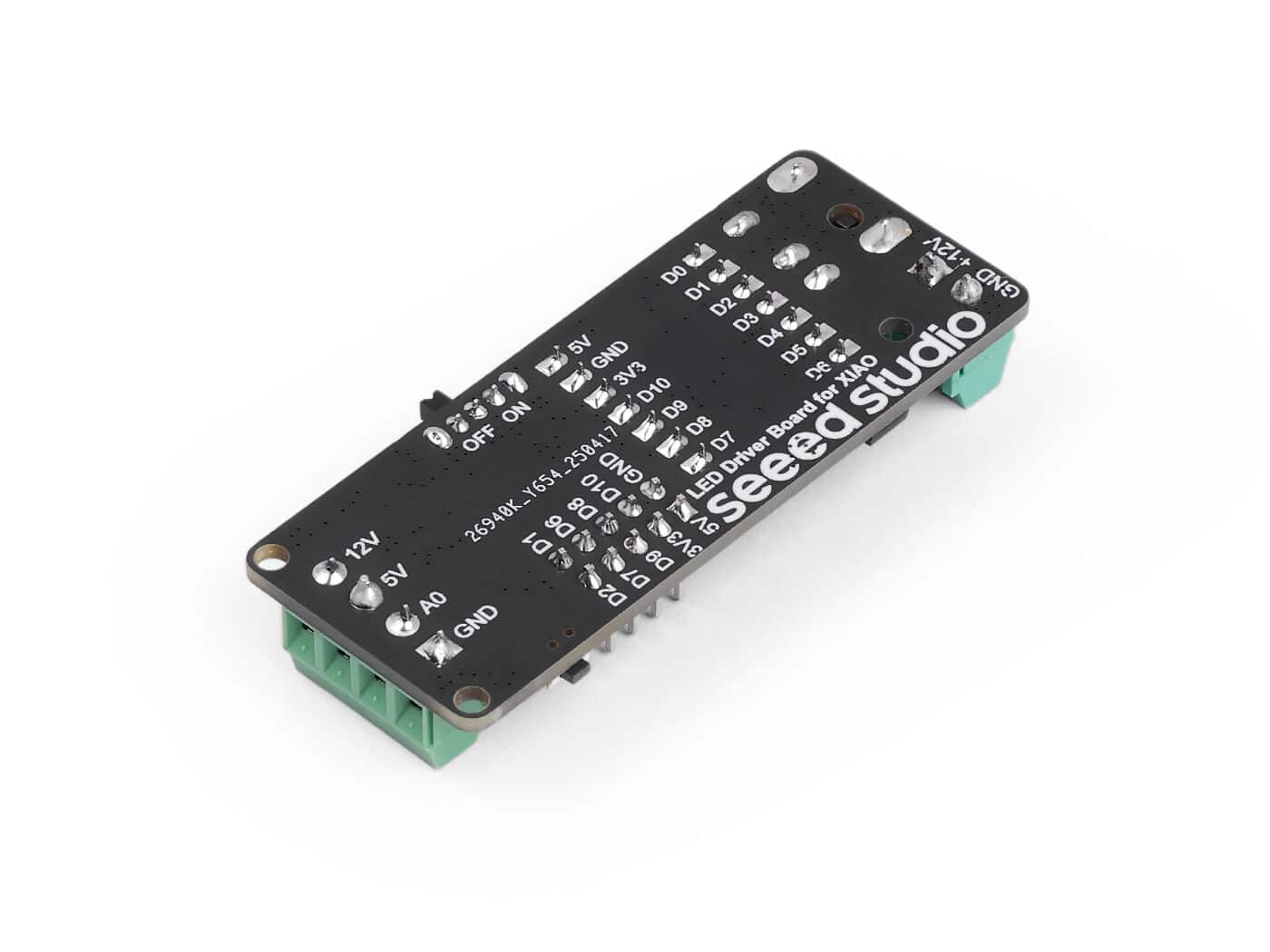

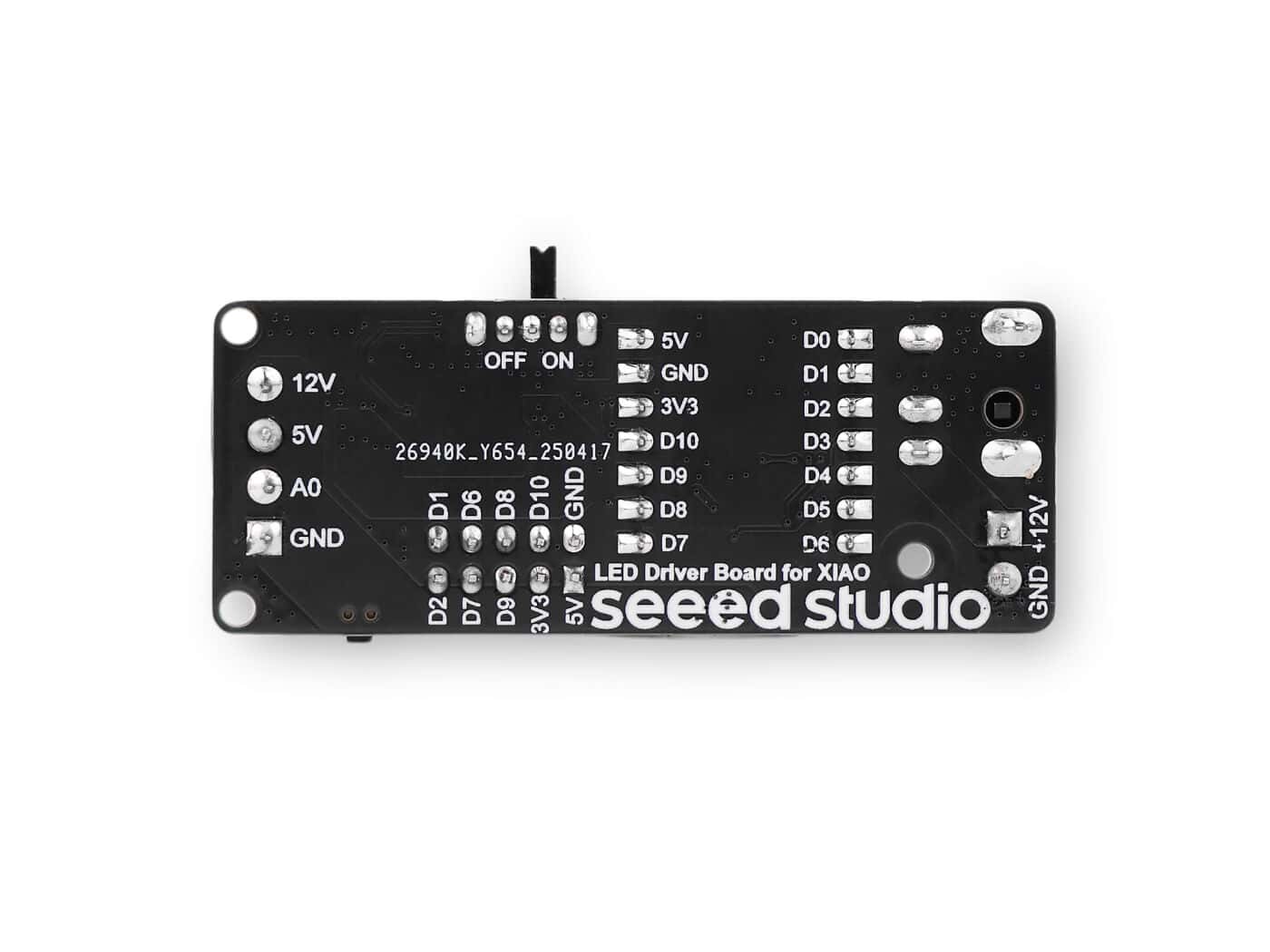

Hardware Overview
Application
- Home Lighting & Decoration: RGB strip lights, wall lights, festive decorations
- Educational & Science Experiments: Coding & Microcontroller Education, LED light design, Physical Data Visualization
- Gaming & Interactive Installations: PC case lighting, Around screens LED eddects, Interactive LED floor or wall
- DIY Projects & Fun Uses: LED name boards, LED clocks, DJ disco lights, RGB mood lighting
Documents
LED_Driver_Board_for_Seeed_Studio_XIAO_SCH_PDF Part List
LED Driver Board for Seeed Studio XIAO |
x1 |
[Blog] Meet LED Driver Board for Seeed Studio XIAO
With the LED Driver Board for Seeed Studio XIAO, you can easily customize your lighting effects—freeing yourself from the hassle of searching for the perfect solution. Seamlessly integrated into the XIAO ecosystem, it opens up new possibilities for interactive, sensor-driven, and network-connected lighting experiences. Whether you’re creating ambient lighting for your room, reactive lighting for a music setup, or automated lights for smart home scenarios, this board makes it all simple and accessible.
[Wiki] Getting Started with LED Driver Board for XIAO
LED Driver Board for XIAO is a compact yet powerful solution supporting both 5V and 12V LED strips, including popular addressable RGB LEDs such as NeoPixel WS2812, WS2813, WS2815. Compatible with all XIAO boards, it enables smart control and automation through WLED and Home Assistant when using XIAO ESP32 Series, while offering flexible power options and comprehensive protection for safe, reliable operation in your lighting setup
