Popust je aktivan od 1.11. do 30.11. ili do isteka zaliha Komplet sadrži: – displej 8 inča – ploču RPi 4 4GB – napajanje – micro SD karticu sa OS
- ugrađenu kameru - metalno kućište Sve je sklopljeno i instaliran je OS
Plug & play !!! SKU: 29988
Part No.: RPI-HMI-080D-ACCE (EU)
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RPI-HMI-080D-101D Industrial HMI All-in-one Touch Display For Raspberry Pi, 8 inch, 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case, High-efficiency Heat Dissipation

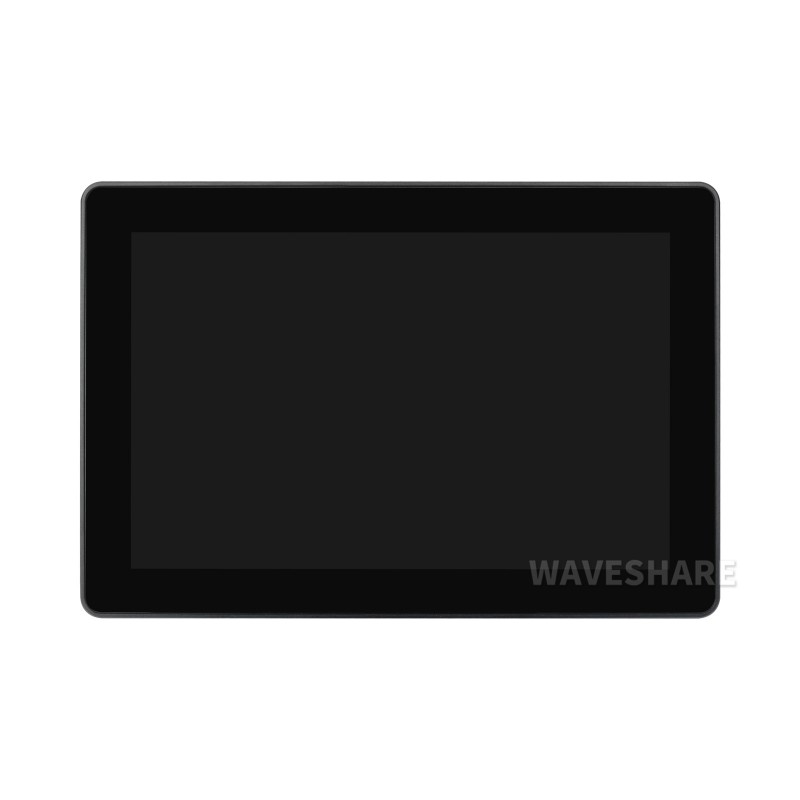

Industrial HMI All-in-one touch Display for Raspberry pi High Resolution | 10-point Touch | Aluminum alloy case
Toughened Glass Panel Sensitive touch control with High Resolution display, durable design
5MP front camera For Accurate face recognition, ensuring safety every moment
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Adjustable brightness via software Excellent heat dissipation Full Metal Enclosure with efficient heat dissipation, Pure passive cooling, no fan noise worries
Two power supply methods Supports power supply via screw terminal or USB Type-C Port
VESA Mounting Support Easily adaptable to various monitor arms, enjoy a flexible installation experience
* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.

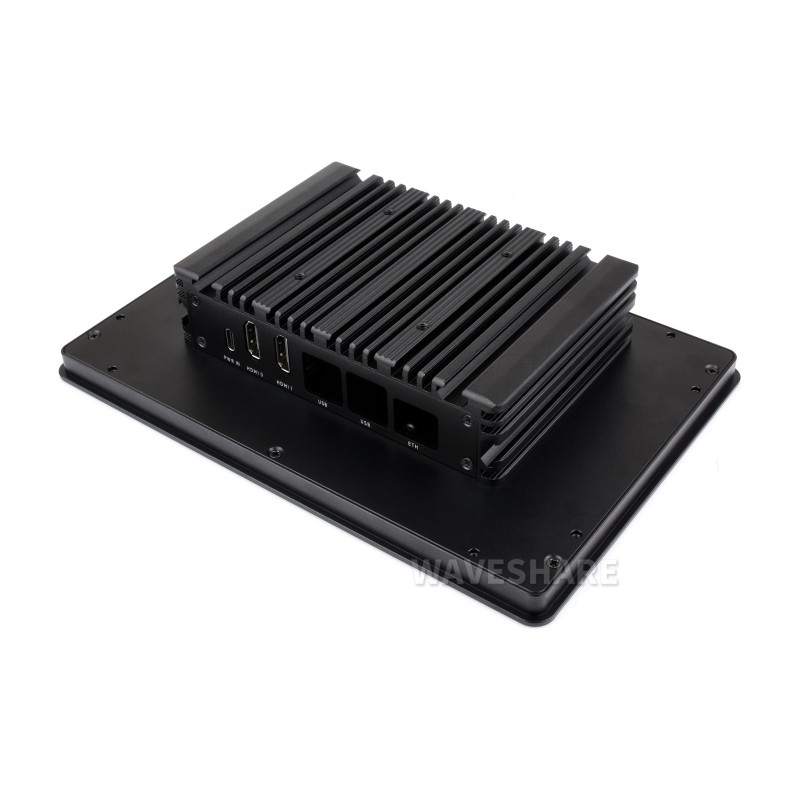

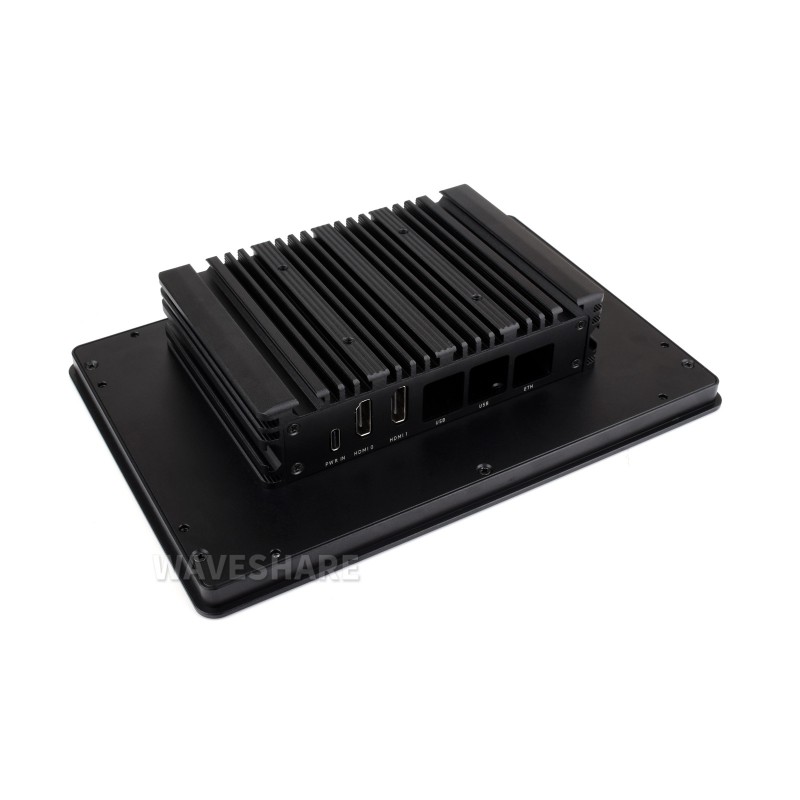

Interface Introduction
- 5V Type-C power port
- Standard HDMI Interface x 2
- USB3.0 port x 2
- USB2.0 port x 2
- Gigabit Ethernet connector
- TF card slot
- Power button
- Power indicator
- 5V Power supply screw terminal (3.81mm pitch)
- Debugging serial port
Dimensions 8inch version
Package content: Weight: 0.238 kg
RPI-HMI-080D-ACCE
- 8inch touch display x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- TF card 64GB x1
- OPTIONS 27W power supply x1
- 5W thermal pad 16*16*1mm x1
- Pi5-HMI Accessories Pack:
- PI5 side panel x1
- Aluminum alloy heatsink x1
- DSI-Cable-12cm x1
- Silicon button x1
- Camera cable -15cm x1
- Pi4-HMI Accessories Pack:
- PI4 side panel x1
- Copper heatsink x1
- DSI-Cable-12cm x1
- FFC 15PIN 1.0 pitch ~160mm x2
