| Panel I/O | |
|---|---|

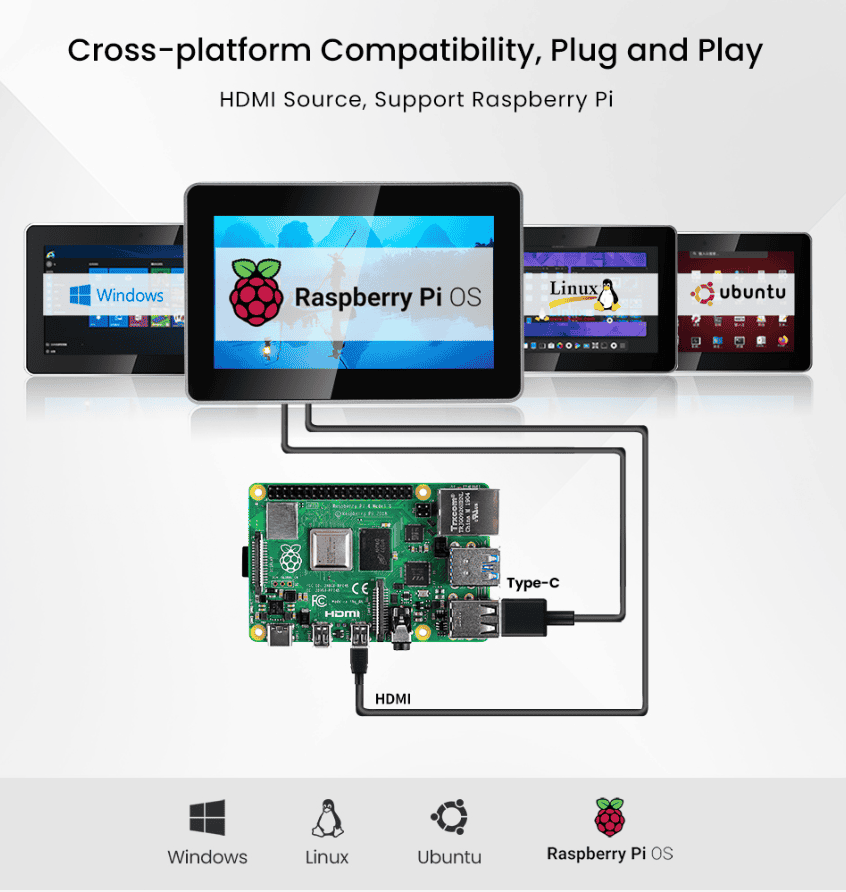

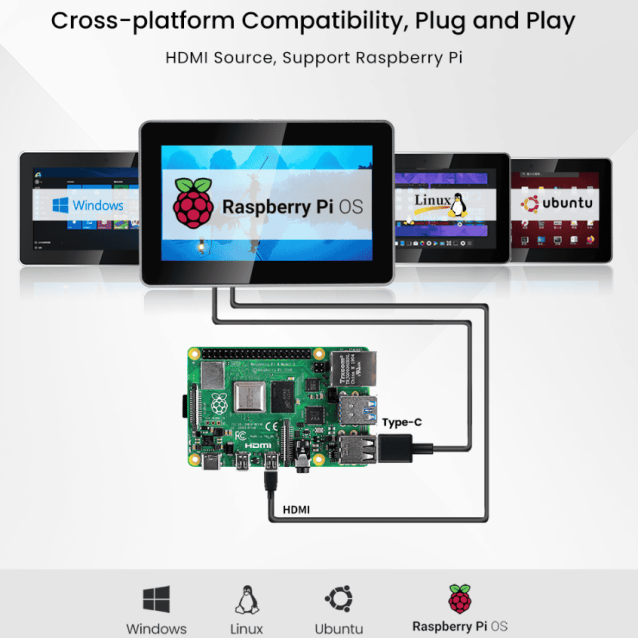

| HDMI | 1 x HDMI port, Type-A connector, connecting to HDMI output. |
| USB | 1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals. |

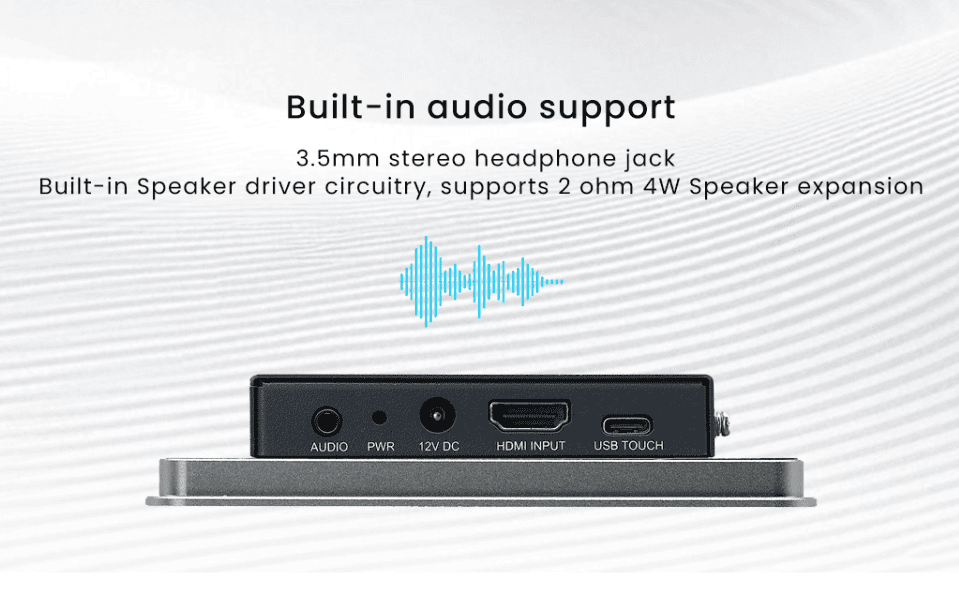

| Audio | 1 x 3.5mm audio jack, stereo audio output |
| Power | 1 x DC Jack port, support 12V~24V power input. |
| Buttons and Indicators | |
|---|---|
| PWR | 1 x Red power indicator, using to check the status of device power-on and power-off. |
| Brightness Adjustment Button | 2 x Brightness adjustment buttons for increasing and decreasing the brightness. |
| Volume Adjustment Button | 2 x Volume adjustment buttons for increasing and decreasing the volume. |
| Mute Button | 1 x Mute button for mute and unmute audio. |
| LCD | |
|---|---|
| Type | 15.6" TFT |

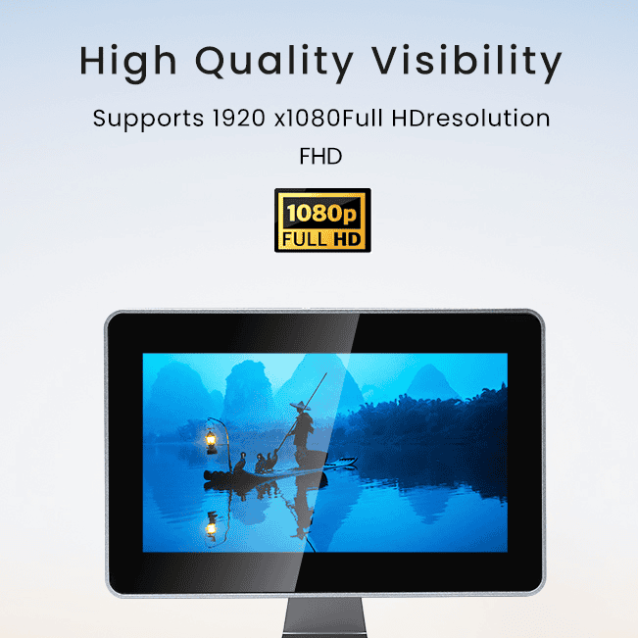

| Resolution | 1920 x 1080 |
| Color Number | 16.7M |
| Active Area | 344.16mm (H) x 193.59mm (V) |
| Backlight | LED |
| Luminance | 450cd/m2 |
| Contrast Ratio | 1500:1 |
| Response Time | 25ms |

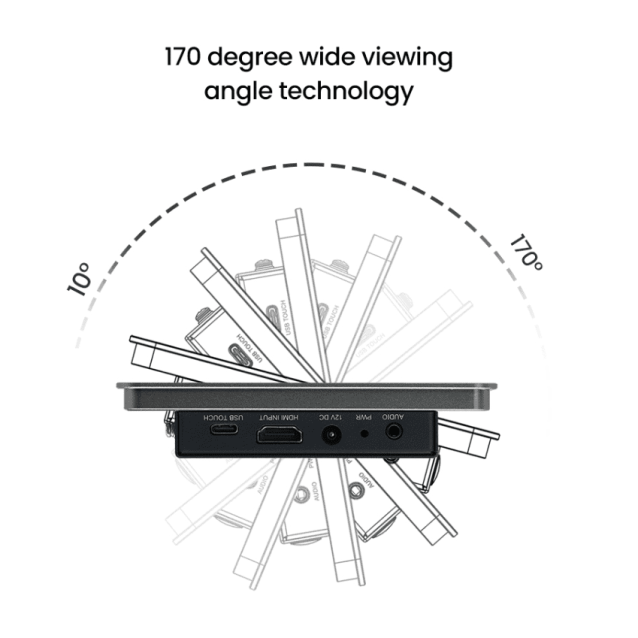

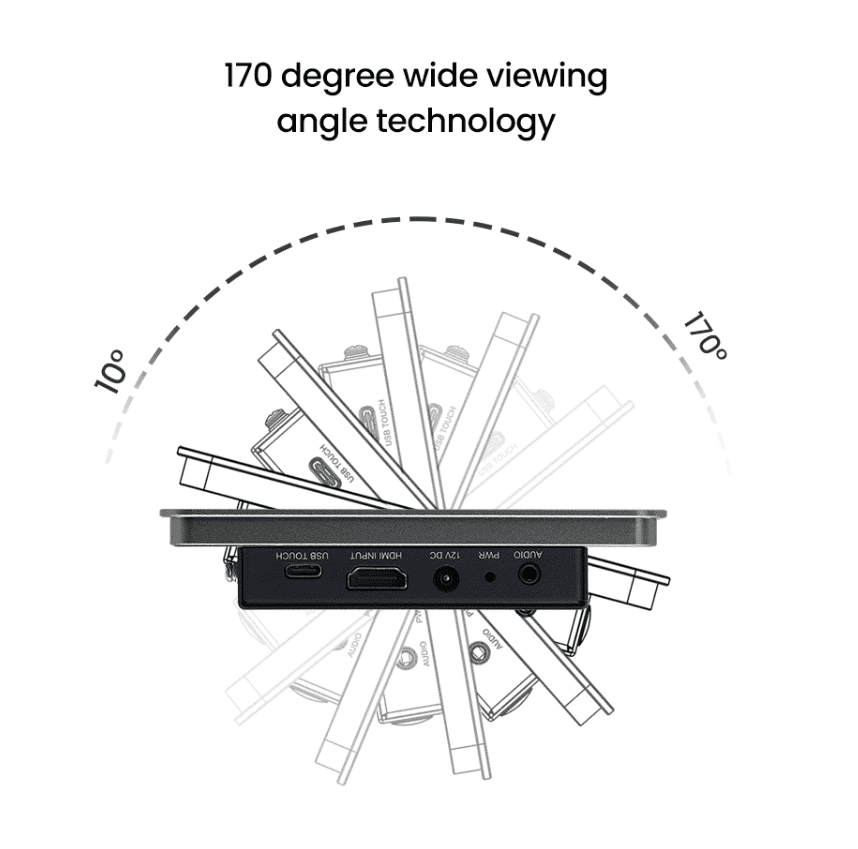

| Viewing Angle (CR≥10) | 85° (L) / 85° (R) / 85° (U) / 85° (D) |
| Touch Screen | |
|---|---|

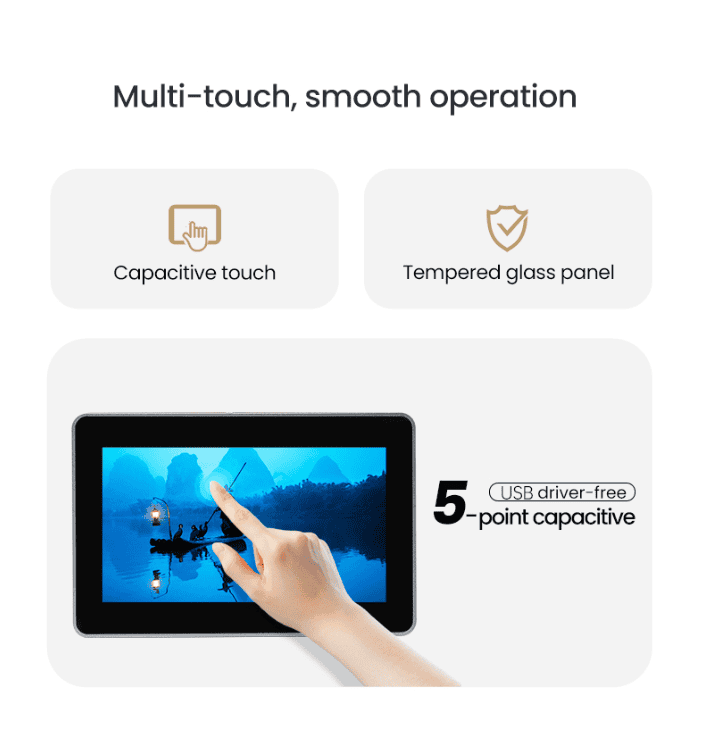

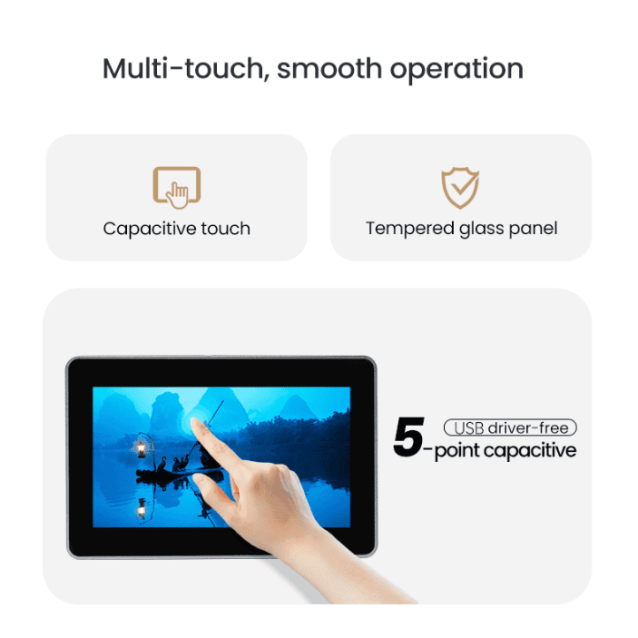

| Type | Capacitive Touch Screen |
| multi-touch | Up to 5 points |
| Communication Method | USB |
| Transmittance | ≥85％ |
| Surface Hardness | ≥6H |
| Electrical Characteristics | |
|---|---|
| Input Voltage | 12V~24V DC |
| Power Consumption | 15W (Max) |
| Mechanical Characteristics | |
|---|---|
| Dimensions | 388.3mm x 238.3mm x 35mm (WxDxH) |
| Weight | About 2.3kg |

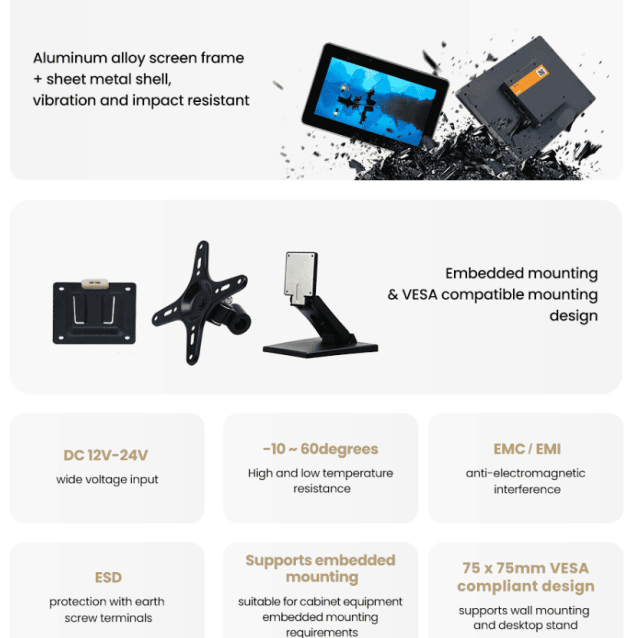

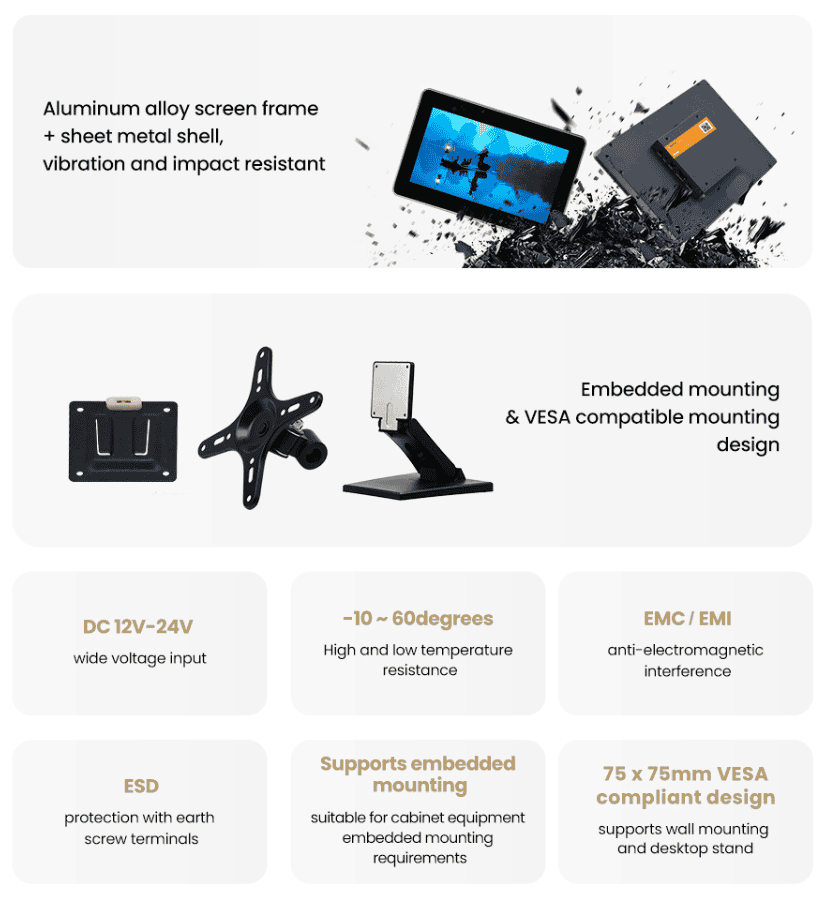

| Installation | Embedded front installation and VESA bracket mounting |
| Environmental & Regulatory | |
|---|---|
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Ambient humidity | 5% ~ 95% (non-condensing) |
| Type | Title | Publish Time |
|---|---|---|
| Datasheet | ED-MONITOR-156C Datasheet | 2025-05-09 |
