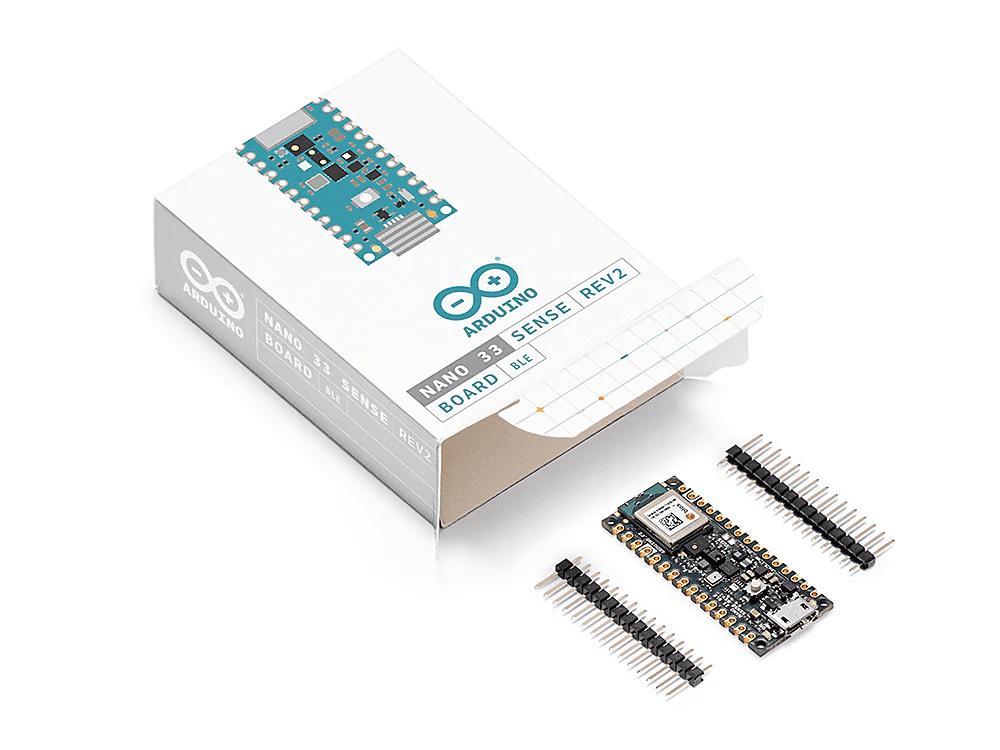

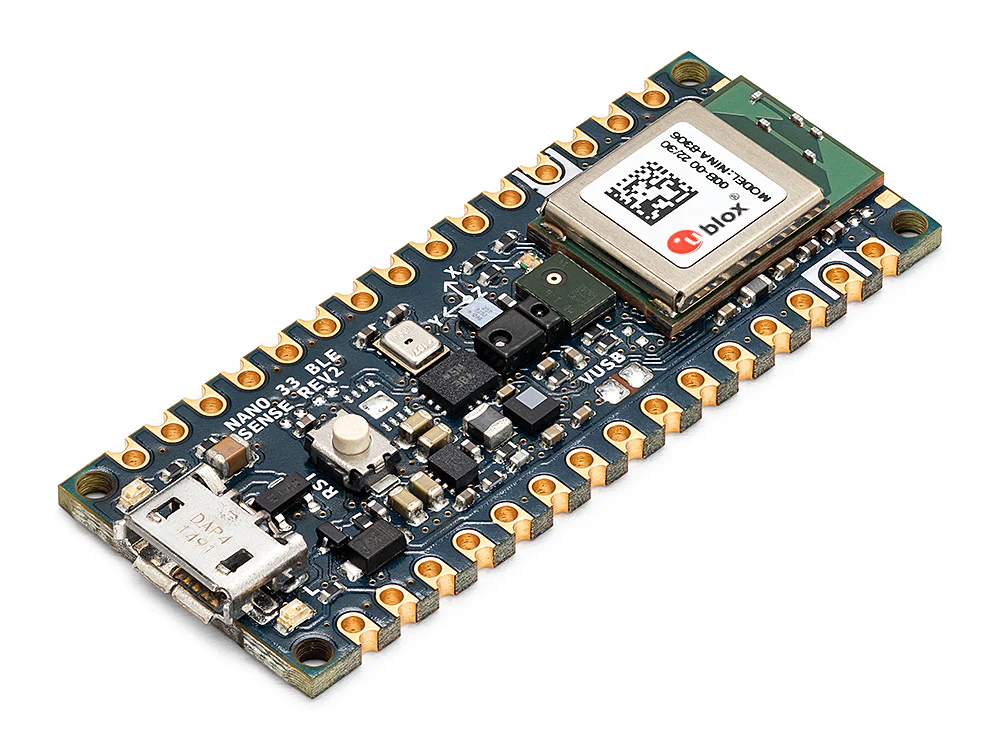

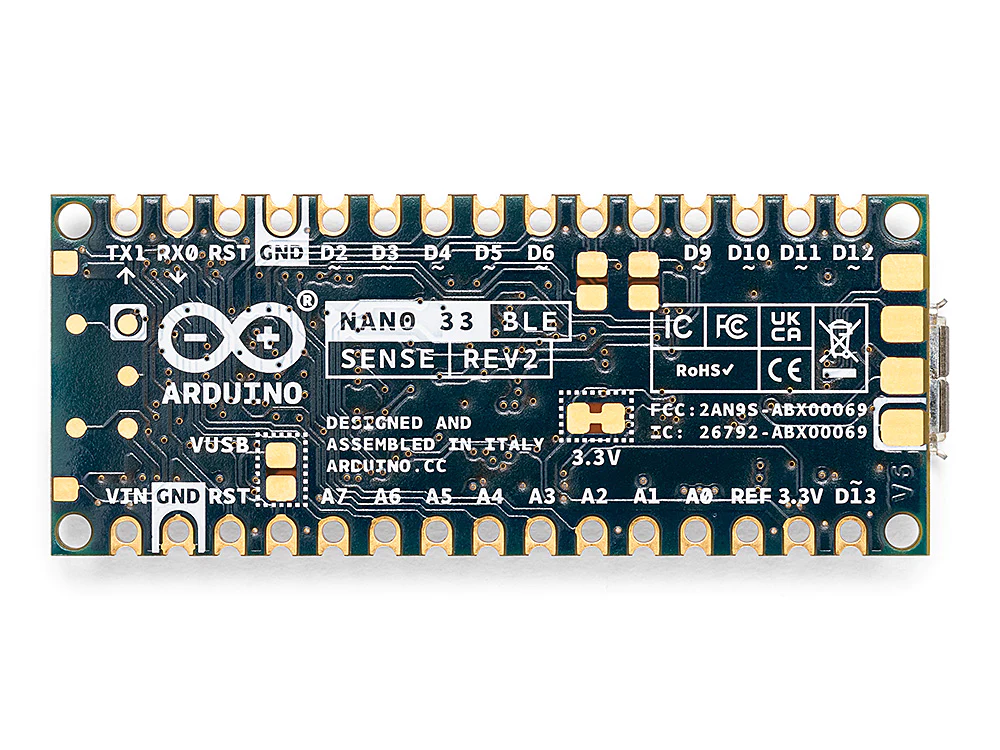

Arduino Nano 33 BLE Sense Rev2

Šifra: se102991759

8.690,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Težina po komadu: 0.016 Kg

Konektori, žice, protobord

Arduino Nano 33 BLE Sense Rev2

Arduino Nano 33 BLE Sense Rev2 - nRF52840 processor, BLE, AI-enabled, multiple onabord sensors, finger-size, Arduino and Python support

Description

Arduino Nano 33 BLE Sense Rev2 is an AI-enabled, finger-size development board, assembled with various sensing modules and BLE functions, programmable by both Arduino and Python. It provides great convenience for the realization of Embedded AI and IoT.

Feature

AI-enabled Arduino Development Board: Build upon the nRF52840 microcontroller and runs on Arm® Mbed™ OS, competent for embedded ML

Bluetooth Wireless Capability: Equip a 2.4 GHz Bluetooth® 5 low-energy module, and assembled an internal antenna

All-in-one Sensing Functionality: Assemble multiple modules for the detection of motion, audio, proximity, gesture, barometric pressure, temperature, and humidity

Finger-size Board: Portable, suited for anywhere

Multiple Development Approaches: Python support, Lauterbach TRACE32 debugger support

Description

Arduino Nano 33 BLE Sense Rev2 is an AI-enabled, finger-size development board, built upon the nRF52840 microcontroller, assembled with various sensing modules, carrying Bluetooth Low Energy wireless capability, which can be programmed by both Arduino and Python. It provides great convenience for the realization of Embedded AI and IoT, which can be your great learning tool.

Built around the nRF52840 processor for 64MHz operation, 256 KB SRAM and 1MB flash, it runs on Arm® Mbed™ OS, offering embedded AI processing ability and Bluetooth wireless capability. Supported by Arduino official libraries and programmable by verified MicroPython via OpenMV IDE, this board brings a great development experience for you.

Additionally, this board integrates multiple sensing modules and chips, to implement motion detection through two IMUs, audio capturing and analyzation, digital proximity, and ambient light measurement, RGB colors and gestures detection, 24-bit pressure data output between 260 to 1260 hPa, temperature and humidity detection within 0.2 °C accuracy.

Whether realizing embedded AI or the Internet of Things, whether learning fundamental Machine Learning theories or directly deploying for practical purposes, this development board for all developers' levels will help beginners get quickly started with electronics and help advancers implement delicate smart projects. Thanks to its tiny form factor, wearable devices' constitution can be easy and in.

Application

Enable Embedded AI with Edge Impulse or Tensor Flow Lite

Wearable Devices

Movements Recognization

Room Temperature Monitoring and Controlling

Gesture or Voice Recognition Device

Specification

Board	Name	Arduino® Nano 33 BLE Sense Rev2
Microcontroller	nRF52840
USB connector	Micro USB
Pins	Built-in LED Pin	13
	Digital I/O Pins	14
	Analog input pins	8
	PWM pins	5
	External interrupts	All digital pins
Connectivity	Bluetooth®	NINA-B306
Sensors	IMU	BMI270 (3-axis accelerometer + 3-axis gyroscope) + BMM150 (3-axis Magnetometer)
	Microphone	MP34DT06JTR
	Gesture, light, proximity	APDS9960
	Barometric pressure	LPS22HB
	Temperature, humidity	HS3003
Communication	UART	RX/TX
	I2C	A4 (SDA), A5 (SCL)
	SPI	D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS).
Power	I/O Voltage	3.3V
	Input voltage (nominal)	5-18V
	DC Current per I/O Pin	10 mA
Clock speed	Processor	nRF52840 64MHz
Memory	nRF52840	256 KB SRAM, 1MB flash
Dimensions	Weight	5gr
	Width	18 mm
	Length	45 mm

Part List

Arduino Nano 33 BLE Sense Rev2

FAQ

1. What is the difference between Rev1 and Rev2?

There has been some changes in the sensor between both revisions:

Replacement of IMU from LSM9DS1 (9 axis) for a combination of two IMUs (BMI270 - 6 axis IMU and BMM150 - 3 axis IMU).

Replacement of temperature and humidity sensor from HTS221 for HS3003.

Replacement of microphone from MP34DT05 to MP34DT06JTR.

Additionally some components and the changes have been done in order to improve the experience of the users:

Replacement of power supply MPM3610 for MP2322.

Addition of VUSB soldering jumper on the top side of the board.

New test point for USB, SWDIO and SWCLK.

2. Do I need to change my sketch used in the previous revision?

For sketches done using the libraries like LSM9DS1 for the IMU or HTS221 for the temperature and humidity sensor, for the new revision this libraries must be changed to Arduino_BMI270_BMM150 for the new combined IMU and Arduino_HS300x for the new temperature and humidity sensor.
