Wireless-MINIPCIE-RTL8852BE

Šifra: w31594

1.290,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 1 na stanju

Dodaj u korpu

Težina po komadu: 0.056 Kg

SKU: 31594
Part No.: Wireless-MINIPCIE-RTL8852BE

Korisne informacije: www.waveshare.com/wiki/Wireless-MINIPCIE-RTL8852BE

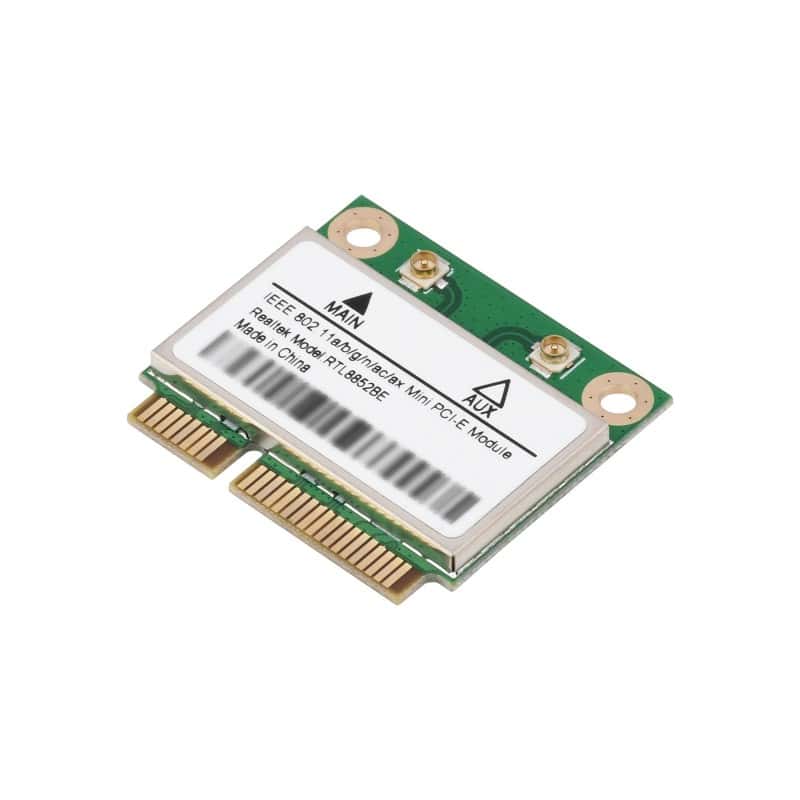

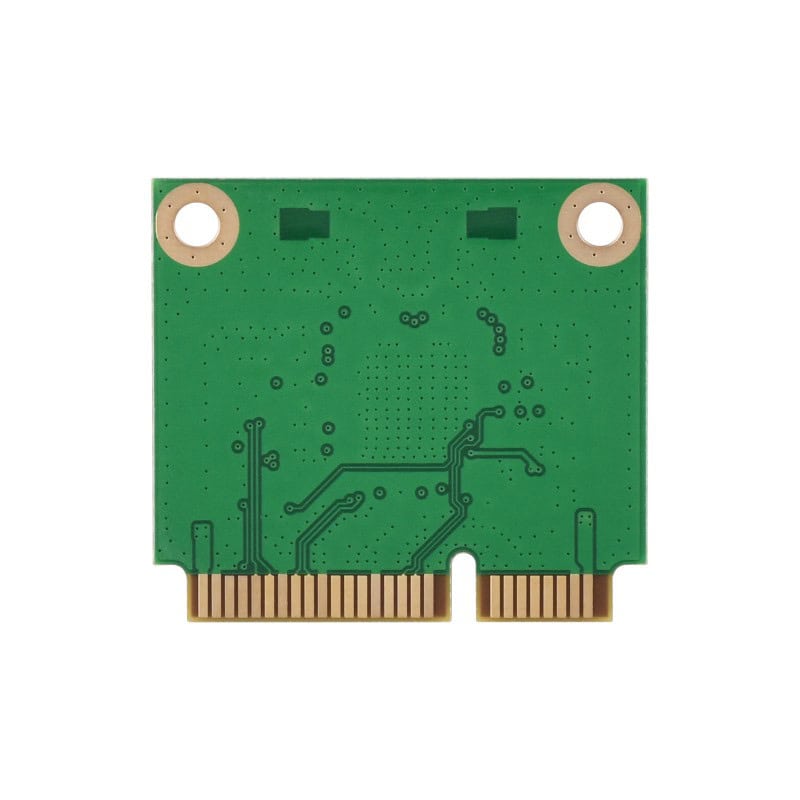

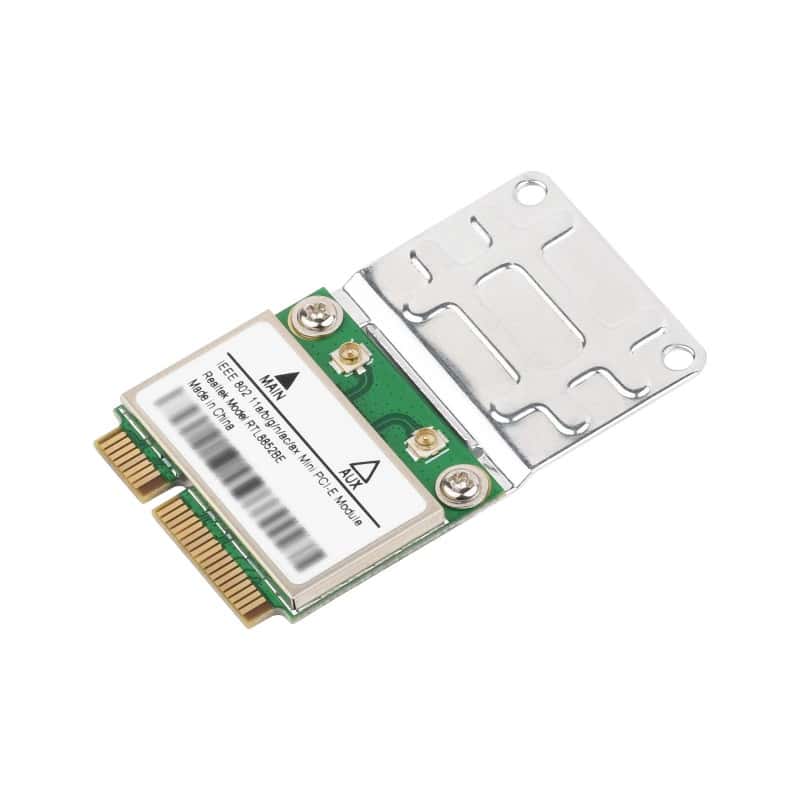

Wireless MINIPCIE RTL8852BE NIC, Gigabit Dual-Band Wi-Fi 6, 802.11AX Standard, Bluetooth 5.2

Wi-Fi 6 Wireless MiniPCIe RTL8852BE NIC Dual-Band

Bluetooth 5.2

Wi-Fi 6

Wireless-MINIPCIE-RTL8852BE specifications

Features at a glance

Supports 2.4GHz / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 1200Mbps in the 5GHz band

Supports Bluetooth 5.2 standard, compatible with Bluetooth 2.1 + EDR

Adopts MiniPCIe interface

Supports 802.11ac/ax 2×2 Wave-2 MU-MIMO

Supports Linux, Windows 10/11, etc.

Parameters Comparison

Model	AX210			AX200		RTL8852BE
Wi-Fi Version	Wi-Fi 6E			Wi-Fi 6
Wi-Fi Band	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	2.4GHz	5GHz
Wi-Fi Rate	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	574Mbps	1200Mbps
Interface	MiniPCIe Interface
Bluetooth Version	5.3			5.2
Technical Support	MU-MIMO

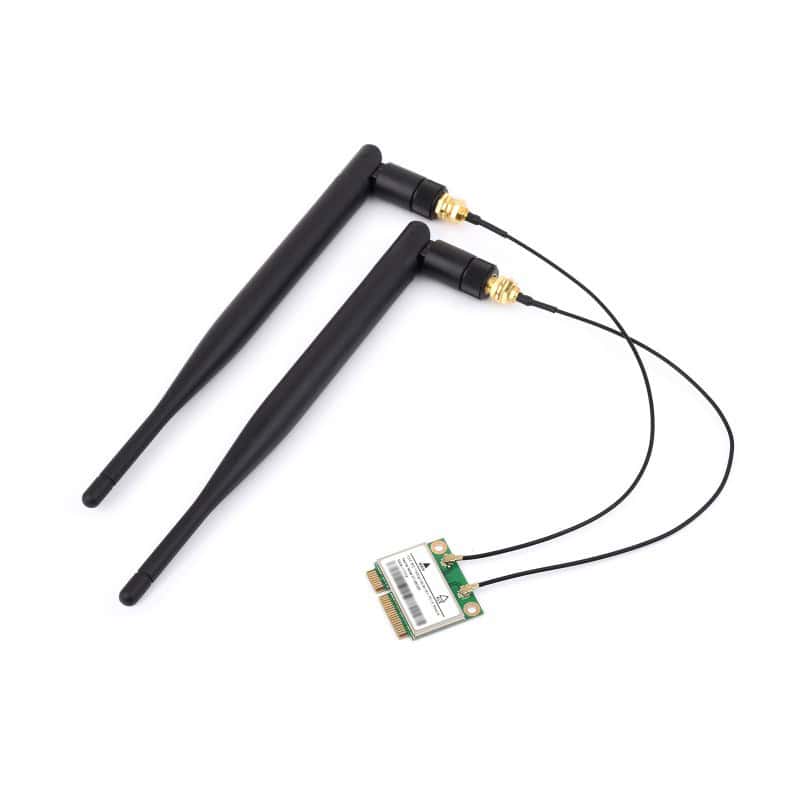

Antenna Connector	IPEX-4 Connector
System Support	Linux, Windows 10/11
Dimensions	29.9 × 26.8 × 3.24 (mm)

Adopts RTL8852BE Core

Supports IEEE 802.11a/b/g
/ac/ax

Wireless-MINIPCIE-RTL8852BE High Performance Wi-Fi 6

Dual-band Wi-Fi

Supports 2.4GHz / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 1200Mbps in the 5GHz band

Bluetooth 5.2, More Stable Connection

Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission

Support MU-MIMO Technology

Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency
