Part No.: M.2 HAT+ Compact
Brand: Raspberry Pi Foundation
Korisne informacije:
www.waveshare.com/wiki/M.2_HAT+_Compact Official Raspberry Pi M.2 HAT+ Compact, Designed For Raspberry Pi 5, HAT+ Standard, Supports NVMe Protocol M.2 Solid State Drive With
2230 Form Factor, Suitable For Use With The Raspberry Pi Case

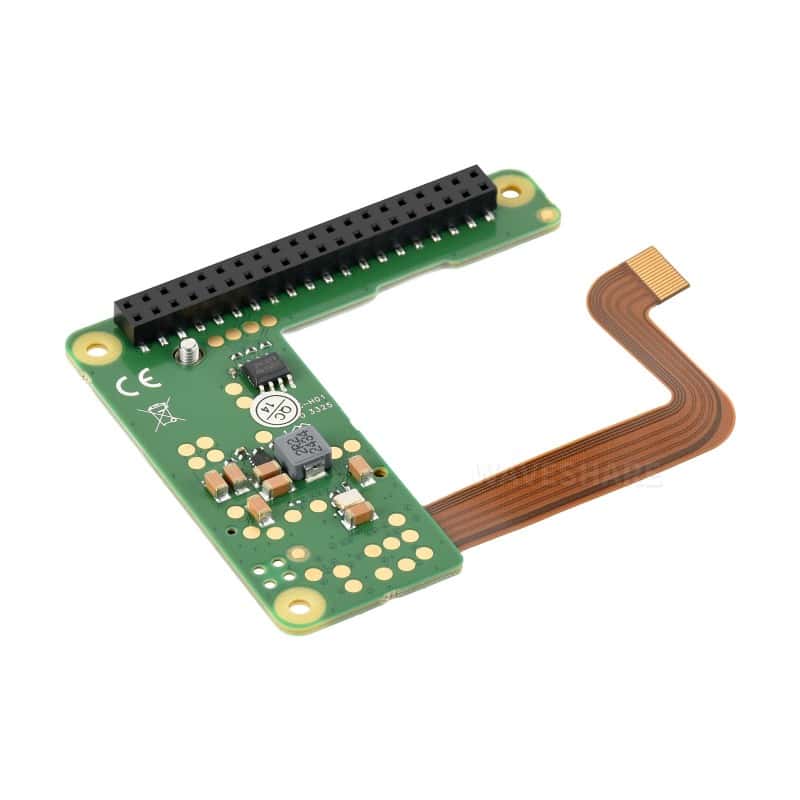

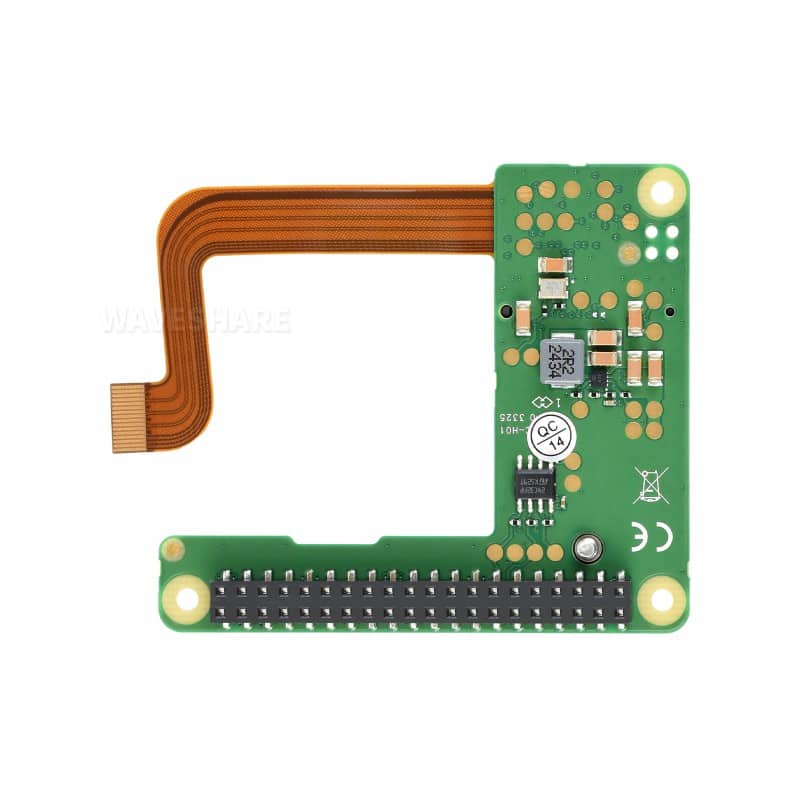

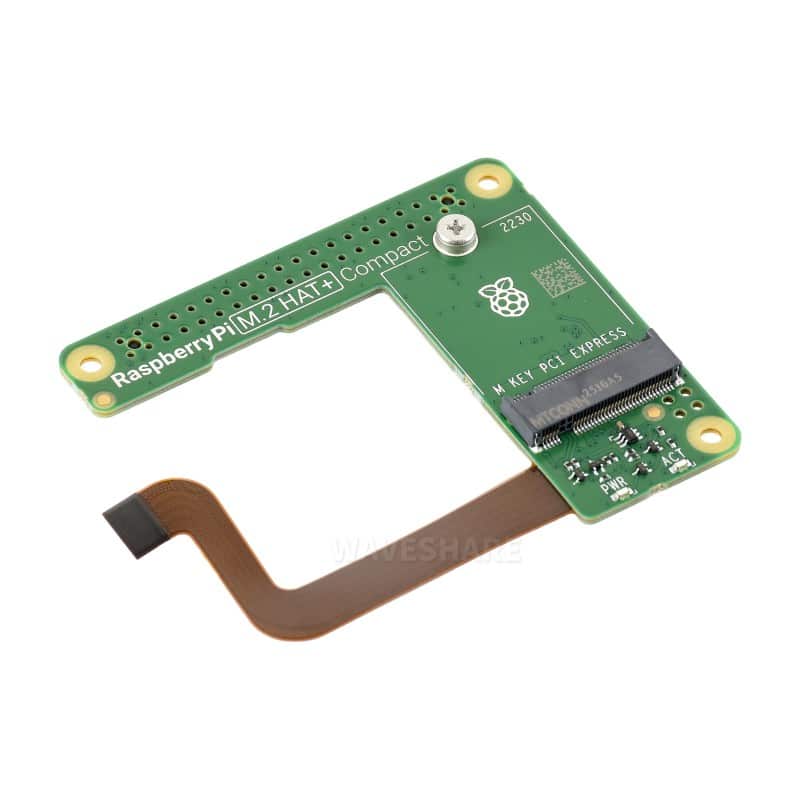

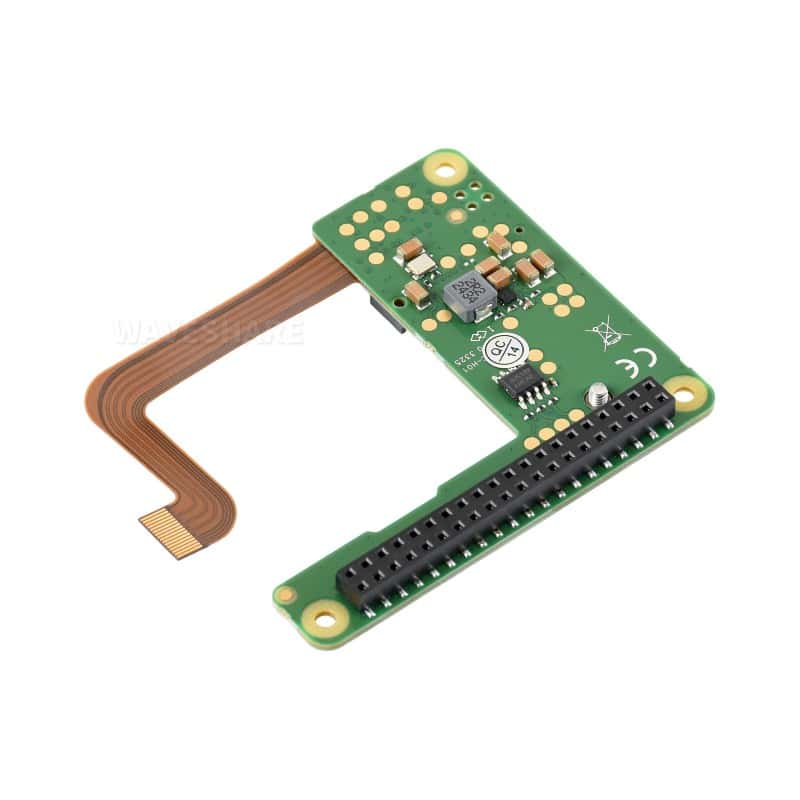

Raspberry Pi M.2 HAT+ Compact
Official Raspberry Pi PCIe to M.2 HAT, Designed for Raspberry Pi 5
Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing
Features
The
Raspberry Pi M.2 HAT+ Compact is designed for use with the Pi case for Raspberry Pi 5. The Compact form factor enables you to connect M.2 M key peripherals with the 2230 form factor to Raspberry Pi 5, while allowing space for the case’s integrated cooling fan.
Key features include:
- Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
- Supports devices that use the M.2 M key edge connector, only supports 2230 form factor M.2 Solid State Drive
- Capable of supplying up to 3A to connected M.2 devices
- Conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software / firmware
- Compact layout, can be fitted inside the official Raspberry Pi 5 Case, while allowing space for the case’s integrated cooling fan
- Supports power and activity LEDs
- Specifically designed for stacking with the built-in fan in the Raspberry Pi 5 official case
Suitable for Raspberry Pi 5
Comes with 16PIN PCIe cable for connecting the HAT to PI5
* for reference only, the Raspberry Pi 5 and Solid State Drive are NOT included
Compact design, can be assembled into the official Raspberry Pi case
* for reference only, the Raspberry Pi 5 and Raspberry Pi 5 Case are NOT included
NVMe Drive Protocol Support
Only supports 2230 form factor M.2 Solid State Drive, Supports Booting PI5 From Solid State Drive
Onboard EEPROM
Onboard Dual LED Indicators
Easy to monitor the Working Status
How to install
* for reference only, the Solid State Drive and Raspberry Pi 5 are NOT included, please refer to the Package Content for detailed part list Outline dimensions
Package content:
Weight: 0.021 kg
M.2 HAT+ Compact x1
