SKU: 31592
Part No.: Wireless-MINIPCIE-AX200
Korisne informacije:

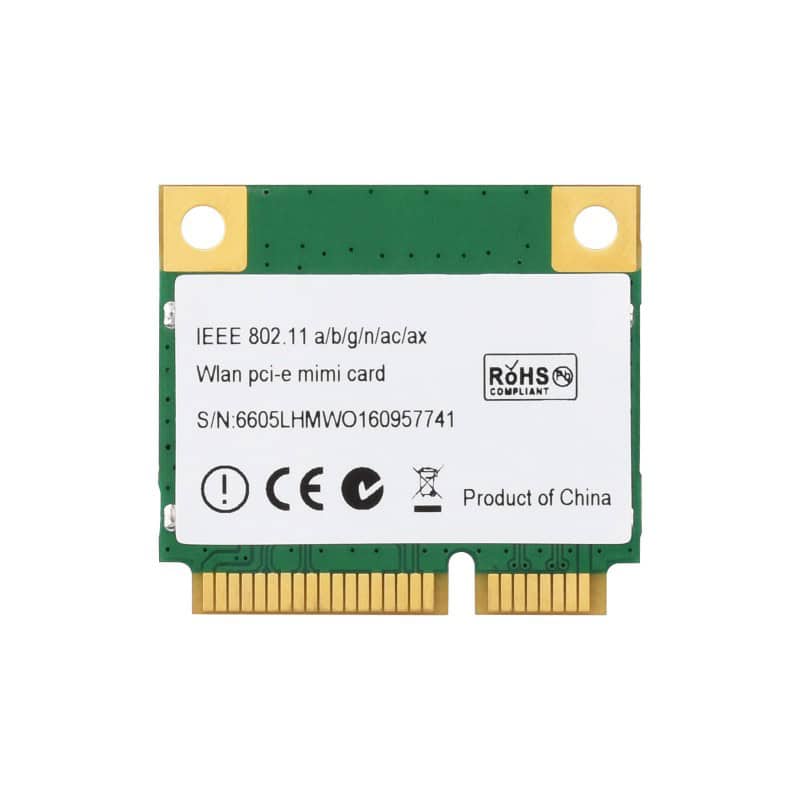

www.waveshare.com/wiki/Wireless-MINIPCIE-AX200 Wireless MINIPCIE AX200 NIC, Gigabit Dual-Band Wi-Fi 6, 802.11AX Standard, Bluetooth 5.2
Wi-Fi 6 Wireless MiniPCIe AX200 NIC Dual-Band
Bluetooth 5.2
Wi-Fi 6
Features at a glance
- Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, with lower power consumption and longer service life
- Supports 2.4G / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band
- Supports Bluetooth 5.2 standard, longer transmission distance and better stability
- Adopts MiniPCIe interface
- Adopts the new generation of MU-MIMO wireless technology, provides better network quality, faster Network speed (more than three times), and higher transmission and download efficiency
- Supports Linux, Windows 10/11, etc.
Parameters Comparison
Model |
AX210 |
AX200 |
RTL8852BE |
Wi-Fi Version |
Wi-Fi 6E |
Wi-Fi 6 |
Wi-Fi Band |
2.4GHz |
5GHz |
6GHz |
2.4GHz |
5GHz |
2.4GHz |
5GHz |
Wi-Fi Rate |
574Mbps |
2400Mbps |
2400Mbps |
574Mbps |
2400Mbps |
574Mbps |
1200Mbps |
Interface |
MiniPCIe Interface |
Bluetooth Version |
5.3 |
5.2 |
Technical Support |
MU-MIMO |
Antenna Connector |
IPEX-4 Connector |
System Support |
Linux, Windows 10/11 |
Dimensions |
29.9 × 26.8 × 3.24 (mm) |
AX200 High Performance Wi-Fi 6
Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, lower power consumption and longer service life
Dual-band Wi-Fi
Supports 2.4G / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band
Bluetooth 5.2, More Stable Connection
Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission
Supports MU-MIMO Technology
Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency
Interface Introduction

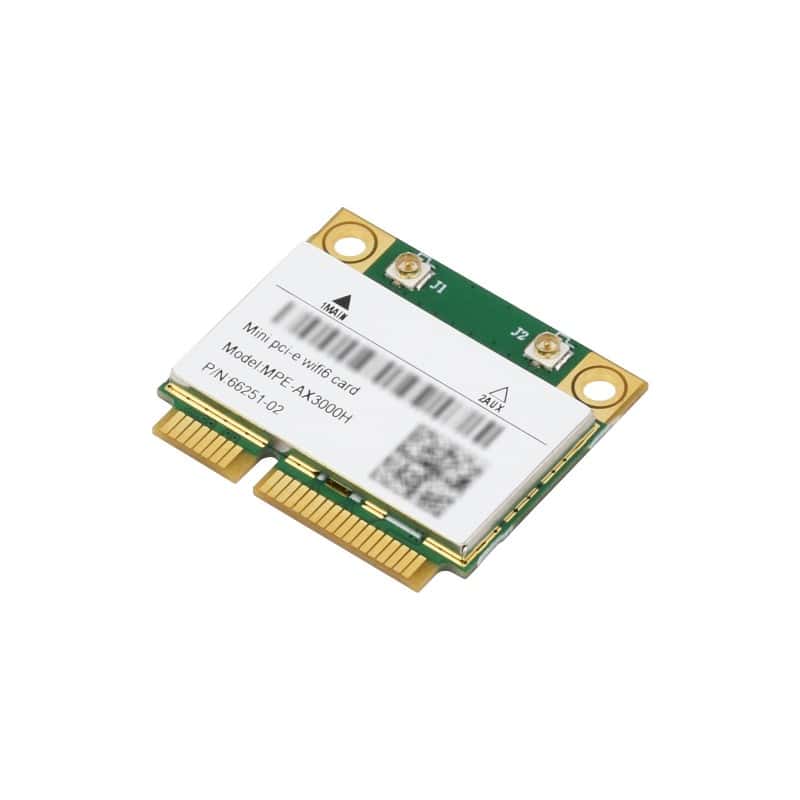

Access to antenna via IPEX connector
Outline dimensions
Package content:
Weight: 0.052 kg
- Wireless-MINIPCIE-AX200 × 1

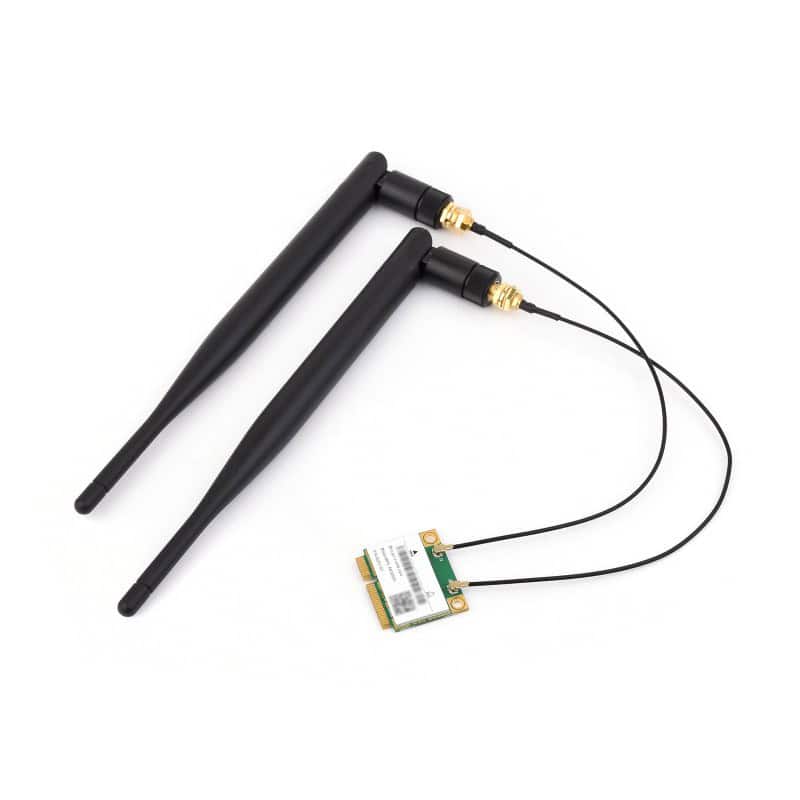

- IPEX 1 to SMA cable × 2
- 6DB antenna × 2
- Screwdriver × 1

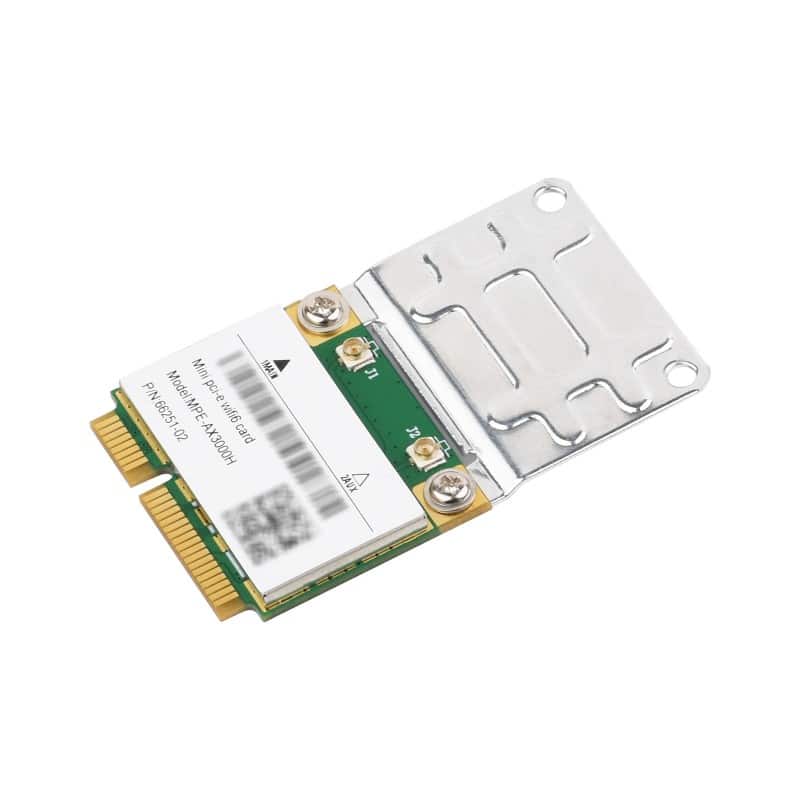

- MINIPCIe mounting bracket × 1
- Screws pack × 1
