UV Sensor
UV Sensor
UV Sensor
UV Sensor

UV Sensor

Šifra: w9537
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
990,00 RSD
Cena sa PDV
u korpu
  • Kategorija: senzor
  • Težina po komadu: 0.009 Kg
SKU: 9537
Part Number: UV Sensor
UPC: 799632836629

Korisne informacije: www.waveshare.com/wiki/UV_Sensor

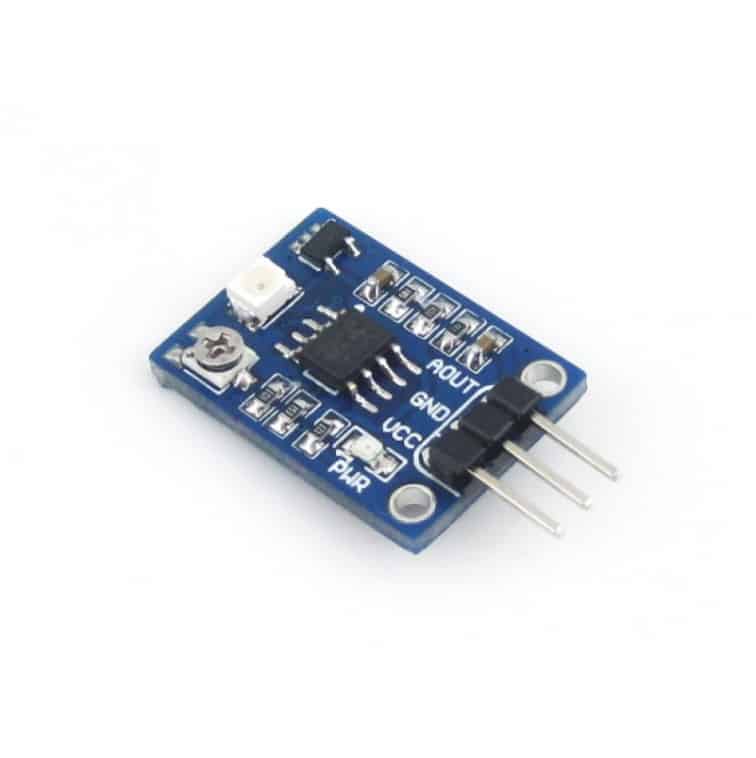

Ultraviolet Sensor

Overview



  • Output voltage boosts along with the ambient ultraviolet intensity increases

  • Onboard amplifier circuit with adjustable amplification factor


Specifications



  • Response spectrum: 200nm-370nm

  • Dimension: 22.0mm * 16.0mm

  • Mounting holes size: 2.0mm


Applications



  • Ultraviolet tester

  • Outdoor ultraviolet detector

  • Germicidal lamp


How to Use


In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5.0V

  • GND ↔ power supply ground

  • AOUT ↔ MCU.IO (analog output)




PACKAGE CONTENT



Weight: 0.005 kg


  1. UV Sensor x1

  2. 3-pin custom connector jumper wire x1



1
2

Specifikacija nije definisana
