TOF Laser Range Sensor (C)

Šifra: w28730

3.390,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: senzor
Težina po komadu: 0.02 Kg

SKU:28730
Part No.:TOF Laser Range Sensor (C)

Korisne informacije: www.waveshare.com/wiki/TOF_Laser_Range_Sensor_(C)
TOF (time of flight) Laser Range Sensor, UART / I2C / IO Communication Support, 25m

TOF Laser Range Sensor

long range | short blind zone | stable/accurate/sensitive | indoor/outdoor

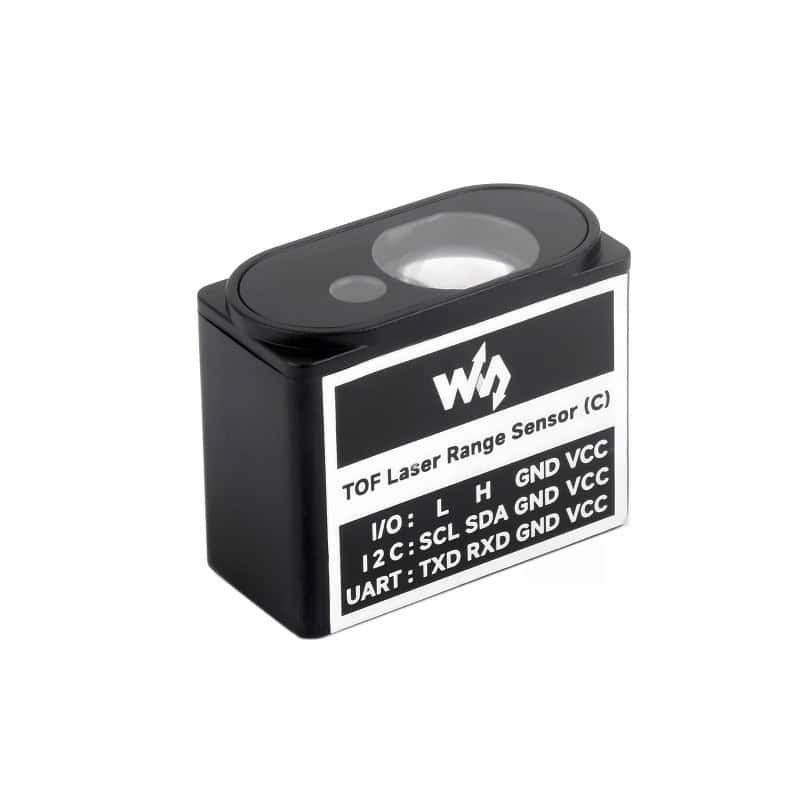

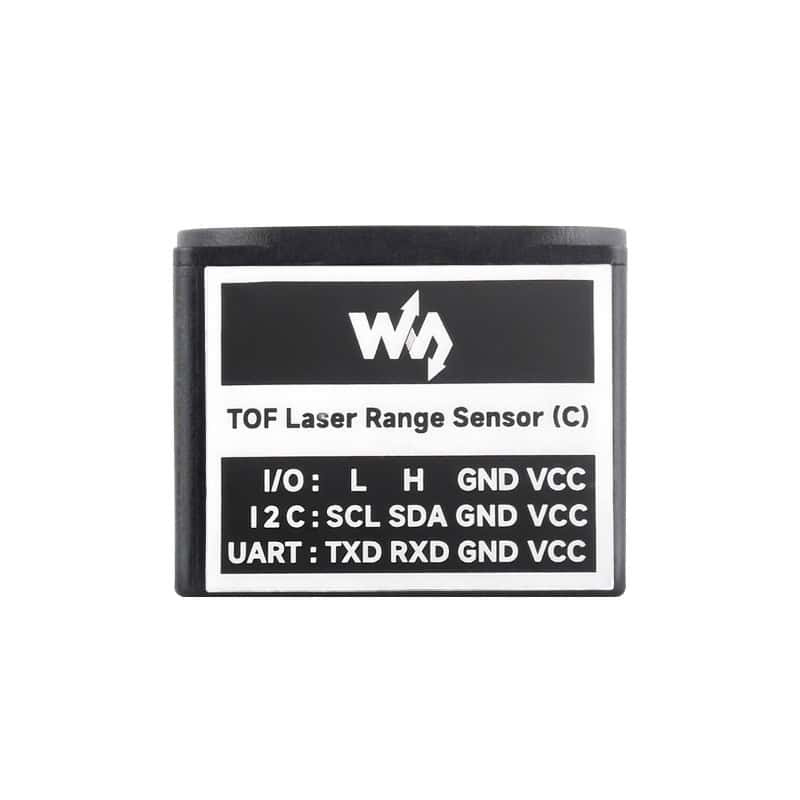

TOF (time of flight) Laser Range Sensor, front view and features

Product overview

This is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 25m / 50m measuring range, and ±3cm accuracy. It supports UART or I2C communication bus, features longer measuring distance and higher light interference tolerance capability due to its ultra narrow FOV, suitable for either indoor or outdoor condition. And its ambient light tolerance is up to 100K LUX.

This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more...

Version Options

TOF Laser Range Sensor (C) 25m measuring range

Specifications

Model	TOF Laser Range Sensor (C)
Typical measuring range	0.05 ~ 25.0m
Typical measuring accuracy	0.05 ~ 25m ±3cm
Wavelength	905nm
Field of view (FOV)	1° ~ 2°
Communication interface	Default: UART (3.3V TTL signal level)
	I2C (cascading support, the slave address is 0x08+module ID)
	complementary I/O level output (distance parameter is not available in this mode)
Baudrate	UART: 4.8Kbps ~ 3000Kbps (921.6Kbps by default)
Baudrate	I2C: up to 400Kbps
Power supply	4.3 ~ 5.2V
Power consumption	250mW (UART active output, 5.0V power supply, 50mA current)
Weight	7.7g
Operating temperature	-10°C ~ 60°C
Dimensions	22.7mm × 28mm × 13.6mm (L × W × H)
