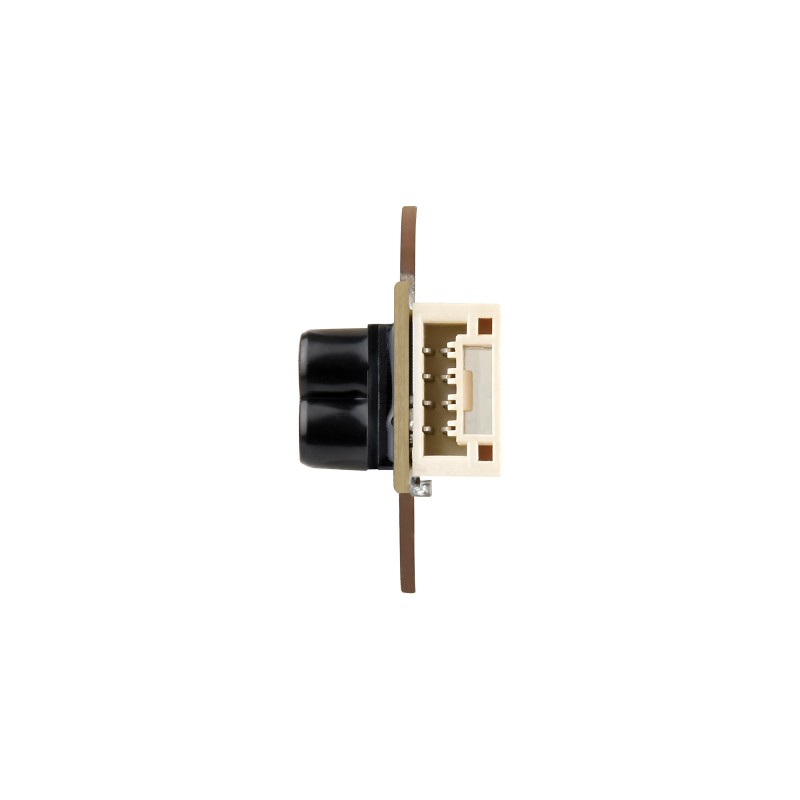

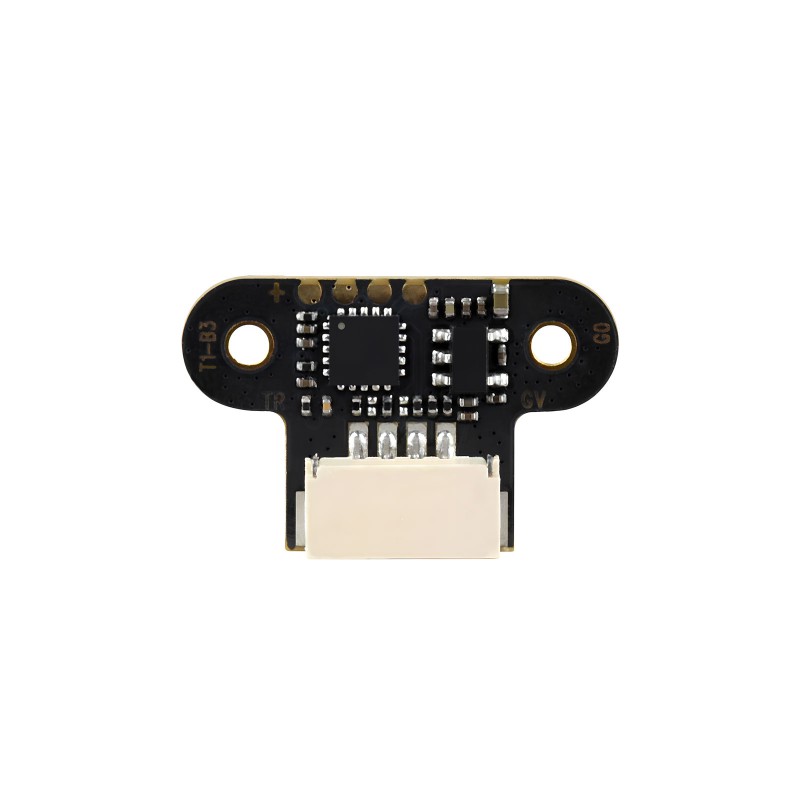

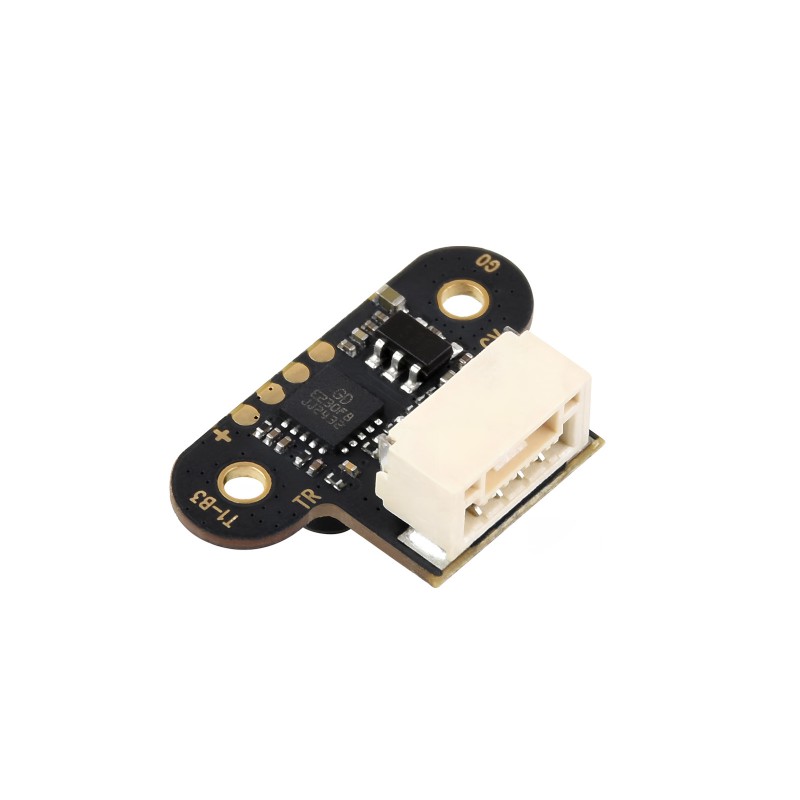

TOF Laser Range Sensor Mini Sensor

Šifra: w28761

1.090,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: senzor
Težina po komadu: 0.006 Kg

SKU: 28761
Part No.: TOF Laser Range Sensor Mini

Korisne informacije: www.waveshare.com/wiki/TOF_Laser_Range_Sensor_Mini
TOF (time of flight) Mini Laser Range Sensor, UART / I2C Communication Support, Long Range

TOF Mini Laser Range Sensor

long range | short blind zone | stable/accurate/sensitive | indoor/outdoor

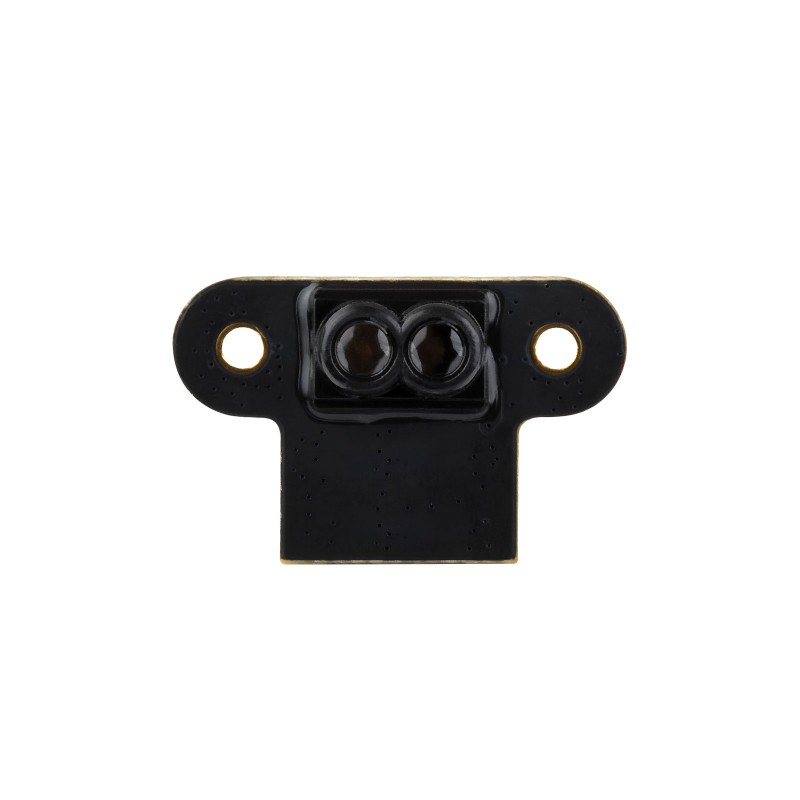

TOF Mini Laser Range Sensor, front view and features

Product overview

This is a TOF-based (time of flight) mini laser ranging sensor with embedded MCU and ranging algorithm, which the measuring range is up to 7.8m and the accuracy is up to ±4cm. It supports UART or I2C communication bus, features longer measuring distance and higher light interference tolerance capability due to its ultra narrow FOV, suitable for either indoor or outdoor condition. And its ambient light tolerance is up to 100K LUX.

This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more...

Specifications

Typical measuring range	0.02m ~ 7.8m
Typical measuring accuracy	±4cm (0.02m ~ 7.8m)
Wavelength	940nm
Field of view (FOV)	2° ~ 3°
Communication interface	Default: UART (3.3V TTL signal level)
	I2C (cascading support, the slave address is 0x08+module ID)
	complementary I/O level output (distance parameter is not available in this mode)
Baudrate	UART: 4.8Kbps ~ 3000Kbps (921.6Kbps by default)
Baudrate	I2C: up to 400Kbps
Power supply	4.3 ~ 5.2V
Power consumption	100mW (UART active output, 5.0V power supply, 20mA current)
Weight	1g
Operating temperature	-10°C ~ 60°C
Dimensions	18.8mm × 12mm × 10.3mm (L × W × H)
