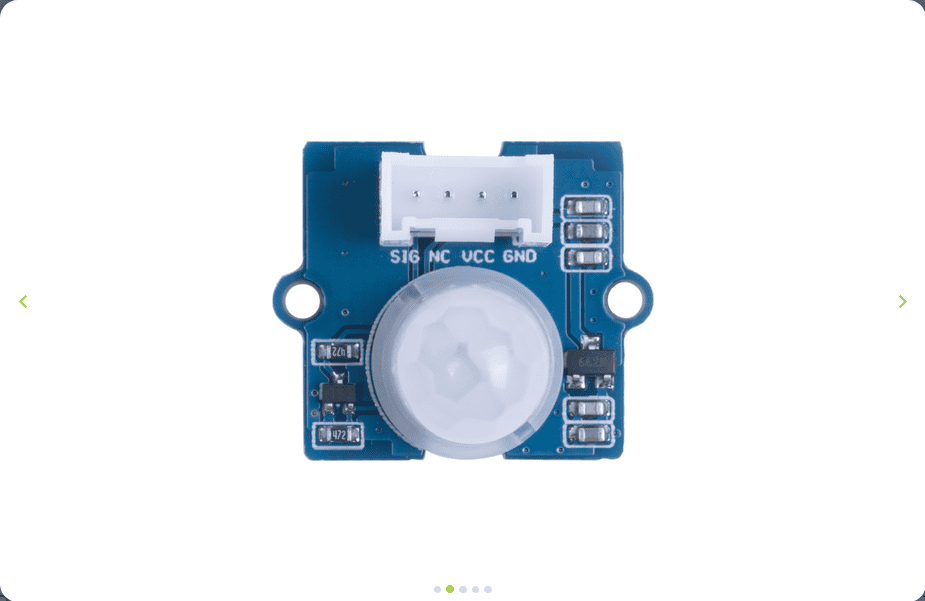

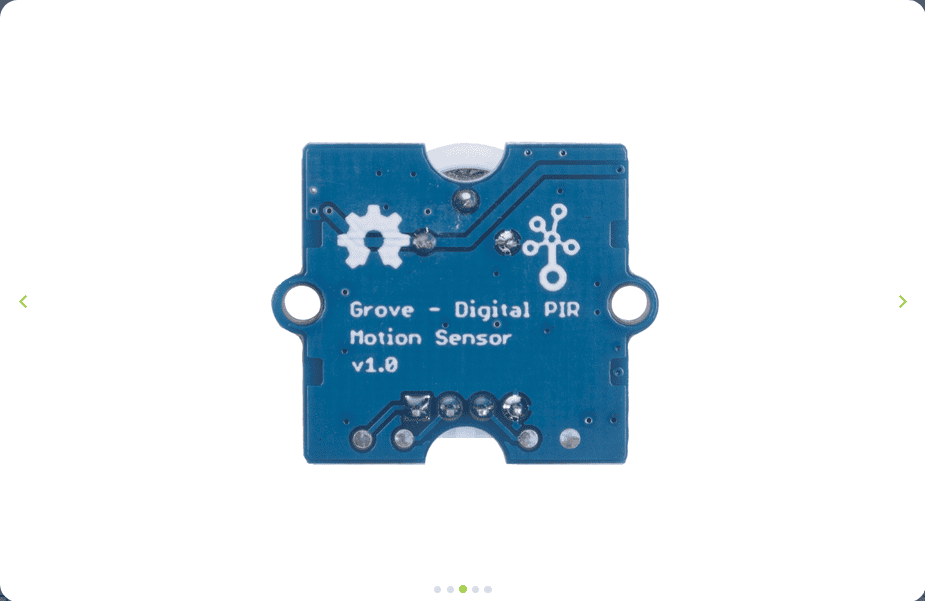

This Grove Digital PIR Sensor is the cheapest PIR sensor in the PIR families, however, it is able to give a quick response and generate a high signal from the "sig" Pin.
Features
- Quick response: detect motion and output with only ‘high’ and ‘low’ digital signals less than 1s
- Wide detection range: 3.2m-12m
- Easy to use: Grove compatible interface and supports both Arduino and Raspberry Pi platforms
- Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications of Grove
Description
This Grove Digital PIR Sensor for only $4.3 can detect a wide range up to 12m, and provide a quick and intuitive response with only ‘high’ and ‘low’ digital signals.
What is a PIR Sensor?
A passive infrared sensor is an electronic sensor that measures infrared light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications.
What does a PIR sensor detect?
PIR sensors are also known as PID or Passive Infrared Detectors. Thus, the PIR sensor can detect infrared radiation that is emitted by particles.
How does PIR Sensor work?
The PIR Sensor has 2 slots, and the slots are made of sensitive material. When the sensor is inactive, then the two slots will sense the same amount of IR. The ambient amount radiates from the outdoors, walls or room, etc.
When a human body or any animal passes by, it intercepts the first slot of the PIR sensor. This causes a positive differential change between the two bisects. But when the body leaves the sensing area, the sensor generates a negative differential change between the two bisects.
Click to explore more about PIR sensors.
What is Grove？ We have developed more than 400 Grove modules, covering a wide range of applications that can fulfil various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.
Applications
- Motion Sensor
- Motion Detector
- Security Alarm System
- Human Detection System
Specification
Item |
Value |
Voltage range |
3V–5V |
range |
3.2m-12m |
Response time |
< 1s |
Working temp |
-20-85 C |
Interface |
Digital |
Dimensions |

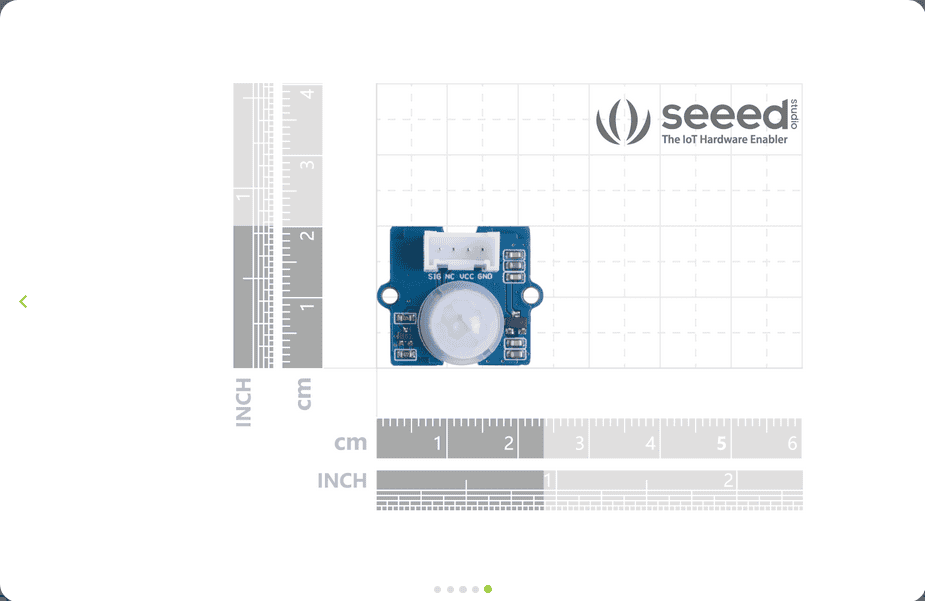

20mm * 20mm * 11.5mm |
Weight |
3g |
Battery |
Exclude |
Part List

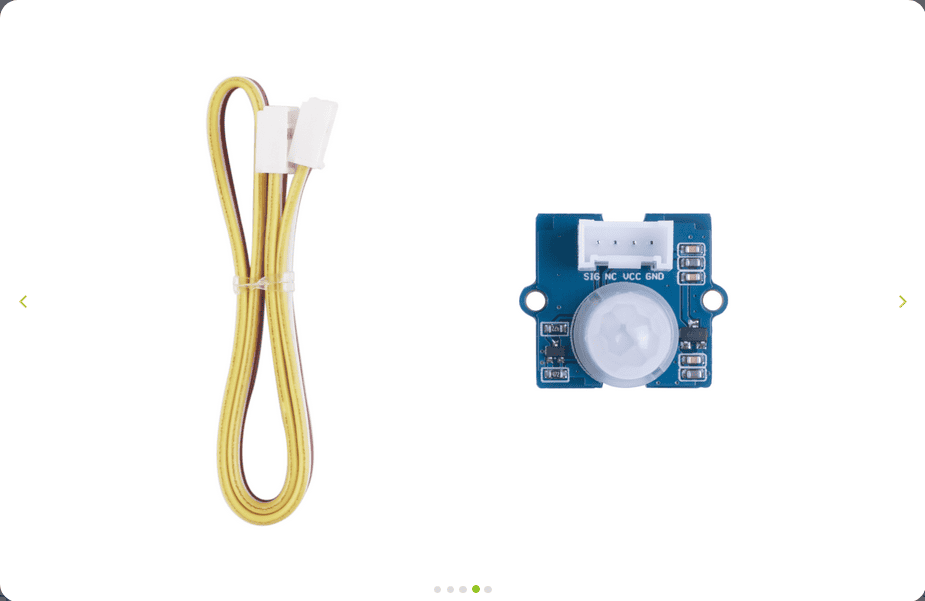

Grove Digital PIR Motion Sensor |
1 |
Grove cable |
1 |
ECCN/HTS
HSCODE |
9031900090 |
USHSCODE |
9026104000 |
UPC |
841454123002 |
EUHSCODE |
9013101000 |
COO |
CHINA |
LEARN AND DOCUMENTS
Documentations
BS312 Specification
Learn
[Wiki] Grove - Digital PIR Sensor Grove Digital PIR Motion Sensor is a simple and intuitive digital motion sensor.
[Blog] PIR Sensor: Overview, Applications and Projects PIR Sensor is short for passive infrared sensor, which applies for projects that need to detect human or particle movement in a certain range. It is also known as PIR (motion) sensor or IR sensor.
