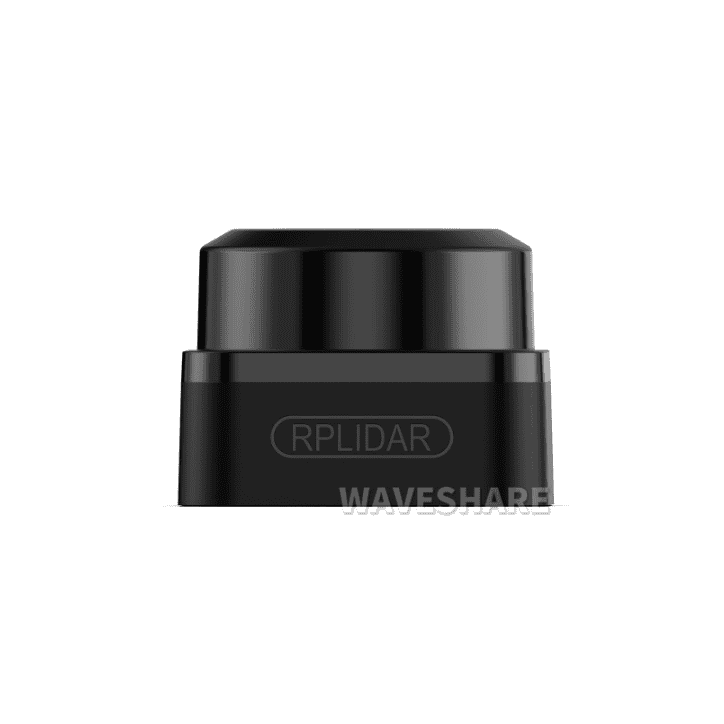

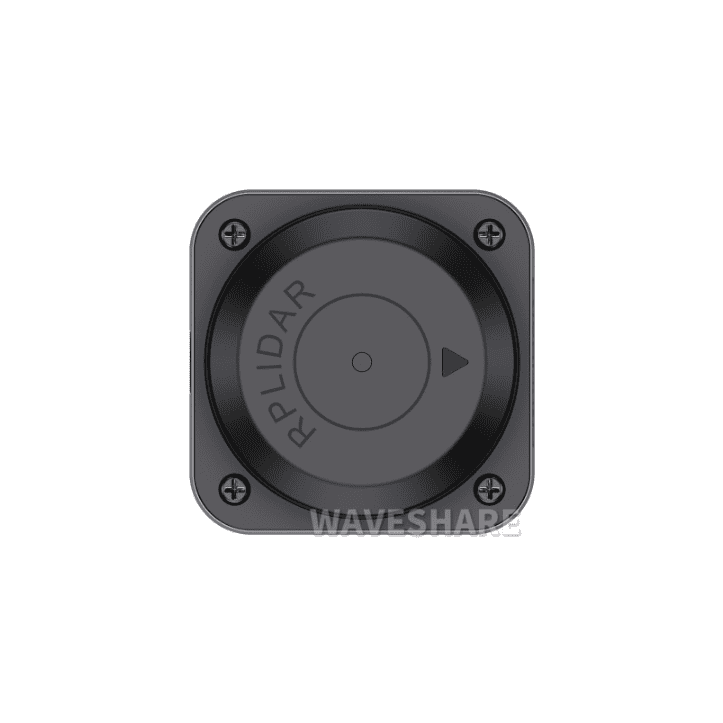

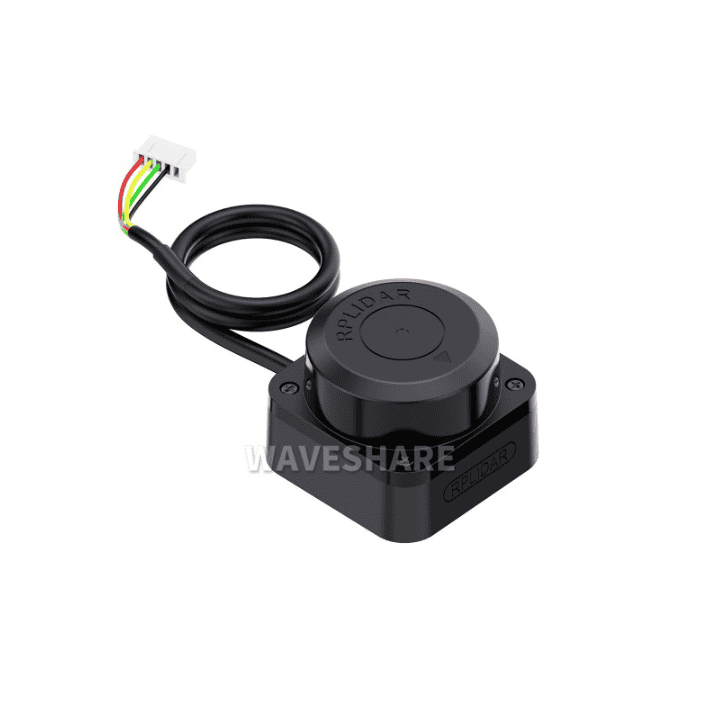

Obavesti me kada proizvod bude dostupan!360°Laser Ranging Lidar
New Generation Fusion-Type LIDAR, High Definition & High Performance
| RANGING DISTANCE | 0.05~12.00m (white object, 70% reflectivity) 0.05~6.00m (black object, 10% reflectivity) |
|---|---|
| RANGING ACCURACY | ±30mm |
| SCANNING FREQUENCY | 8~12Hz (Typ 10Hz) |
| SCANNING ANGLE | 360° |
| RANGING FREQUENCY | 5000Hz |
| RANGING RESOLUTION | 15mm |
| ANGULAR RESOLUTION | 0.72° |
| WAVELENGTH | 905nm |
| COMMUNICATION INTERFACE | UART, TTL |
| POWER SUPPLY | 5V |
| POWER CONSUMPTION | 1.15W |
| OPERATING CURRENT | 230mA |
| WEIGHT | 110g |
| OPERATING TEMPERATURE | -10 ~ 40°C |
| DIMENSIONS (L × W × H) | 55.6×55.6×41.3mm |
Integrates the technical advantages accumulated in triangulation and DTOF ranging for many years, enabling RPLIDAR C1 to meet the requirements of robot positioning, mapping, and navigation in terms of ranging accuracy, distance measurement, anti-interference, and anti-adhesion performance
With New Generation Fusion-Type Ranging Technology, RPLIDAR C1 Not Only Provides Position Information Data But Also Offers Additional Output Reflectivity Data And 2.5D Multidimensional Information
The Ranging Radius Can Reach Up To 12 Meters And With A Low Blind Range Of Only 0.05 Meters. Easily Achieves Scanning And Ranging At Various Distances, And Realizes Obstacle Avoidance
To ensure the safety of humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating
Small In Size, Features High Performance, With Low Noise And Vibration, Can Be Easily Integrated Into Various Applications To Provide More Possibilities
Datasheet, User Manual, Application Manual, Protocol Specification
Provides SDK Development Packages That Can Run On Different Platforms, Supports ROS And ROS2 Operating Systems, Helping Users To Develop And Integrate Across Various Operating Systems And Architectures
