SKU: 20679
Part Number: Capacitive Fingerprint Reader (B)
Brand: Waveshare
Korisne informacije:

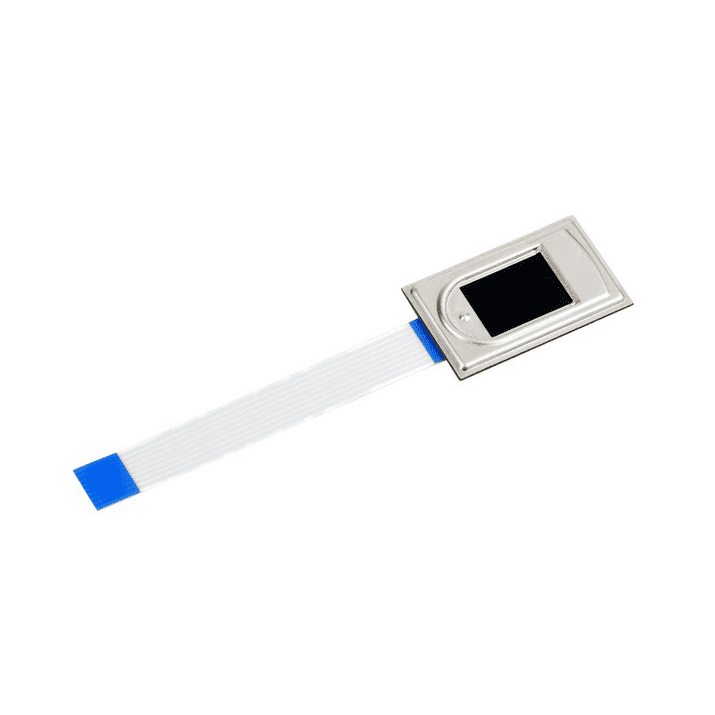

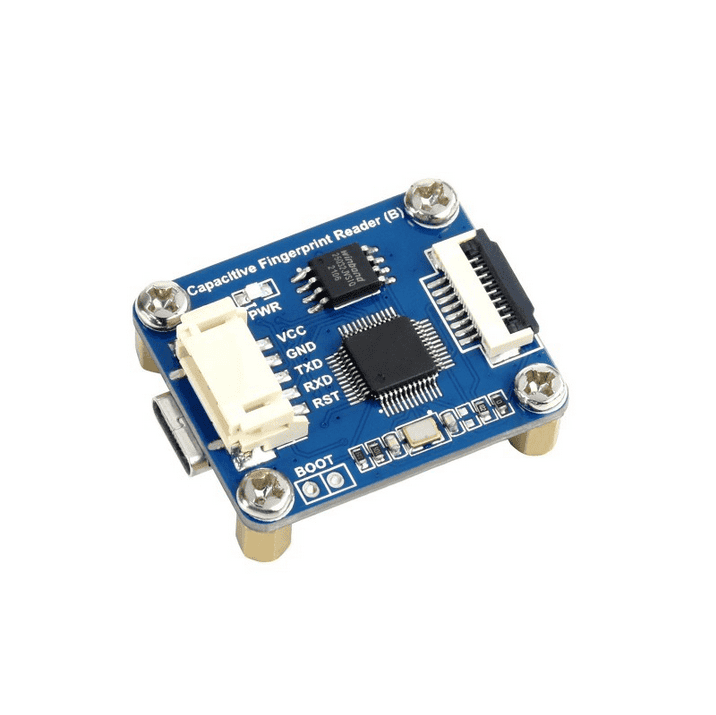

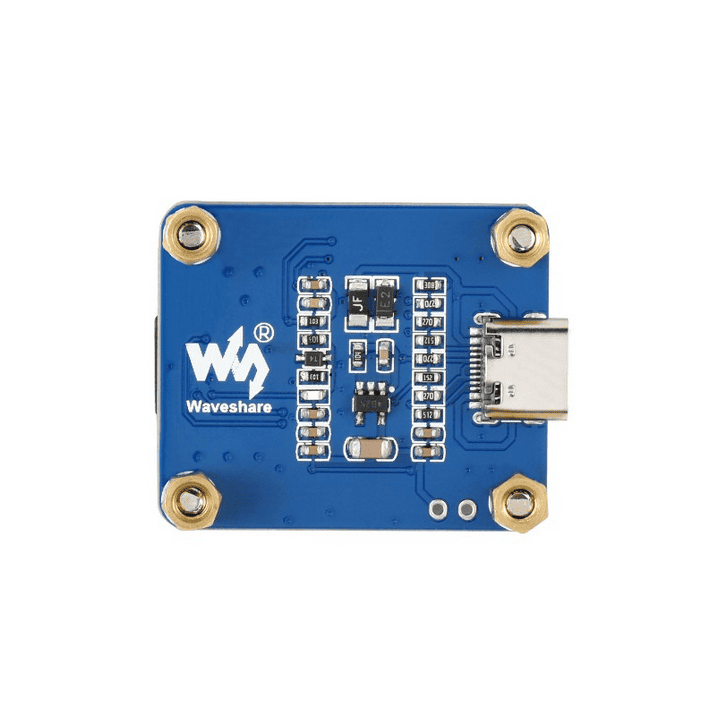

Capacitive_Fingerprint_Reader_(B) High precision Capacitive Fingerprint Reader (B), UART/USB dual ports
Capacitive Fingerprint Reader (B) precise fingerprint identification | UART/USB dual ports
Product Features The
Capacitive Fingerprint Reader (B) is a fast and stable capacitive fingerprint module specialized for secondary development, suits integration applications.
By incorporating high performance Cortex core processor, high security commercial fingerprint algorithm, and advanced semiconductor fingerprint sensor, this module is designed as a intelligent integration module with functions including fingerprint enrolling, image processing, template generating and storing, fingerprint matching and searching, etc.
- Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure/calculation
- Commercial fingerprinting algorithm, stable performance, fast identification
- Sensitive detection, just touch the collecting window lightly, without pressing
- Allows to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
- Dual communication, UART or USB
- Comes with rich development resources (related command documents, tools, and examples for Raspberry Pi/Arduino/STM32)
Specifications
parameter |
value |
Sensor |
Semiconductor (capacitive) |
Module dimension |
34 × 28.5mm |
Sensor dimension |
33.4 × 20.4mm |
Image |
DPI 508 |
Image resolution |
208 × 288 |
Greyscale |
256 (8-bit) |
Sensing area |
14.6 × 10.6mm |
Fingerprint capacity |
3000 |
Security level |
1-5 configurable, 3 by default
the higher value, the lower FAR (False Acceptance Rate), yet the higher FRR (False Rejection Rate) |
Encryption key |
64-bit encryption |
Image collecting rate |
20fps |
Matching time |
0.5s |
Dynamic current |
<40mA |
Operating voltage |
3.3-5V |
Communication port |
UART or USB |
ESD |
SD IEC 61000-4-2 LEVEL 4 positive
egative 15KV air discharge |
Baudrate |
configurable: 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600bps
115200bps by default |
Application examples Fingerprint lock, Fingerprint safe deposit box, Access control system, Clock in and out...
Outline dimensions
Package content: Weight: 0.017 kg
- Capacitive Fingerprint Reader (B) x1
- PH2.0 5PIN wire x1
1
2
