SKU: 20467
Part Number: UV Sensor (C)
Korisne informacije:
UV_Sensor_(C) Digital LTR390-UV Ultraviolet Sensor (C), Direct UV Index Value Output, I2C Bus
Digital UV Sensor Ultraviolet Ray Sensing & Ambient Light Intensity Measuring
Direct Outputs UV Index And Light Intensity Value
Features At A Glance The

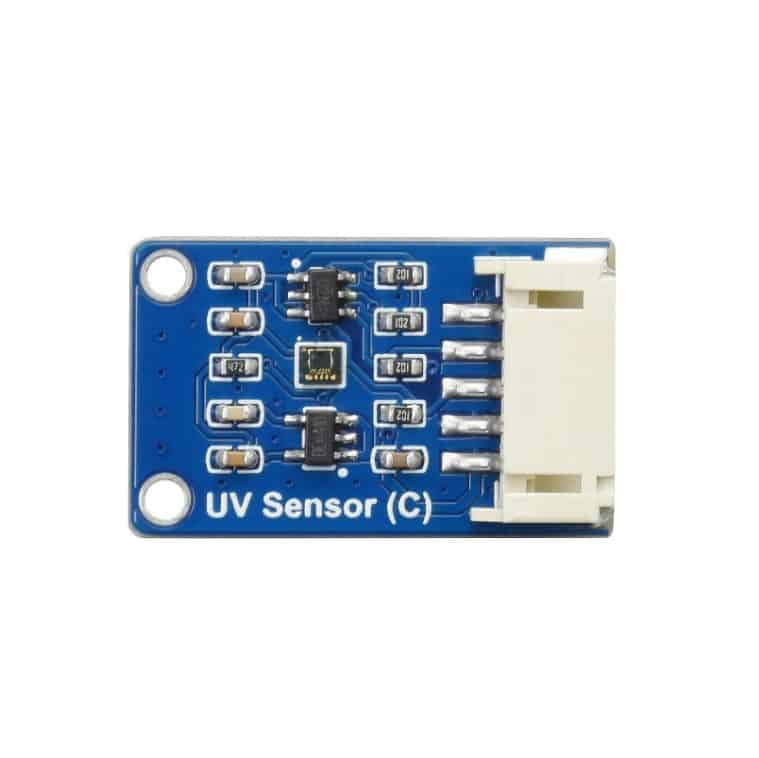

UV Sensor (C) is an I2C digital UV sensor module which incorporates LTR390-UV-01, designed for measuring ultraviolet ray as well as visible light, and providing light intensity value output. With features including sensitive detection, fast response, and small form factor, the
UV Sensor (C) integrates the main sensor LTR390-UV-01 on its 27 × 20mm body, allowing easy integration into other devices.
- Incorporates LTR390-UV-01, for measuring ultraviolet ray and visible light
- Embedded ADC, direct light intensity value output via I2C bus, less noise interference
- Supports interrupt output, programmable upper/lower threshold
- Onboard voltage translator, compatible with 3.3V/5V operating voltages
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
SENSOR |
LTR390-UV-01 |
RESPONSE SPECTRUM |
280 - 430nm |
COMMUNICATION BUS |
I2C (constant address: 0x53) |
OPERATING VOLTAGE |
3.3V/5V |
DIMENSIONS |
27 × 20mm |
MOUNTING HOLE SIZE |
2.0mm |
I2C Control Interface Supports Host Boards Including Raspberry Pi/Arduino/STM32...
Hardware Connection Connecting With Raspberry Pi
Connecting With Arduino Board
Outline Dimensions
PACKAGE CONTENT Weight: 0.007 kg
- UV Sensor (C) x1

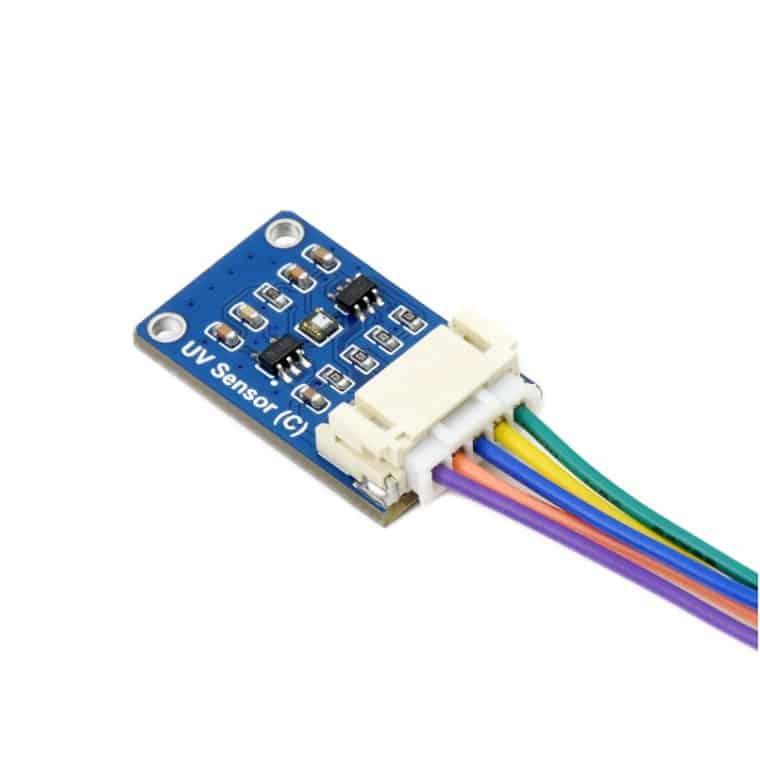

- PH2.0 5PIN wire x1
