Seeed Studio 24GHz mmWave for XIAO

Šifra: se101010001

699,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 3 na stanju

Dodaj u korpu

Kategorija: senzor
Težina po komadu: 0.004 Kg

Konektori, žice, protobord

101010001

PRODUCT DETAILS

Feature

Based on the FMCW principle: highly sensitive and immune to environmental interferences

Comprehensive Human Body Detection: The sensor not only detects moving human bodies with high sensitivity but also exhibits sensitivity to static individuals, micro-movements, as well as individuals in sitting or lying positions.

Multi-Level Intelligent Parameter Adjustment: Adjusted using Bluetooth or a serial port, providing flexibility to meet varying environmental conditions and scene changes. Additionally, it supports direct parameter configuration through an app, eliminating the need for a serial port connection.

Wide Detection Angle and Long Sensing Distance: With a field of vision of up to 60 degrees, the sensor can detect movement from a wide angle. Furthermore, it can detect things up to 5 meters away.

Excellent Shell Penetration and Aesthetics Enhancement: Has good shell penetration, allowing it to work discreetly inside the product's casing without the need for surface perforations.

Description

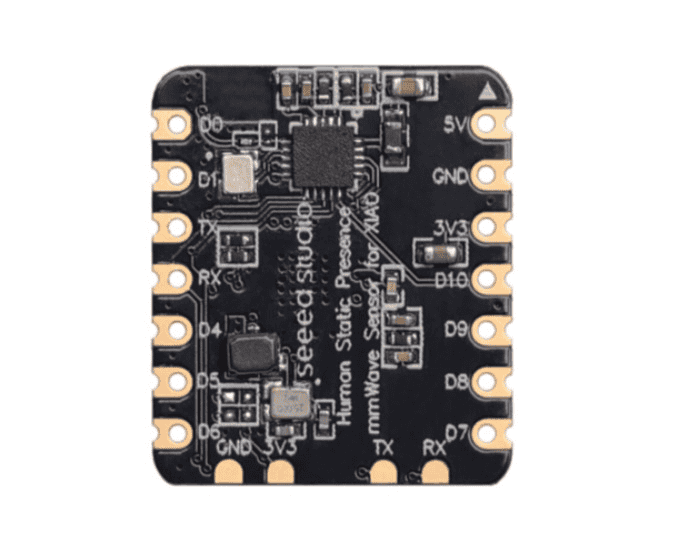

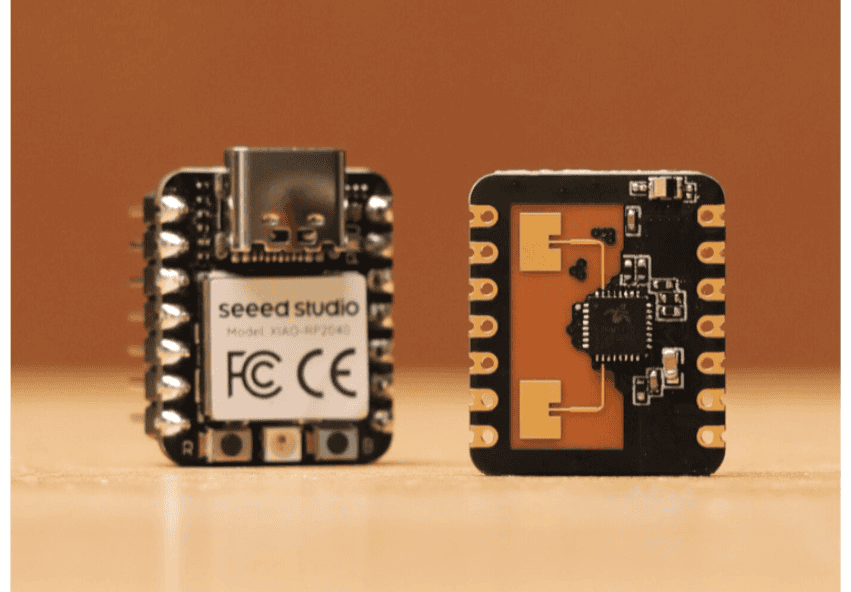

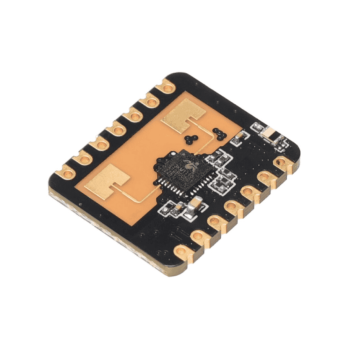

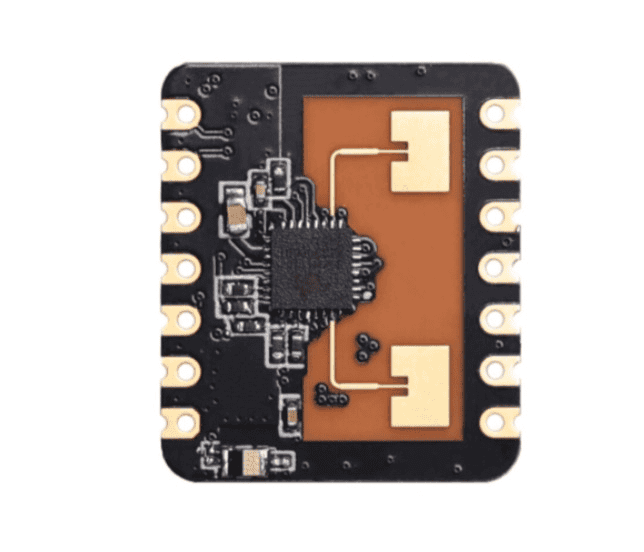

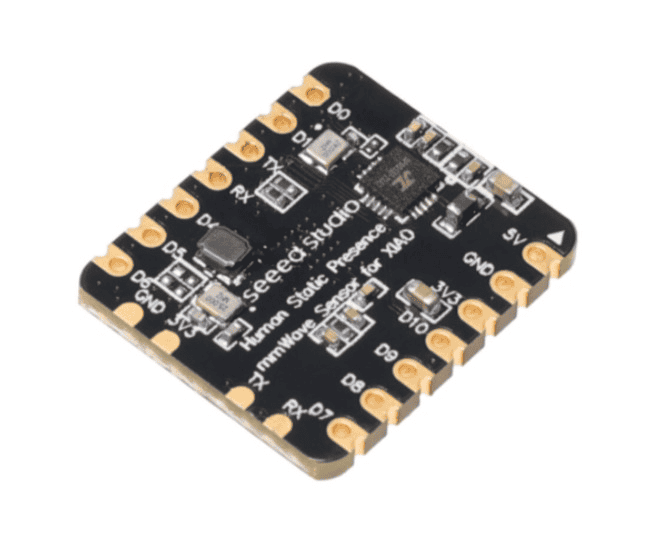

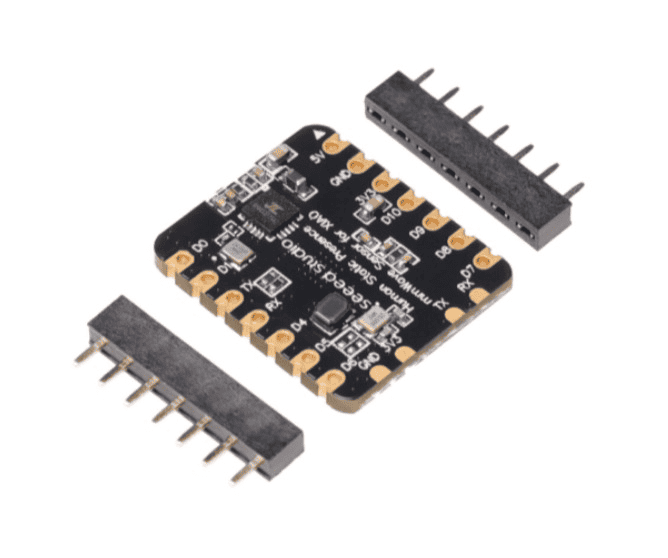

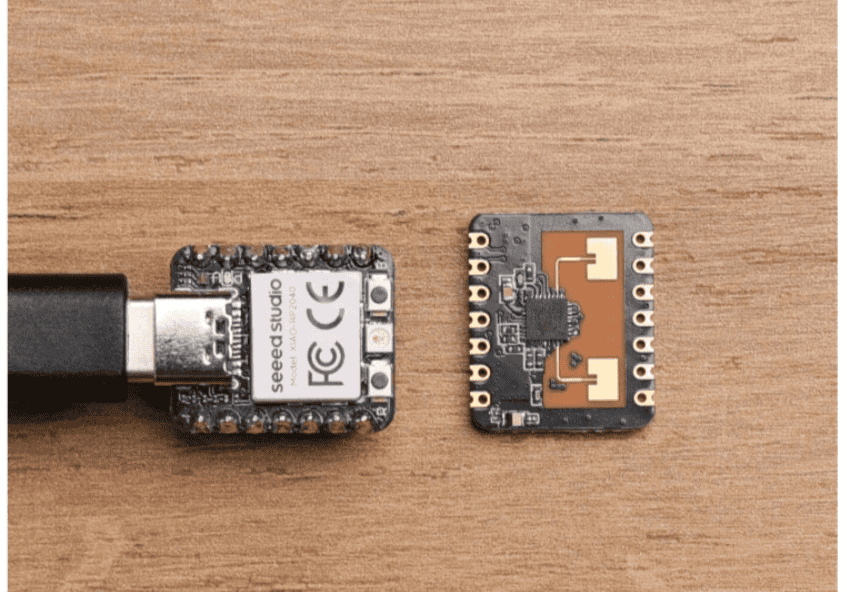

The 24GHz mmWave Sensor for XIAO - Human Static Presence is an extension board designed for the XIAO development platform. It serves as a highly advanced human body sensing module that utilizes FMCW (Frequency-Modulated Continuous Wave) technology to detect human targets within a designated space. Powered by sophisticated radar signal processing and precise human body sensing algorithms, this module achieves exceptional sensitivity in detecting human presence, accurately identifying both moving and stationary states. It also provides auxiliary information such as target distance calculation. Primarily deployed in indoor environments, this product offers real-time detection of moving or micro-moving human bodies.

It employs cutting-edge 24GHz millimeter wave radar sensor technology, delivering significant advantages in human body sensing applications. It exhibits remarkable sensitivity not only to moving human bodies but also to static, micro-moving, sitting, and lying human bodies, surpassing the capabilities of traditional solutions.

Featuring a maximum sensing distance of up to 5 meters and an expansive detection angle of ±60 degrees, this module guarantees accurate identification within the specified range. It supports partitioning of the sensing range and effectively shields interference from outside sources. Additionally, it supports Bluetooth functionality, allowing direct radar parameter debugging via a dedicated app, eliminating the requirement for a serial port connection.

Furthermore, the module demonstrates excellent environmental adaptability by maintaining consistent sensing performance regardless of temperature, brightness, humidity, or light fluctuations. Its shell penetration capability eliminates the need for surface perforations, enhancing the overall aesthetics of the product. The module offers flexible configuration options for the farthest sensing distance and sensitivity, enabling personalized and fine-tuned setups.

Application

 Human body sensor light control

 Life safety protection

 Smart home appliances

 Intelligent security

Specification

Parameter	Value
Operating Frequency	24GHz~24.25GHz
Operating Voltage	DC 3.3V
Power Supply Capacity	>200mA
Average Operating Current	79 mA
Modulation	FMCW
Target Application	Human presence sensor
Detection Distance	0.75m ~ 6m (adjustable)
Detection Angle	±60°
Distance Resolution	0.75m
Sweep Bandwidth	250MHz
Ambient Temperature	-40°C ~ 85°C

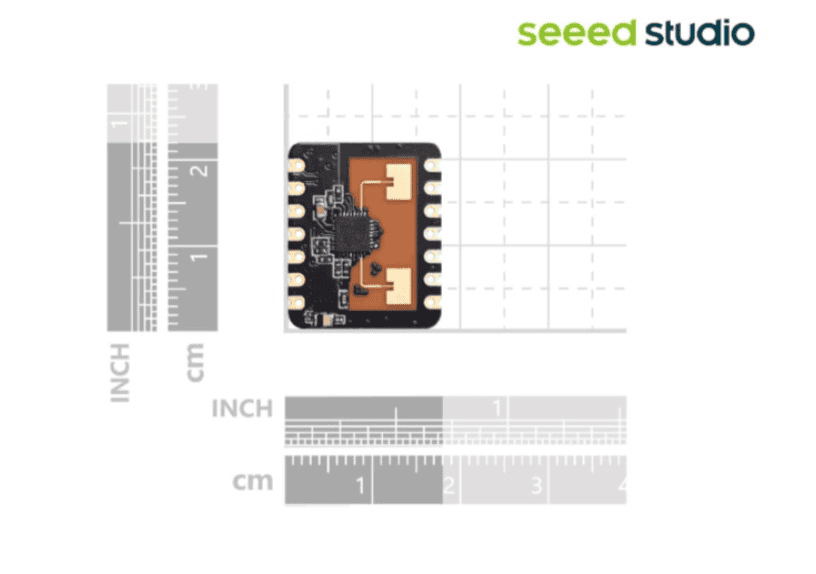

Dimensions	18mm x 22mm
