RP2350 1.64inch AMOLED Development Board
Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip
Product Features
RP2350-Touch-AMOLED-1.64-M is a high-performance, highly integrated MCU board designed by Waveshare. It features a compact size with an onboard 1.64inch AMOLED capacitive touch display, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, TF card slot and so on, making it easy to develop and integrate into products quickly.
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- 520KB of SRAM, and 16MB onboard Flash memory
- Type-C connector for easier use
- Onboard 1.64inch AMOLED capacitive touch display, QSPI interface, 280 × 456 resolution, 16.7M color
- Integrated CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively
- Lithium battery recharge/discharge header, suitable for mobile applications
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Adapting 17 × GPIO pins for flexible configuration of pin function
- 2 × I2C, 2 × UART, 3 × 12-bit ADC, 13 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
AMOLED display parameters
Display Panel |
AMOLED |
Display Size |
1.64 inch |
Resolution |
280 × 456 |
Display Colors |
16.7M |
Brightness |
350 cd/㎡ |
Contrast Ratio |
60000:1 |
Communication Interface |
QSPI |
Driver IC |
C05300 |
Touch |
Supported |
Touch IC |
FT3168 |
Application Scenarios
Adopts AMOLED screen
The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid images
178° wide viewing angle
Excellent Display Performance, 16.7M color, wide viewing angle
Dual-core, dual-architecture
The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
Supports C/C++, MicroPython, Arduino IDE
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
What's On Board

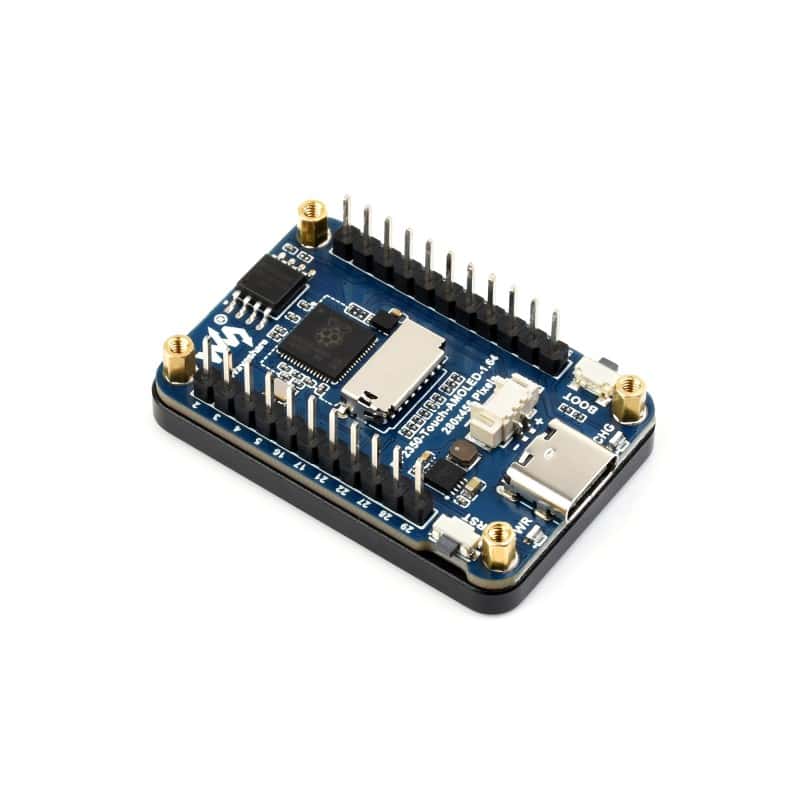

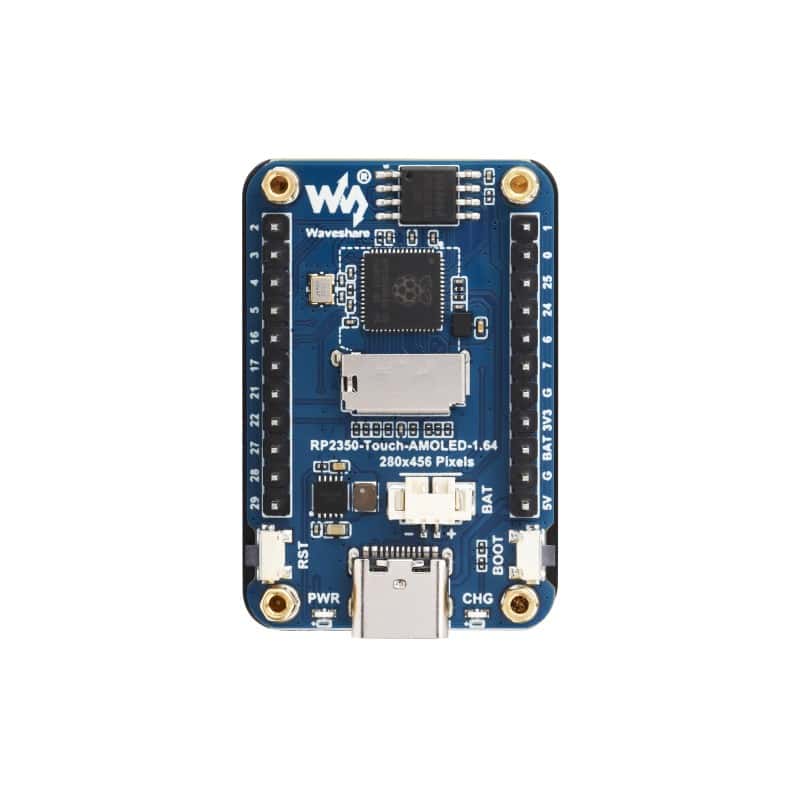

- RST button
- Brass standoff × 4 (M2 × 4 + 3)
- W25Q128JVSIQ
16MB NOR-Flash
- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
- TF card slot
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
- MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
- BOOT button
- Charge indicator
- Type-C connector
for programming, USB 1.1 with device and host support
- Power indicator
Interface definition
adapting multiple GPIO interfaces, more convenient for development, offers strong flexibility
Outline dimensions
Package content:
Weight: 0.009 kg
RP2350-Touch-AMOLED-1.64-M x1
