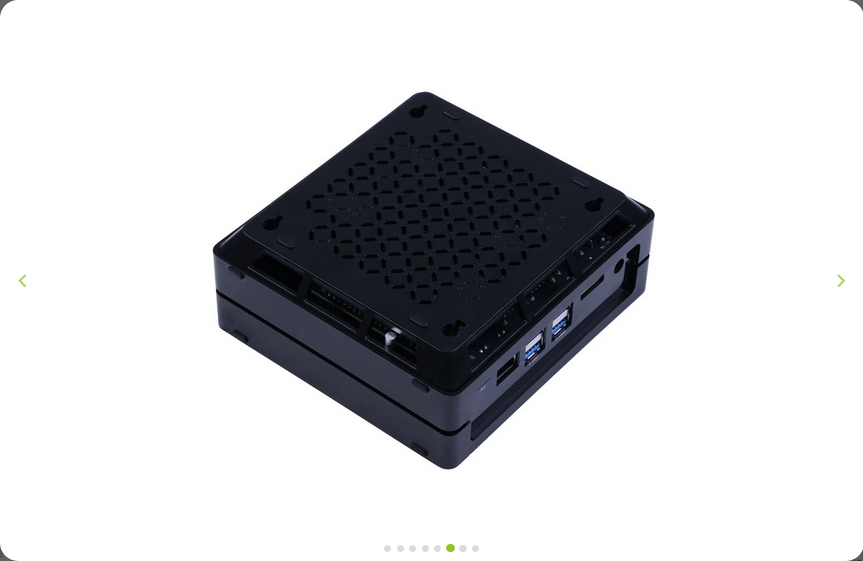

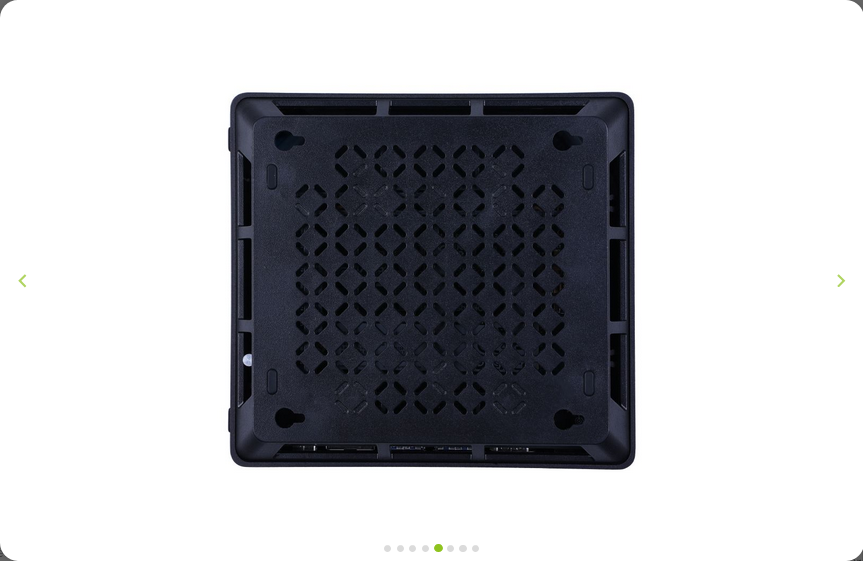

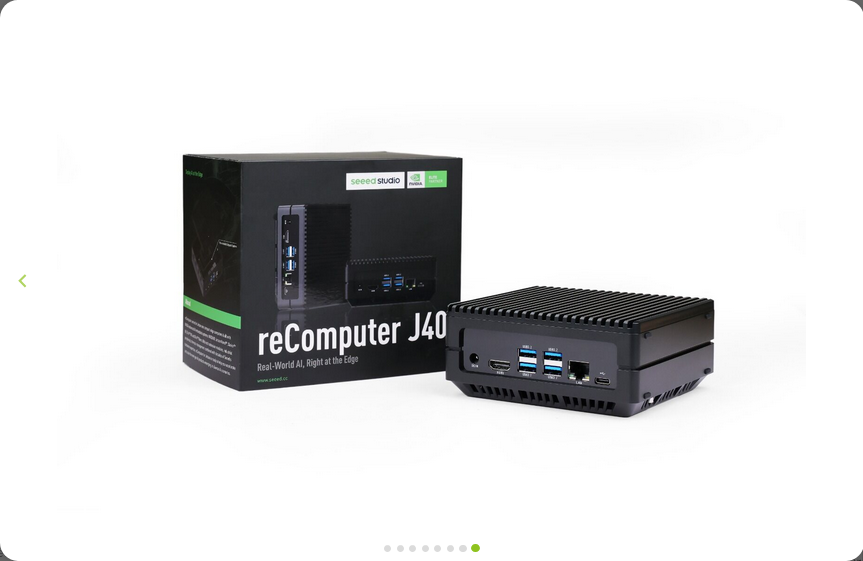

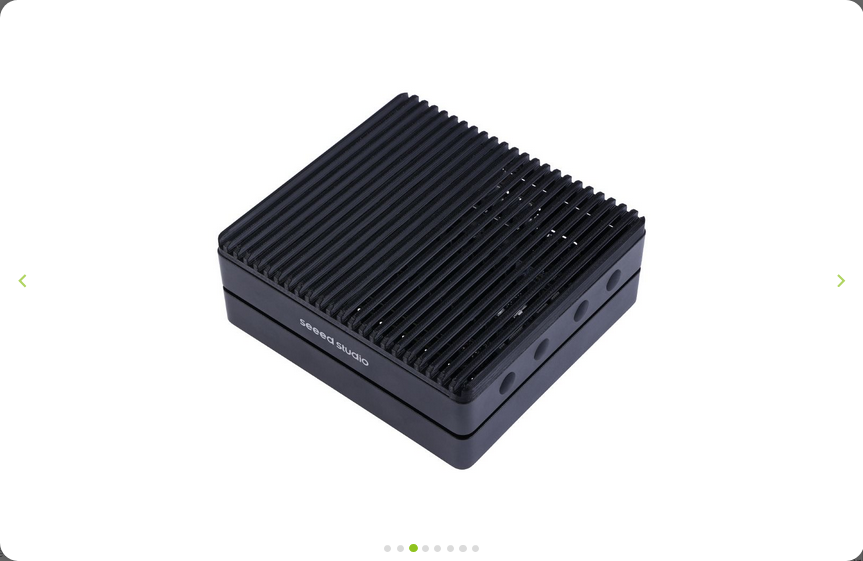

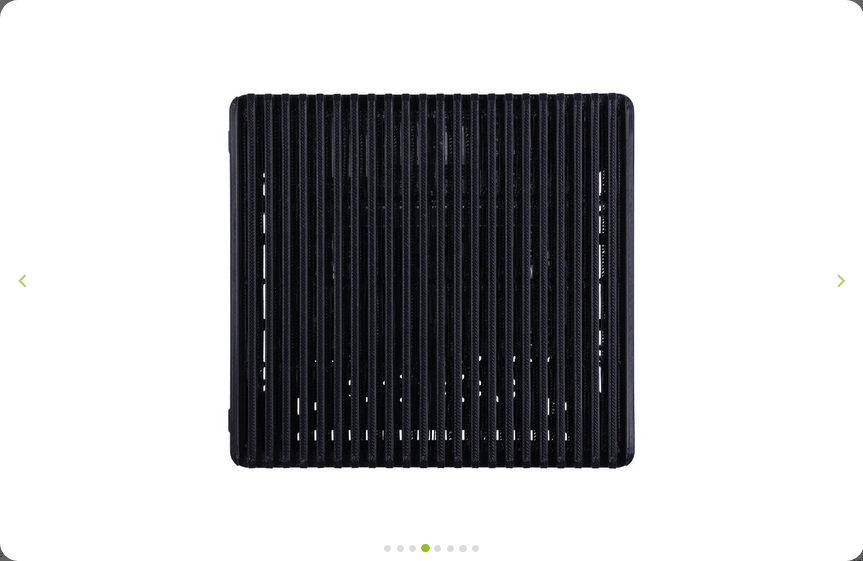

reComputer J4012 - Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 16GB

reComputer J4012 - Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 16GB

Šifra: se110110145

144.000,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Težina po komadu: 0.794 Kg

reComputer J4012 - Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 16GB

[embed]https://youtu.be/-KAyUHzRxHc[/embed]

Feature

Note

If you need an alternative, we recommend the reComputer Mini J4012, a compact AI computer powered by NVIDIA® Jetson Orin™ NX 16GB, offering up to 100 TOPS AI performance and currently in stock.

If you are looking for the version without power adapter, please check out reComputer J4012 without power adapter

For optimal performance with reComputer, we recommend using 128GB / 256GB / 512GB / 1TB SSDs from Seeed. Since some SSDs on the market may only be compatible with specific JetPack versions which may cause the device to fail to function properly, and this issue is also present with official NVIDIA dev kits.

Specification

Jetson Orin NX System on Module
AI Performance	reComputer J4012 - Orin NX 16GB, 100 TOPS	reComputer J4011- Orin NX 8GB – 70 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB)	6-core Arm® Cortex®-A78AE (Orin NX 8GB)
Memory	16GB 128-bit LPDDR5 (Orin NX 16GB)	8GB 128-bit LPDDR5 (Orin NX 8GB)
Video Encode	1x 4K60 (H.265) \| 3x 4K30 (H.265) \| 6x 1080p60 (H.265) \| 12x 1080p30 (H.265)
Video Decode	1x 8K30 (H.265) \| 2x 4K60 (H.265) \| 4x 4K30 (H.265) \| 9x 1080p60 (H.265) \| 18x 1080p30 (H.265)
DL Accelerator	2x NVDLA v2	1x NVDLA v2
Carrier Board
Storage		1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included)
Networking	Ethernet	1x RJ-45 Gigabit Ethernet (10/100/1000M)
Networking	M.2 KEY E	1x M.2 Key E for WiFi/Bluetooth module（module not included）
I/O	USB	4x USB 3.2 Type-A (10Gbps) 1x USB2.0 Type-C (Device Mode)
	Camera	2x CSI (2-lane 15pin)
	Display	1x HDMI 2.1
	Fan	1x 4 pin Fan Connector (5V PWM)
	CAN	1x CAN
	Multifunctional Port	1x 40-Pin Expansion header 1x 12-Pin Control and UART header
	RTC	1x RTC 2-pin, supports CR1220 (not included)
Power		9-19V DC

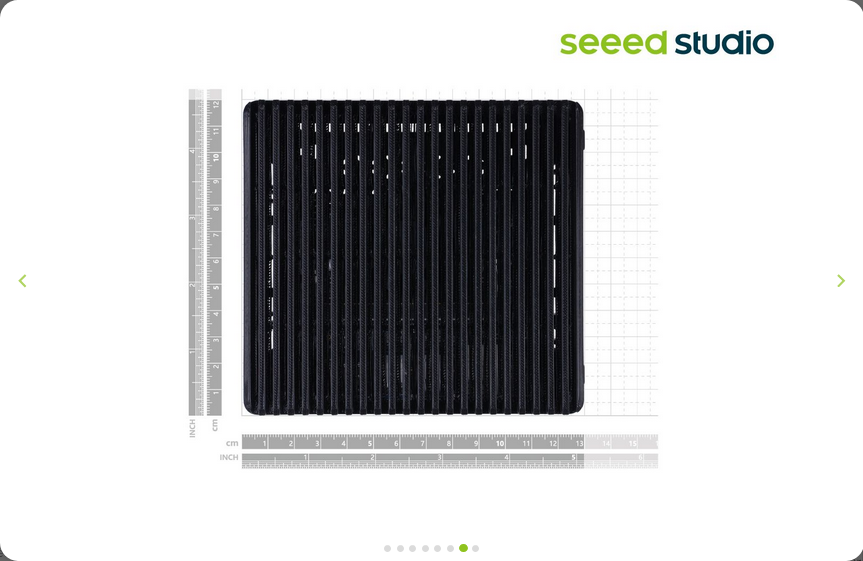

Mechanical	Dimensions (W x D x H)	130mm x 120mm x 58.5mm (with case)
Mechanical	Installation	Desk, wall-mounting
Operating Temperature		-10℃~60℃
Warranty		1 Year

Hardware Overview

reComputer J401 carrier board, included in the full system - reComputer J4012

Desktop, wall Mount, expandable, or fit in anywhere

Application

Application Fields:

AI Video Analytics

Machine Vision

Autonomous Mobile Robot (AMR)

Generative AI

Capable of Bringing Generative AI to the Edge

Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.

Build Multi-streams AI Video Analytics

For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) reComputer J4012 can take 18x1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deepstream of single model and multi model on multi streams.

Fastest Way to Deploy Generative AI and Computer Vision Models

We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others. We have configured all environment for you to provides single command deployment of projects.

Documents

Datasheet
Schematic
3D File
Seeed Nvidia Jetson Product Catalog
Nvidia Jetson Comparison
Nvidia Jetson Product Comparison
Seeed Nvidia Jetson Success Cases
Seeed Jetson One Pager

ECCN/HTS
