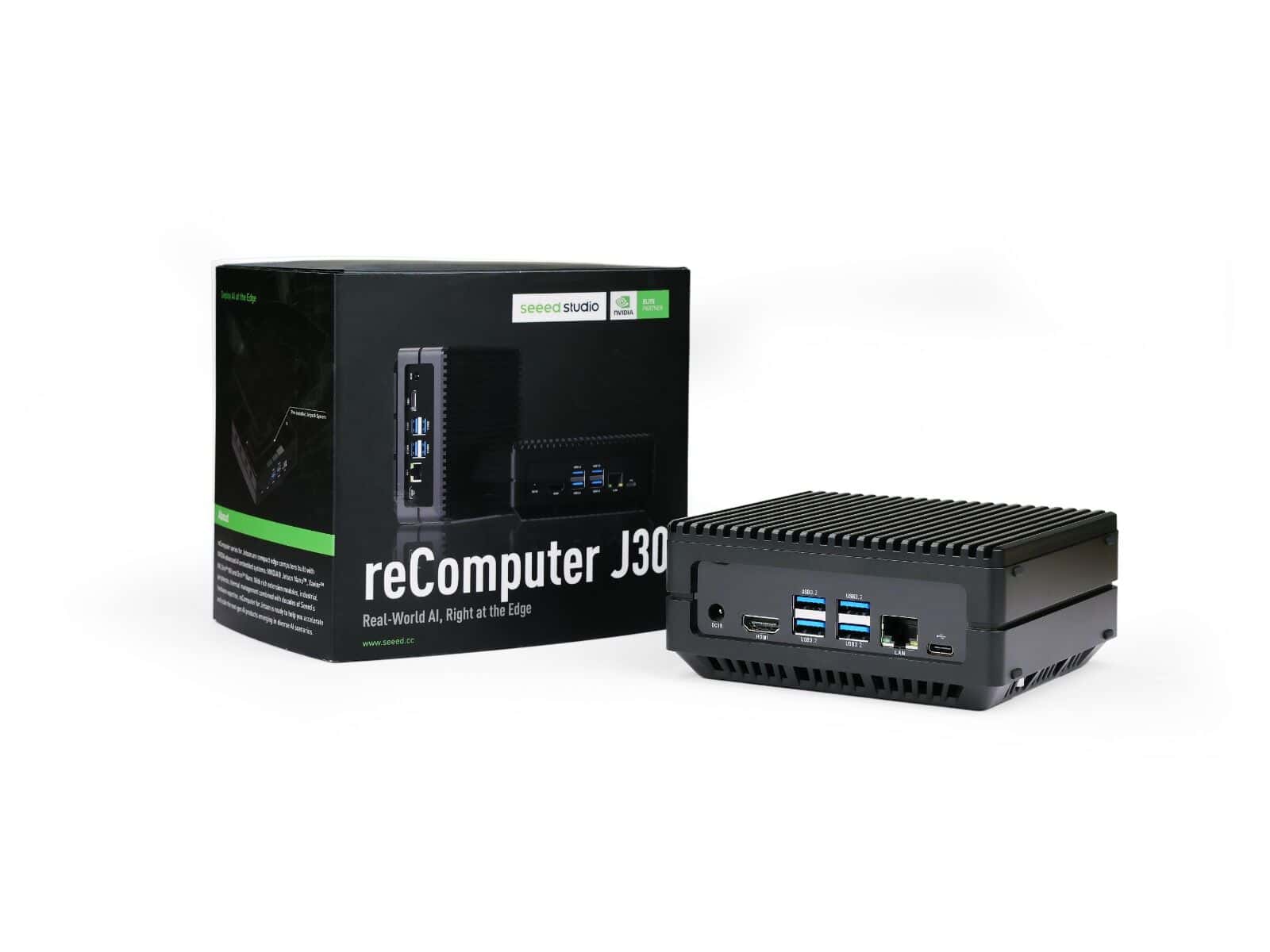

reComputer J3011 - Edge AI Computer with NVIDIA® Jetson™ Orin™ Nano 8GB (Super)

reComputer J3011 - Edge AI Computer with NVIDIA® Jetson™ Orin™ Nano 8GB (Super)

Šifra: se110110147

86.990,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Težina po komadu: 0.835 Kg

reComputer J3011 - Edge AI Computer with NVIDIA® Jetson™ Orin™ Nano 8GB (Super)

https://youtu.be/-mRfkT_ddBU

Feature

Note

The reComputer J3011 is equipped with the same NVIDIA Jetson Orin Nano 8GB production module. You can perform a self - upgrade to Jetpack 6.2. Once upgraded, you'll instantly experience a significant boost in computing power, with the performance leaping from 40 Tops to 67 Tops, offering capabilities comparable to those of the NVIDIA Jetson Orin Nano Super Developer Kit.

For optimal performance with reComputer, we recommend using 128GB / 256GB / 512GB / 1TB SSDs from Seeed. Since some SSDs on the market may only be compatible with specific JetPack versions which may cause the device to fail to function properly, and this issue is also present with official NVIDIA dev kits.

		reComputer J3011 (super with JP6.2)
GPU		NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 1,020MHz
AI PERF		67 TOPS (Sparse) 33 TOPS (Dense)
CPU		6-core Arm Cortex- A78AE v8.264-bit CPU 1.7 GHz
Memory		8GB 128-bit LPDDR5 102GB/s
MODULE POWER		10W\|15W\|25W

Specification

Jetson Orin Nano System on Module
AI Performance	reComputer J3011 - Orin Nano 8GB, up to 67 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores (Orin Nano 8GB)
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory	8GB 128-bit LPDDR5 68 GB/s (Orin Nano 8GB)
Video Encoder	1080p30 supported by 1-2 CPU cores
Video Decoder	1x 4K60 (H.265) \| 2x 4K30 (H.265) \| 5x 1080p60 (H.265) \| 11x 1080p30 (H.265)
Carrier Board
Storage		1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included)
Networking	Ethernet	1x RJ-45 Gigabit Ethernet (10/100/1000M)
	M.2 KEY E	1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module)
I/O	USB	4x USB 3.2 Type-A (10Gbps), 1x USB2.0 Type-C (Device Mode)
	Camera	2x CSI (2-lane 15pin)
	Display	1x HDMI 2.1
	Fan	1x 4 pin Fan Connector (5V PWM)
	CAN	1x CAN
	Multifunctional Port	1x 40-Pin Expansion header 1x 12-Pin Control and UART header
	RTC	1x RTC 2-pin, supports CR1220 but not included
Power		9-19V DC

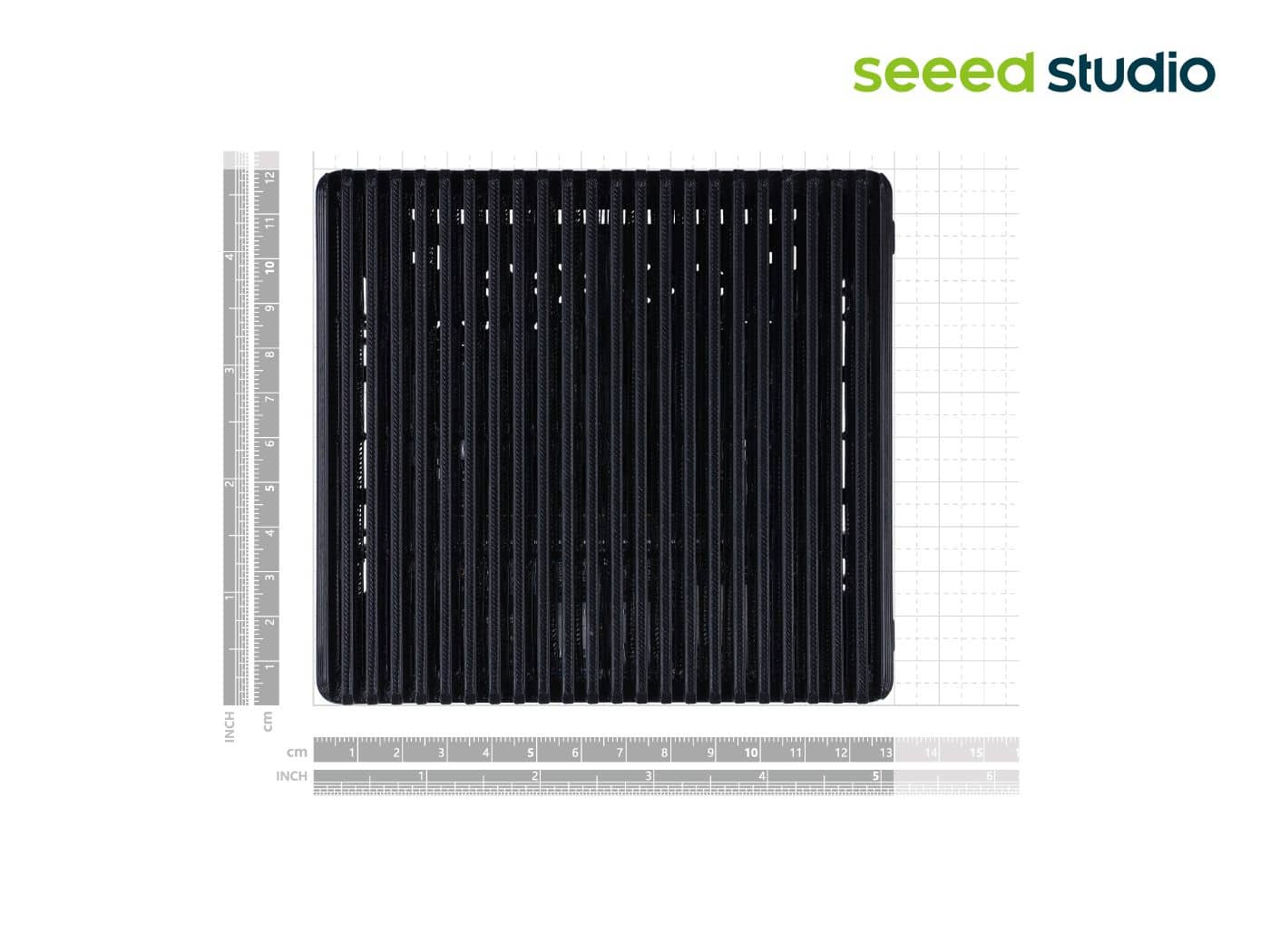

Mechanical	Dimensions (W x D x H)	130mm x 120mm x 58.5mm (with case)
	Installation	Desk, wall-mounting
Operating Temperature			-10℃~60℃
Warranty			1 Year

Hardware Overview

reComputer J401 carrier board, included in the full system - reComputer J3011

● Desktop, Wall Mount, Expandable, or Fit in Anywhere

Application

Application Fields:

AI Video Analytics

Machine Vision

Autonomous Mobile Robot (AMR)

Generative AI

● Capable of Bringing Generatie AI to the Edge

Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.

● Build Multi-streams AI Video Analytics

For building video analytics, Jetson Orin Nano incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) reComputer J3011 can take 13x1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deepstream of single model and multi model on multi streams.

● Fastest Way to Deploy Generative AI and Computer Vision Models

We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others. We have configured all environment for you to provides single command deployment of projects.

Documents

Datasheet
Schematic
3D File
Seeed Nvidia Jetson Product Catalog
Nvidia Jetson Comparison
Nvidia Jetson Product Comparison
Seeed Nvidia Jetson Success Cases
Seeed Jetson One Pager

Part List
