SKU: 20232
Part Number: Pico-Environment-Sensor
Brand: Waveshare
Korisne informacije:

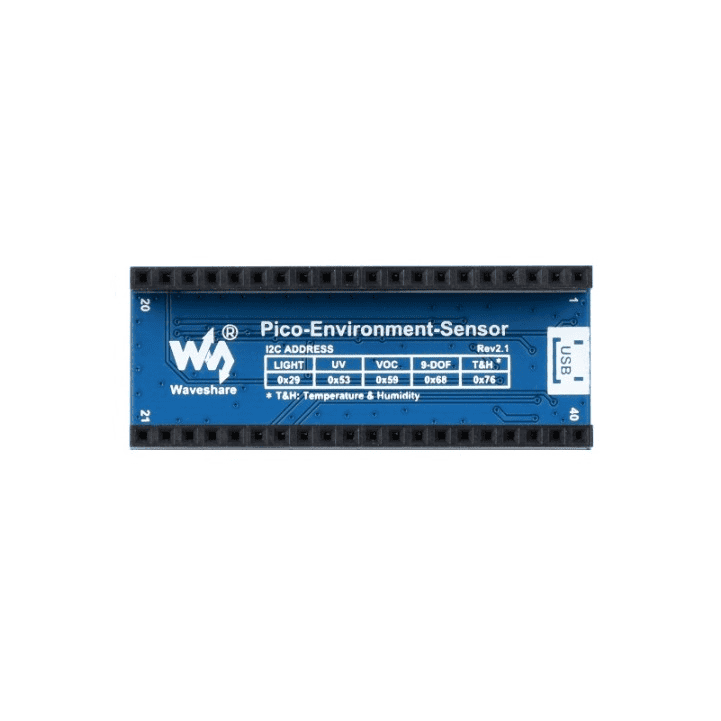

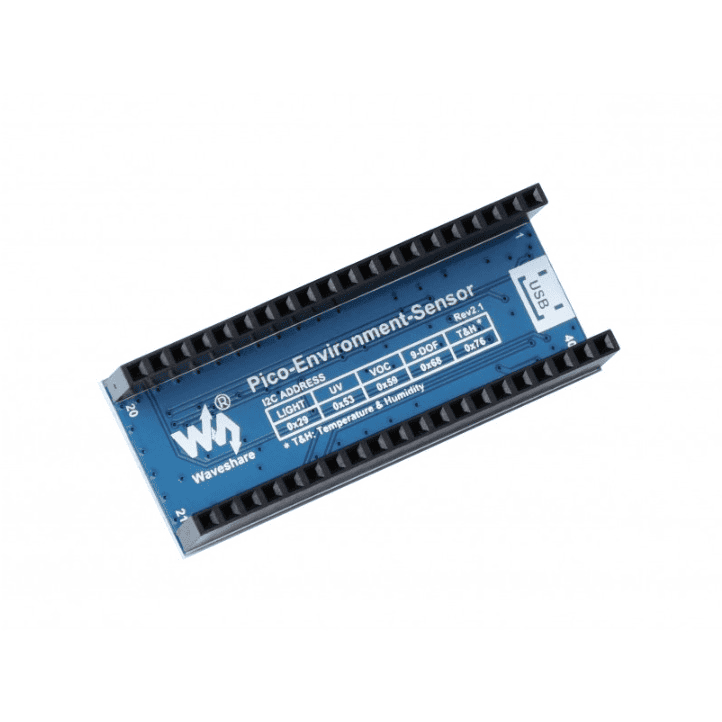

Pico-Environment-Sensor Environment Sensors Module For Raspberry Pi Pico, I2C Bus
Environment Sensors Module For Pico
Features At A Glance
The
Pico-Environment-Sensor gives Raspberry Pi Pico the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
- Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
- Onboard MPU9250 motion sensor, accelerometer, gyroscope, and magnetometer
- Onboard LTR390-UV-1 sensor, for measuring UV rays
- Onboard SGP40 sensor, for detecting ambient VOC
- I2C bus, allows retrieving data by just using two wires
- Comes with development resources and manual (MicroPython example)
Specifications
TSL25911FN DIGITAL AMBIENT LIGHT SENSOR |
I2C address |
0x29 |
Effective range |
0~88000Lux |
BME280 TEMPERATURE, HUMIDITY, AND AIR PRESSURE SENSOR |
I2C address |
0x76 |
Temperature detection |
-40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy) |
Humidity detection |
0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay) |
Air pressure detection |
300~1100hPa (0.18Pa resolution, ±1hPa accuracy) |
MPU9250 MOTION SENSOR
(9-DOF: 3-AXIS ACCELEROMETER, 3-AXIS GYROSCROPE, 3-AXIS MAGNETOMETER) |
I2C address |
0x68 |
Accelerometer resolution |
16-bit |
Accelerometer range (configurable) |
±2, ±4, ±8, ±16g |
Gyroscope resolution |
16-bit |
Gyroscope range (configurable) |
±250, ±500, ±1000, ±2000°/sec |
Magnetometer resolution |
14-bit |
Magnetometer range |
±4800µT |
LTR390-UV-1 UV SENSOR |
I2C address |
0x53 |
Response wavelength |
300nm ~ 350nm |
SGP40 VOC SENSOR |
I2C address |
0x59 |
Measuring range |
0 ~ 1,000 ppm ethanol equivalent |
Limit condition |
< 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail) |
Response time |
< 10 s (tau 63 %) |
Start time |
< 60 s |
On-chip humidity compensation support |

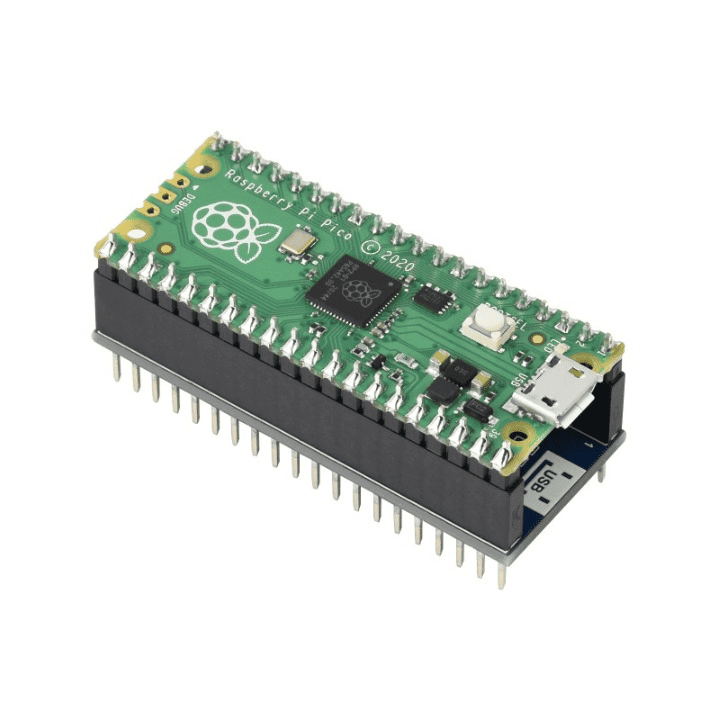

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

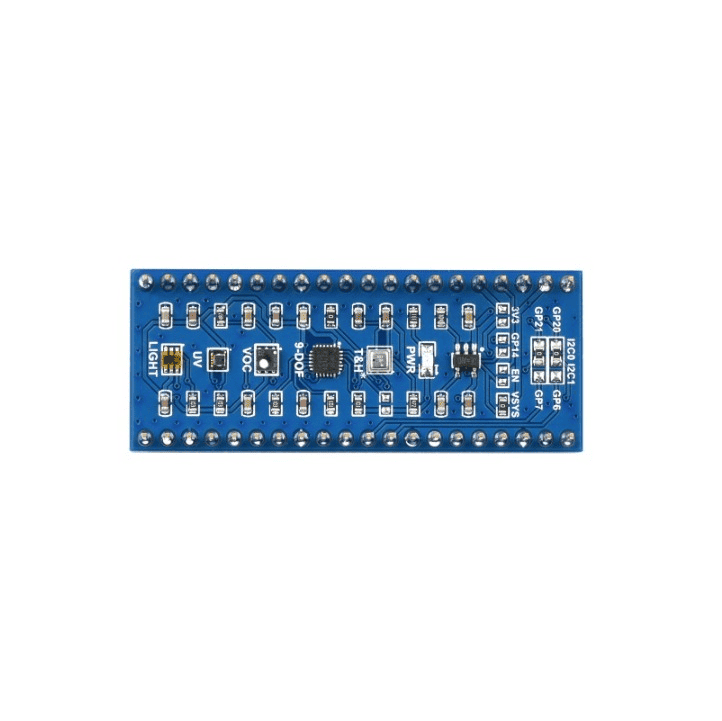

Raspberry Pi Pico is NOT included. What's On Board
- TSL25911FN
digital ambient light sensor, for measuring IR and visible light
- LTR390-UV-1
UV sensor
- SGP40
VOC sensor
- MPU9250
3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer
- BME280
temperature, humidity, and air pressure sensor
- Voltage level translator
5V to 3.3V/1.8V
- I2C selection
Pinout Definition
Outline Dimensions
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
- PACKAGE CONTENT
Weight: 0.01 kg
- Pico-Environment-Sensor x1
