PCIe TO MiniPCIe HAT+

Šifra: w31534
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
990,00 RSD
Cena sa PDV
u korpu
  • Težina po komadu: 0.057 Kg
SKU: 31534
Part No.: PCIe TO MiniPCIe HAT+
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/PCIe_TO_MiniPCIe_HAT+
PCIe TO MiniPCIe Adapter For Raspberry Pi 5, Compatible With MiniPCIe Wireless NIC, Supports USB Bluetooth Connection, Driver-Free, Plug And Play, High-Speed Network Connection For Raspberry Pi 5

PCIe TO MiniPCIe HAT+


Designed for Raspberry Pi 5, driver-free, plug and play


Compatible with various MiniPCIe network cards and AI modules

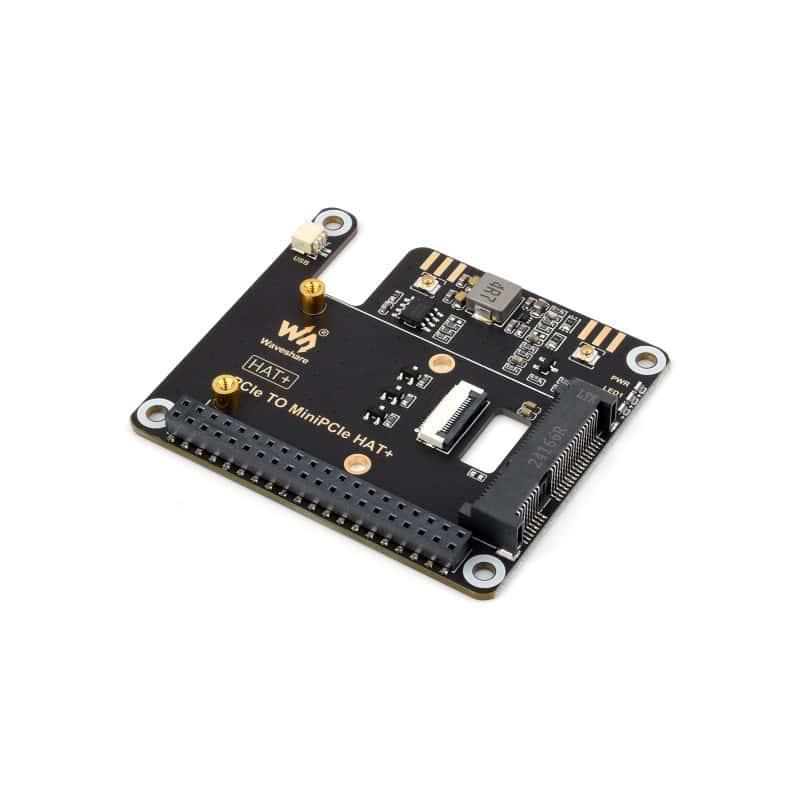

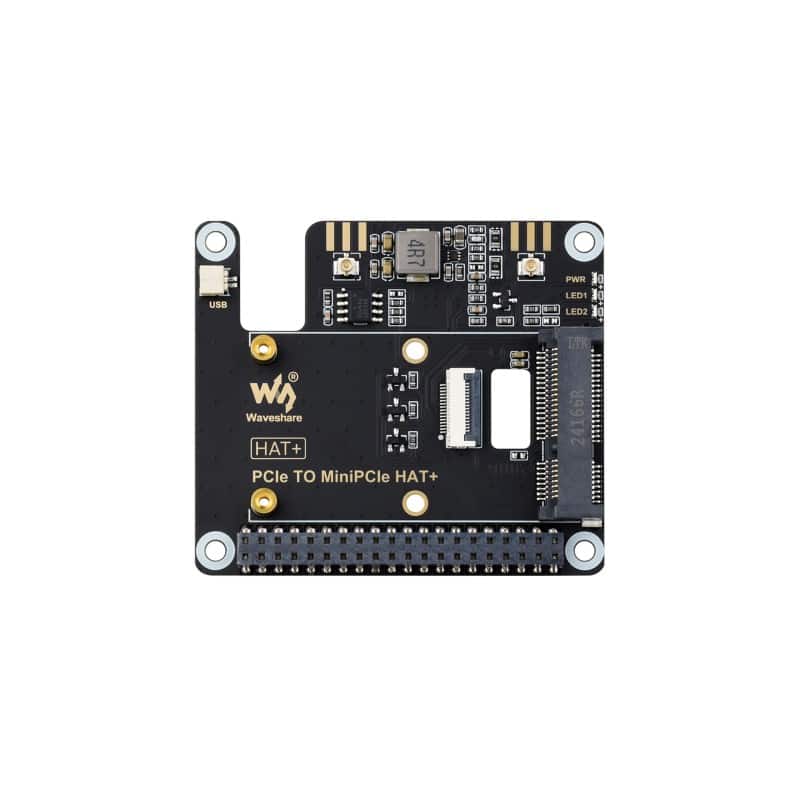

PCIe TO MiniPCIe HAT+, front view and features

Connecting to Pi 5 via 16PIN Cable


Based on 16PIN PCIe Interface of Raspberry Pi 5

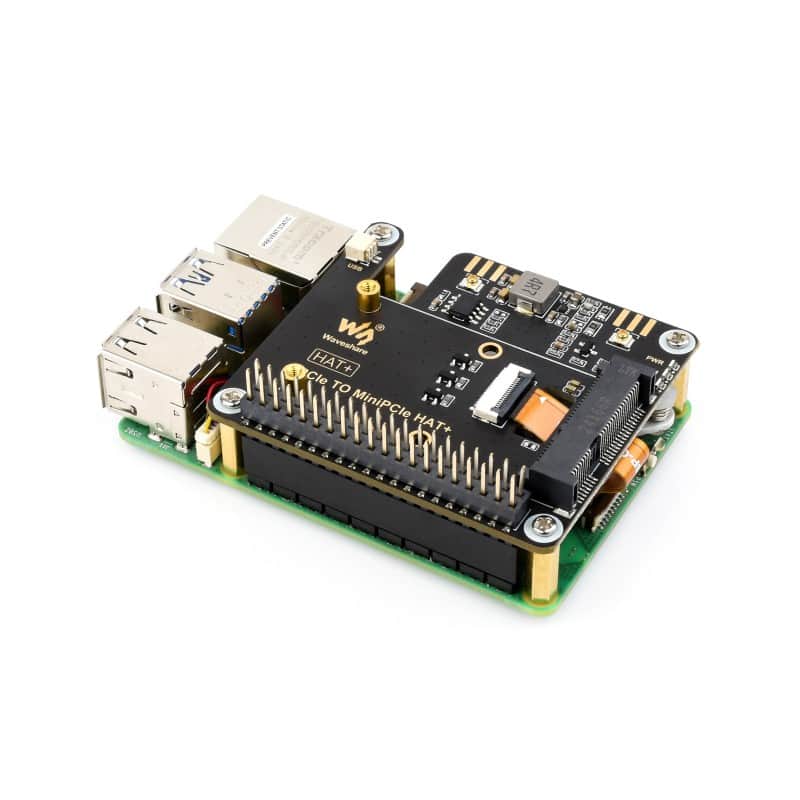

PCIe TO MiniPCIe HAT+, connecting to PI 5 via 16PIN cable

* for reference only, the Raspberry Pi 5 is not included.



Compatible with wireless NIC


Compatible with PCIe protocol network cards and AI modules with MiniPCIe interface


PCIe TO MiniPCIe HAT+, compatible with MiniPCIe wireless NIC

Supports USB Bluetooth connection


Supports inputting Bluetooth signal into the Raspberry Pi via USB interface


(* this function is only available after connecting the Wireless NIC module)


PCIe TO MiniPCIe HAT+, supports USB Bluetooth connection

* the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list.



How to Install


Attach the thermal tapes first, then install the Official Active Cooler and fix the HAT


PCIe TO MiniPCIe HAT+, How to Install

* the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list.



PCIe TO MiniPCIe HAT+, Hat+ standard

Outline dimensions


PCIe TO MiniPCIe HAT+, outline dimensions

Package content:


Weight: 0.035 kg


  1. PCIe TO MiniPCIe HAT+ × 1

  2. 16PIN FFC cable × 1

  3. 2*20 PIN header × 1

  4. Screws pack × 1

  5. MINIPCIe mounting bracket × 1

  6. USB Type-A to SH1.0 2PIN cable × 1


PCIe TO M.2 USB HAT+ Package Content
