SKU: 9523
Part Number: Infrared Reflective Sensor
UPC: 799632836612
Korisne informacije:

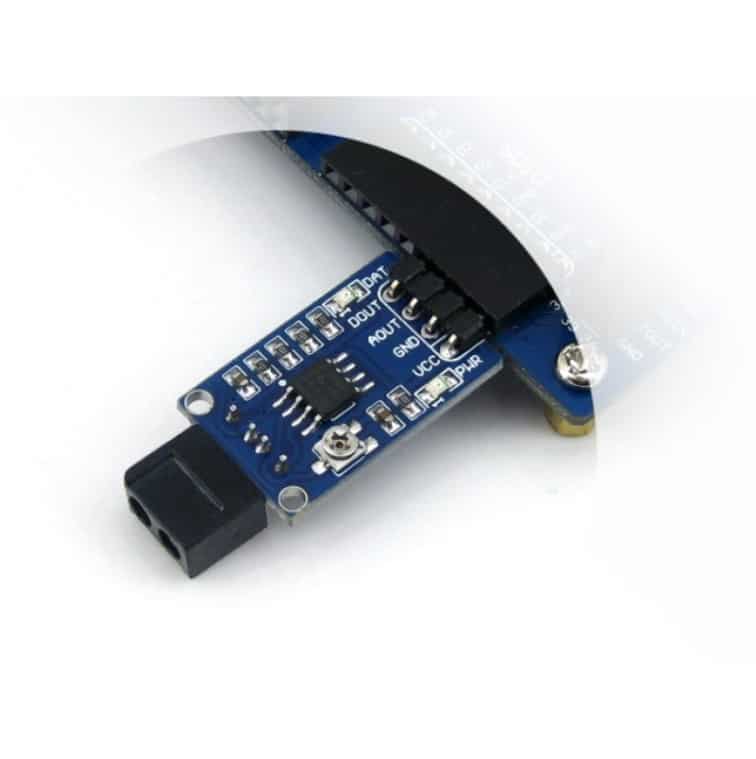

www.waveshare.com/wiki/Infrared_Reflective_Sensor Infrared Reflective Sensor Overview
- Reflective infrared Transceiver
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
Specifications
- Power: 3.0V ~ 5.3V
- Dimension: 25mm * 15.9mm
- Mounting holes size: 2.0mm
Applications
- Robot path tracking
- Obstacle-avoiding car
- Pipeline counter
How to Use
In the case of working with a MCU:
- VCC ↔ 3.0V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Photos
- PACKAGE CONTENT
Weight: 0.005 kg
- Infrared Reflective Sensor x1
- 4-pin custom connector jumper wire x1
