Konektori, žice, protobord SKU: 26536
Part Number: HMMD-mmWave-Sensor
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/HMMD_mmWave_Sensor

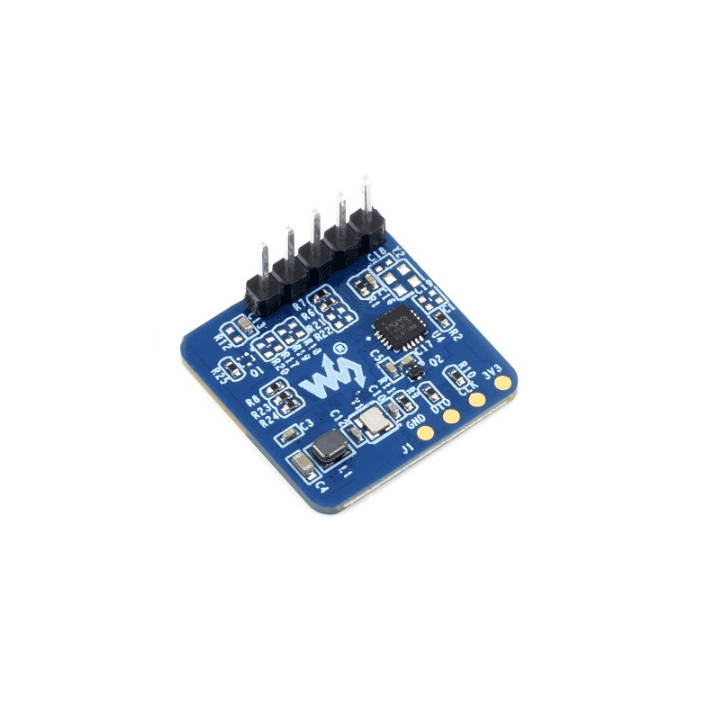

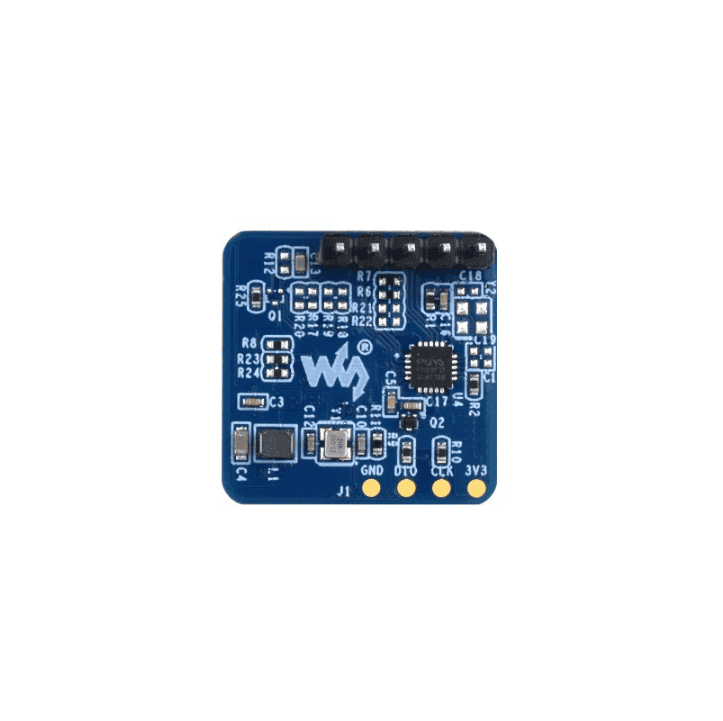

Human Micro-Motion Detection mmWave Sensor, 24GHz mmWave Radar, Based On S3KM1110, Adopts Frequency Modulated Continuous Wave (FMCW) Technology, Compact Size and Easy Integration
Features At A Glance
The
HMMD-mmWave-Sensor is a human micro-motion sensor, adopts Frequency Modulated Continuous Wave (FMCW) technology to detect and identify moving, standing, and motionless human body. Combining radar signal processing with accurate human detection and ranging algorithms, supports configuring the sensibility for each range independently to improve anti-interference performance. Compact size, low power consumption, and easy integration, it can be widely used in AIoT scenarios such as Smart Home, Intelligent Security, Smart Business, and Intelligent Lights, etc.

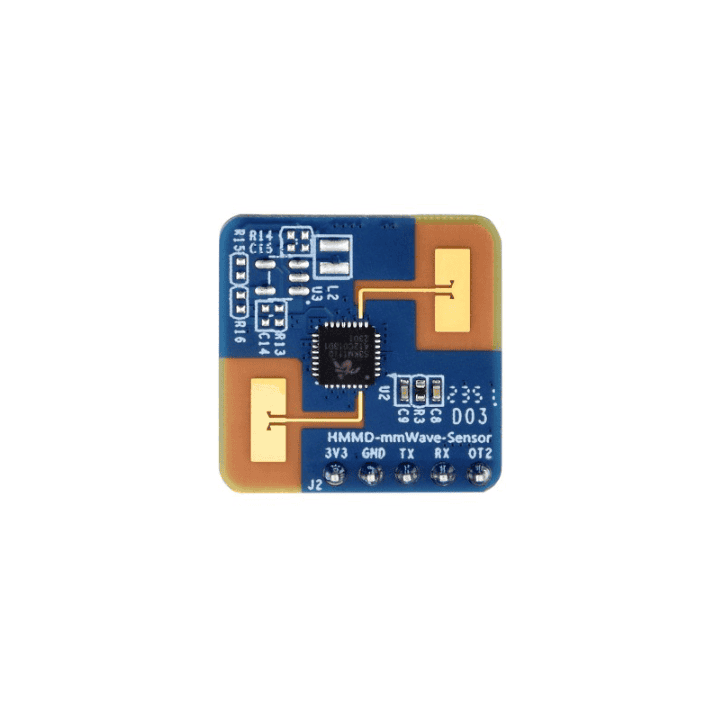

- Based on AIoT mmWave Sensor SoC S3KM1110, onboard high performance 24GHz 1T1R antennas
- Onboard MCU and built-in human micro-motion sensing algorithm for accurate detecting of moving, micro-motion, and standing human
- Provides UART communication protocol, supports configuring sensing distance range, sensitivity, and absence report delay, easy to operate
- Supports UART port and GPIO header output, for connecting to host boards such as Raspberry Pi and Arduino
- Wide-range moving human body sensing distance, supports top-mounted and wall-mounted detection
- Comes with online resources and manual (examples for Raspberry Pi/RP2040/Arduino/ESP32/Jetson Nano)
Specifications
HARDWARE |
Frequency band |
24~24.25GHz |
Bandwidth |
0.25GHz |
Modulation |
FMCW |
Power supply |
3.3V |
Output interface |
UART & GPIO |
UART baudrate |
115200bps (default) |
Environment temperature |
-40~85℃ |
Dimension |
20×20mm |
SYSTEM PERFORMANCE |
Detection range (wall-mounted) |
Moving human target: 10m; Micro-motion human target: 6m |
Detection range (top-mounted) |
Moving human target: 5m; Micro-motion human target: 4m |
Detection distance resolution |
0.7m |
Detection angle |
±60° |
Detection accuracy |
0.15m (moving target within 10m radial distance from the radar) |
Average operation current |
50mA |
Data refresh cycle |
100ms |
Pinout Definition
Compatible With Multiple Platforms
Provides Demo And User Manual For Raspberry Pi / Raspberry Pi Pico / Jetson Nano / ESP32 / Arduino, Easier To Develop And Integrate, And Better Expansibility
Visual Host Support
It Is Recommended To Used With USB To UART Module, Easily Connect To Host Software For Configuration And Debugging
Direction & Detection Range
Installation & Detection Range
Top-Mounted - Detection Rang Diagram
Wall-Mounted - Detection Range Diagram
Application Scenarios
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.002 kg
- HMMD-mmWave-Sensor x1
