Hall Sensor
Hall Sensor
Hall Sensor
Hall Sensor

Hall Sensor

Šifra: w9522
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
390,00 RSD
Cena sa PDV
u korpu
  • Kategorija: senzor
  • Težina po komadu: 0.006 Kg
SKU: 9522
Part Number: Hall Sensor
UPC: 799632836605

Korisne informacije: www.waveshare.com/wiki/Hall_Sensor

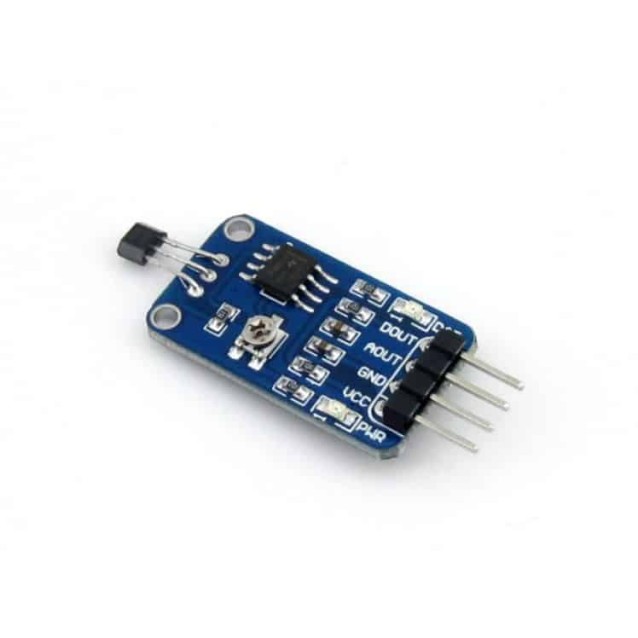

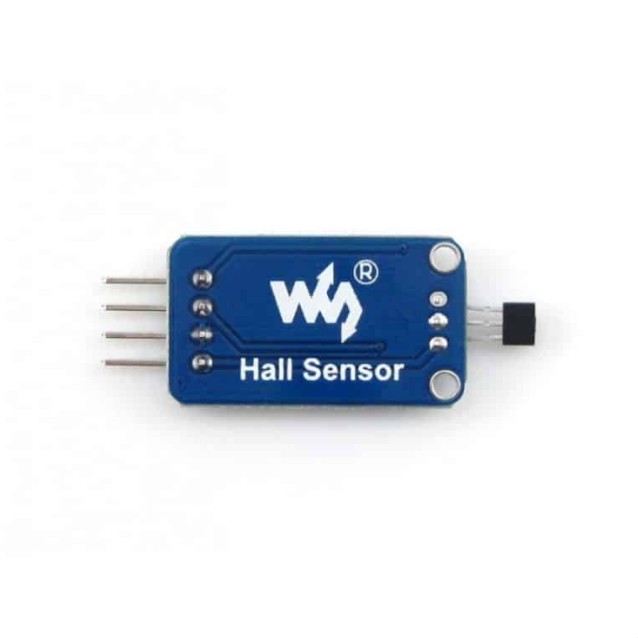

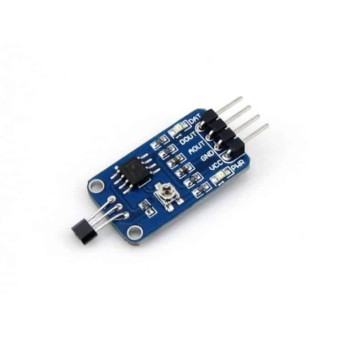

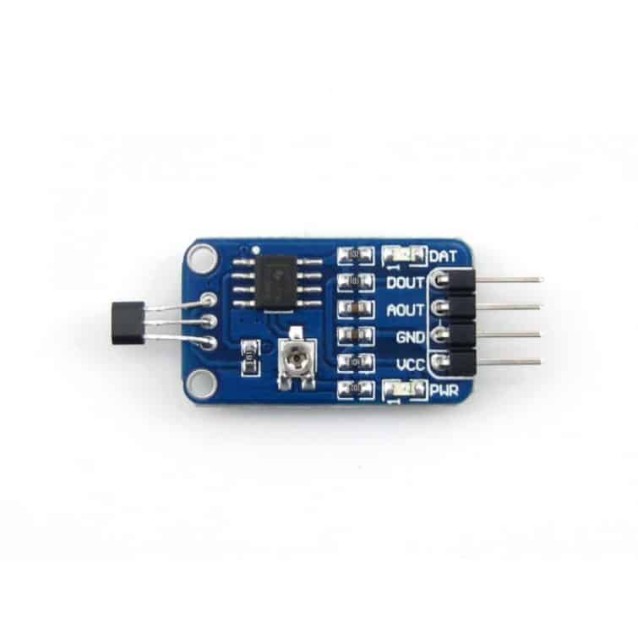

Hall Sensor

Overview



  • 49E hall sensor

  • Features wide range voltage comparator LM393

  • Adjustable sensitivity

  • Signal output indicator


Specifications



  • Power: 2.3V ~ 5.3V

  • Dimension: 27.0mm * 15.5mm

  • Mounting holes size: 2.0mm


Applications



  • Motor speed measurement

  • Object position detection

  • Smart car

  • Electronic bricks


How to Use

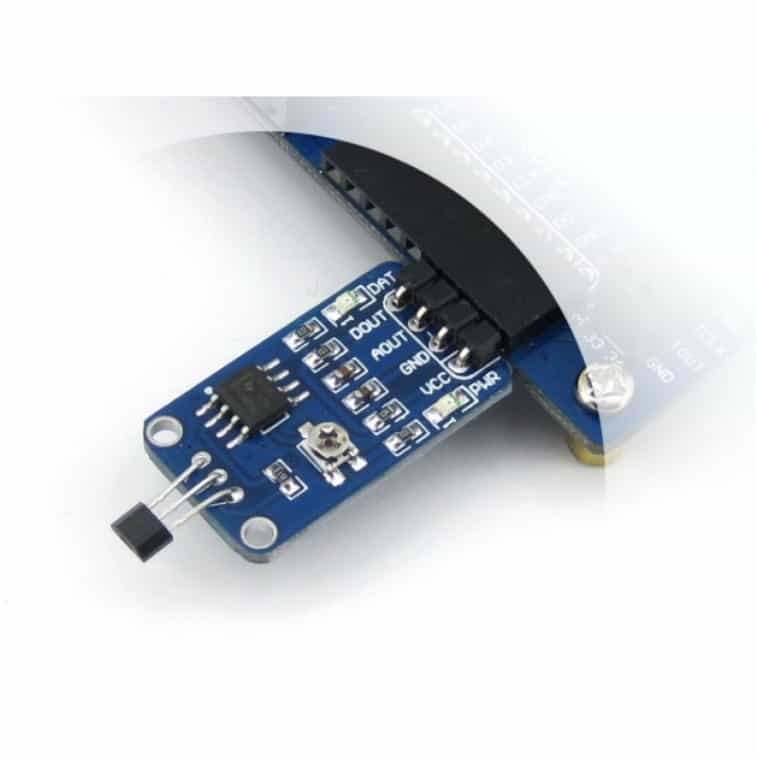

In the case of working with a MCU:

  • VCC ↔ 2.3V ~ 5.3V

  • GND ↔ power supply ground

  • AOUT ↔ MCU.IO (analog output)

  • DOUT ↔ MCU.IO (digital output)


Photos







PACKAGE CONTENT



Weight: 0.005 kg


  1. Hall Sensor x1

  2. 4-pin custom connector jumper wire x1



1
2

Specifikacija nije definisana
