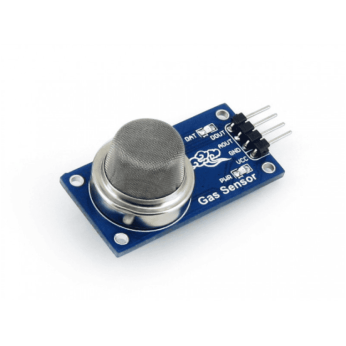

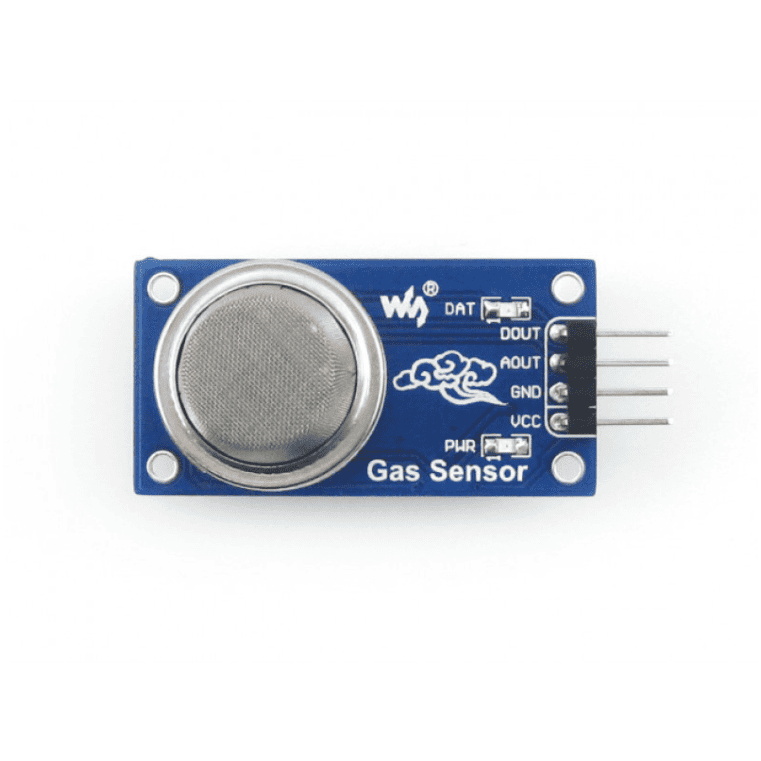

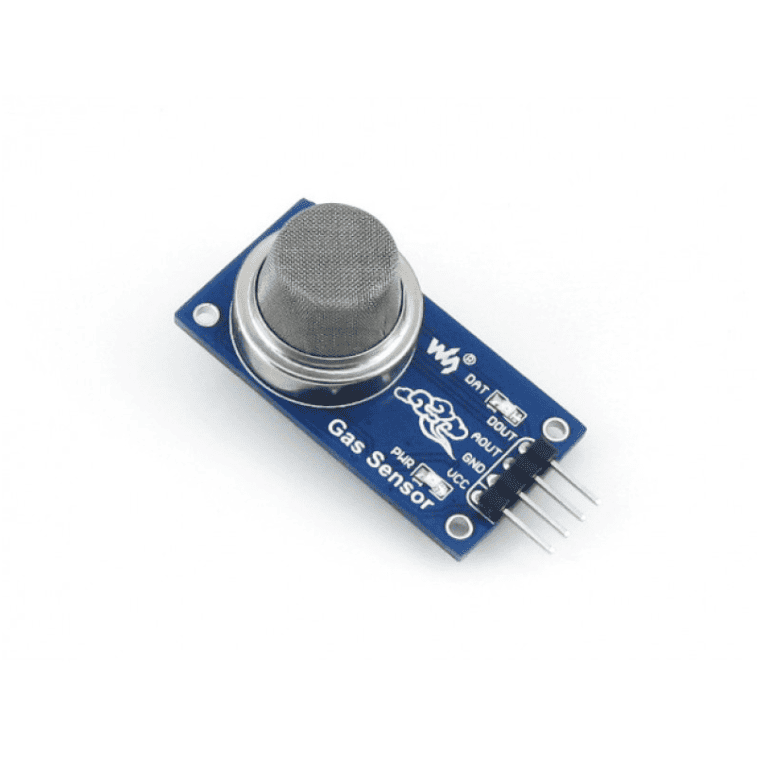

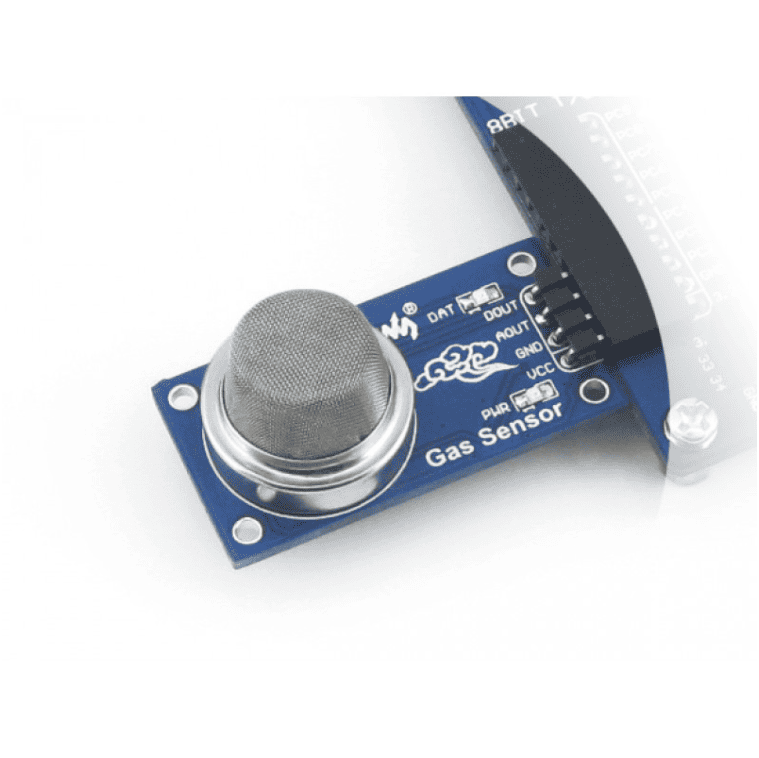

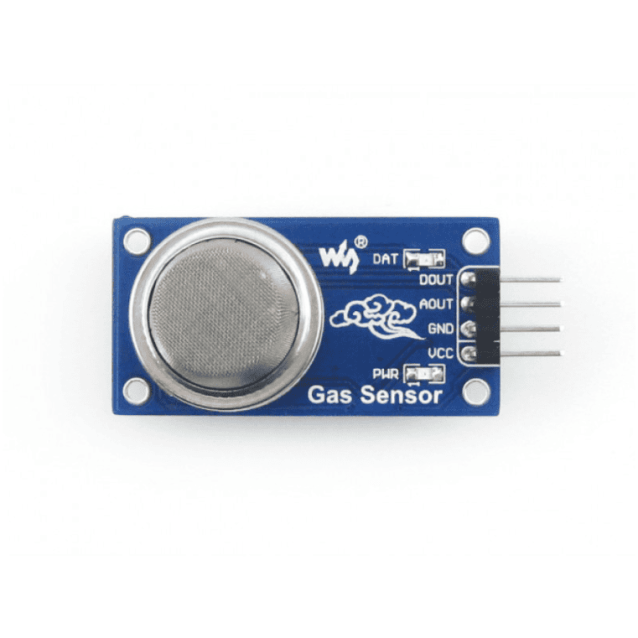

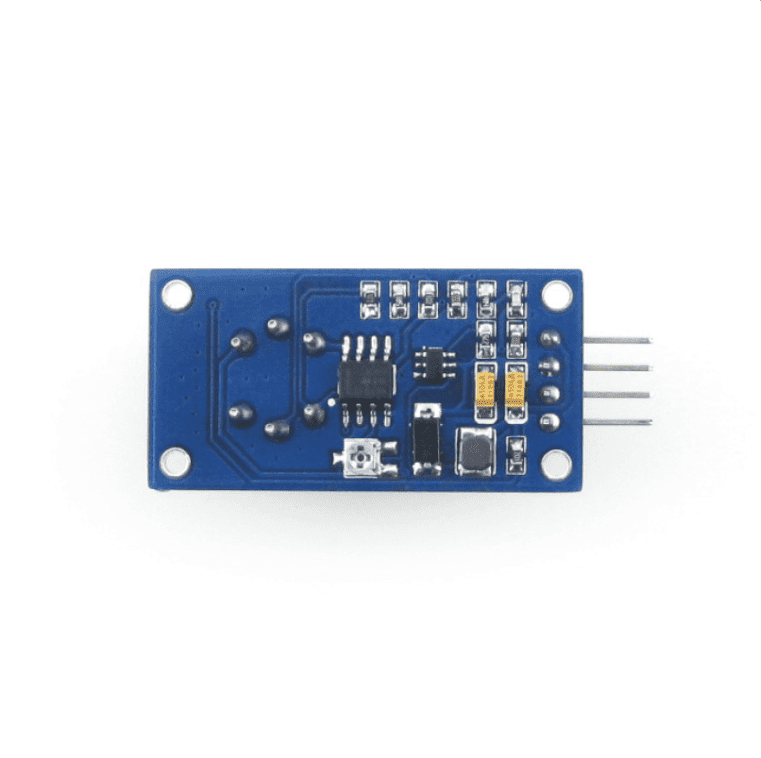

MQ-2 Gas Senzor
MQ-2 Gas Senzor
MQ-2 Gas Senzor
MQ-2 Gas Senzor

MQ-2 Gas Senzor

Šifra: w9529
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
590,00 RSD
Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!
  • Kategorija: senzor
  • Težina po komadu: 0.012 Kg
SKU: 9529
Part Number: MQ-2 Gas Sensor
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/MQ-2_Gas_Sensor
MQ-2 Gas Sensor

Overview



  • Sensitive for LPG, propane, hydrogen

  • Output voltage boosts along with the concentration of the measured gases increases

  • Fast response and recovery

  • Features boost circuit

  • Adjustable sensitivity

  • Signal output indicator


Specifications



  • Power: 2.5V ~ 5.0V

  • Dimension: 40.0mm * 21.0mm

  • Mounting holes size: 2.0mm


Applications



  • Gas leakage detector


How to Use


In the case of working with a MCU:

  • VCC ↔ 2.5V ~ 5.0V

  • GND ↔ power supply ground

  • AOUT ↔ MCU.IO (analog output)

  • DOUT ↔ MCU.IO (digital output)


Photos







PACKAGE CONTENT



Weight: 0.011 kg


  1. MQ-2 Gas Sensor x1

  2. 4-pin custom connector jumper wire x1



1
2
