SKU: 9521
Part Number: Flame Sensor
UPC: 799632836537
Korisne informacije:
www.waveshare.com/wiki/Flame_Sensor Flame Sensor
Overview
- Sensitive to flame spectrum
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
Specifications
- Spectrum range: 760nm ~ 1100nm
- Detection angle: 0 - 60 degree
- Power: 3.3V ~ 5.3V
- Operating temperature: -25℃ ~ 85℃
- Dimension: 27.3mm * 15.4mm
- Mounting holes size: 2.0mm
Applications
- Fire detection
- Fire fighting robot
- Fire alarm
How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Note: the Flame Sensor is used for detecting fire without any fire-protection for itself, please keep distance from the fire to avoid damage.

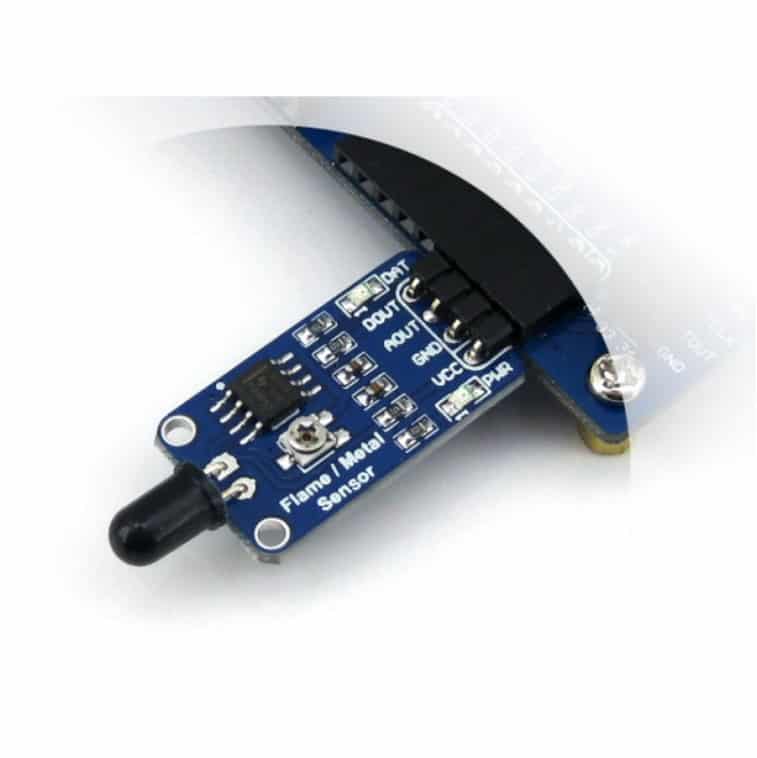

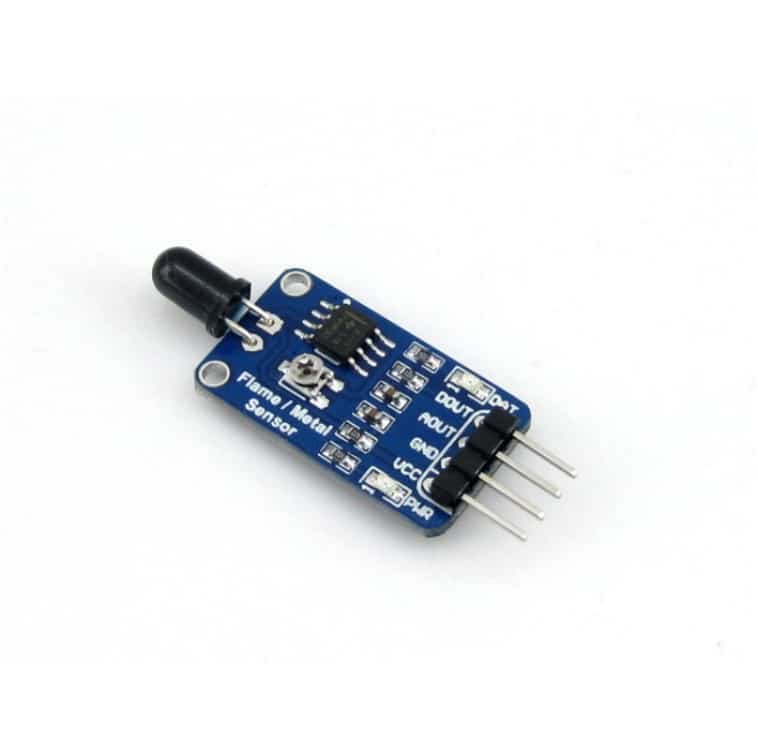

Photos
- PACKAGE CONTENT
Weight: 0.005 kg
- Flame Sensor x1
- 4-pin custom connector jumper wire x1
1
2
