SKU: 31031
Part No.: ESP32-S3-LCD-1.47B-M
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-S3-LCD-1.47B ESP32-S3 1.47inch LCD display Development Board Type B, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor, ESP32 With Display
ESP32-S3-LCD-1.47B
Onboard TF card slot, 6-Axis IMU, and multiple peripheral interfaces
* for reference only, please refer to the actual display effect
Version options

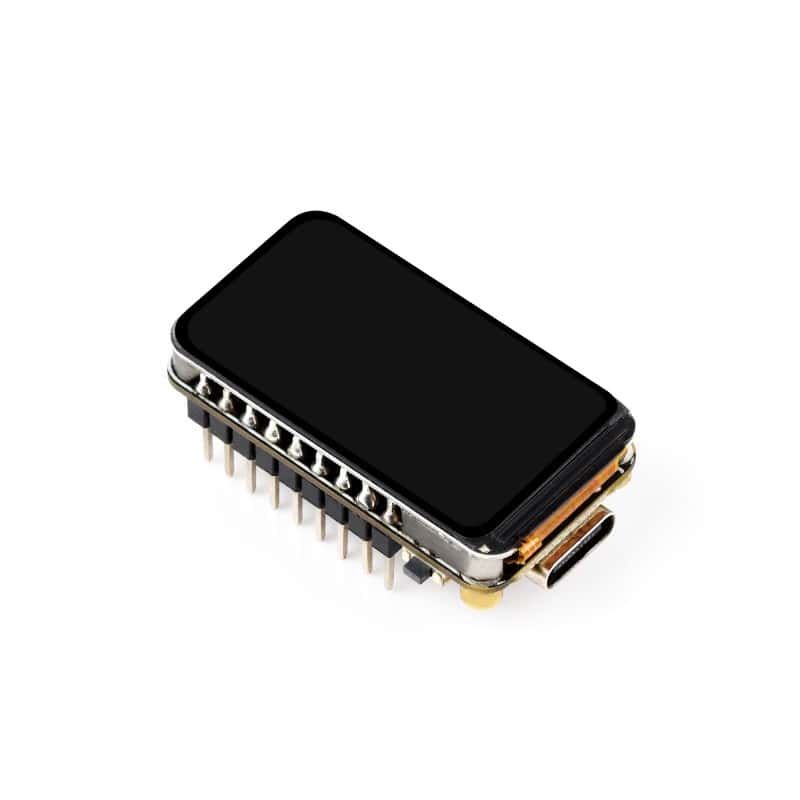

ESP32-S3-LCD-1.47B-M With pre-soldered header (black)
Features
ESP32-S3-LCD-1.47B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g
) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
- Onboard 1.47inch LCD display, 172×320 resolution, 262K color
- Adapting multiple IO interfaces, supports full-speed USB standard
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
- Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects
- Onboard TF card slot for external TF card storage of pictures or files
- Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header)
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
LCD Specifications
DISPLAY SIZE |
1.47inch |
Resolution |
172 × 320 pixels |
Display Driver |
ST7789 |
Color |
262K |
Display Interface |
3-wire SPI |
DISPLAY PANEL |
IPS |
Suitable for AIoT applications
Powered by a high-performance 32-bit LX7 Dual-core processor, the main frequency is up to 240 MHz, with Powerful AI Computing Capability & Reliable security
Wi-Fi and BLE 5 support
ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g
) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Application Scenarios
Pin Definition
Supports the expansion of multiple peripherals via GPIO header

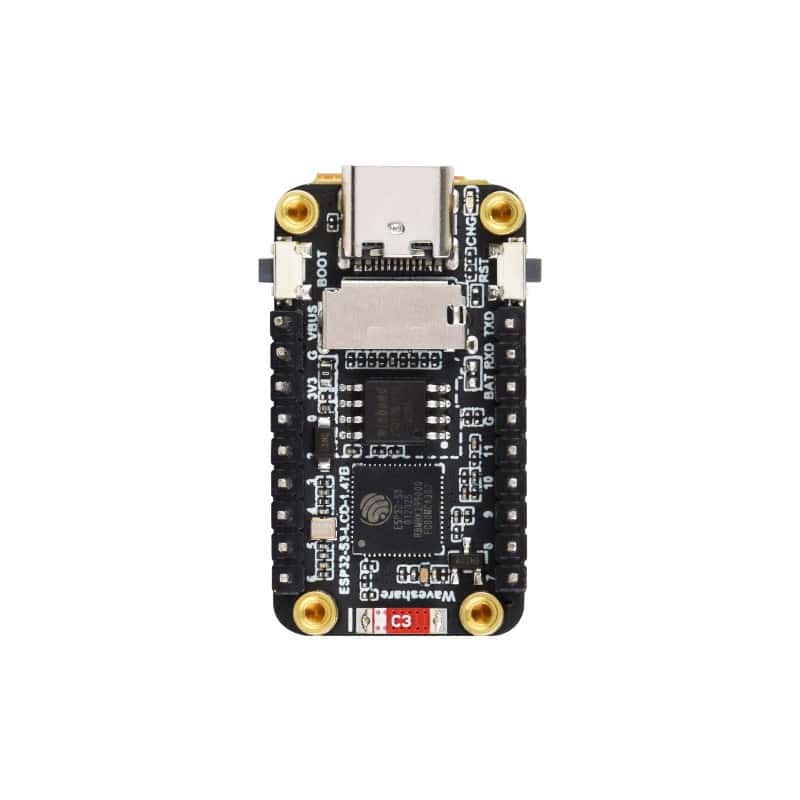

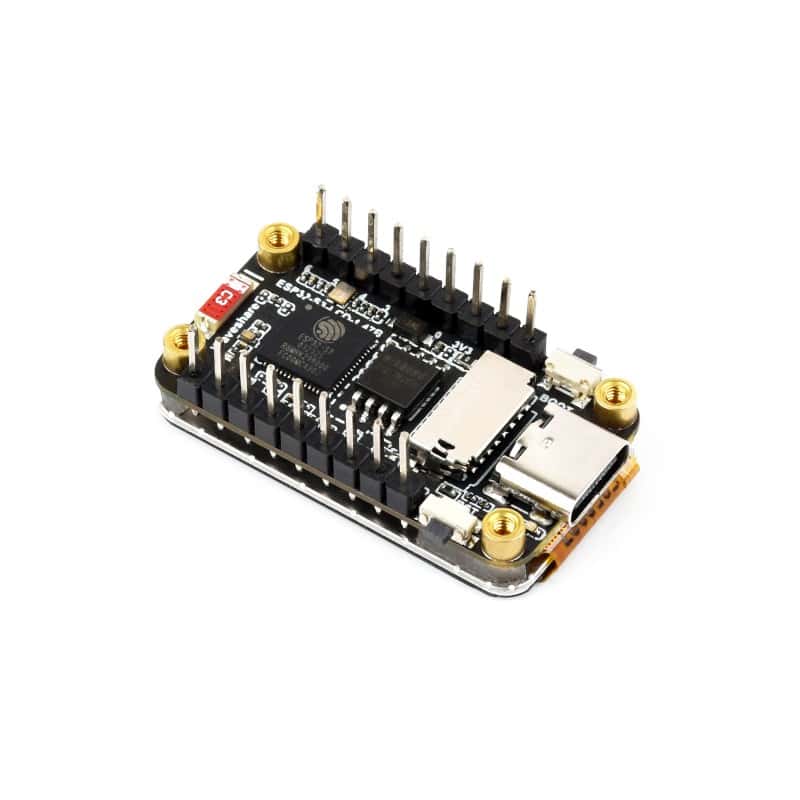

What's On Board
- ESP32-S3R8
Dual-core processor, up to 240MHz running frequency
- 16MB Flash
- RGB LED
with onboard clear acrylic sandwich panel to achieve cool color changes
- ME6217C33M5G
Low dropout regulator, 800mA output (Max.)
- QMI8658
6-Axis IMU
- Charging management circuit
- Onboard ceramic antenna
- System battery interface
for connecting 3.7V Lithium battery, supports charging and discharging
- TF card slot
- RESET button
- BOOT button
- Type-C interface
for power supply, USB communication, and firmware downloading
Outline dimensions
Package content:
Weight: 0.008 kg
ESP32-S3-LCD-1.47B-M
ESP32-S3-LCD-1.47B with pre-soldered header × 1
