Obavesti me kada proizvod bude dostupan!| MODEL | BMP390 | ||
|---|---|---|---|
| DETECTION SUPPORT | barometric pressure, altitude, temperature | ||
| COMMUNICATION INTERFACES | I2C / SPI | ||
| BAROMETRIC PRESSURE | MEASURING RANGE | 300~1250 hPa | |
| ABSOLUTE ACCURACY | ±0.50hPa (@300-1100hPa, 0~65℃) | ||
| RELATIVE ACCURACY | ±0.03 hPa (@700-1100hPa, 25~40℃)(equivalent to ±25 cm) | ||
| TEMPERATURE | COEFFICIENT OFFSET | ±0.6Pa/K (@900hPa,25-40°C) | |
| ABSOLUTE ACCURACY | ±0.5℃ (0~65℃） | ||
| POSSIBLE SAMPLING RATE | 200Hz | ||
| OPERATING TEMPERATURE | -40~85℃ | ||
| DIMENSIONS | 32 × 20mm | ||
For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino

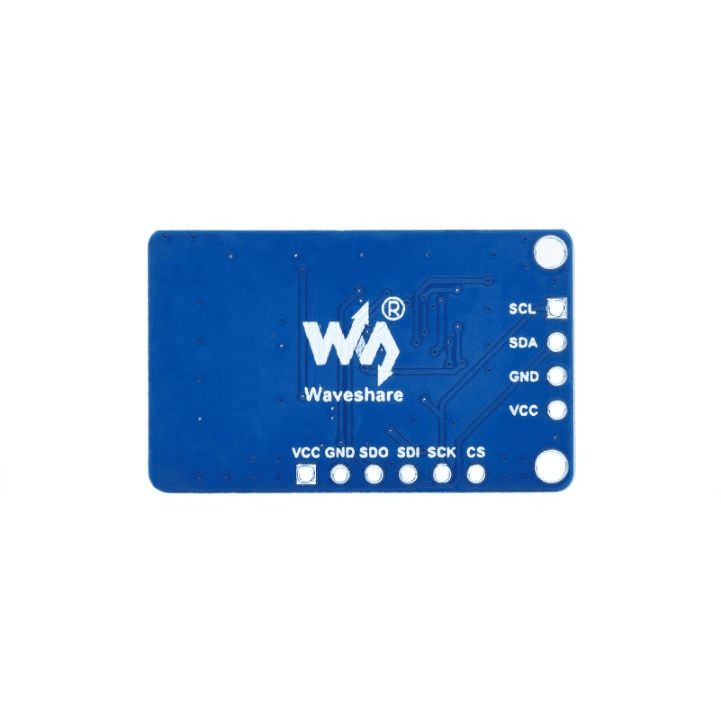

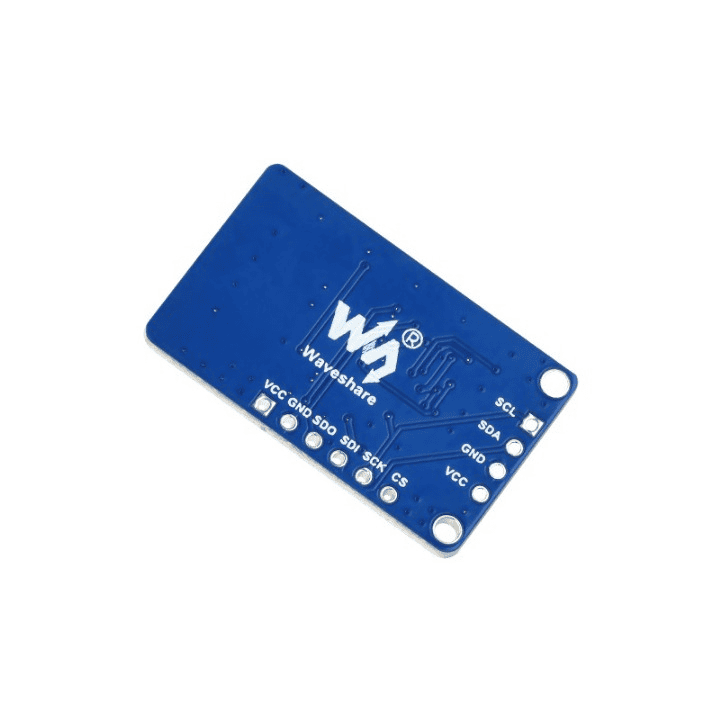

| PIN | I2C | PIN | SPI |
|---|---|---|---|
| VCC | 3.3V/5V power supply | VCC | 3.3V/5V power supply |
| GND | Ground | GND | Ground |
| SDA | I2C data | SDO | SPI data, can be connected to host MISO |
| SCL | I2C clock | SDI | SPI data, can be connected to host MOSI |
| INT | interrupt output, can be connected to I/O | SCK | SPI clock input |
| CS | Chip selection, can be connected to I/O |
