Large Torque | Copper gear or Steel gear | Metal middle case
| Model | WP5335 Servo | |
|---|---|---|
| Product type | PWM digital servo | |
| Torque | 35.5kg.cm@7.4V | |
| Protection level | IP54 | |
| Rotation angle | 180° (500μsec → 2500μsec) | |
| Mechanical limited angle | No Limit | |
| Operating voltage | 4V ~ 8.4V | |
| Encoder type | Carbon film potentiometer | |
| Signal frequency | 50Hz | |
| Gear material | Steel gear | |
| No-load speed | 0.192sec/60° (52RPM) @7.4V | |
| No-load current | 180mA | |
| Locked-rotor current | 3.9A@7.4V | |
| Kt | 10kg.cm/A | |
The gear shaft is reinforced to 5.9mm, and features dual ball bearings design for longer lifespan
WP5335
* for reference only, the Raspberry Pi and Servo Driver HAT are NOT included.
The protection level of the servo is IP54, with internal sealing process and added waterproof rubber rings at joints to enhance protection and adapt to various environments
RC Car
RC Boat

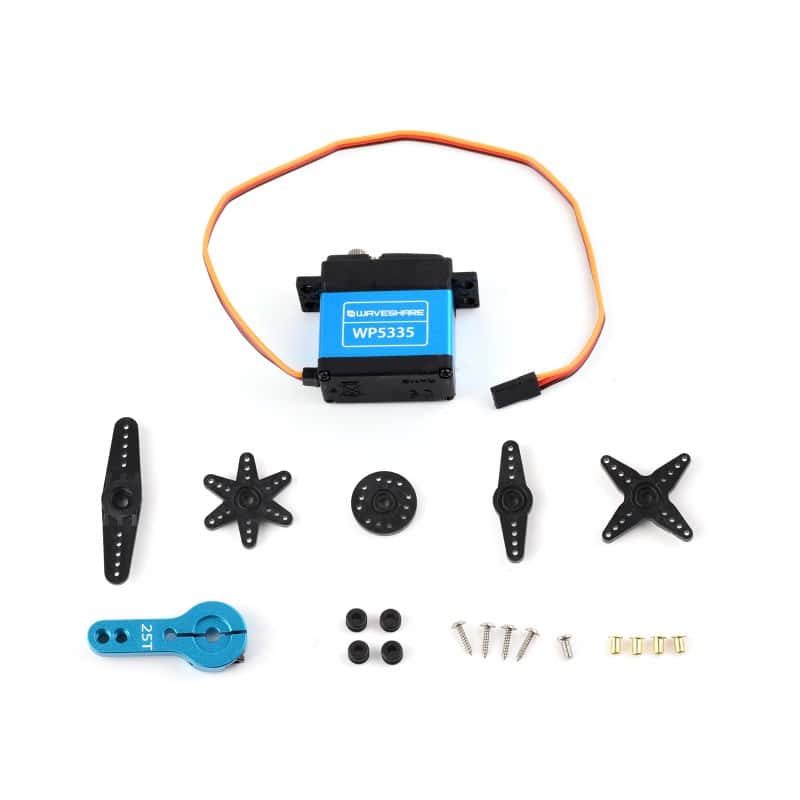

Aircraft Model * for reference only, please refer to the Package Content for the detailed part list.
