www.waveshare.com/wiki/13.3inch-FHD-Monitor 13.3inch High Resolution HDMI Capacitive Touch Display, 10-Point Touch, 1920 × 1080, Toughened Glass Panel, Type-C/HDMI Display Interface, Full Metal Back Cover
13.3inch FHD Monitor
High Resolution | Multi-Point Touch | Full Color
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series
Supports Ubuntu, single point touch, driver free
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
Huawei, Samsung...(wired projection)
Game Console
Xbox360, Switch...
Connection Examples
Working with Full-Featured Type-C PC
Working with Full-Featured Type-C Smartphone
Working with Raspberry Pi 5 / 4B
Working with Raspberry Pi 3B+
Working with Jetson series board
- Please make sure that the smartphone or PC itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
How to Install
Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example.
Step 1: Connect the cables ①, ④, and ⑤ to the connectors on the back side of LCD display, shown in the picture above.
Step 2: Install the Raspberry Pi 5 on the back cover via the screws included in the package.
Step 3: Connect the HDMI adapter ② to the cable ① first (choose HDMI adapter ② or ③ according to your Raspberry Pi model), then insert it into the Raspberry Pi Micro HDMI port; Connect the cable ④ to the USB port of the Pi and connect the cable ⑤ to the GPIO 5V, 5V, GND pin header as shown above.
Step 4: Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.
* for reference only, the Raspberry Pi 5 is not included.
Full-featured Type-C interface
Supports audio and video transmission, plug and play. One cable is just enough for either computer dual-screen OR Smartphone wired projection
Computer Dual Screens For Collaborative Processing
One screen for work, one screen for study, without interfering with each other
* for reference only, please refer to the Package Content for detailed part list
IPS Wide Viewing Angle
IPS panel enhances the display and color performance of the monitor. 178° wide viewing angle, whether it is viewed vertically or horizontally, the display effect is still clear
Supports DDC/CI backlight adjustment
Smooth Gaming Experience
A good partner for the game consoles, play video games with a wider and clearer vision. Supports Xbox360 / PS4 / SWITCH etc. (Display and Sound Only)
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel

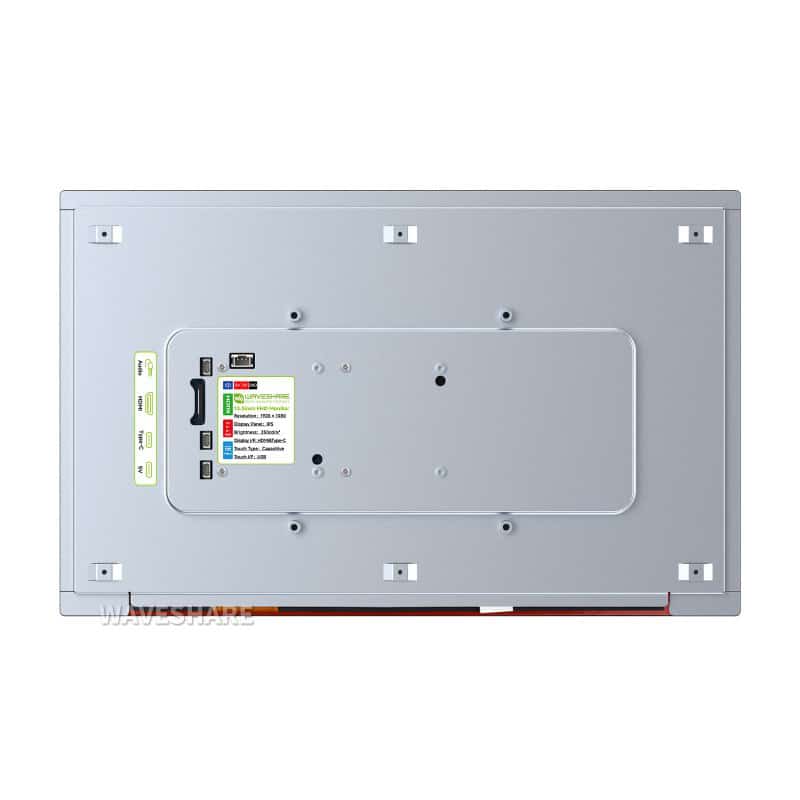

Interface Introduction
- 5V Type-C power supply
- Full-featured Type-C port
- Standard HDMI port
- 3.5mm audio jack
- 3PIN PH2.0 power connector
- 4PIN PH1.25 speaker header
- HDMI FPC connector
- OSD button board header
- 4pin PH1.25 touch header
- Raspberry Pi mounting holes
- 100×100mm M4 VESA mounting holes
Outline Dimensions
Package content:
Weight: 1.598 kg
- 13.3inch FHD Monitor × 1
- 5V 3A Type-C power supply × 1
- Type-C dual-plug cable ~1m × 1
- HDMI flat cable ~1m × 1
- USB Type-A to USB Type-C cable ~1m × 1
- Cleaning cloth × 1
- Micro HDMI adapter × 1
- HDMI adapter × 1
- Button board × 1
- 3PIN cable × 1
- HDMI to Micro HDMI adapter × 1
- HDMI-Cable-200mm (2PCS) × 1
- 1.27H 4PIN button board cable × 1
- USB Type-A to PH1.25 4P cable × 1
- Screws pack × 1
